RAM Mounts

RAM Garmin Cradle - GPS 12, 12CX, 12XL, 12MAP & 38 with U-Bolt Handlebar Base

RAM Garmin Cradle - GPS 12, 12CX, 12XL, 12MAP & 38 with U-Bolt Handlebar Base

SKU:RAM-B-149Z-GA1U-V

Regular price $128.61 NZD
Regular price Sale price $128.61 NZD
Sale Sold out
Tax included. Shipping calculated at checkout.
View full details

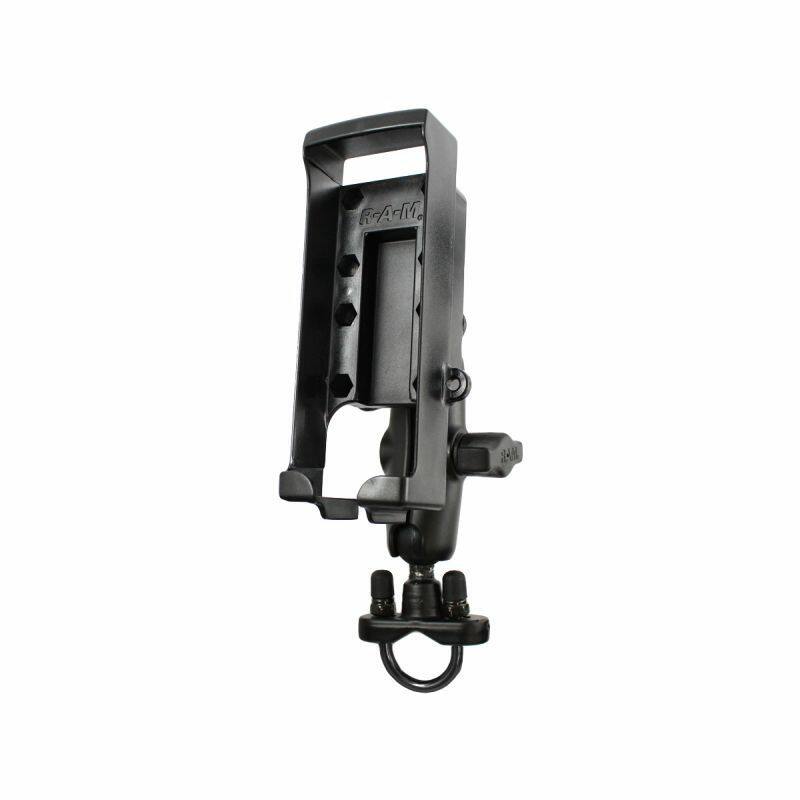

RAM-B-149Z-GA1U RAM® Handlebar U-Bolt Mount for Garmin GPS 12, 12CX, 12XL, 12MAP & 38

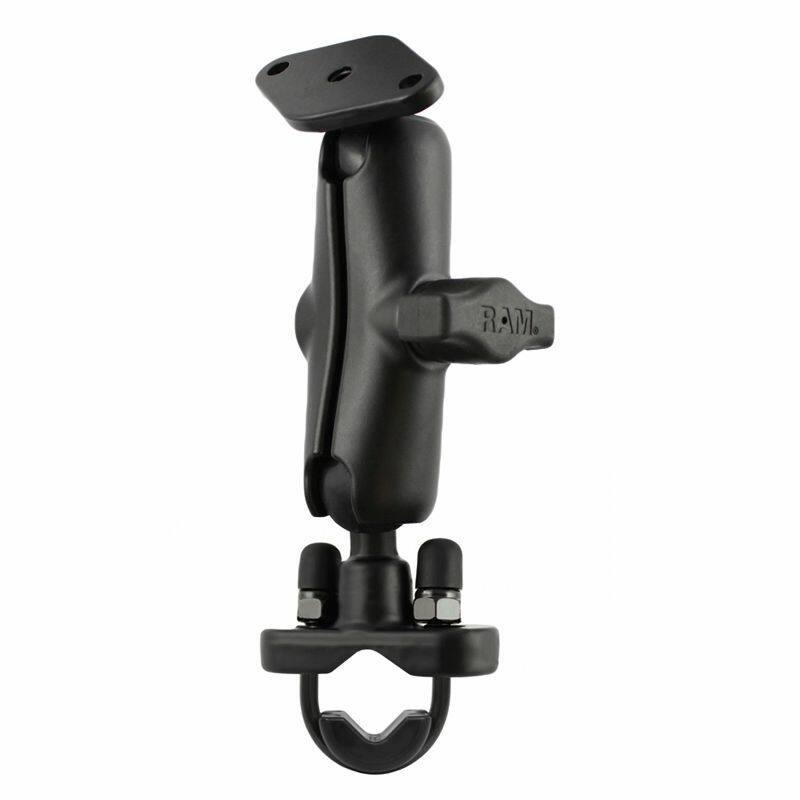

The RAM-B-149ZU consists of a zinc coated u-bolt base, double socket arm and diamond adapter base. The diamond adapter base has a hole pattern that matches the industry standard AMPS hole pattern and will connect to a large variety of RAM Mount and third party cradles. Included in this package is hardware that will accommodate rails from 1.27cm to 3.18cm (0.50" to 1.25") in diameter. A composite rail adapter can narrow the rail to a minimum width of 0.5”. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles.

The GA1U cradle has is constructed of high strength materials ensure product longevity and provides full access to all ports. The cradle has a lifetime warranty and is made in the U.S.A.


Specs & Features

U-Bolt Dimensions:
1.27cm to 3.18cm (0.50" to 1.25" )

Material:
Powder Coated Marine Grade Aluminium (base and arm)
High Strength Composite (GPS cradle)

Ball Size:
1" Rubber Ball "B" Size

Weight:
0.286kg / 0.63 lbs.

Components

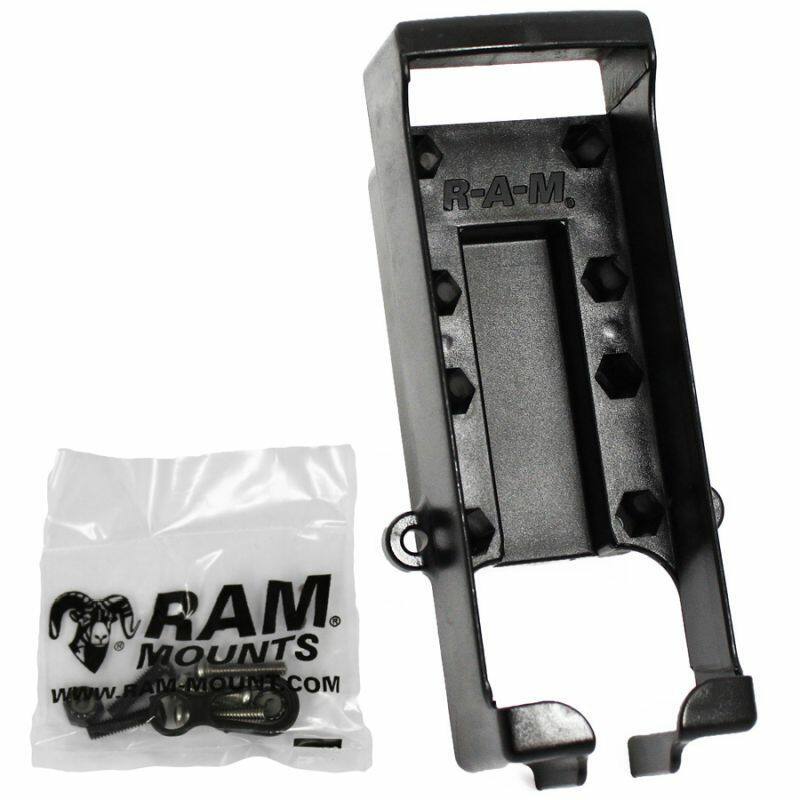

RAM-HOL-GA1U HOLDER GARMIN 12 SERIES
RAM-B-238U 62 X 33mm DIAMOND BASE W/ 1 BALL
RAM-B-201U DOUBLE SOCKET ARM FOR 1" BALL

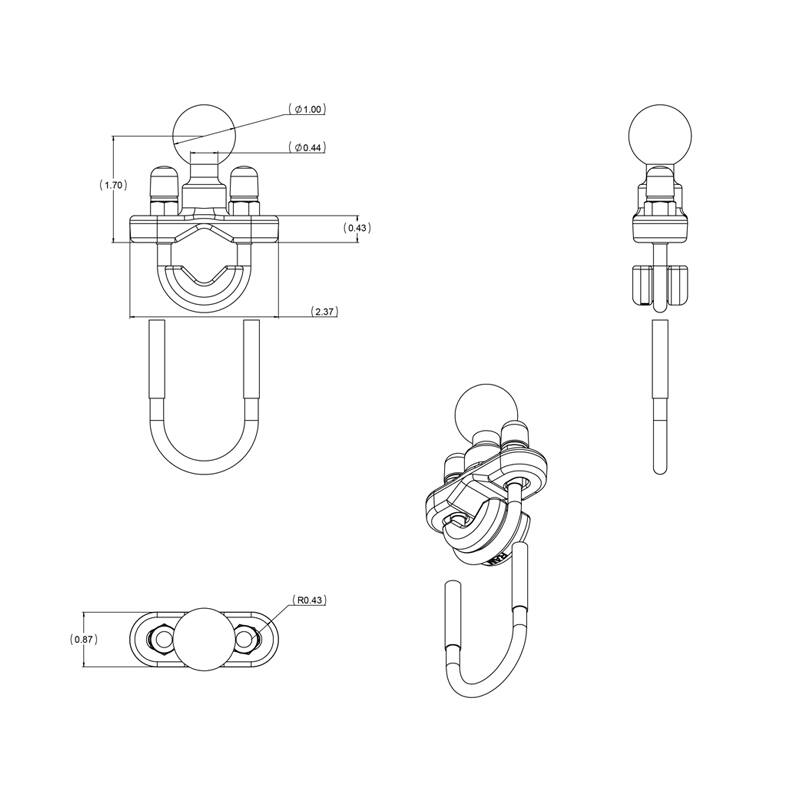

RAM-B-231ZU RAIL BASE W/ U-BOLT FOR 13 - 32MM BARS

YouTube:
https://www.youtube.com/watch?v=Ip0bJ7nNpLs

Note: this is does not include the Garmin GPS unit itself
