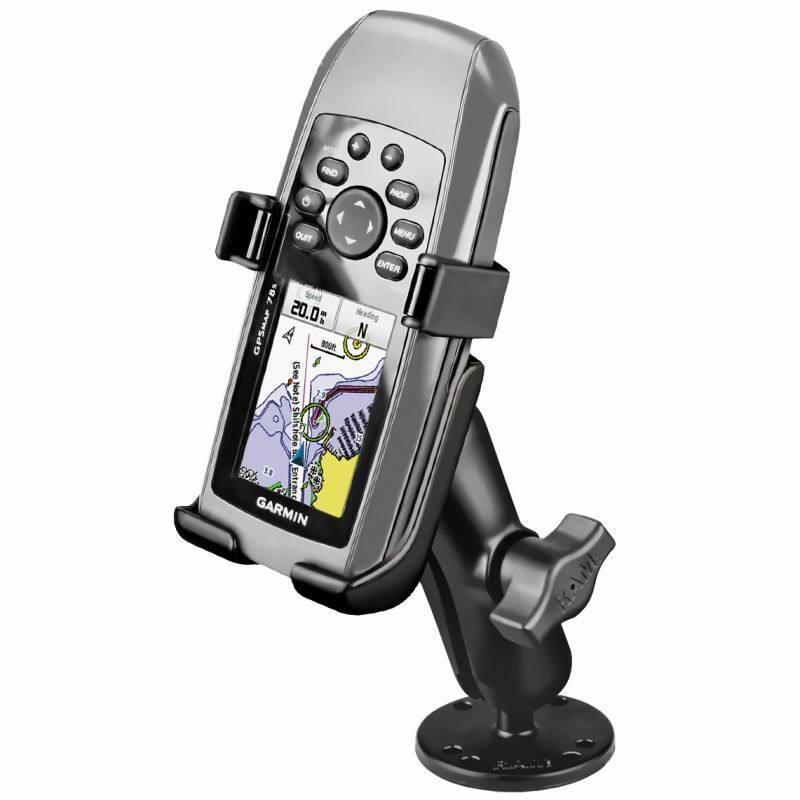

RAM-B-138-GA40 RAM® Drill-Down Mount for Garmin GPSMAP 73, 78, 78S, 78SC
Features:
* High strength composite cradle for Garmin GPSMAP 12H, 73, 78, 78S, 78SC
* Full access to all ports
* Drill down base provides a secure and stable base on may surfaces and locations
* Powder Coated Marine Grade Aluminium and High strength composite construction ensures product longevity
* Lifetime warranty

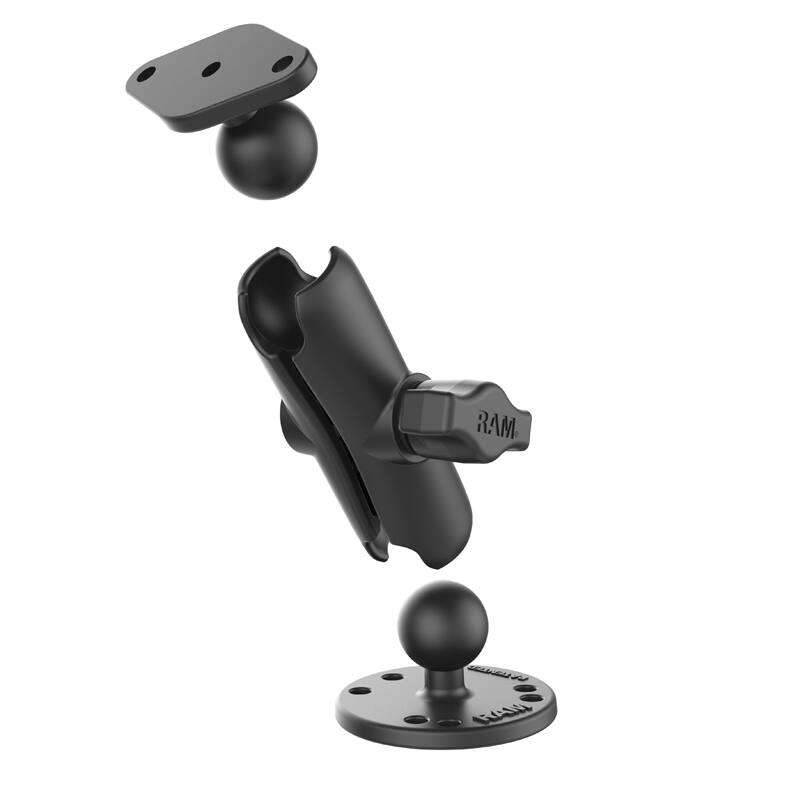

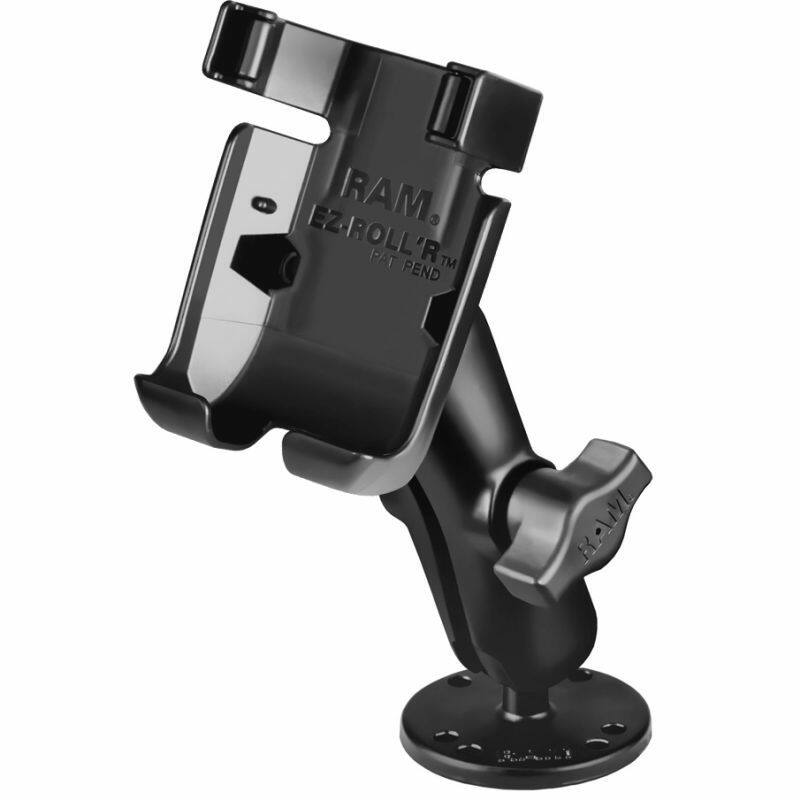

The RAM-B-138-GA40 consists of a double socket arm, 63mm / 2.5" diameter round base with the universal AMPS hole pattern, diamond adapter base and custom high strength composite cradle for the Garmin GPSMAP. Designed into the mount is a 1" diameter patented rubber ball and socket system with adjustment points at the base and cradle. With a twist of the arm knob, you can move the flat surface mount to your optimum viewing position

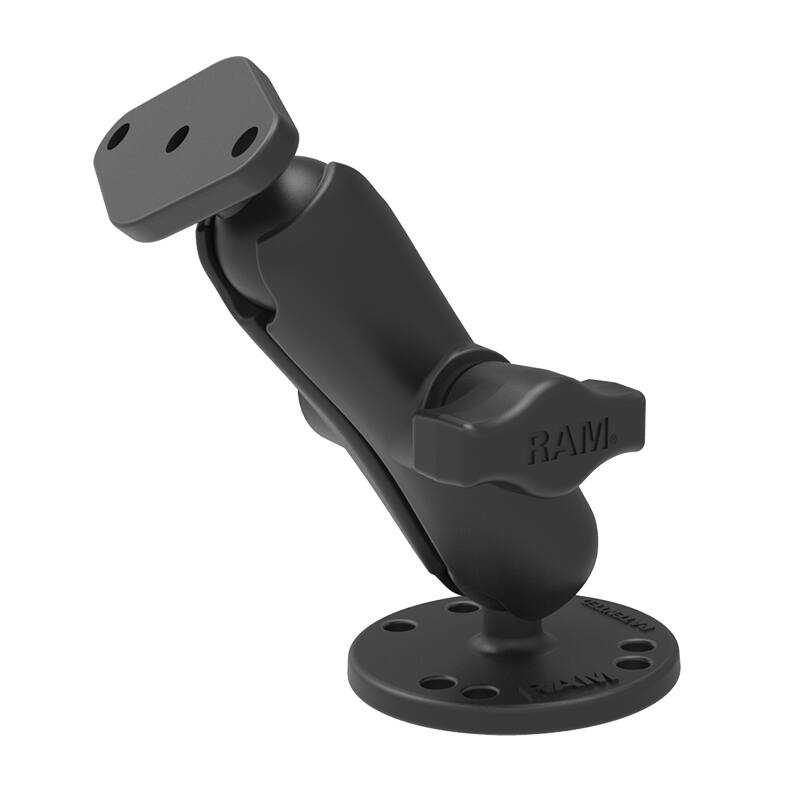

The base consists of a 2.5" (63.5mm) diameter round base that contains the universal AMPs hole pattern, 94mm double socket arm and diamond base adaptor.
The mount is designed with a 1" (B Series) diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allows for almost infinite adjustment and perfect viewing angles. The included RAM’s patented design dampens shock and vibration, helping to extend the life of your device.
The diamond base is a 1" diameter rubber ball connected to a 61.7mm x 33.3mm diamond base. The base has two holes 48.5mm from centre to centre, to connect directly to the Garmin cradle.
Compatible Devices
Garmin
GPS 12H
GPS 73
GPSMAP 78
GPSMAP 78s
GPSMAP 78sc
Specs & Features
Overall Length:
127.8mm (5.03")
Arm Dimensions:
Overall Length:
94mm (3.69")
Socket-To-Socket Length:
76mm (3")
Material:
High Strength Composite
Powder Coated Marine Grade Aluminium
Ball Size:
1" Rubber Ball "B" Size
Weight:
308 grams (0.68 lbs.)
Components:

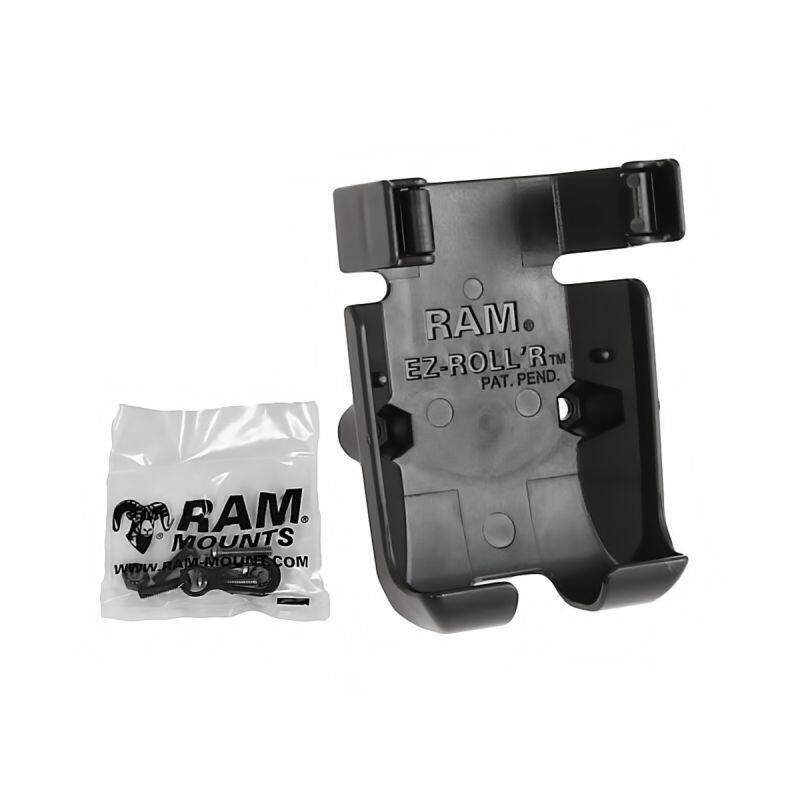

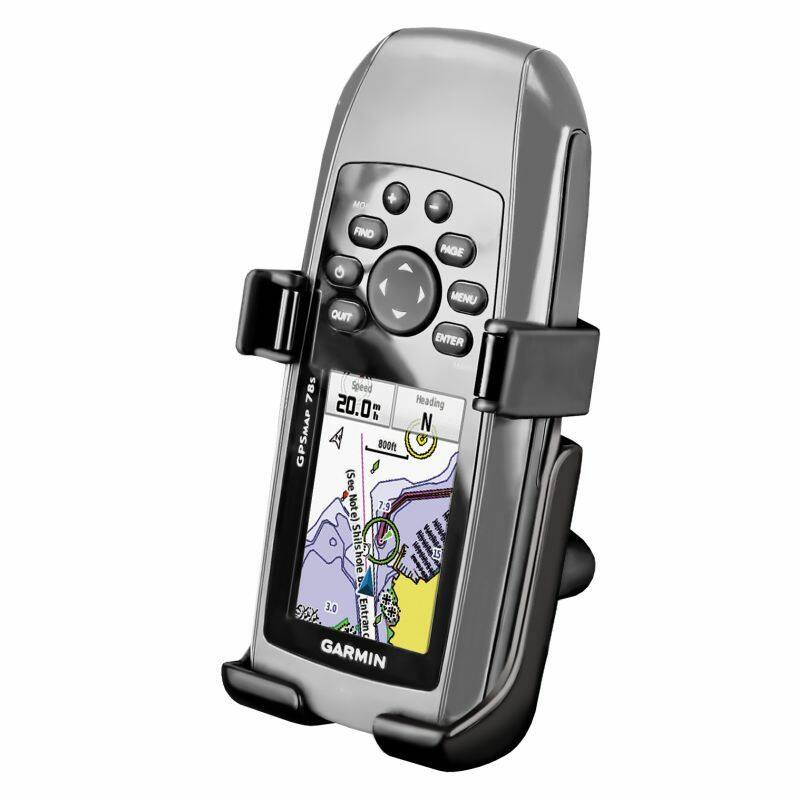

RAM-HOL-GA40U RAM HOLDER FOR GARMIN 78 GPS
RAM-B-201U RAM DOUBLE SOCKET ARM FOR 1" BALL
RAM-B-238U RAM 62 X 33mm DIAMOND BASE W/ 1 BALL
RAM-B-202U RAM 62mm DIA.BASE WITH 1" BALL
