RAM Garmin Cradle - GPSMAP 73, 78, 78s & 78sc with U-Bolt Handlebar Base

RAM Garmin Cradle - GPSMAP 73, 78, 78s & 78sc with U-Bolt Handlebar Base

SKU:RAM-B-149Z-GA40U-v

Regular price $114.84 NZD
Regular price Sale price $114.84 NZD
Sale Sold out
Tax included. Shipping calculated at checkout.
View full details

RAM-B-149Z-GA40U RAM® U-Bolt Mount for Garmin GPSMAP 73, 78, 78S, 78SC - Zinc

Features:

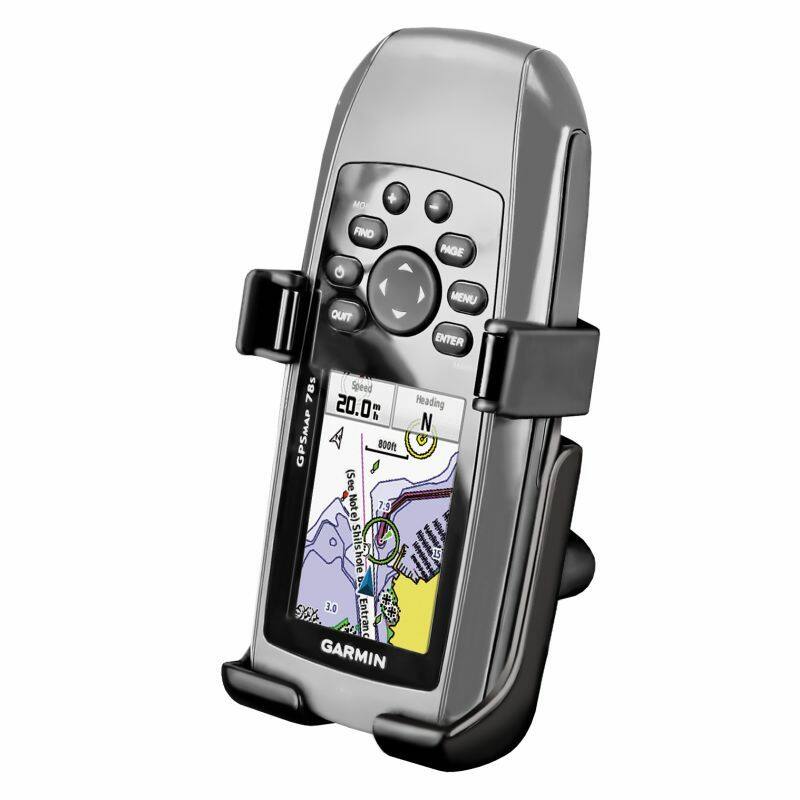

* High strength composite cradle for Garmin GPSMAP 12H, 73, 78, 78S, 78SC
* Full access to all ports
* Handlebar mount with zinc coated U Bolt is safe and secure on rails 12.7 - 32mm diameter
* Marine-grade aluminium and High strength composite construction ensures product longevity
* Lifetime warranty

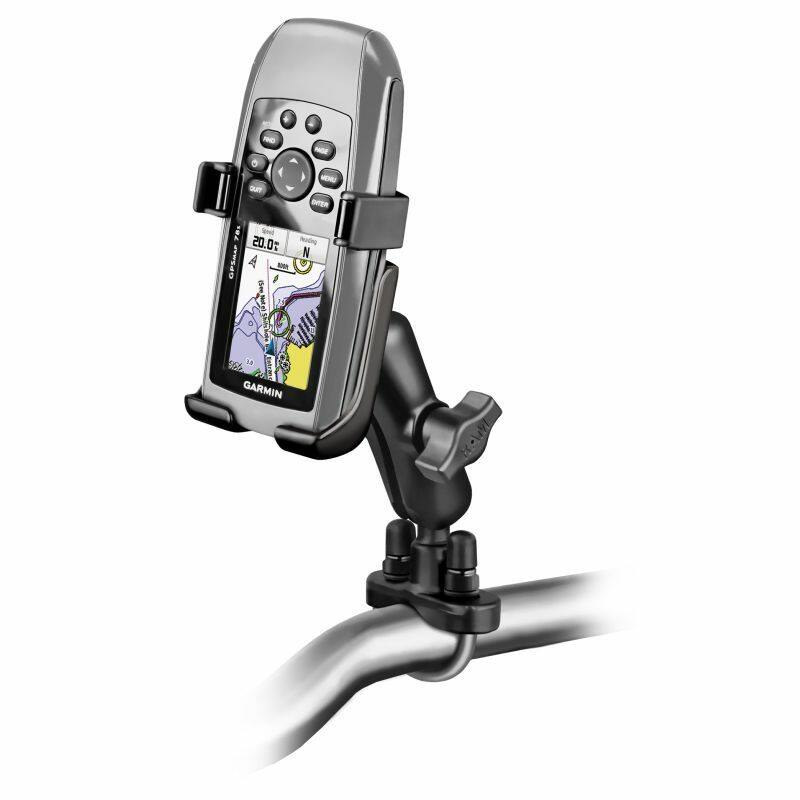

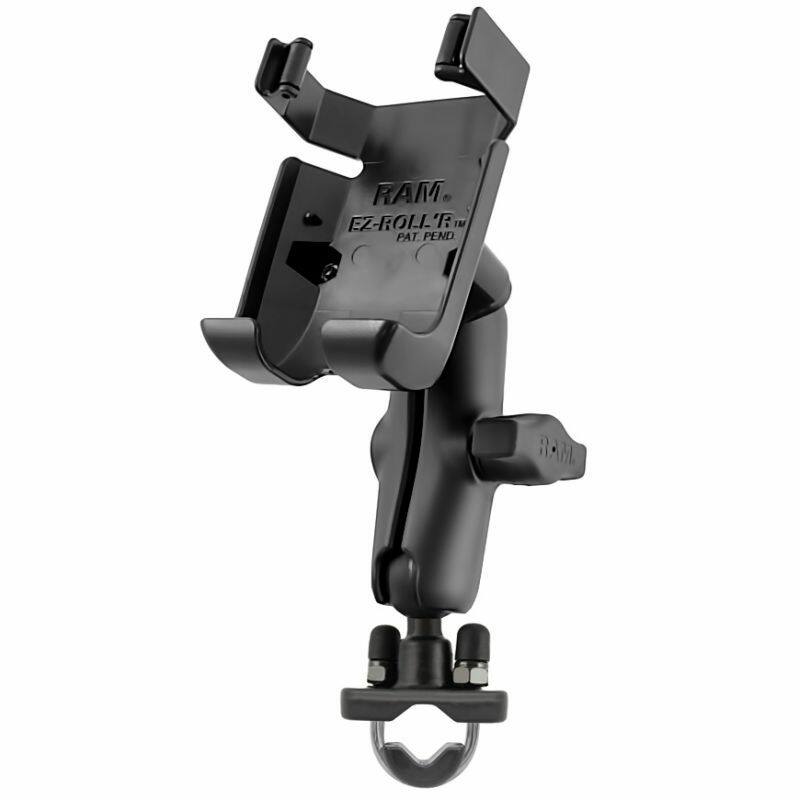

The RAM-B-149Z-GA40U consists of a double socket arm, zinc coated u-bolt base, diamond adaptor base and custom high strength composite cradle for the Garmin GPSMAP® 78 series. Designed into the mount is a 1" diameter patented rubber ball and socket system with adjustment points at the base and cradle. With a twist of the arm knob, you can move the motorcycle GPSMAP® mount to your optimum viewing position.

Included in this package is hardware that will accommodate rails from 0.50" to 1.25" in diameter. A set of two nuts and bolts to connect the cradle to any RAM components or mounts that contain the universal AMPs hole pattern.

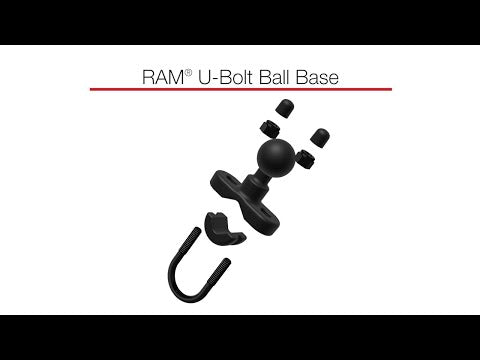

The motorcycle handlebar base with Zinc Coated U-Bolt & 1" Ball for Rails will fit bars 12.7mm to 32mm (0.5" to 1.25") in Diameter. The zinc coated metal u-bolt will fit all common motorcycle and bicycle handlebars. Includes black cover caps to cover the exposed ends of the u-bolt and a composite adapter that can narrow the rail to a minimum width of 12.7mm (1/2").


Compatible Devices

Garmin
GPS 12H
GPS 73
GPSMAP 78
GPSMAP 78s
GPSMAP 78sc

Note: this is does not include the Garmin GPS unit itself



U-Bolt Dimensions:
Rails from 12.7 - 32mm (0.5" to 1.25")in diameter.

Arm Dimensions:
Overall Length:
94mm (3.69")
Socket-To-Socket Length:
76mm (3")


Materials
Marine-grade aluminium
High strength composite



Components:

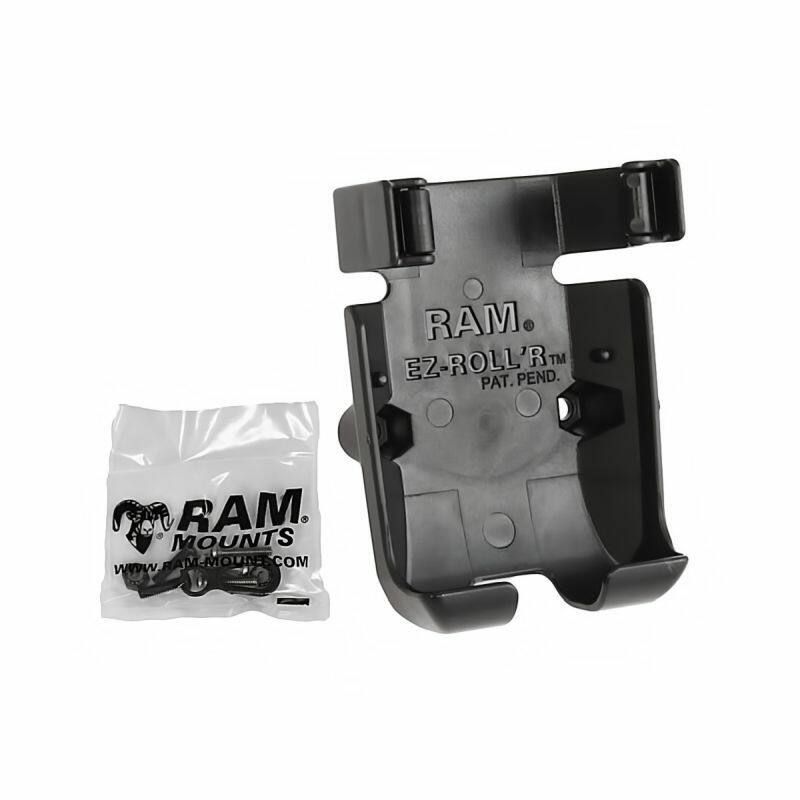

RAM-HOL-GA40U - Garmin Cradle

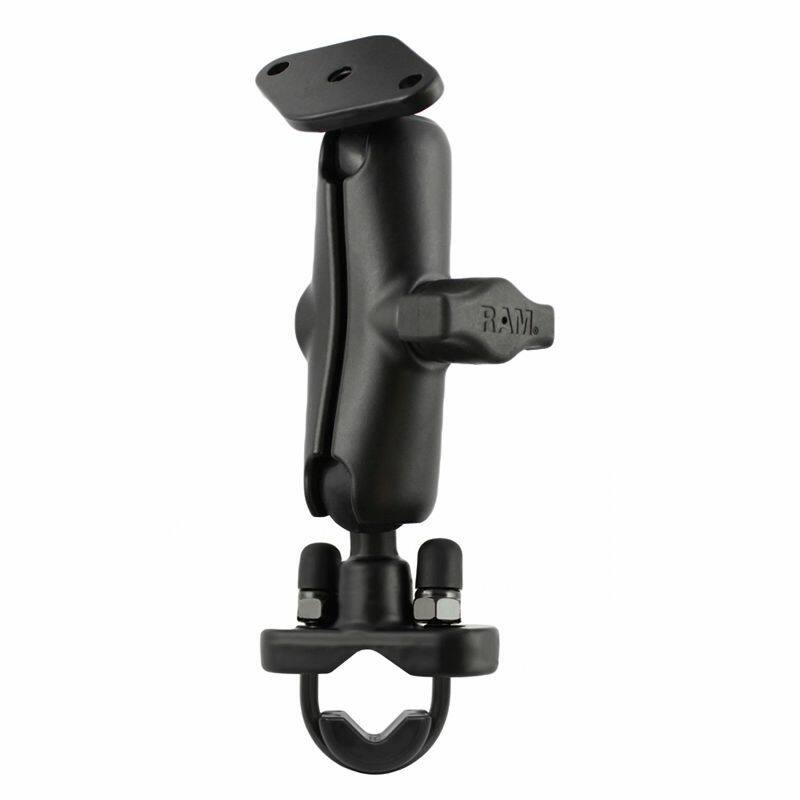

RAM-B-201U - 94 mm double socket arm
RAM-B-238U - diamond base with 1" ball
RAM-B-231ZU - rail base
