RAM Garmin Cradle - Montana 600 / 610 / 650 / 680 with U-Bolt Handlebar Base

RAM-B-149Z-GA46 – RAM® Handlebar U-Bolt Mount for Garmin Montana 600, 610, 650 & 680 Series

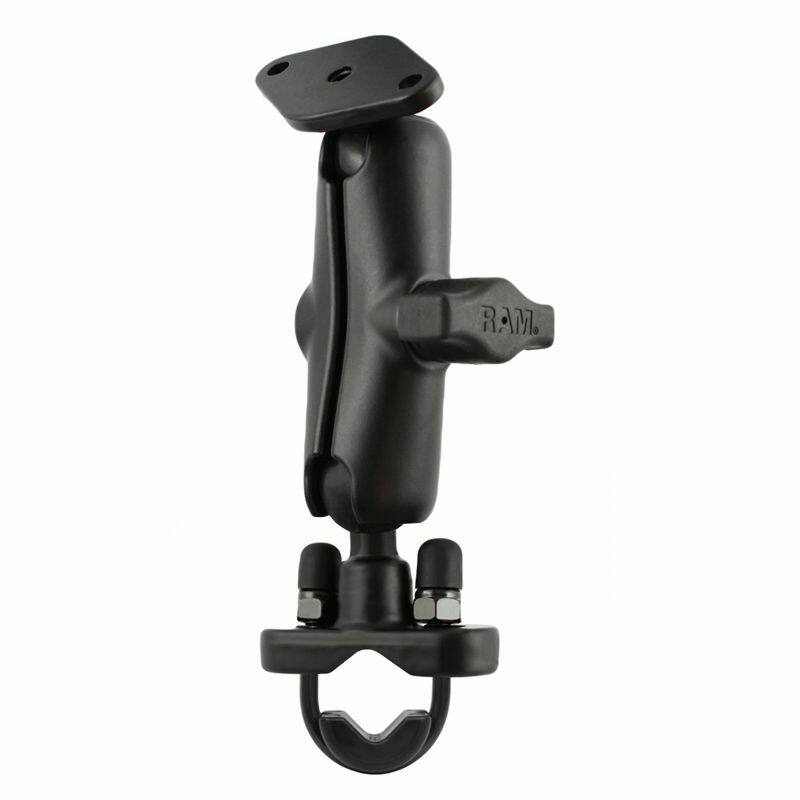

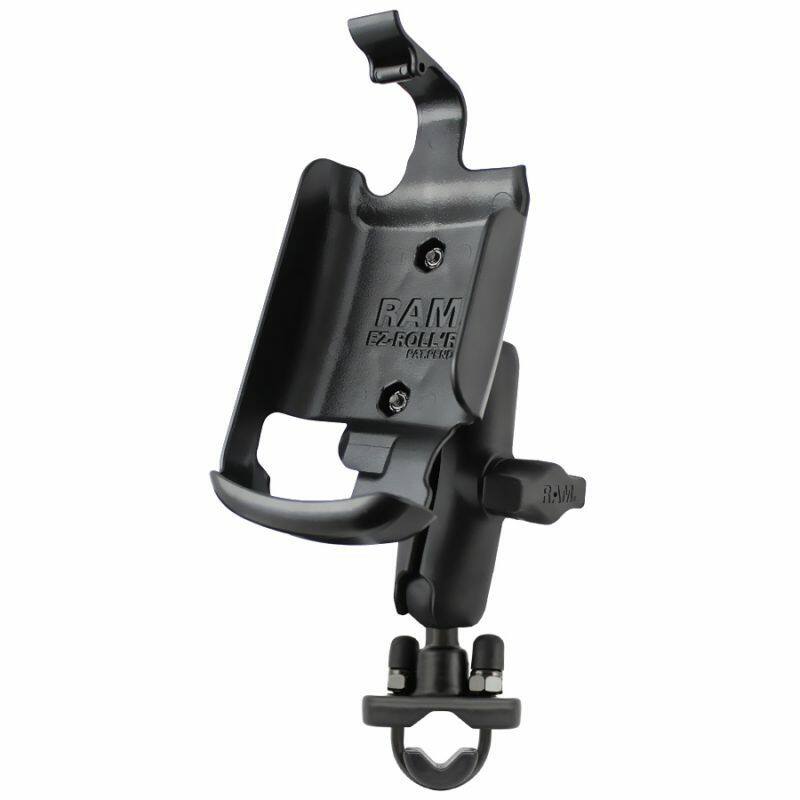

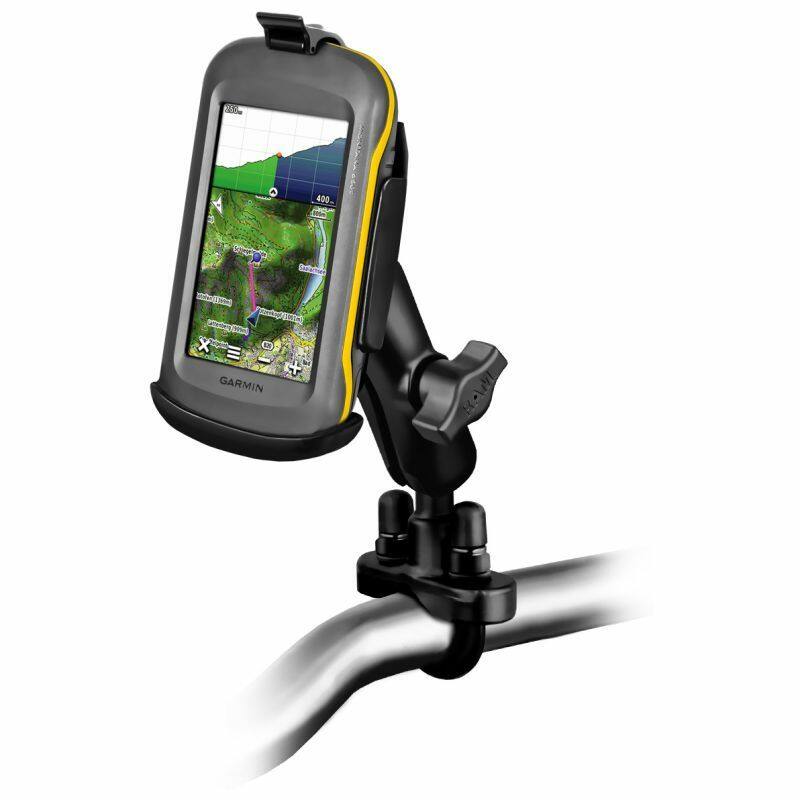

The RAM-B-149Z-GA46 mounts the Garmin Montana series to a handlebar using a zinc-coated U-bolt base, a diamond AMPS adapter and a double socket arm. The U-bolt fits bars 12.7mm to 32mm (0.5" to 1.25") in diameter, with a composite adapter narrowing the fit to 13mm (0.5") minimum.

Key Features

• Zinc-coated U-bolt base clamps to handlebars, roll bars and similar tubing from 12.7mm to 32mm (0.5" to 1.25")
• Diamond adapter base uses the industry-standard 2-hole AMPS pattern
• Double socket arm with 1" B-size rubber balls at both ends for near-infinite adjustment
• Model-specific high-strength composite cradle with full access to all ports
• Backed by RAM Mounts' lifetime warranty

What's Included

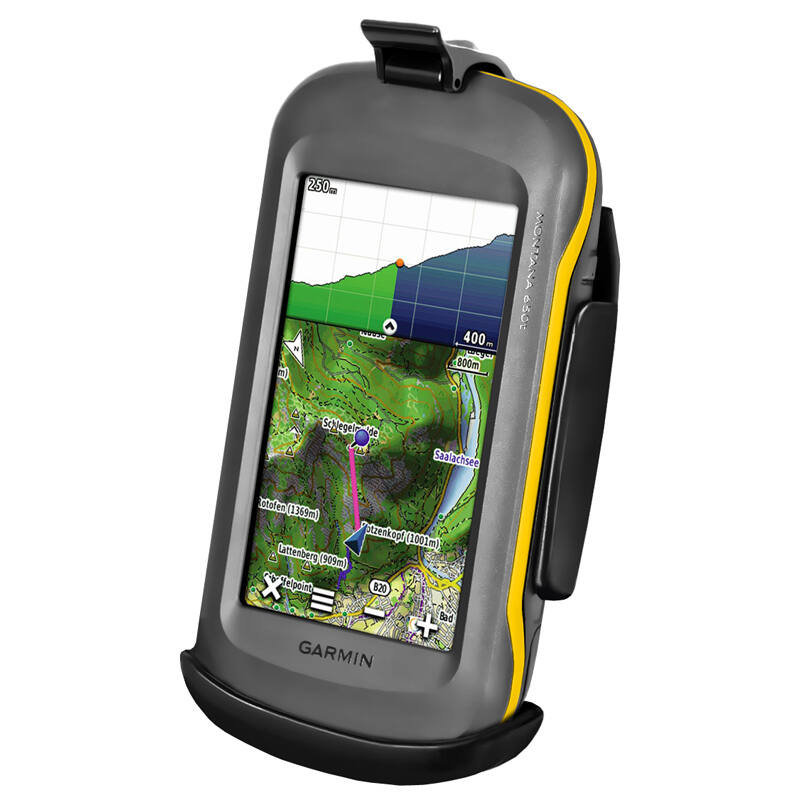

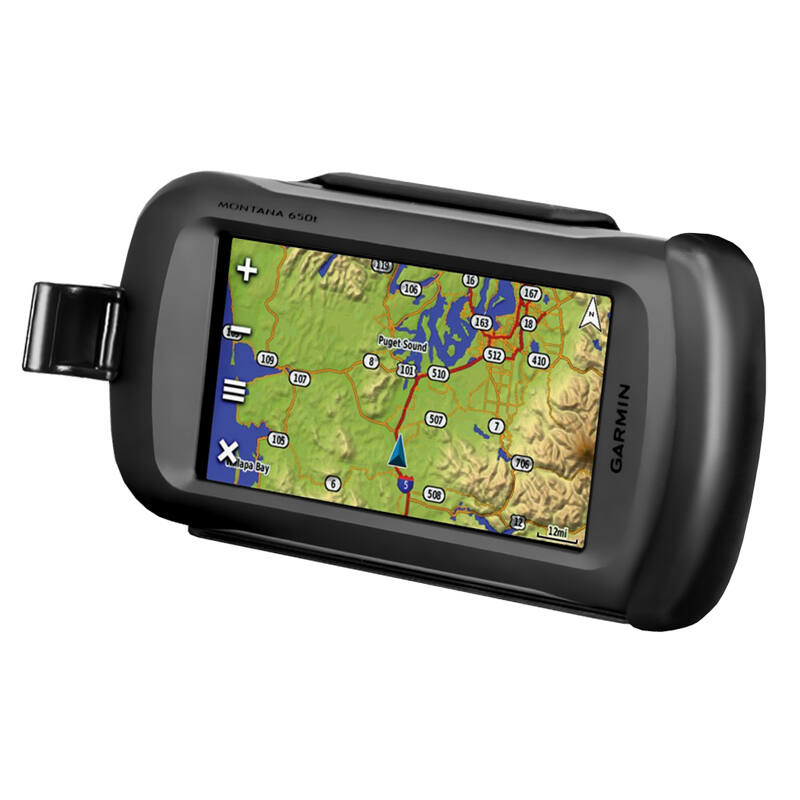

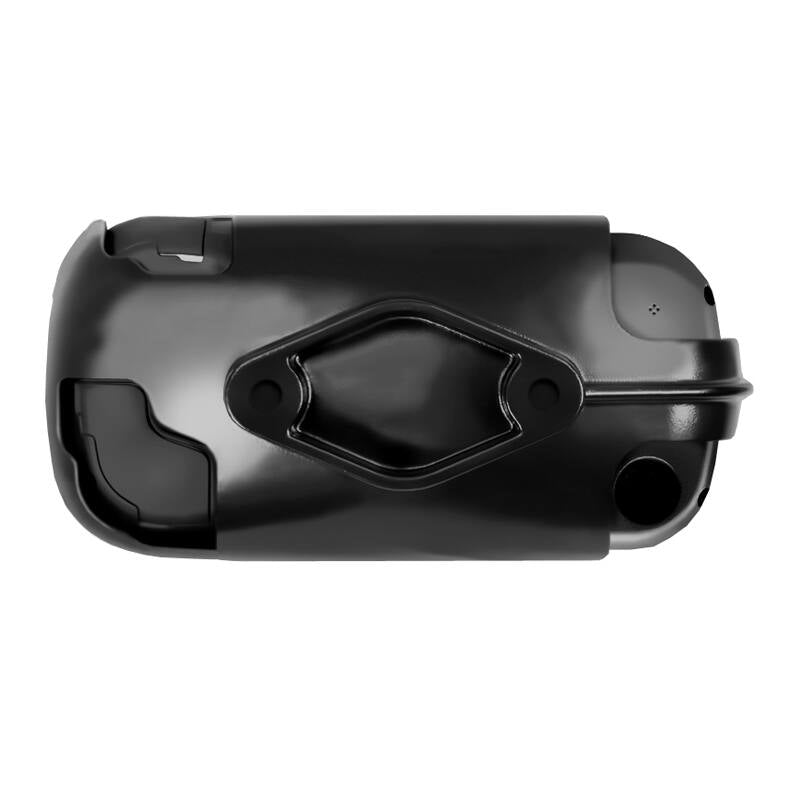

• RAM-HOL-GA46U cradle for Garmin Montana 600, 610, 610t, 650, 650t, 680 & 680t
• RAM-B-201U double socket arm for 1" ball
• RAM-B-238U diamond base with 1" B-size ball
• RAM-B-231ZU U-bolt rail base for 12.7-32mm (0.5"-1.25") bars

Dimensions & Specifications

• U-bolt clamp range: 12.7mm to 32mm (0.5" to 1.25")
• Arm overall length: 94mm (3.69"); socket-to-socket 76mm (3")
• Ball size: B size, 1" rubber ball
• Load capacity: 907g (2 lb) standard use; 454g (1 lb) heavy-duty use
• Weight: 308g (0.68 lb)
• Material: marine-grade aluminium; high-strength composite

Compatible Devices

Garmin

• Montana 600
• Montana 610
• Montana 610t
• Montana 650
• Montana 650t
• Montana 680
• Montana 680t

The Garmin GPS unit itself is not included.

Videos

• RAM U-Bolt handlebar mount overview
