RAM Garmin Cradle - nuvi 1100/1200 with Brake / Clutch / U-Bolt Mount

RAM Garmin Cradle - nuvi 1100/1200 with Brake / Clutch / U-Bolt Mount

SKU:RAM-B-174-GA33U-v

Regular price $119.39 NZD
Regular price Sale price $119.39 NZD
Sale Sold out
Tax included. Shipping calculated at checkout.
View full details

RAM-B-174-GA33U RAM Brake/Clutch Reservoir Mount for the Garmin nuvi

Features:

* RAM® high strength model specific cradle for the Garmin nuvi® 1100, 1100LM, 1200, 1240, 1245, 1250 & 1260T
* Full access to all ports
* Base will fit to brake/clutch reservoirs
* Will fit bars / rails that are 12.7 to 32mm in diameter
* Marine grade aluminium alloy and high strength composite construction ensures product longevity
* Lifetime warranty

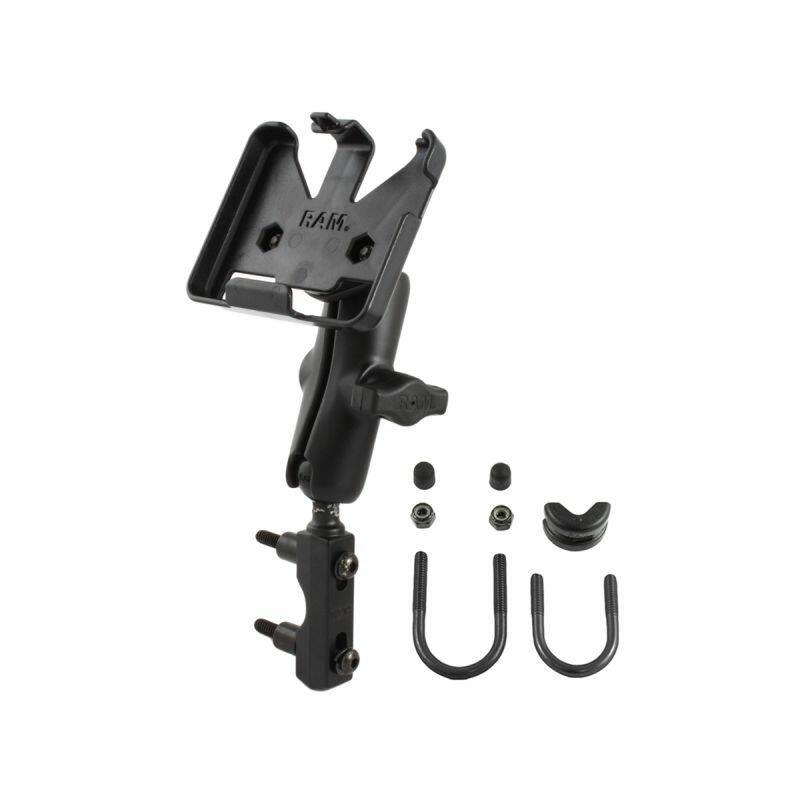

The RAM-B-174-GA33U consists of a double socket arm, hardware for mounting to both brake/clutch reservoirs or bars / rails, diamond adaptor base and custom high strength composite cradle for the Garmin nuvi.

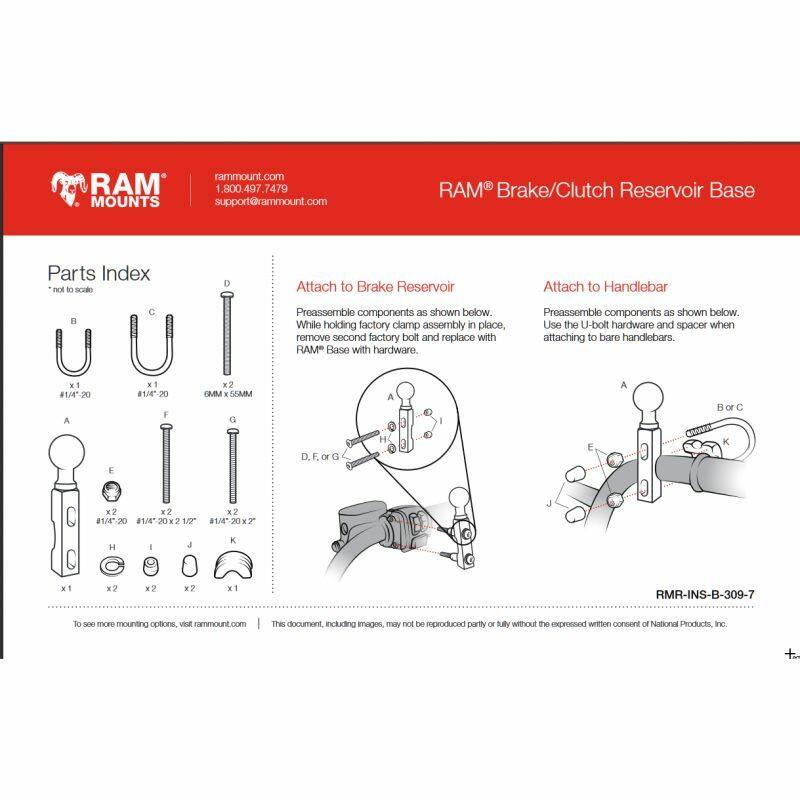

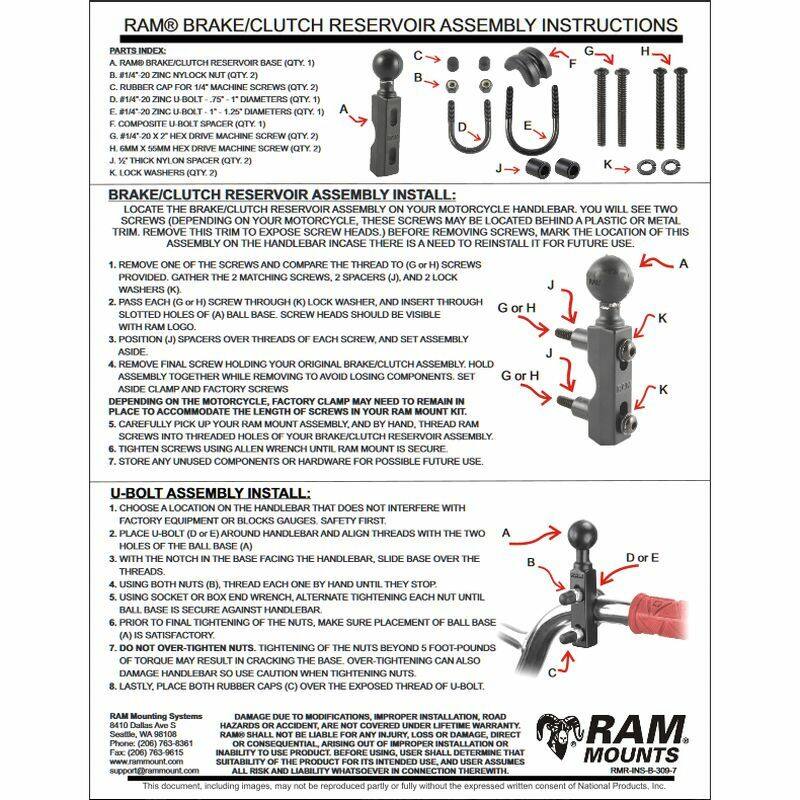

Designed into the mount is a 1" diameter patented rubber ball and socket system with adjustment points at the base and cradle. With a twist of the arm knob, you can move the motorcycle nuvi mount to your optimum viewing position. The mounting hardware for brake/clutch reservoirs include both standard and metric mounting bolts.

The cradle consists of a high strength composite cradle and hole pattern that will allow the attachment to all RAM components or mounts that contain the universal AMPs hole pattern.

The combination handlebar and brake/clutch reservoir base provides the ultimate flexibility for mounting to your motorcycle. Mount to either your handlebar or brake/clutch reservoir. Standard US or metric thread stainless steel bolts, provided in the kit for brake/clutch clamp attachment. If you want to go straight onto the handlebars the zinc coated metal U-bolt accommodates rails from 12.7 to 31.7mm in diameter.

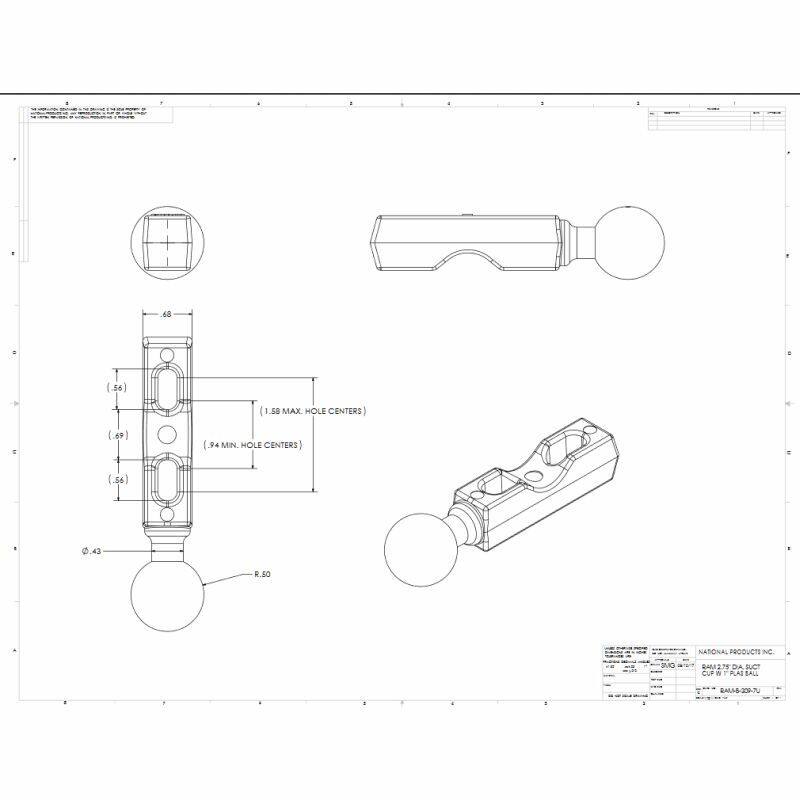

To see if the base will mount to your motorcycle, check the hole spacing of the base against your clutch/brake reservoir. The hole centres have a minimum width of 0.94" (23.8mm) and a maximum of 1.58" (40.1mm).

Compatible Devices

Garmin nuvi 1100
Garmin nuvi 1100LM
Garmin nuvi 1200
Garmin nuvi 1240
Garmin nuvi 1245
Garmin nuvi 1250
Garmin nuvi 1260T

U-Bolt Clamp Range
12.7 - 31.75mm (.5" - 1.25") diameter


Arm Dimensions:
Overall Length:
94mm (3.69")
Socket-To-Socket Length:
76mm (3")



Components:

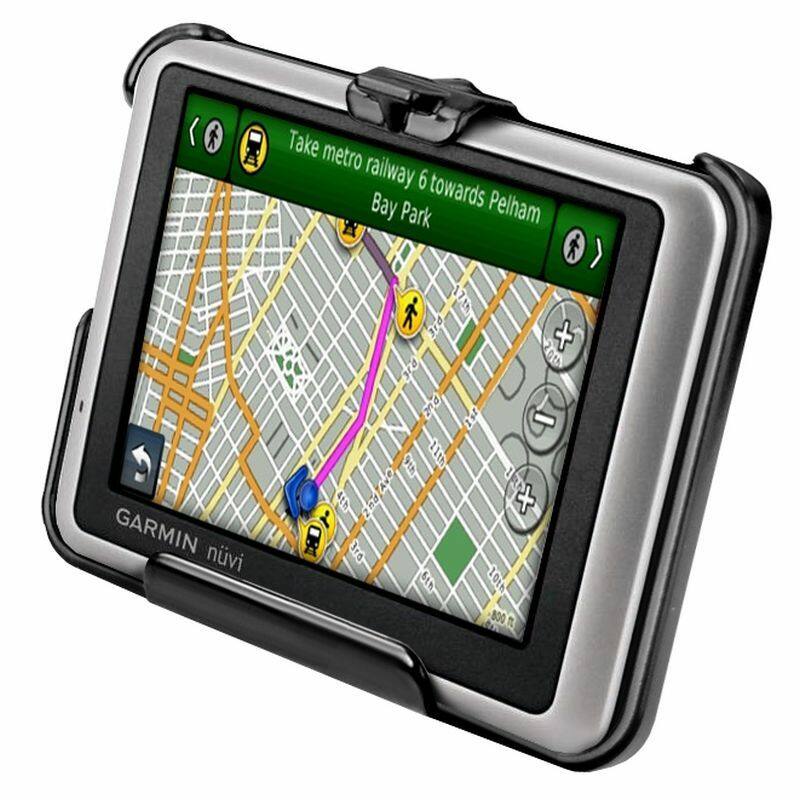

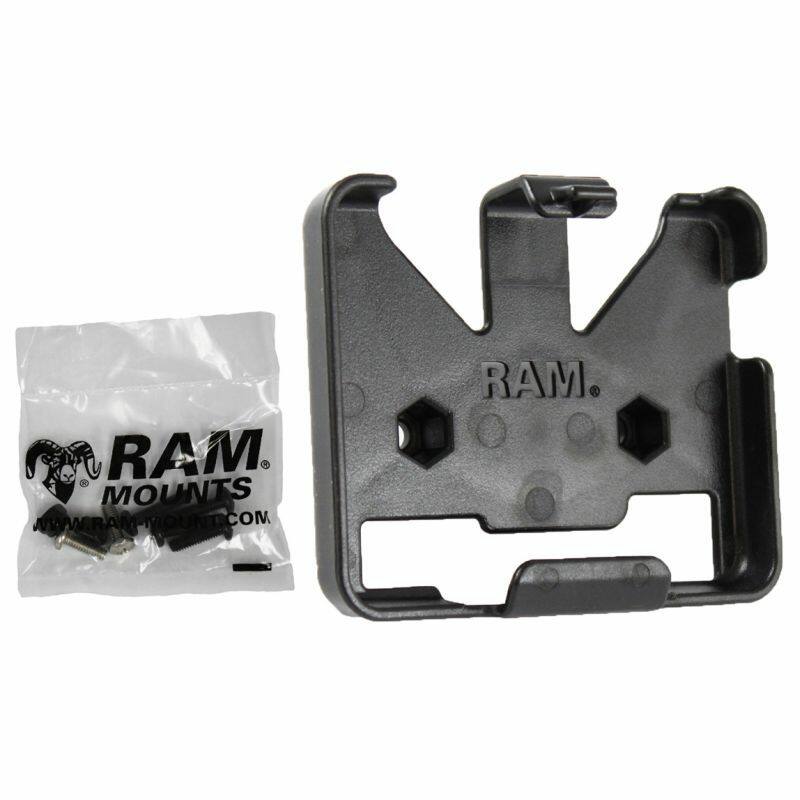

RAM-HOL-GA33U RAM Cradle for the Garmin nuvi 1100, 1100LM, 1200, 1240, 1245, 1250 & 1260T

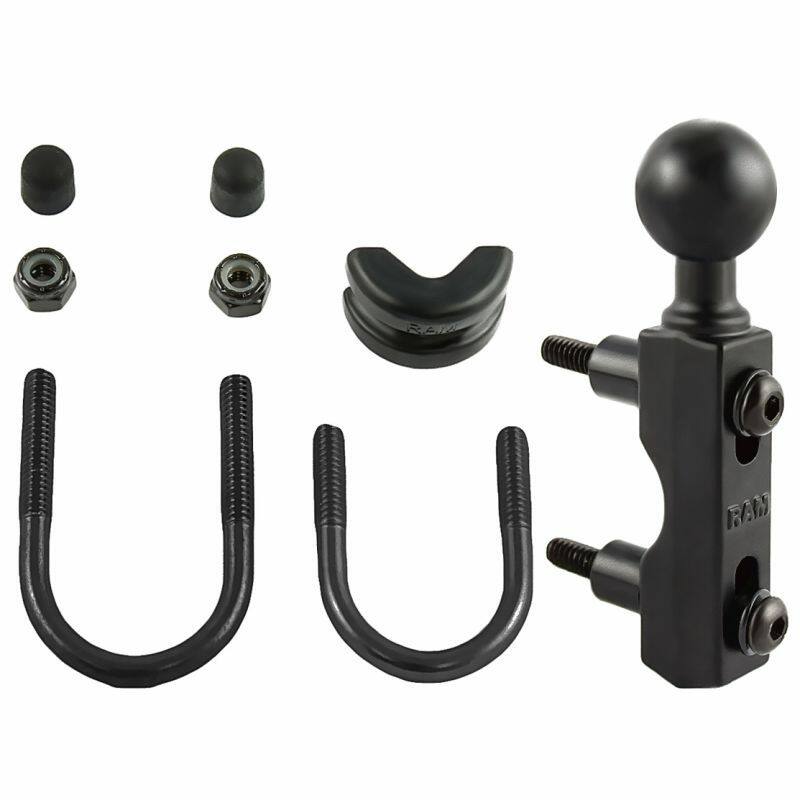

RAM-B-309-7U RAM BRAKE/CLUTCH RESERVOIR & U-BOLT MOUNT COMBO
RAM-B-238U RAM 62 X 33mm DIAMOND BASE W/ 1 BALL
RAM-B-201U RAM DOUBLE SOCKET ARM FOR 1" BALL
