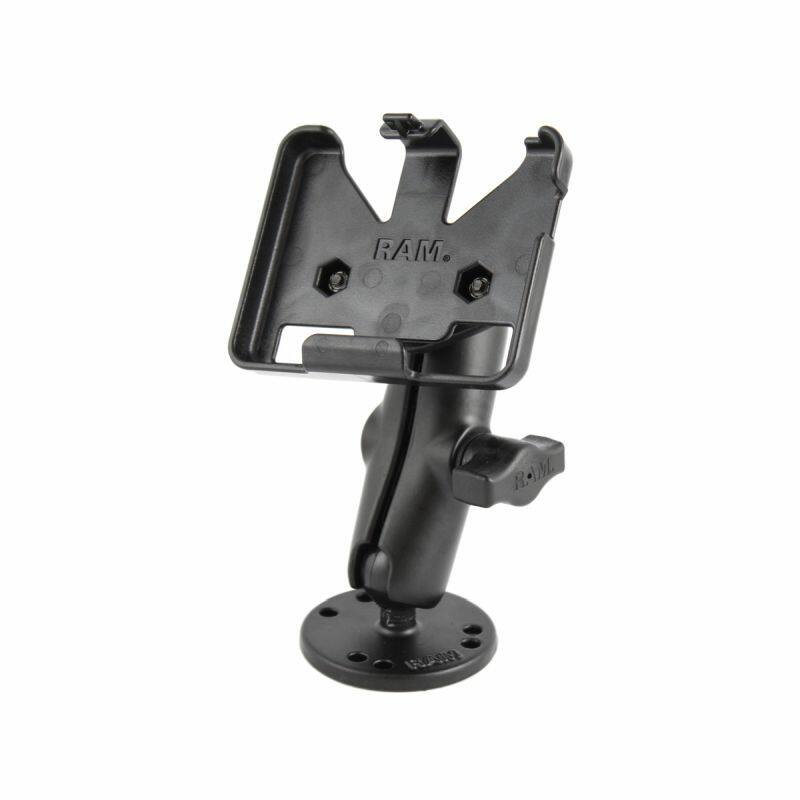

RAM-B-138-GA33 RAM Flat Surface Mount for the Garmin nuvi 1100, 1100LM, 1200, 1240, 1245, 1250 & 1260T
Features:

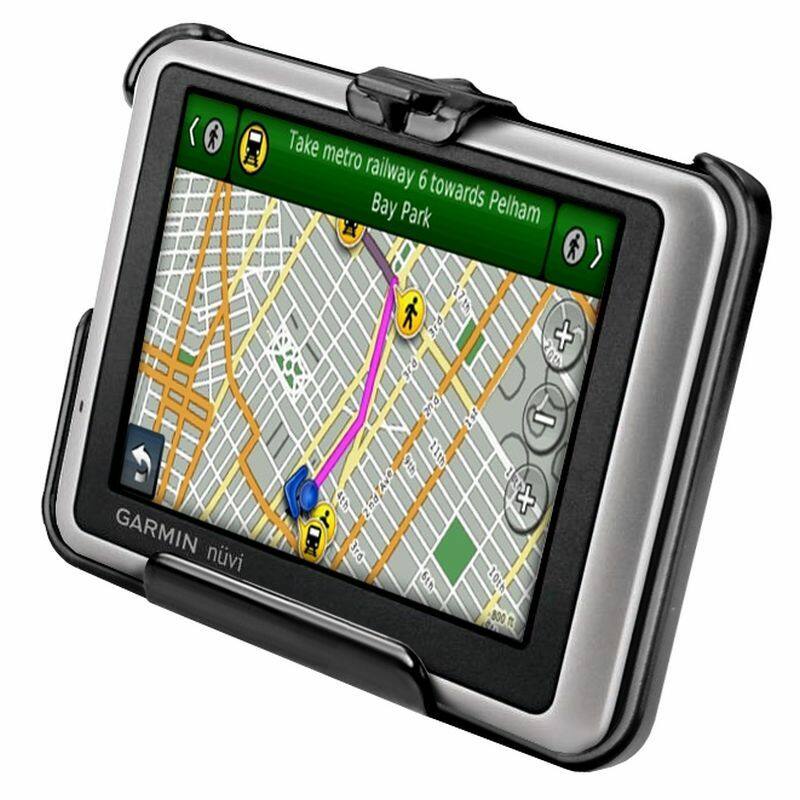

* RAM® high strength model specific cradle for the Garmin nuvi® 1100, 1100LM, 1200, 1240, 1245, 1250 & 1260T
* Full access to all ports
* Drill down base has 63.5mm round base plate that allows for secure and stable mounting options
* Powder Coated Marine Grade Aluminium and High strength composite construction ensures product longevity
* Lifetime warranty

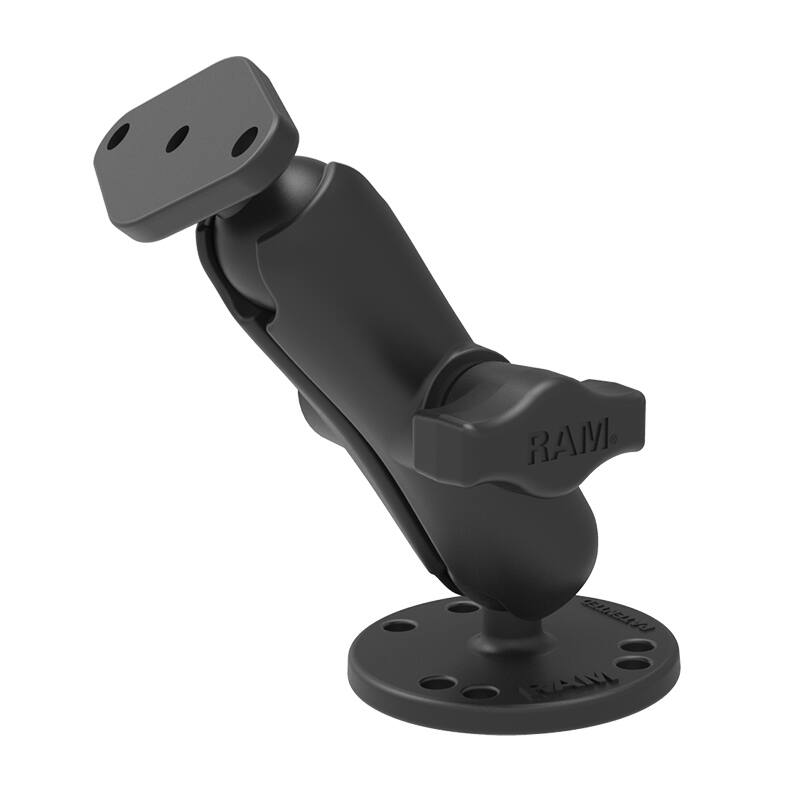

The RAM-B-138-GA33 consists of a double socket arm, 63mm / 2.5" diameter round base with the universal AMPS hole pattern, diamond adapter base and custom high strength composite cradle for the Garmin nuvi 1100/1200 series. Designed into the mount is a 1" diameter patented rubber ball and socket system with adjustment points at the base and cradle. With a twist of the arm knob, you can move the flat surface nuvi mount to your optimum viewing position. The included RAM patented design dampens shock and vibration, helping to extend the life of your device.
The 2.5" (63.5mm) diameter round base contains the universal AMPs hole pattern.
Compatible Devices
Garmin nuvi 1100
Garmin nuvi 1100LM
Garmin nuvi 1200
Garmin nuvi 1240
Garmin nuvi 1245
Garmin nuvi 1250
Garmin nuvi 1260T
NOTE; DOES NOT INCLUDE THE GPS DEVICE ITSELF
Overall Length:
127.8mm / 5.03"
Arm Dimensions:
Overall Length:
94mm (3.69")
Socket-To-Socket Length:
76mm (3")
Roun Plate Hole Patterns:
4-Hole AMPS:
1.181" x 1.496" (30mm x 38mm)
3-Hole AMPS 120- Degree
1.812” (46.0mm)
Material:
High Strength Composite
Powder Coated Marine Grade Aluminium
Ball Size:
1" Rubber Ball "B" Size
Weight:
308 grams / 0.68 lbs.

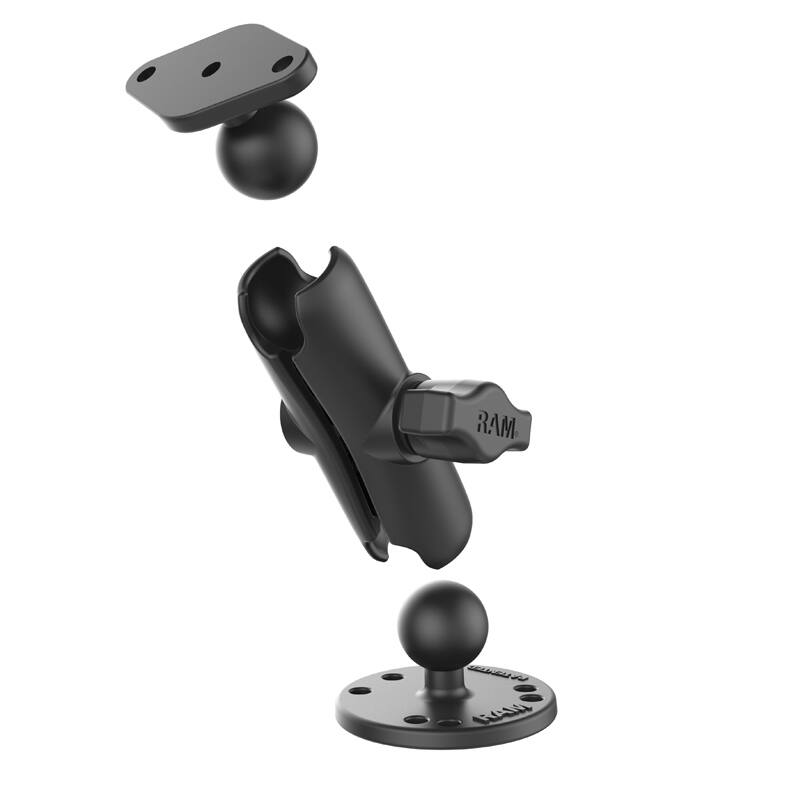

Components:

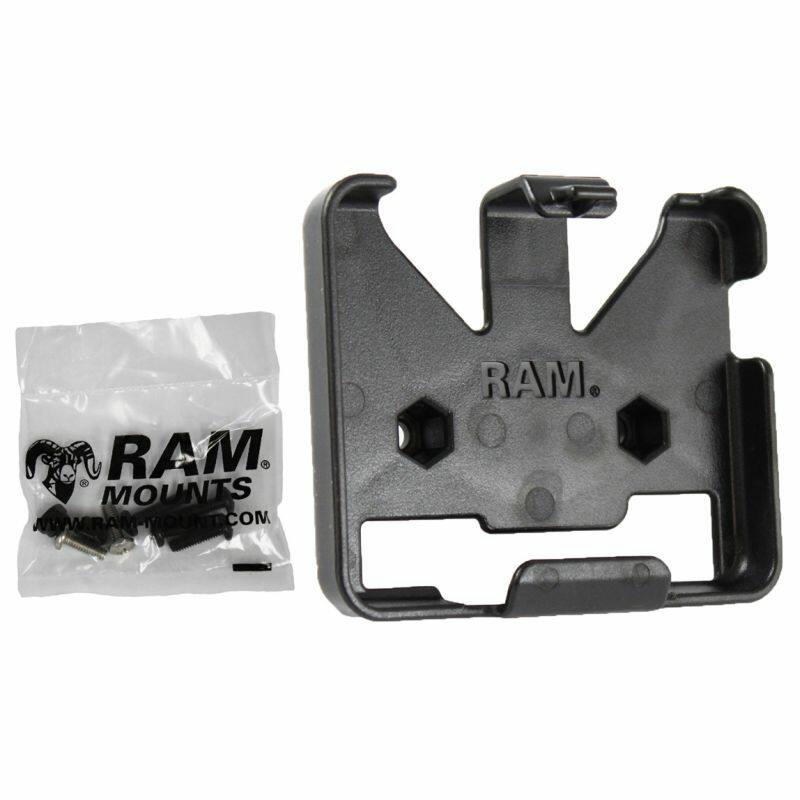

RAM-HOL-GA33U RAM Cradle for the Garmin nuvi 1100, 1100LM, 1200, 1240, 1245, 1250 & 1260T
RAM-B-202U RAM 62mm DIA.BASE WITH 1" BALL
RAM-B-238U RAM 62 X 33mm DIAMOND BASE W/ 1 BALL
RAM-B-201U RAM DOUBLE SOCKET ARM FOR 1" BALL
