RAM Garmin Cradle - nuvi 1100/1200 with U-Bolt Handlebar Base

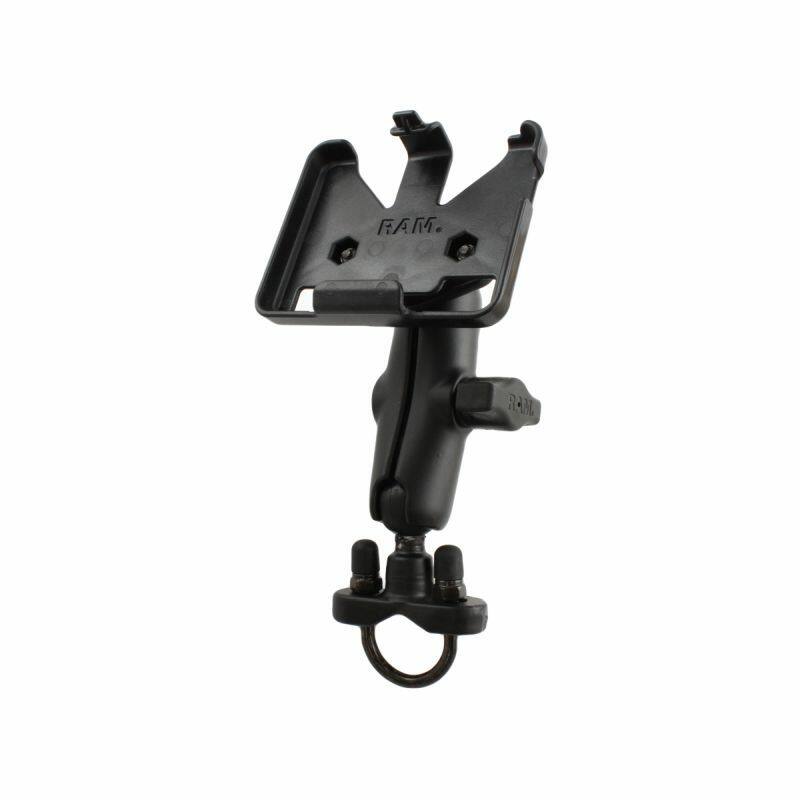

RAM-B-149Z-GA33 – RAM® Handlebar U-Bolt Mount for Garmin nuvi 1100, 1100LM, 1200, 1240, 1245, 1250 & 1260T

The RAM-B-149Z-GA33 mounts the Garmin nuvi 1100 series to a handlebar using a zinc-coated U-bolt base, a diamond AMPS adapter and a double socket arm. The U-bolt fits bars 12.7mm to 32mm (0.5" to 1.25") in diameter, with a composite adapter narrowing the fit to 12.7mm (0.5") minimum.

Key Features

• Zinc-coated U-bolt base clamps to handlebars, roll bars and similar tubing from 12.7mm to 32mm (0.5" to 1.25")
• Diamond adapter base uses the industry-standard 2-hole AMPS pattern
• Double socket arm with 1" B-size rubber balls at both ends for near-infinite adjustment
• Model-specific high-strength composite cradle with full access to all ports
• Backed by RAM Mounts' lifetime warranty

What's Included

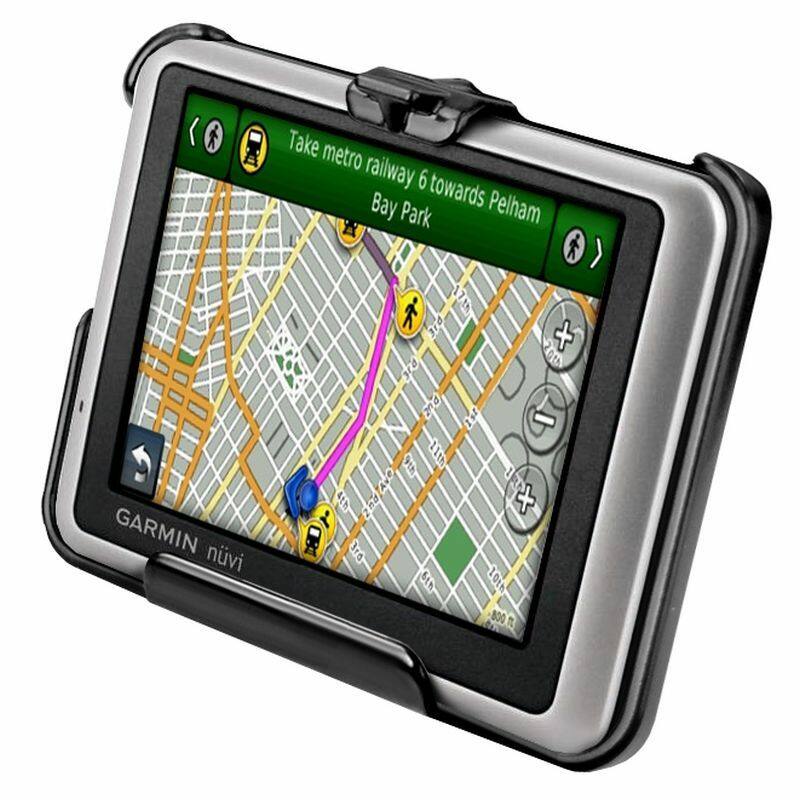

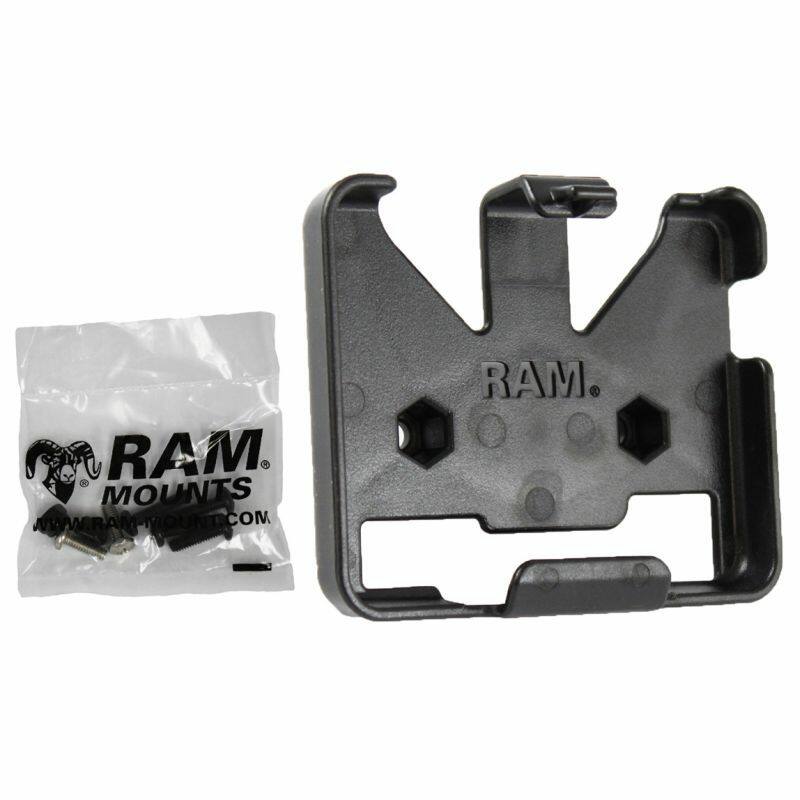

• RAM-HOL-GA33U cradle for Garmin nuvi 1100, 1100LM, 1200, 1240, 1245, 1250 & 1260T
• RAM-B-201U double socket arm for 1" ball
• RAM-B-238U diamond base with 1" B-size ball

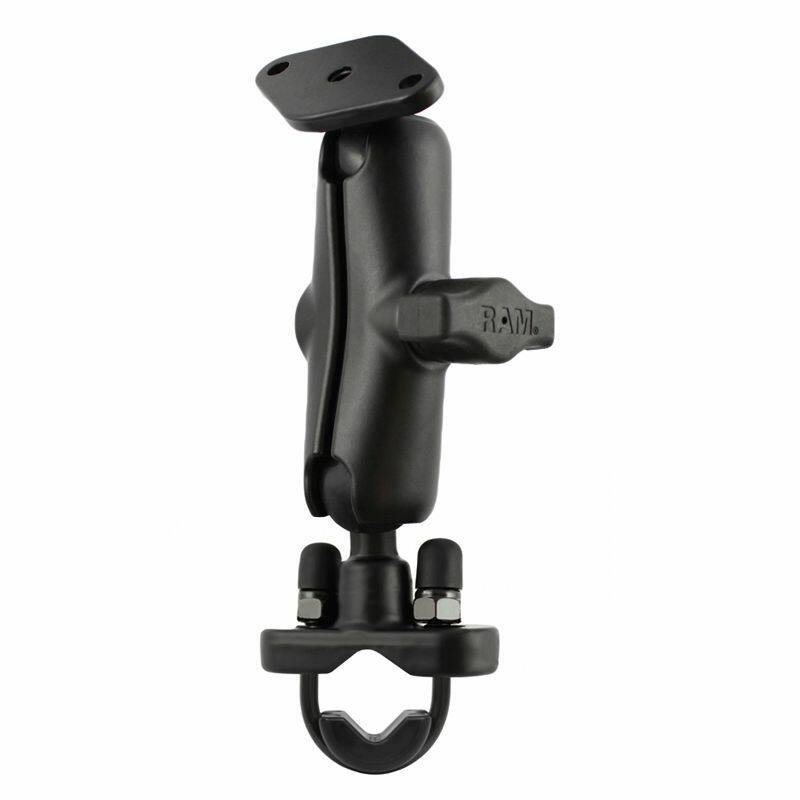

• RAM-B-231ZU U-bolt rail base for 12.7-32mm (0.5"-1.25") bars

Dimensions & Specifications

• U-bolt clamp range: 12.7mm to 32mm (0.5" to 1.25")
• Arm overall length: 94mm (3.69"); socket-to-socket 76mm (3")
• Ball size: B size, 1" rubber ball
• Material: high-strength composite (cradle); marine-grade aluminium alloy (base/arm)

Compatible Devices

Garmin

• nuvi 1100
• nuvi 1100LM
• nuvi 1200
• nuvi 1240
• nuvi 1245
• nuvi 1250
• nuvi 1260T

The Garmin GPS unit itself is not included.

Videos

• RAM U-Bolt handlebar mount overview
