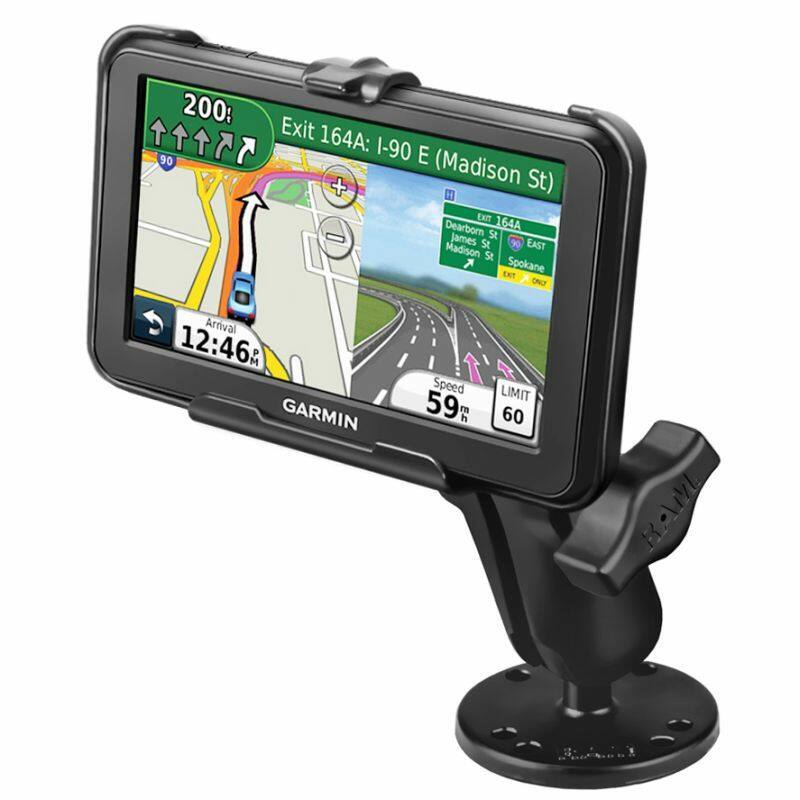

RAM-B-138-GA50 RAM Flat Surface Mount for the Garmin nuvi 50 / 50LM

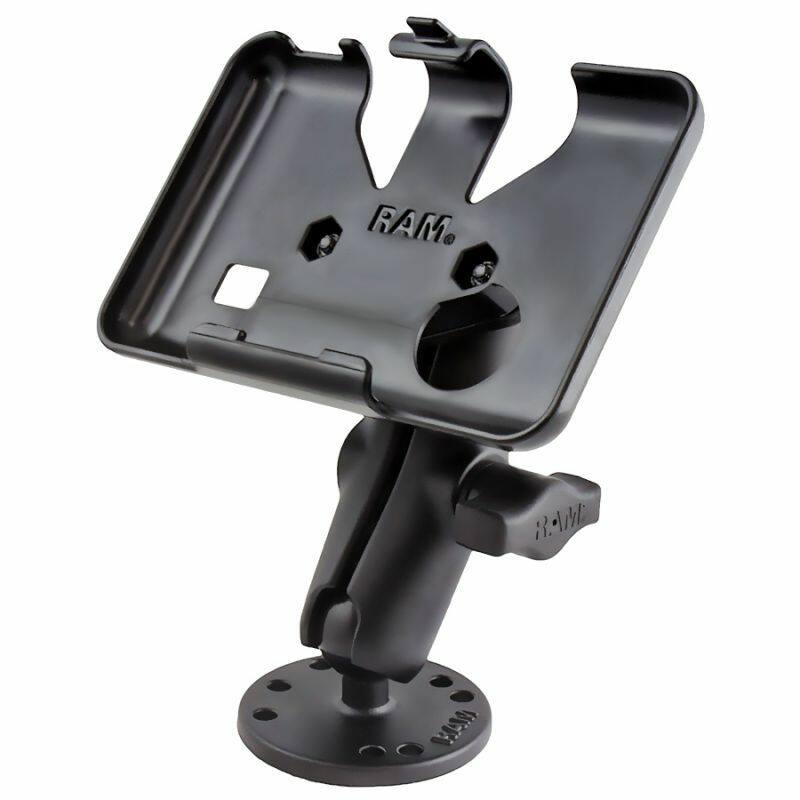

The RAM-B-138-GA50 consists of a double socket arm, 63mm / 2.5" diameter round base with the universal AMPS hole pattern, diamond adapter base and custom high strength composite cradle for the Garmin nuvi 50 / 50LM series. Designed into the mount is a 1" diameter patented rubber ball and socket system with adjustment points at the base and cradle. With a twist of the arm knob, you can move the flat surface nuvi mount to your optimum viewing position

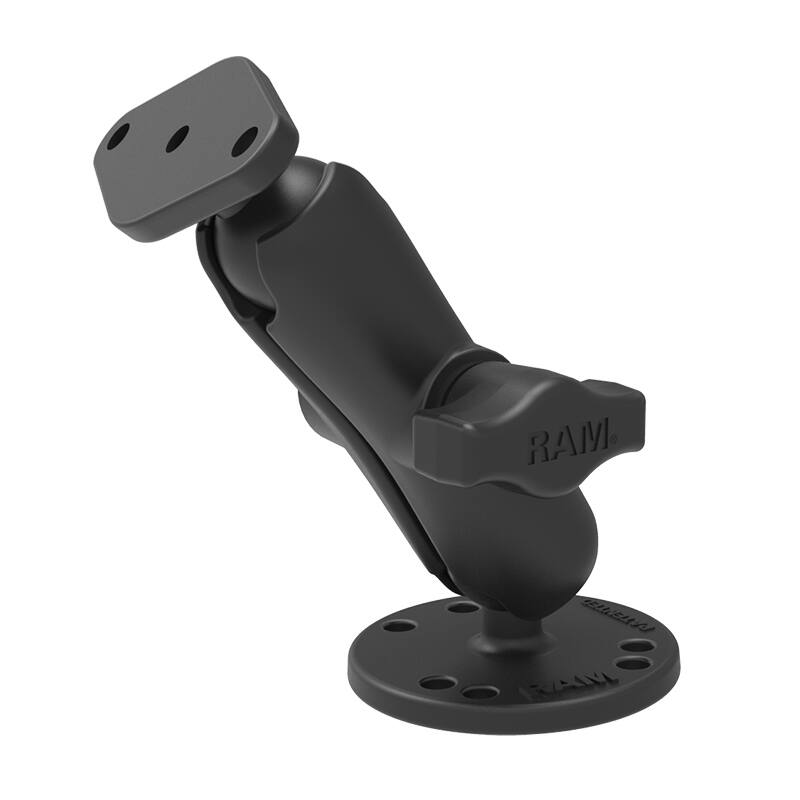

The base consists of a 2.5" (63.5mm) diameter round base that contains the universal AMPs hole pattern, 94mm double socket arm and diamond base adapter.
The mount is designed with a 1" (B Series) diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allows for almost infinite adjustment and perfect viewing angles. The included RAM’s patented design dampens shock and vibration, helping to extend the life of your device.

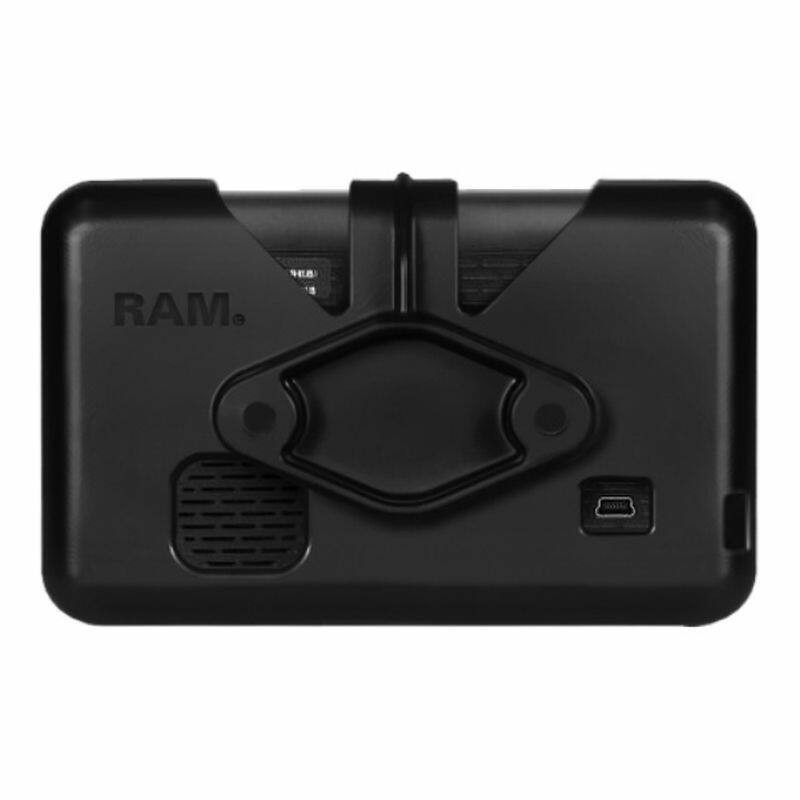

The 61.7mm x 33.3mm diamond base has two holes 48.5mm from centre to centre, to connect directly to the RAM-HOL-GA50U cradle.
Compatible Devices
Garmin nuvi 50
Garmin nuvi 50LM
Overall Length:
127.8mm / 5.03"
Material:
High Strength Composite & Powder Coated Marine Grade Aluminium
Ball Size:
1" Rubber Ball "B" Size
Weight:
308 grams / 0.68 lbs.

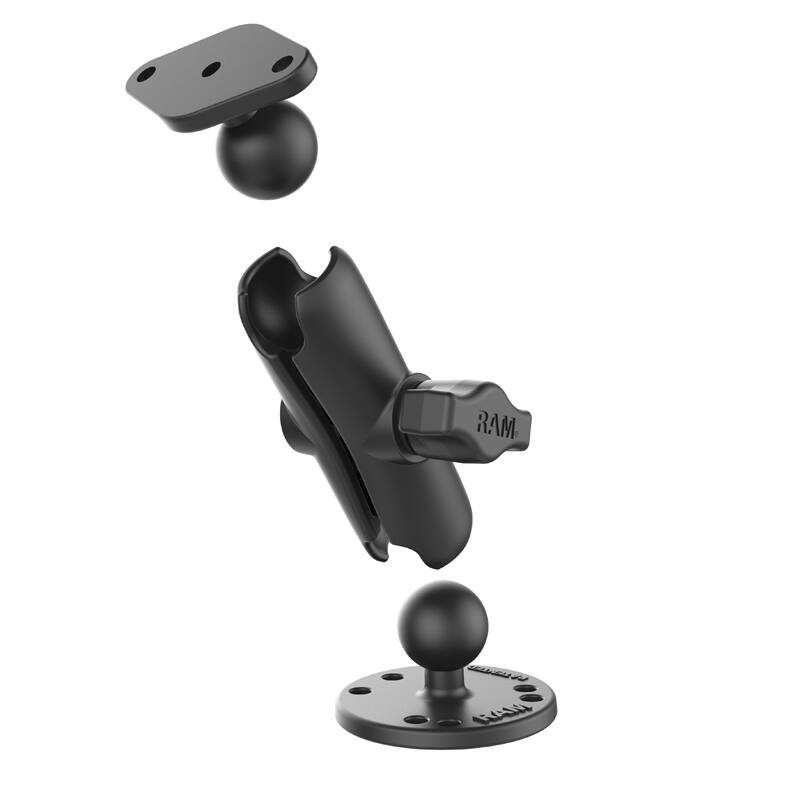

Components:
RAM-B-202U RAM 62mm DIA.BASE WITH 1" BALL
RAM-B-238U RAM 62 X 33mm DIAMOND BASE W/ 1 BALL

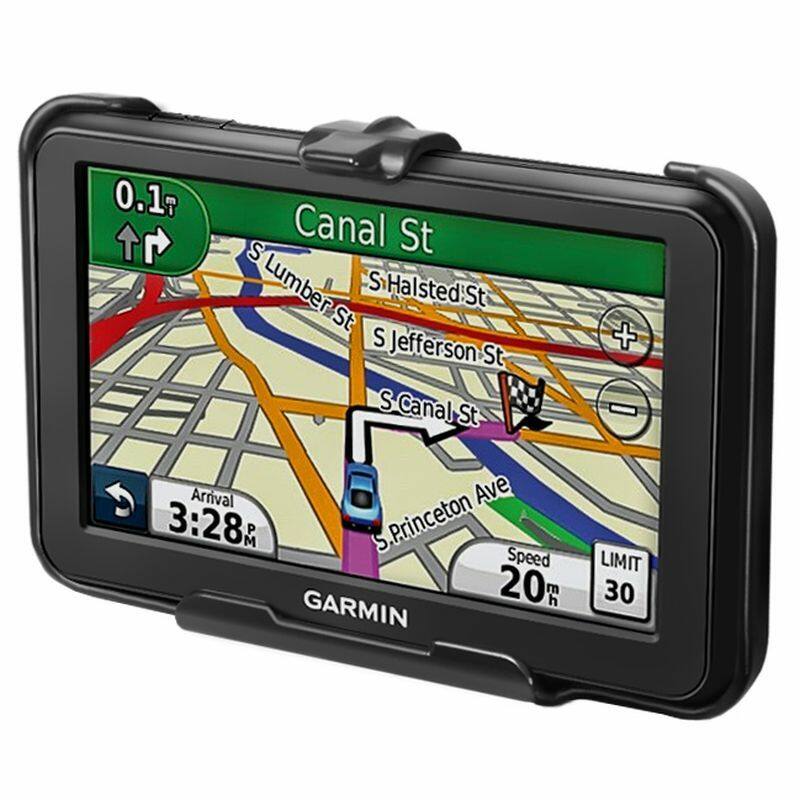

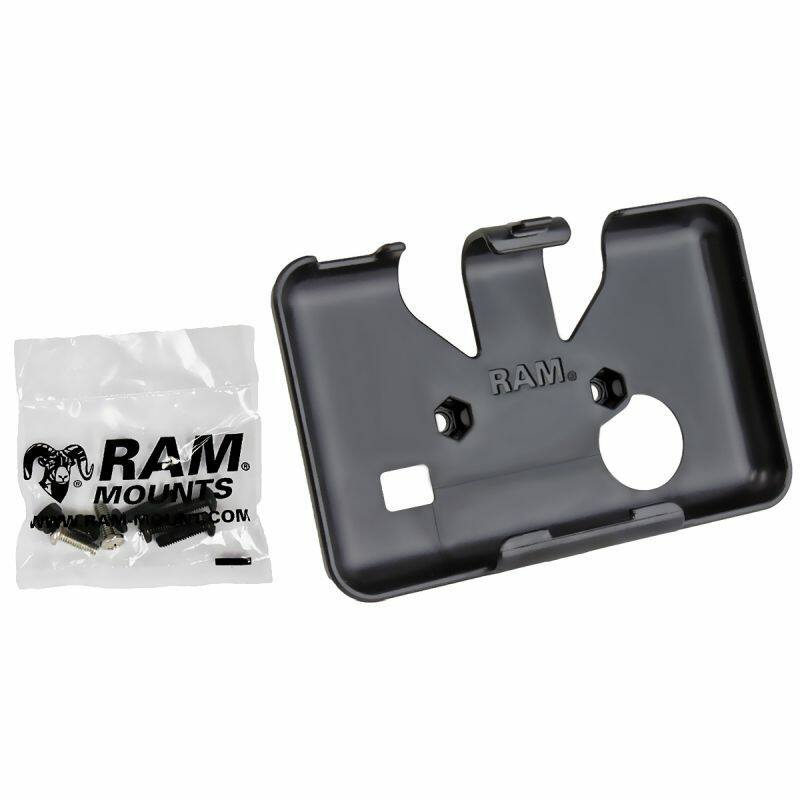

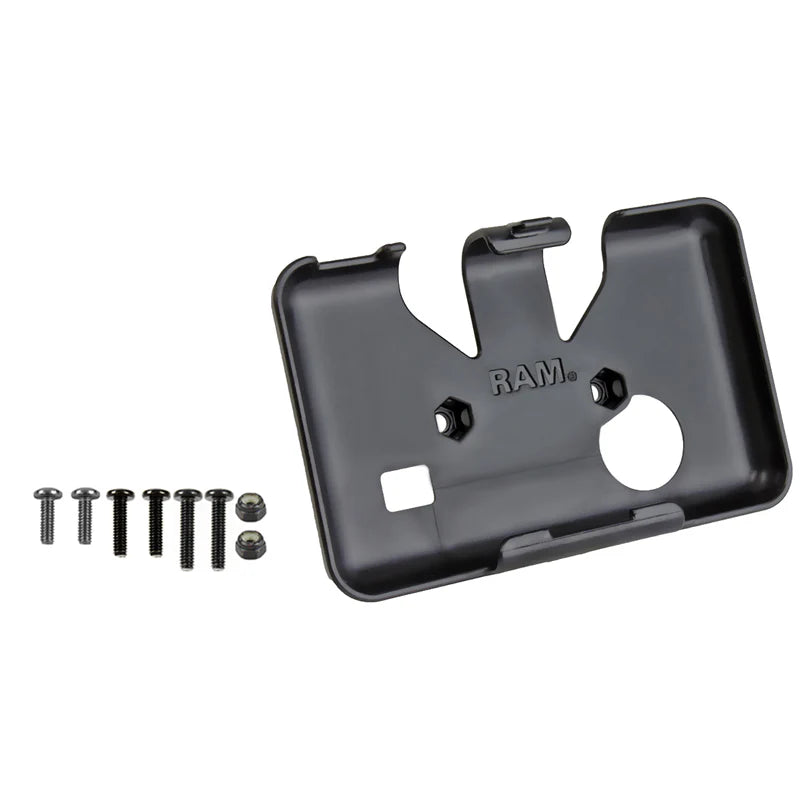

RAM-HOL-GA50U RAM HOLDER FOR NUVI 50
RAM-B-201U RAM DOUBLE SOCKET ARM FOR 1" BALL
