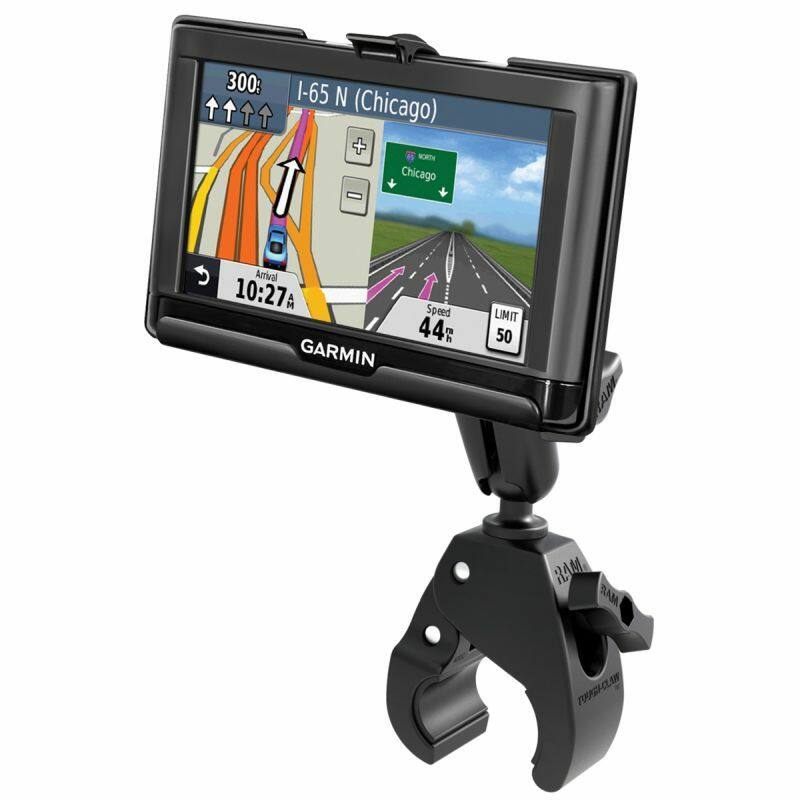

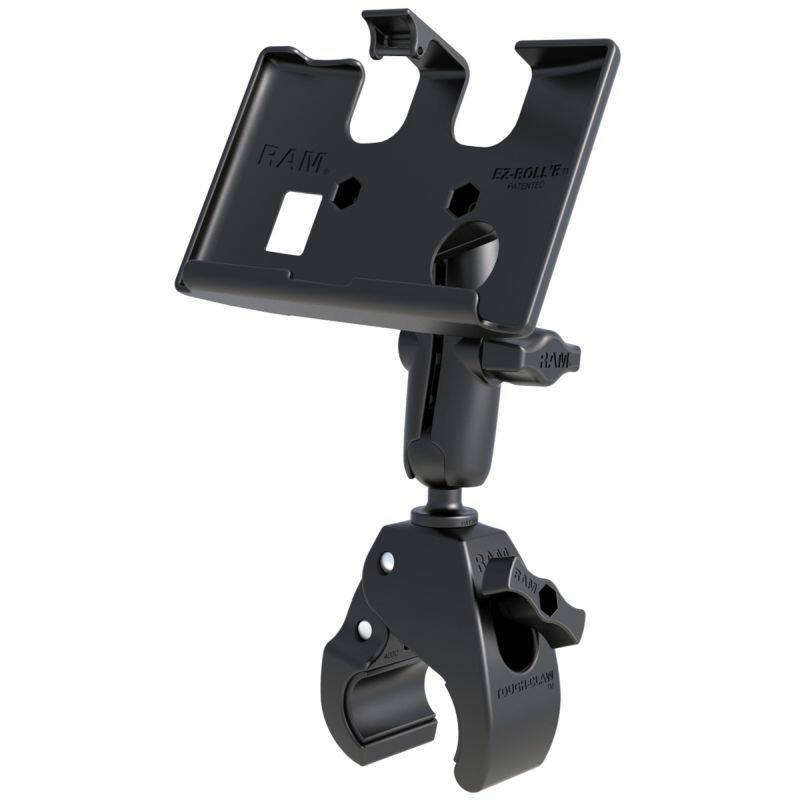

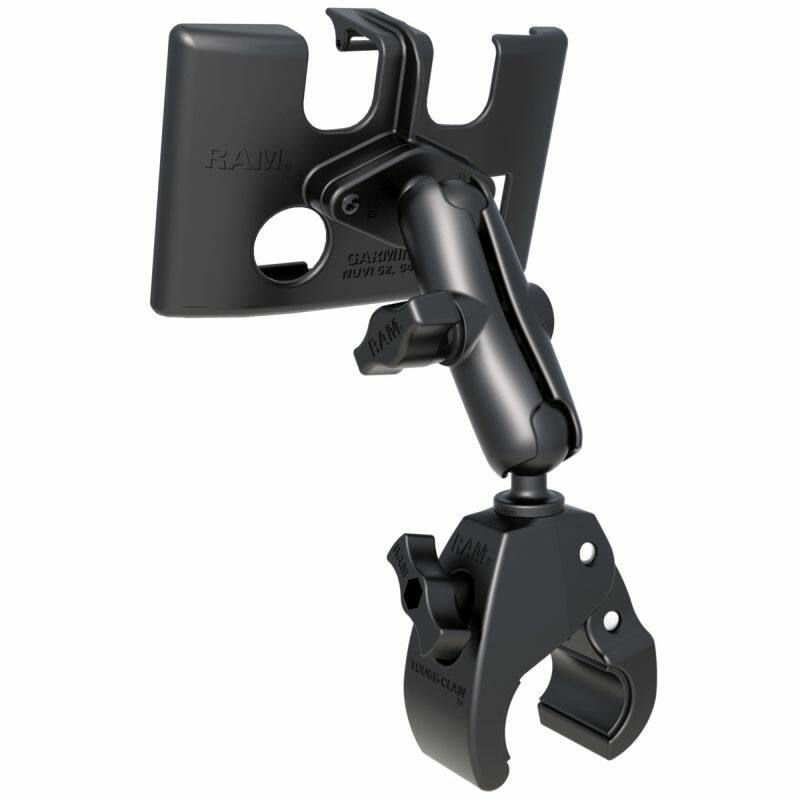

RAM-B-400-GA55U Mount for the Garmin nuvi 52, 54, 55, 56, 57, & 58 with Small Tough-Claw Base
Features
* High strength composite cradle specific for holding Garmin Nuvi device securely in place
* Small version designed to quickly clamp to round, square, and odd-shaped rails and bars ranging from 16-28mm in outer diameter; rubber pads provide stable gripping and protection of mounting surface
* RAM® double socket arm and ball and socket system allows for almost infinite adjustability
* Made of marine grade aluminium, high-strength composite and stainless steel hardware for durability and reliability in the most demanding environments
* Backed by a lifetime warranty

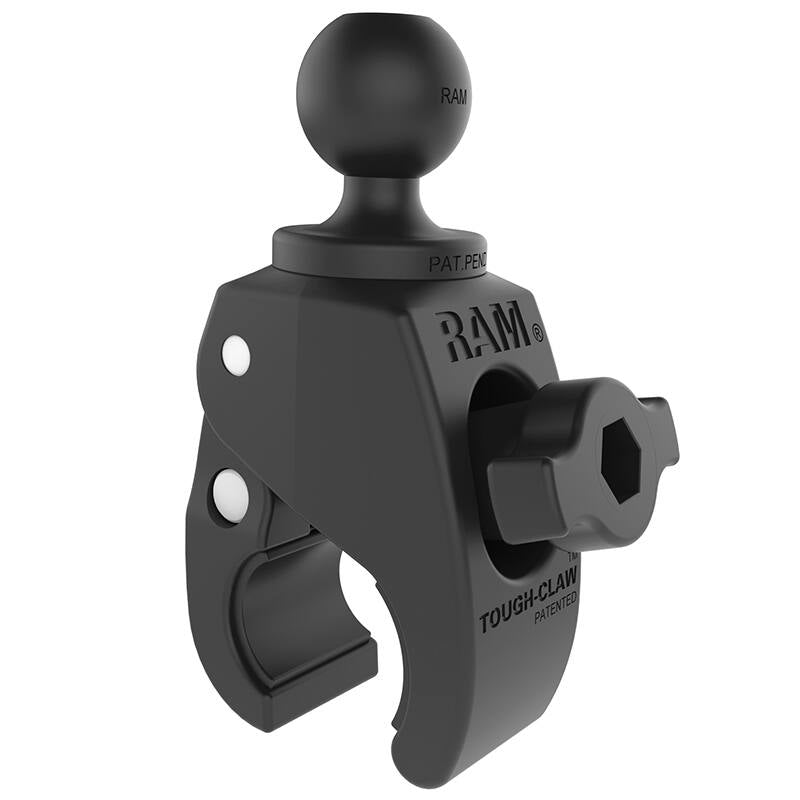

The Small Tough-Claw with 1" ball is the perfect mounting base for quick and easy tool-less installation and removal on round, square, odd shaped rails and bars. The Tough-Claw can be clamped on rails from 16mm to 28mm (0.625" to 1.14") outer diameter.

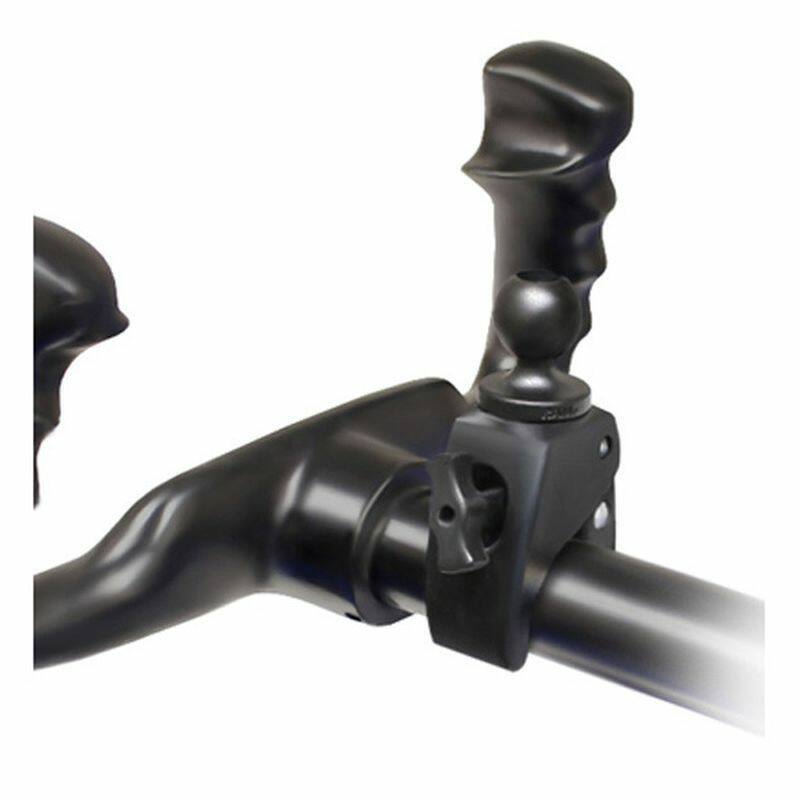

Perfectly suited for mounting on the yoke of an aircraft, handlebars and seat posts of bicycles, kayak rails, roll bars etc, the RAM Tough-Claw will soon become another essential RAM component in your collection of mounting options.
Just place the clamp over the rail or post and then tighten with the attached knob - no tools required.
The high strength composite cradle is ready to compliment your GPS and become the most useful accessory in your vehicle.
Compatible Devices
Garmin
nuvi 52
nuvi 52LM
nuvi 54
nuvi 54LM
nuvi 55
nuvi 56
nuvi 56LMT
nuvi 57
nuvi 57LM
nuvi 57LMT
nuvi 58LMT

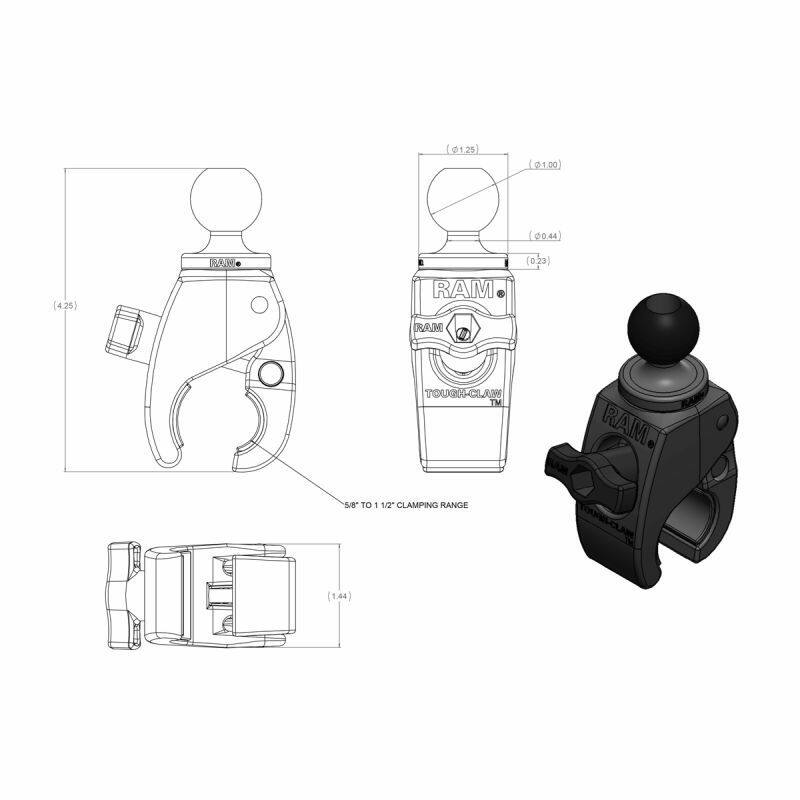

Clamping Range
Rail/Tube Surfaces:
16mm to 28mm (0.625" to 1.14")
Flat Surfaces:
0 to 29mm (1.14")
Clamp Physical Dimensions:
Height: 122mm (4.81")
Width: 30mm (1.18")
Arm Dimensions:
Overall Length:
94mm (3.69")
Socket-To-Socket Length:
76mm (3")
Components:

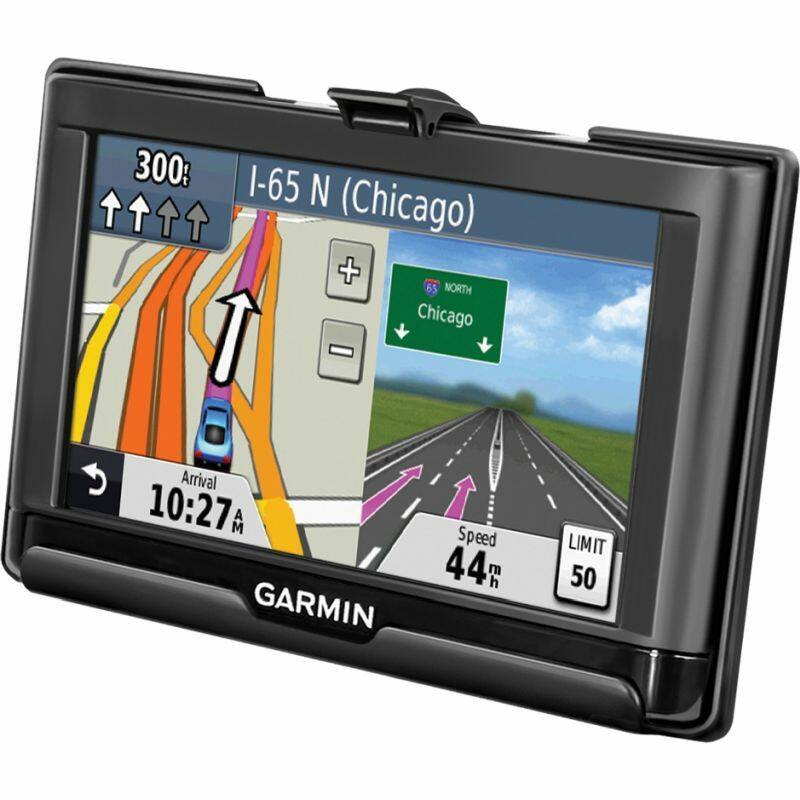

RAM-HOL-GA55U - Garmin Cradle
RAM-B-201U - double socket arm
RAM-B-238U - diamond base with 1" ball
RAP-B-400U - small tough claw
YouTube:
https://www.youtube.com/watch?v=rX36fAdknUY
