RAM Garmin Cradle - nuvi with Motorcycle Brake/Clutch Reservoir Mount

RAM Garmin Cradle - nuvi with Motorcycle Brake/Clutch Reservoir Mount

SKU:RAM-B-174-GA34U-v

Regular price $127.08 NZD
Regular price Sale price $127.08 NZD
Sale Sold out
Tax included. Shipping calculated at checkout.
View full details

RAM-B-174-GA34U RAM® Brake/Clutch Reservoir Mount for Garmin nuvi 1390, 2495LMT + More

Features:

* RAM® high strength model specific cradle for the Garmin nuvi® 1300, 1390T, 2455LT, 2495LMT + More
* Full access to all ports

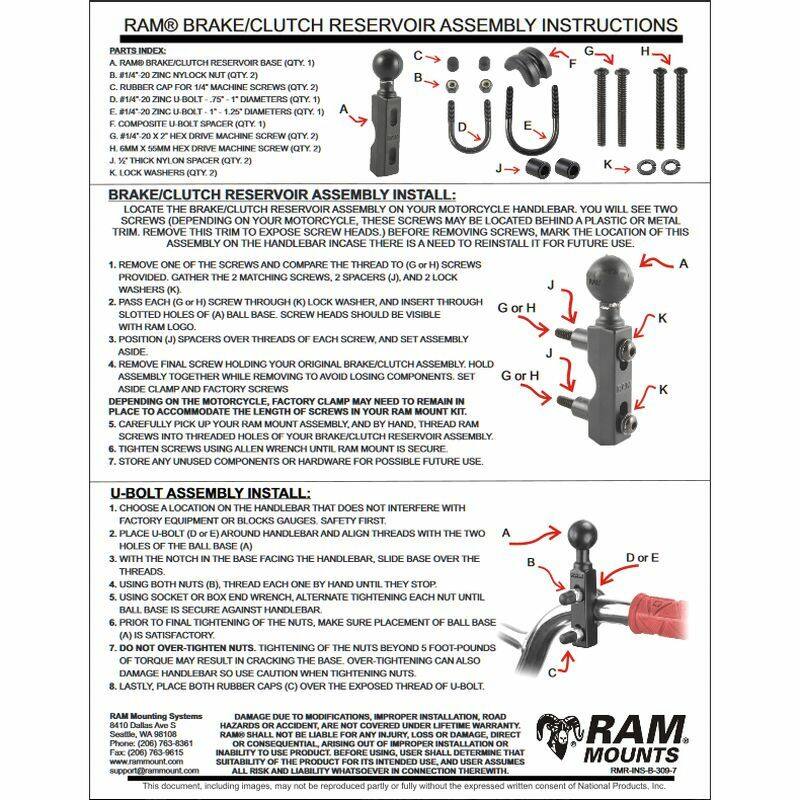

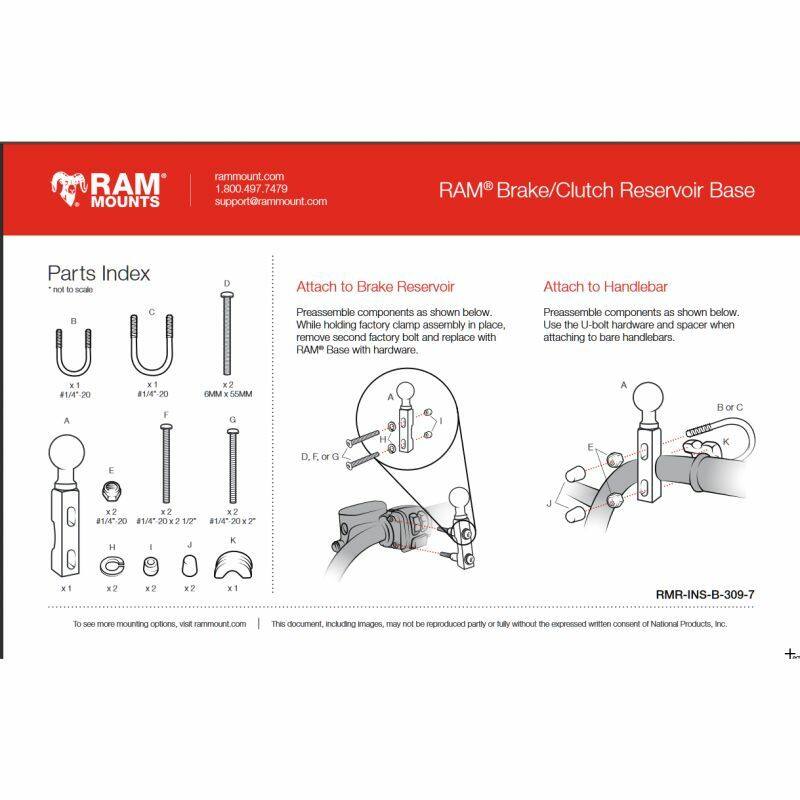

* Kit contains both reservoir and handlebar U-Bolt mounting options
* High strength composite and Marine-grade aluminium construction ensures product longevity
* Lifetime warranty

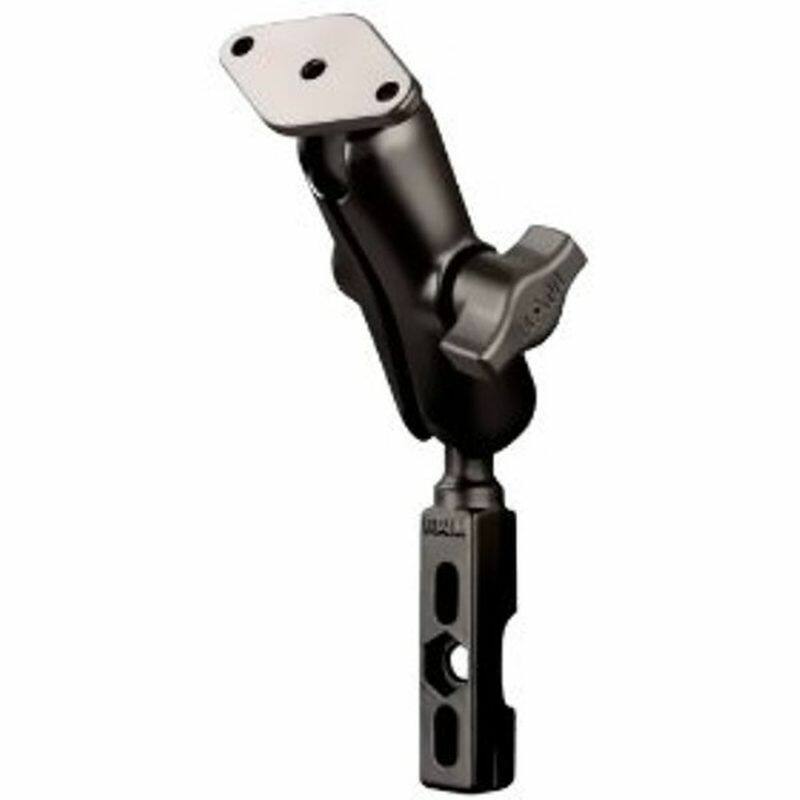

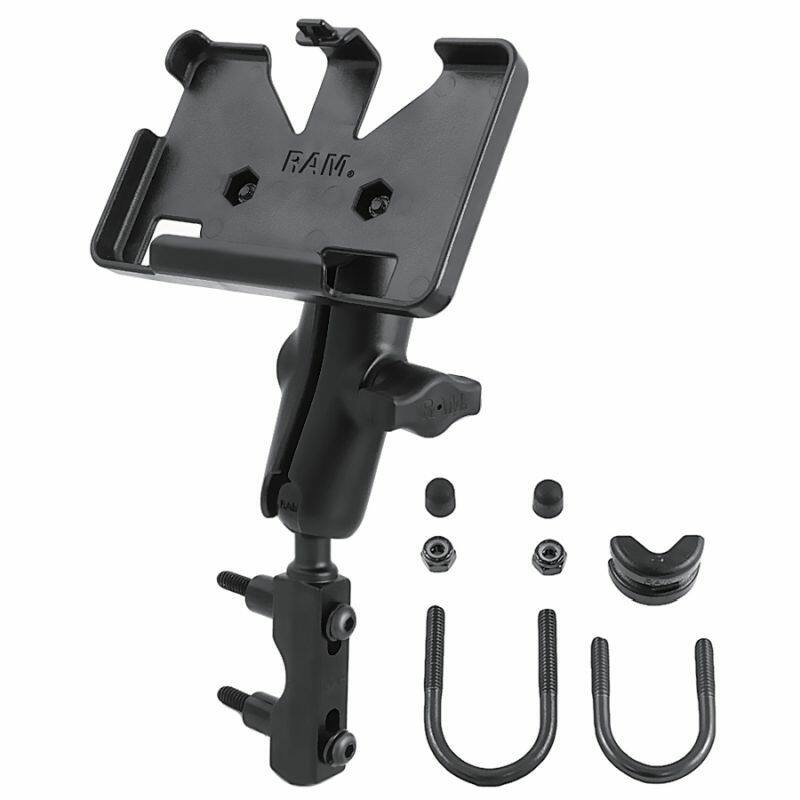

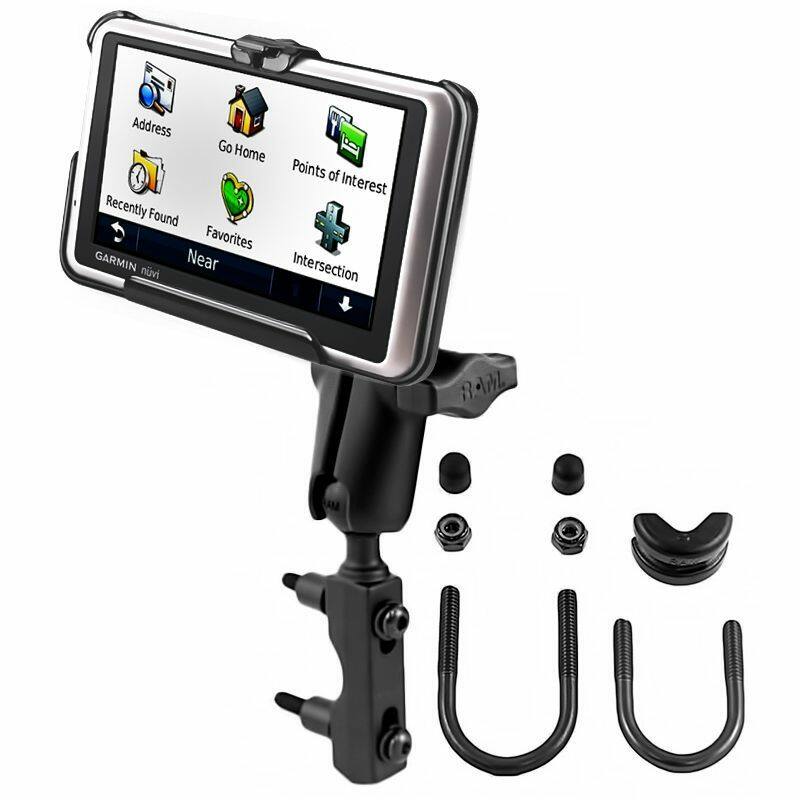

The RAM-B-174-GA34U consists of a double socket arm, hardware for mounting to both brake/clutch reservoirs and rails, diamond adapter base and custom high strength composite cradle for the Garmin nuvi 1300 series. Designed into the mount is a 1" diameter patented rubber ball and socket system with adjustment points at the base and cradle. With a twist of the arm knob, you can move the motorcycle nuvi mount to your optimum viewing position.

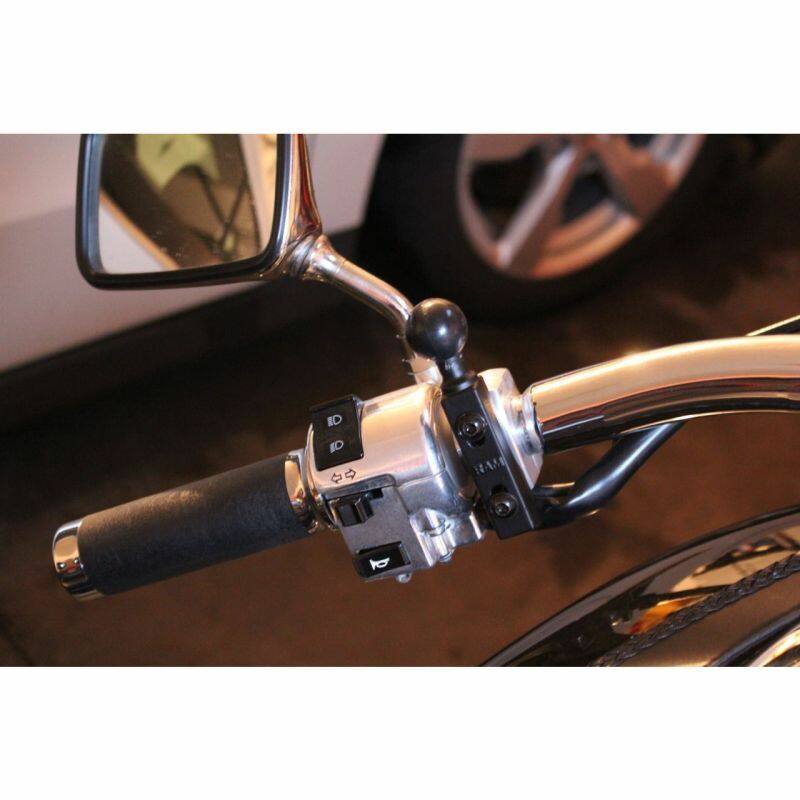

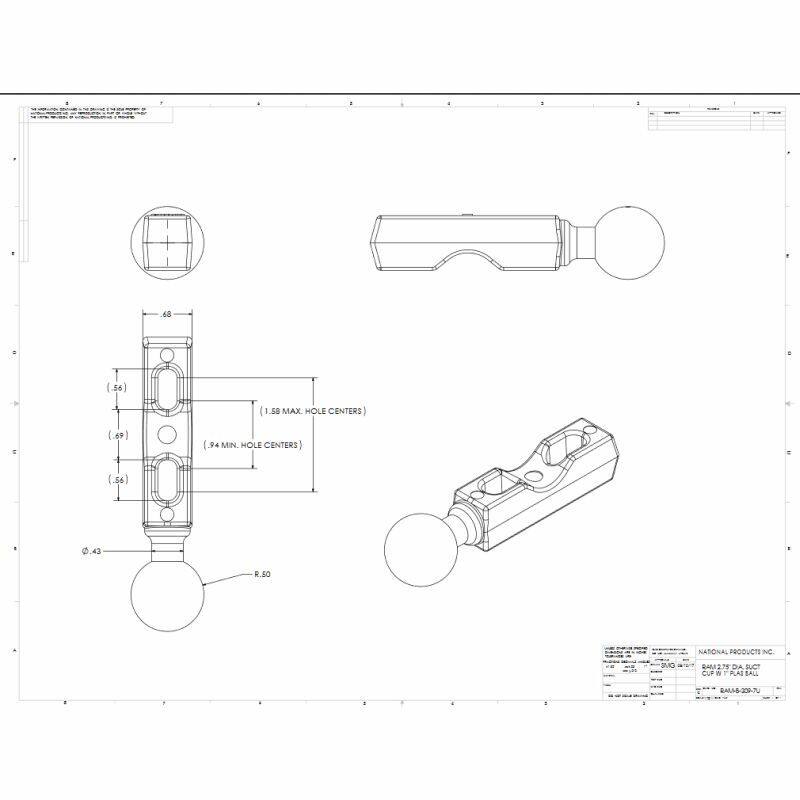

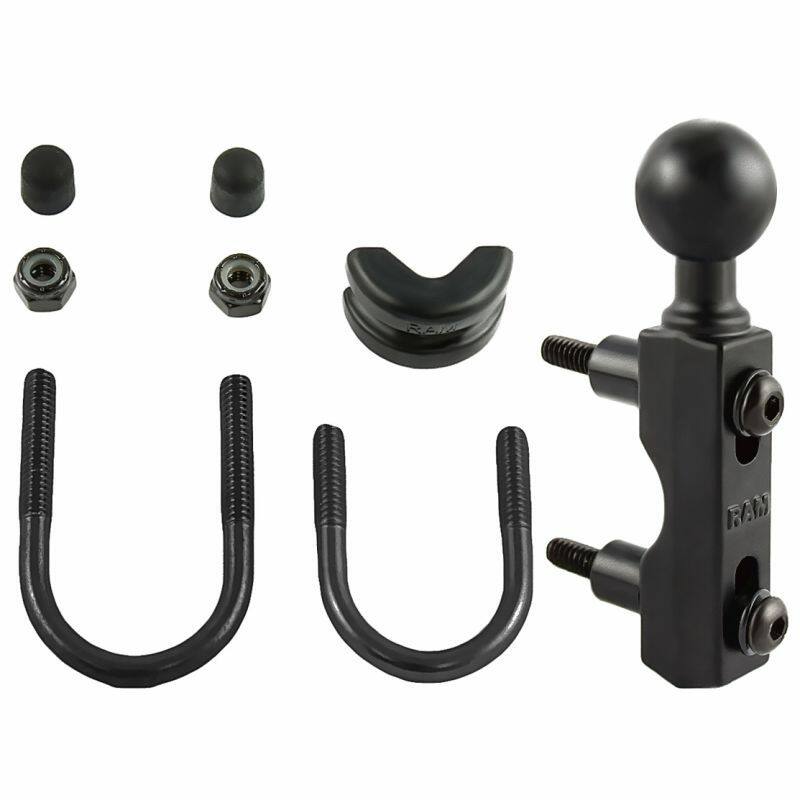

The Reservoir & Handlebar Ball Base provides the ultimate flexibility for mounting to your motorcycle. Mount to either your handlebar or brake/clutch reservoir. Standard US or metric thread stainless steel bolts, provided in the kit for brake/clutch clamp attachment. If you want to go straight onto the handlebars the zinc coated metal U-bolt accommodates rails from 12.7 to 31.7mm (0.50" to 1.25") in diameter. To see if the base will mount to your brake/clutch reservoir, check the hole spacing of the base against your reservoir. The hole centres have a min width of 23.8mm (0.94") and a max of 40.1mm (1.58").

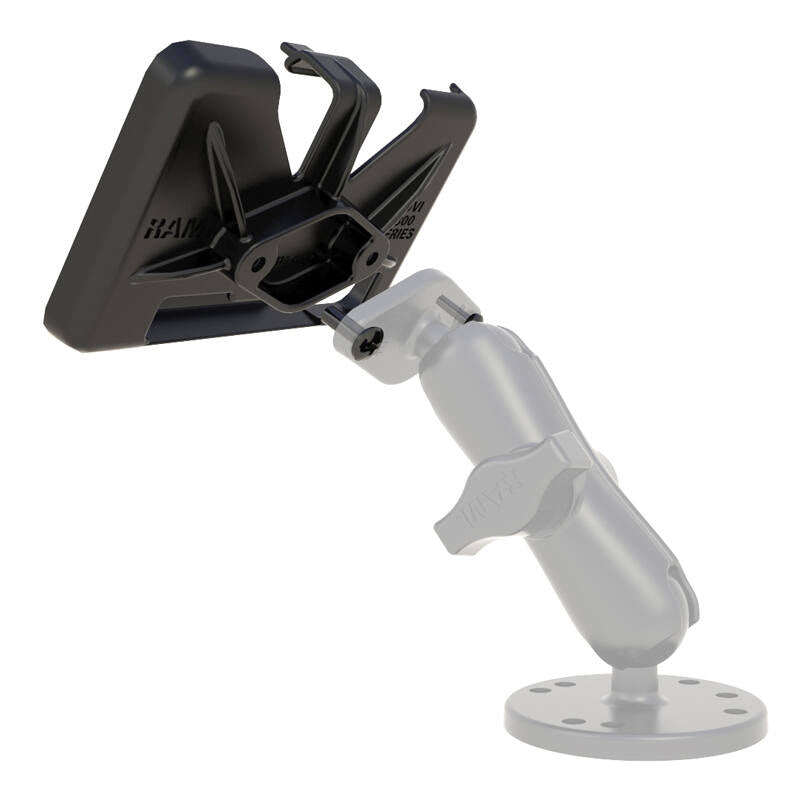

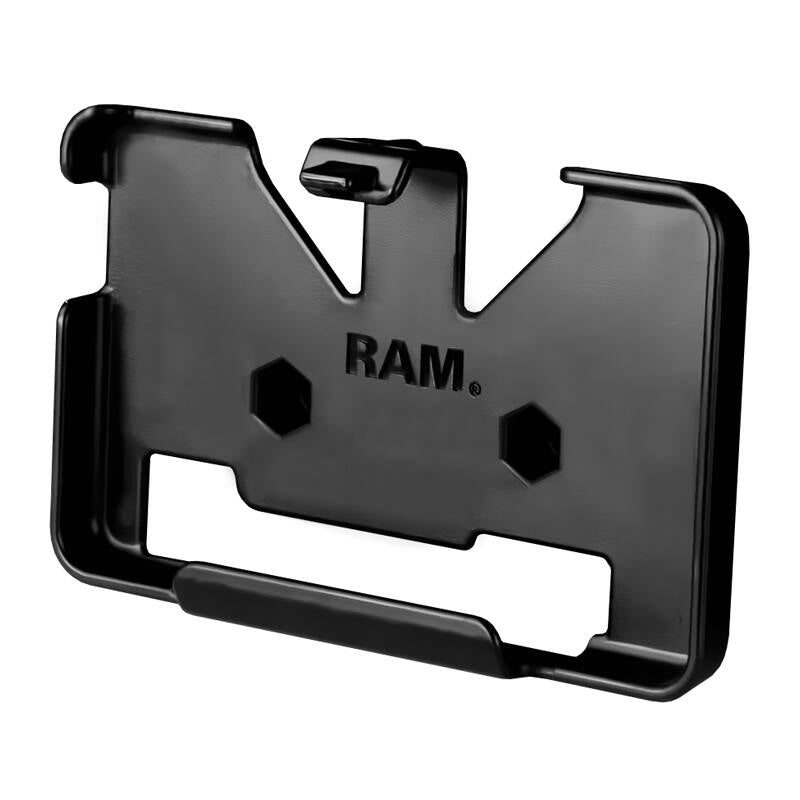

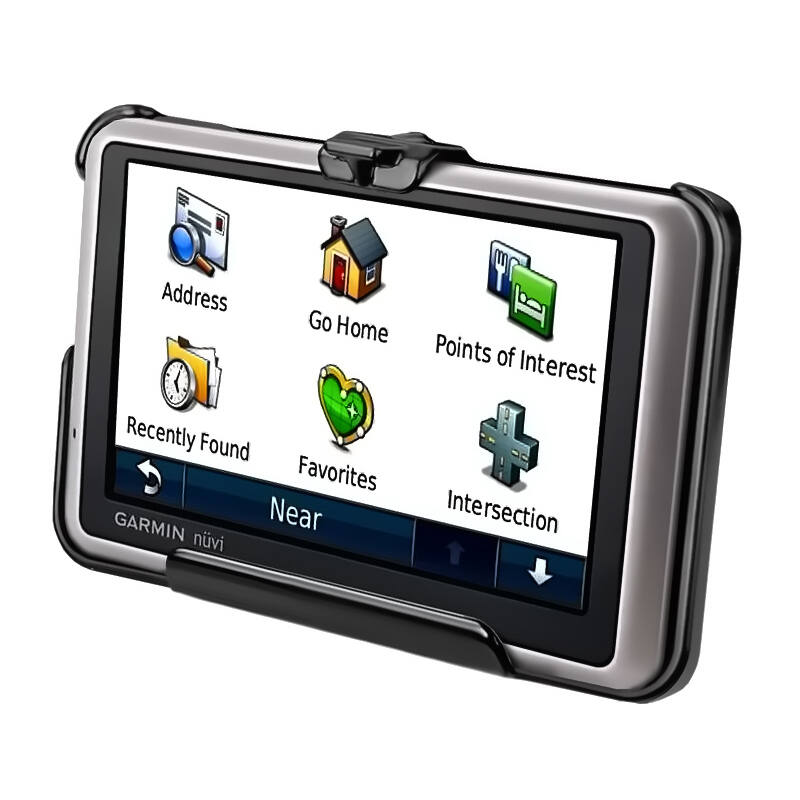

The RAM-HOL-GA34U consists of a high strength composite cradle and hole pattern with the universal AMPs hole pattern.

Compatible Devices

Garmin
nuvi 1300
nuvi 1310T
nuvi 1350
nuvi 1350T
nuvi 1370T
nuvi 1390
nuvi 1390T
nuvi 2455LT
nuvi 2455LMT
nuvi 2475LT
nuvi 2495LMT


Note: this product does not include the Garmin GPS unit itself


Clamp Range
12.7mm to 31.75mm (.5" - 1.25") diameter

Arm Dimensions:
Socket-to-Socket
76.2mm (3")

Ball/Socket Size
B Size (1")

Weight
231 grams (0.51 lbs.)


Weight Capacity
Standard Use:
907 grams (2 lbs)
Heavy-Duty Use:
454 grams (1 lb)

Materials
Marine-grade aluminium
High strength composite


Assembly Hardware Included

Components:
RAM-HOL-GA34U Garmin nuvi Cradle
RAM-B-174U BRAKE/CLUTCH RESERVOIR & U-BOLT MOUNT
