RAM Mounts

RAM Garmin Cradle - nuvi with Motorcycle Brake/Clutch Reservoir Mount

RAM Garmin Cradle - nuvi with Motorcycle Brake/Clutch Reservoir Mount

SKU:RAM-B-149Z-GA34U-v

Regular price $113.13 NZD
Regular price Sale price $113.13 NZD
Sale Sold out
Tax included. Shipping calculated at checkout.
View full details

RAM-B-149Z-GA34U RAM® Handlebar U-Bolt Mount for Garmin nuvi 1300 & 2400 Series + More


Features:

* RAM® high strength model specific cradle for the Garmin nuvi® 1300, 1390T, 2455LT, 2495LMT + More
* Full access to all ports
* U-Bolt handlebar base fits bars 12.7 to 31.75mm diameter
* High strength composite construction ensures product longevity
* Lifetime warranty



The RAM-B-149Z-GA34U consists of a zinc coated u-bolt base, double socket arm, diamond adapter base and custom high strength composite cradle for the Garmin nuvi. Designed into the mount is a 1" diameter patented rubber ball and socket system with adjustment points at the base and cradle. With a twist of the arm knob, you can move the Garmin GPSMAP mount to your optimum viewing position. Included in this package is hardware that will accommodate rails from 0.50" to 1.25" in diameter.



Compatible Devices

Garmin
nuvi 1300
nuvi 1310T
nuvi 1350
nuvi 1350T
nuvi 1370T
nuvi 1390
nuvi 1390T
nuvi 2455LT
nuvi 2455LMT
nuvi 2475LT
nuvi 2495LMT


Note: this product does not include the Garmin GPS unit itself

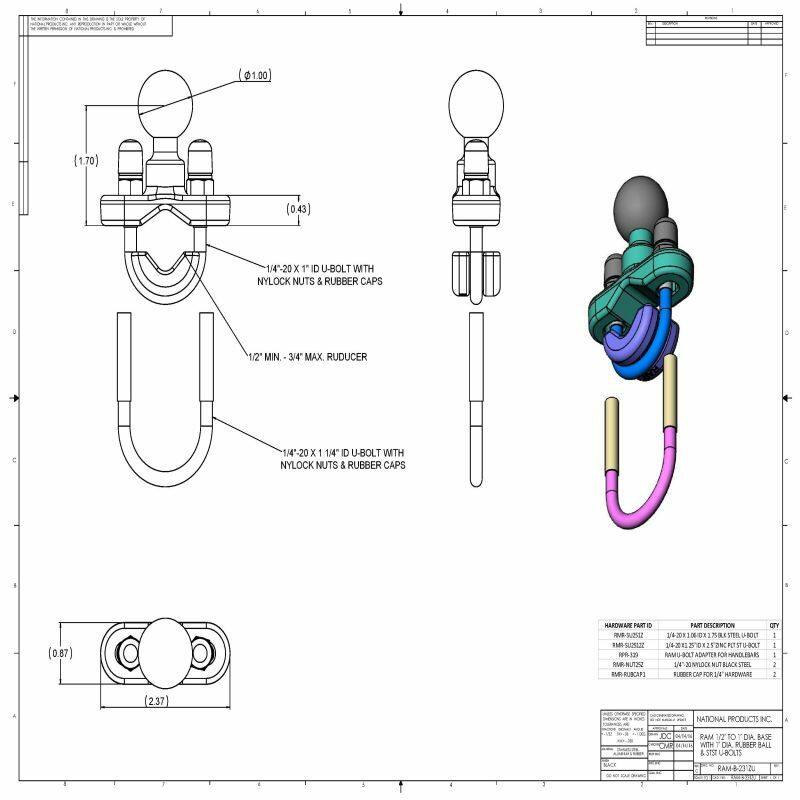

Hardware Included
Assembly Hardware
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) 1/4"-20 Nylock Nuts
(2) Rubber Caps
(1) U-Bolt Spacer

Clamp Range
12.7 to 31.75mm (.5" - 1.25") diameter

Socket-to-Socket Length
76.2mm (3")

Ball/Socket Size
B Size (1")

Weight Capacity
0.907kg (2 lbs)

Materials
Marine-grade aluminium
High strength composite


Weight
308 grams / 0.68 lbs.


Components:
RAM-HOL-GA34U RAM Cradle for Garmin nuvi 1300, 1390T, 2455LT, 2495LMT
RAM-B-149ZU RAM HANDLEBAR RAIL MOUNT W DIAMOND BASE

YouTube:
https://www.youtube.com/watch?v=Ip0bJ7nNpLs
