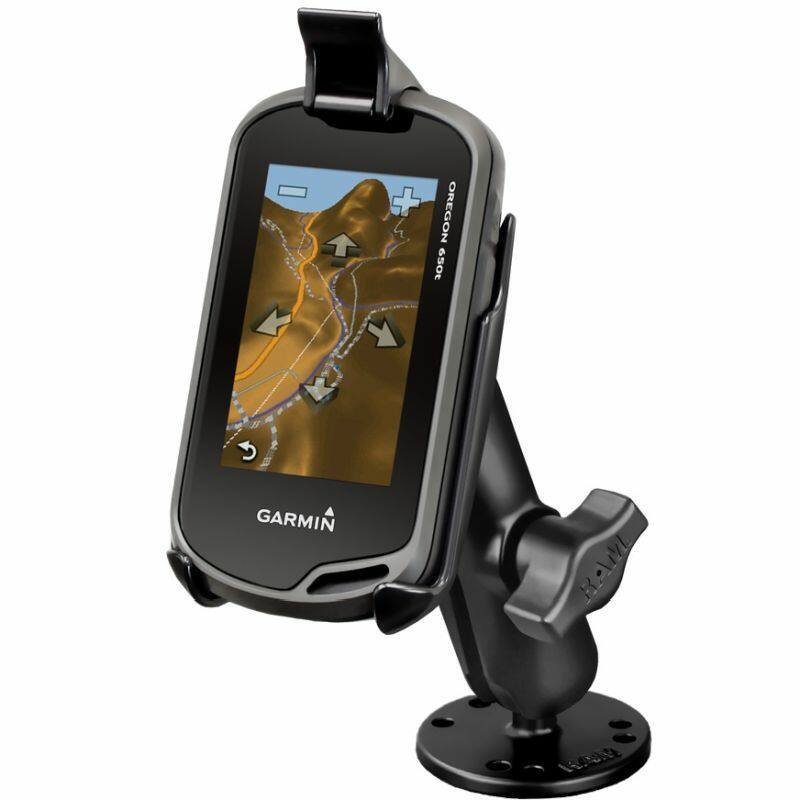

RAM-B-138-GA31 RAM® Drill-Down Mount for Garmin Oregon Series + More - Aluminium
Features:
* High strength composite cradle for Garmin Approach and Oregon
* Full access to all ports

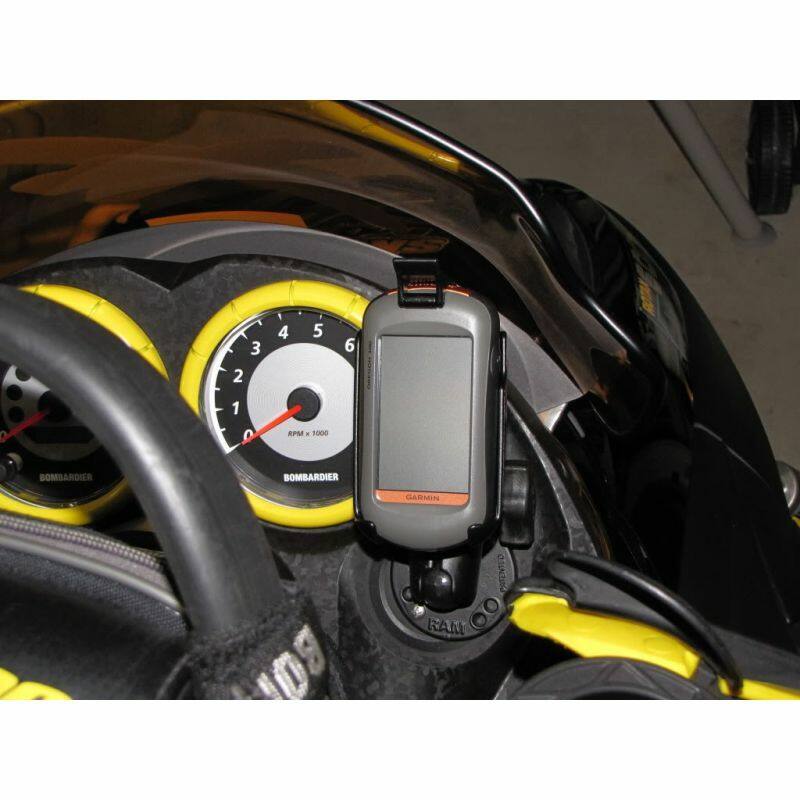

* Drill down base with round base is stable and secure in many locations
* Marine-grade aluminium alloy and High strength composite construction ensures product longevity
* Lifetime warranty

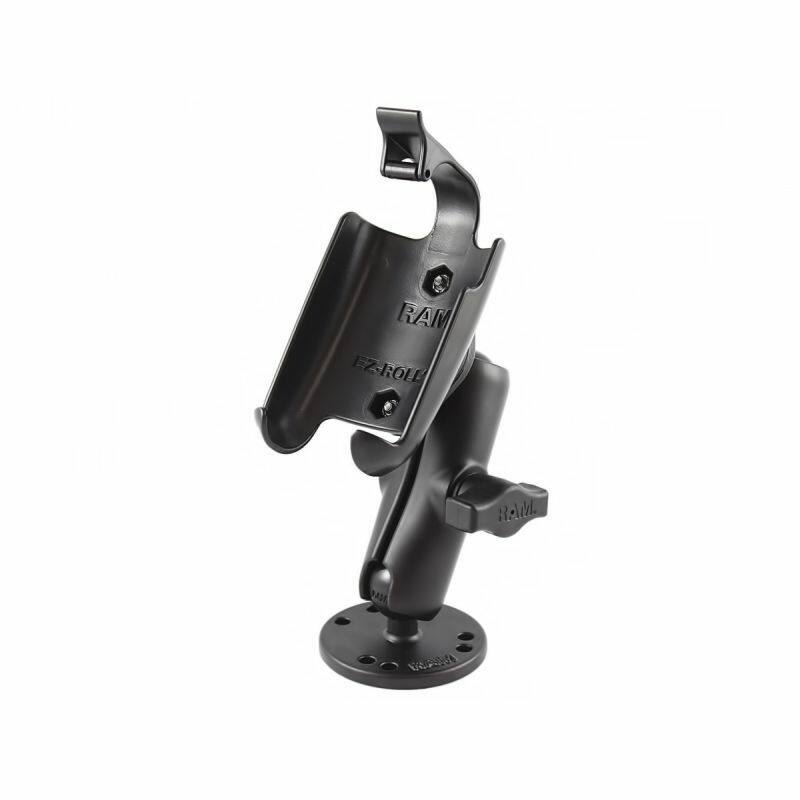

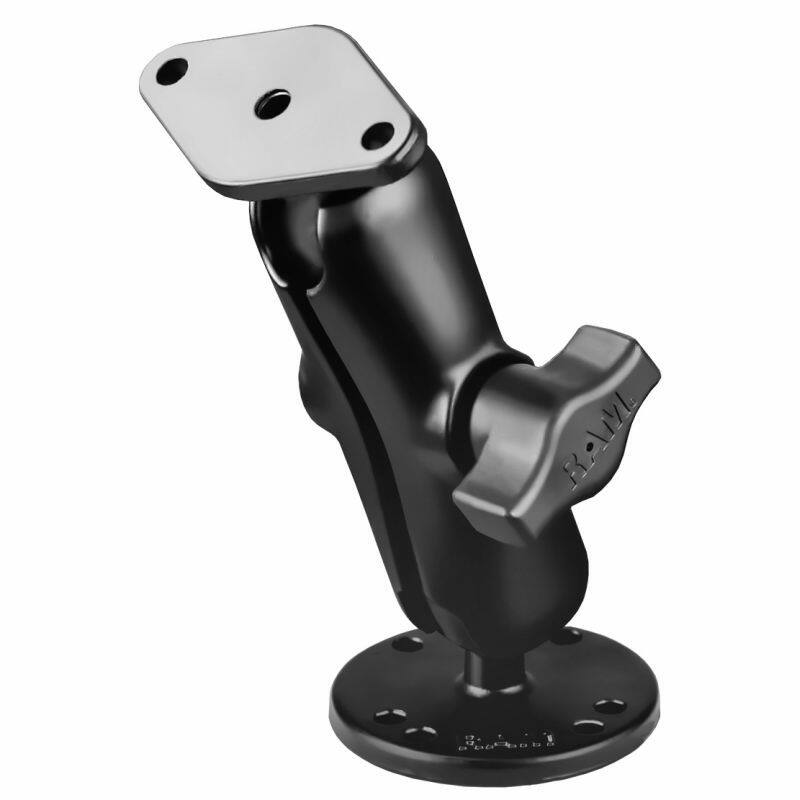

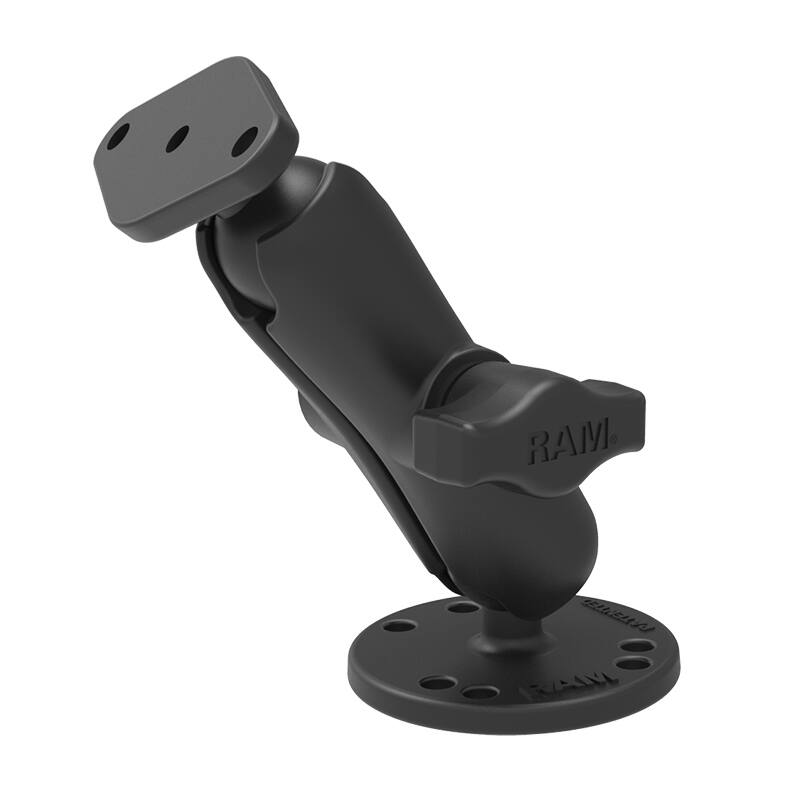

The RAM-B-138-GA31 consists of a 63mm / 2.5" diameter round base with the universal AMPS hole pattern, 94mm double socket arm, diamond adaptor base and high strength composite cradle. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles.
Compatible Devices
Garmin
Approach G5
Oregon 200
Oregon 300
Oregon 400c, 400i, 400t
Oregon 450, 450t
Oregon 550, 550t
Oregon 600, 600t
Oregon 650, 650t
Note: this is does not include the Garmin GPS unit itself
Specs & Features

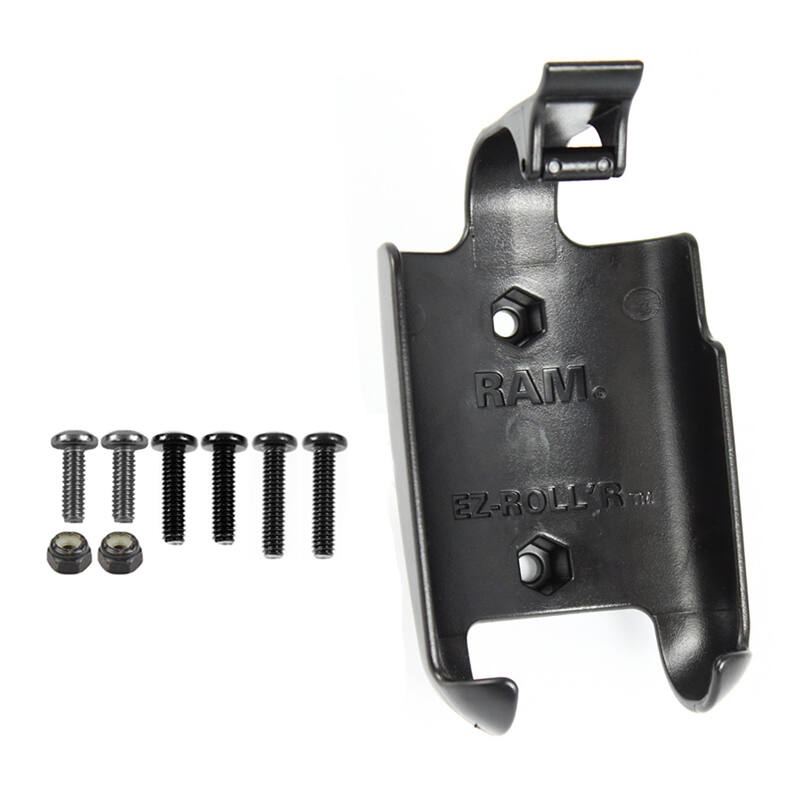

Hardware Included
Assembly Hardware
Arm Dimensions
Overall Length:
94mm (3.69")
Socket-To-Socket Length:
76mm (3")
Round Plate Hole Pattern
4-Hole AMPS:
1.181" x 1.496" (30mm x 38mm)
3-Hole AMPS 120- Degree
1.812” (46.0mm)
Plate Size
63mm (2.5") Diameter
Ball/Socket Size
B Size (1")
Weight
308 grams (0.68 lbs.)
Weight Capacity
Standard Use:
907 grams (2 lbs)
Heavy-Duty Use:
454 grams (1 lb)
Materials
Marine-grade aluminium
High strength composite

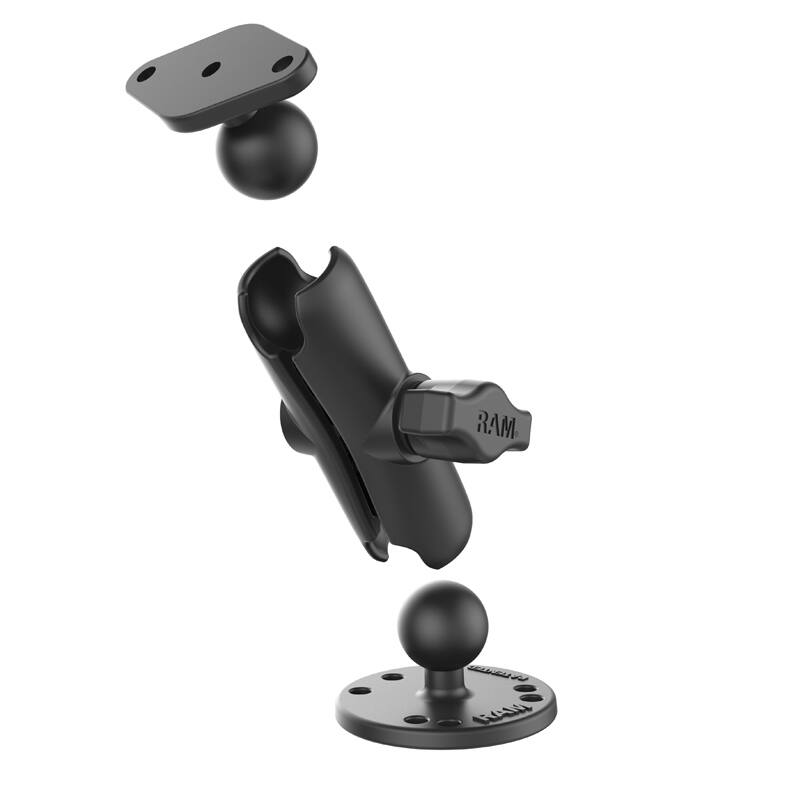

Components:

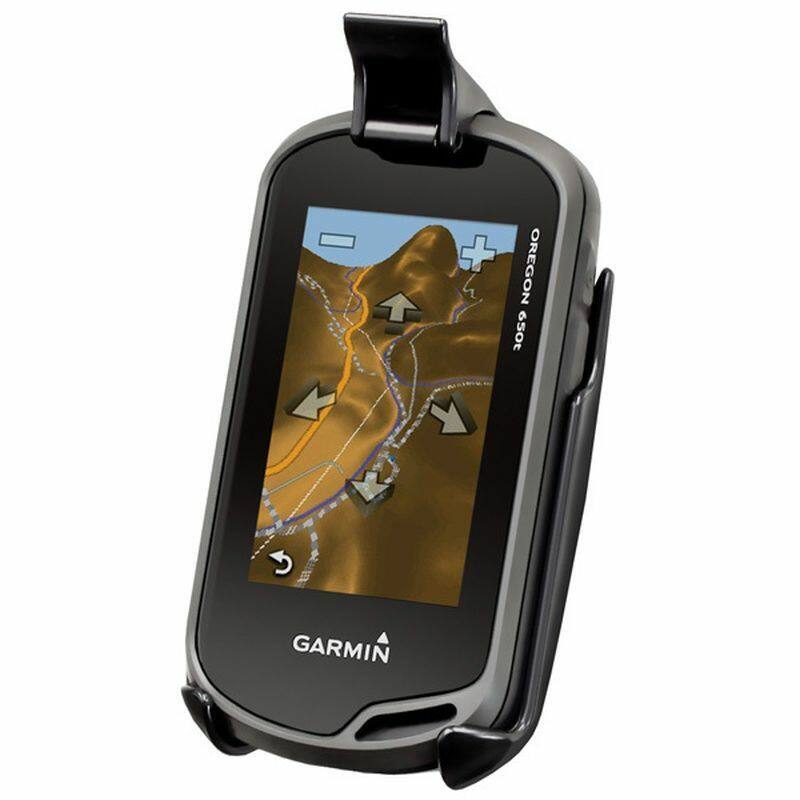

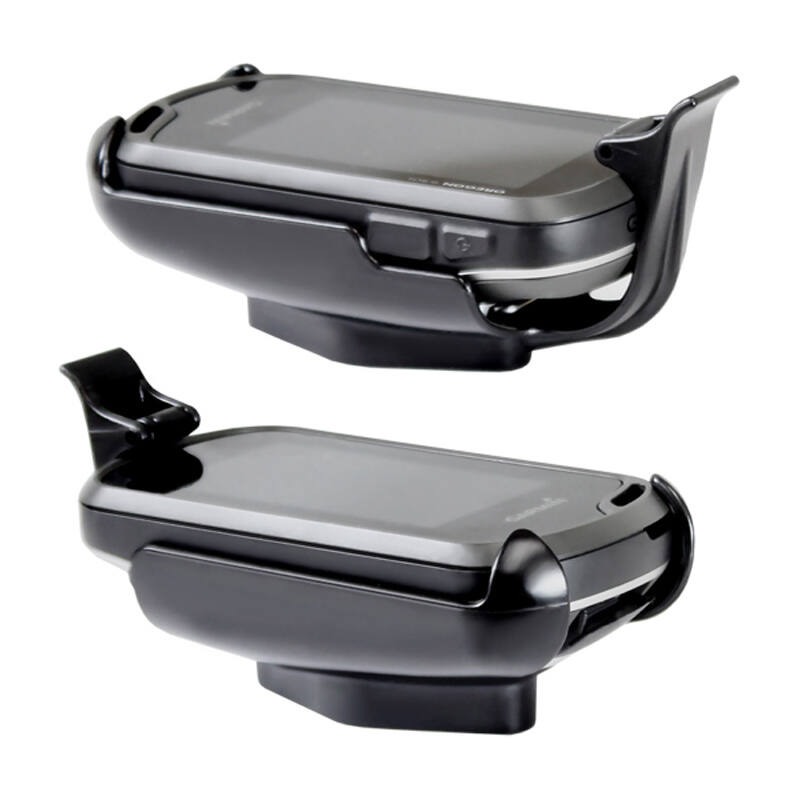

RAM-HOL-GA31U RAM HOLDER GARMIN OREGON
RAM-B-201U RAM DOUBLE SOCKET ARM FOR 1" BALL
RAM-B-202U RAM 62mm DIA.BASE WITH 1" BALL
RAM-B-238U RAM 62 X 33mm DIAMOND BASE W/ 1 BALL
