RAP-B-138-GA31 – RAM® Drill-Down Mount for Garmin Approach G5 & Oregon Series (Composite)

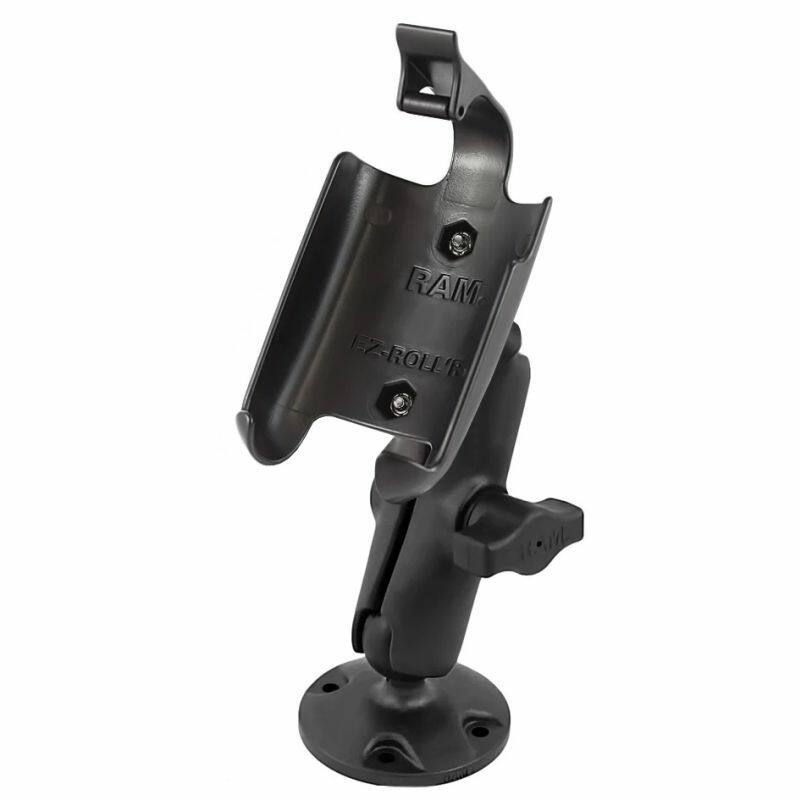

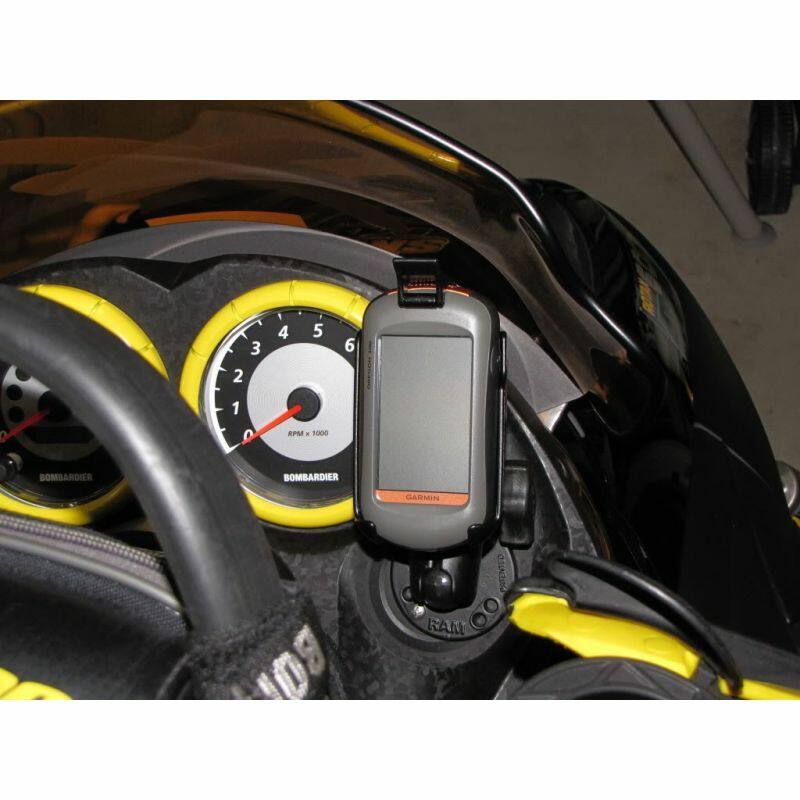

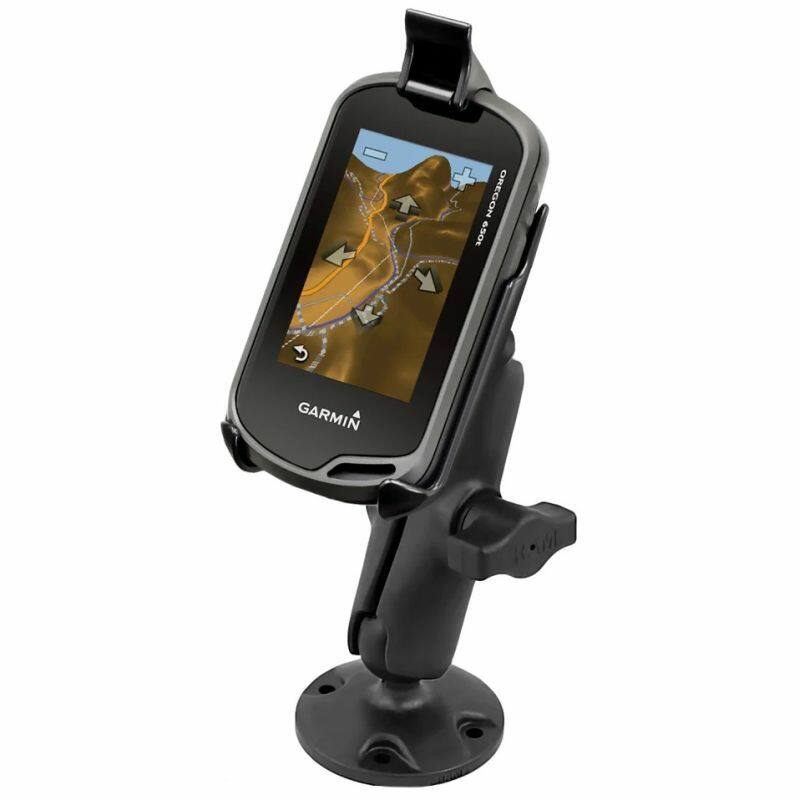

The RAP-B-138-GA31 mounts the Garmin Approach G5 and Oregon series on a permanent, bolt-down composite base. A 63mm (2.5") round base with the universal AMPS hole pattern connects through a double socket arm and diamond adapter to the GPS cradle.
Key Features
63mm (2.5") composite round base with the universal AMPS hole pattern for permanent, drilled installation
Composite double socket arm with 1" B-size rubber balls for near-infinite adjustment
High-strength composite cradle with full access to all ports
Backed by RAM Mounts' lifetime warranty
What's Included

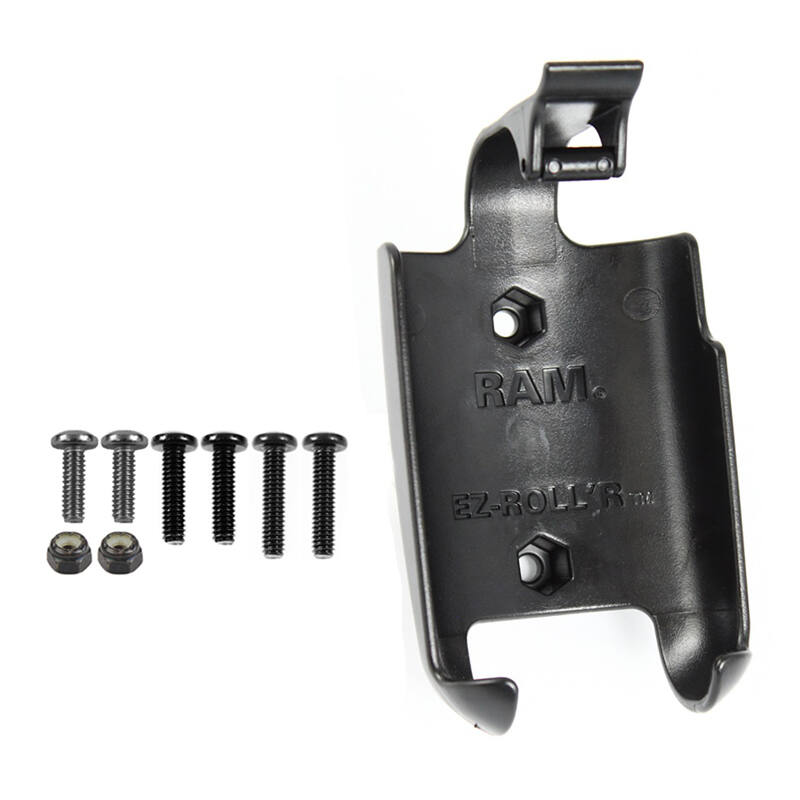

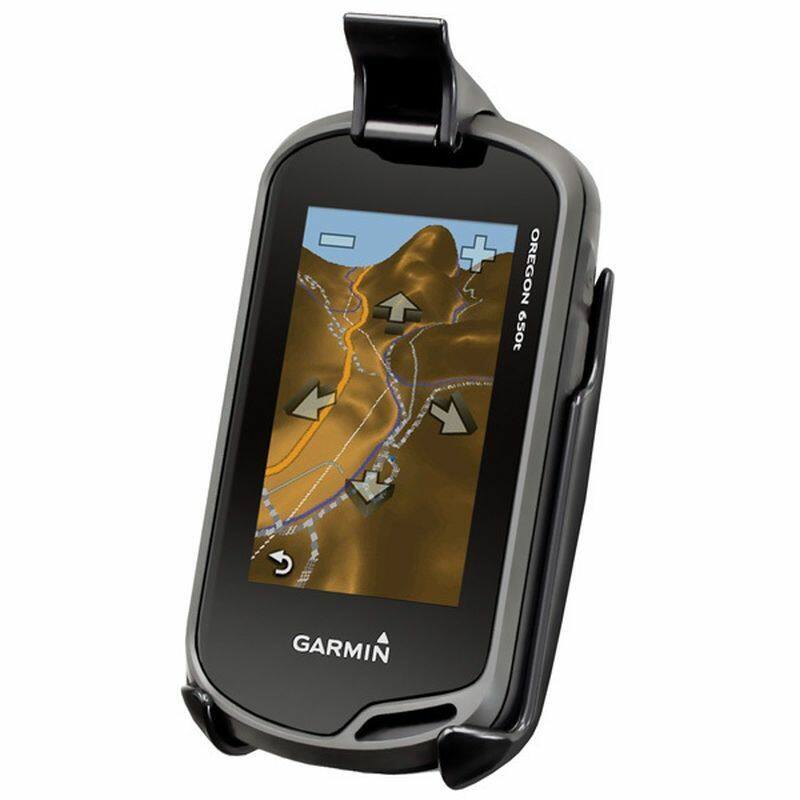

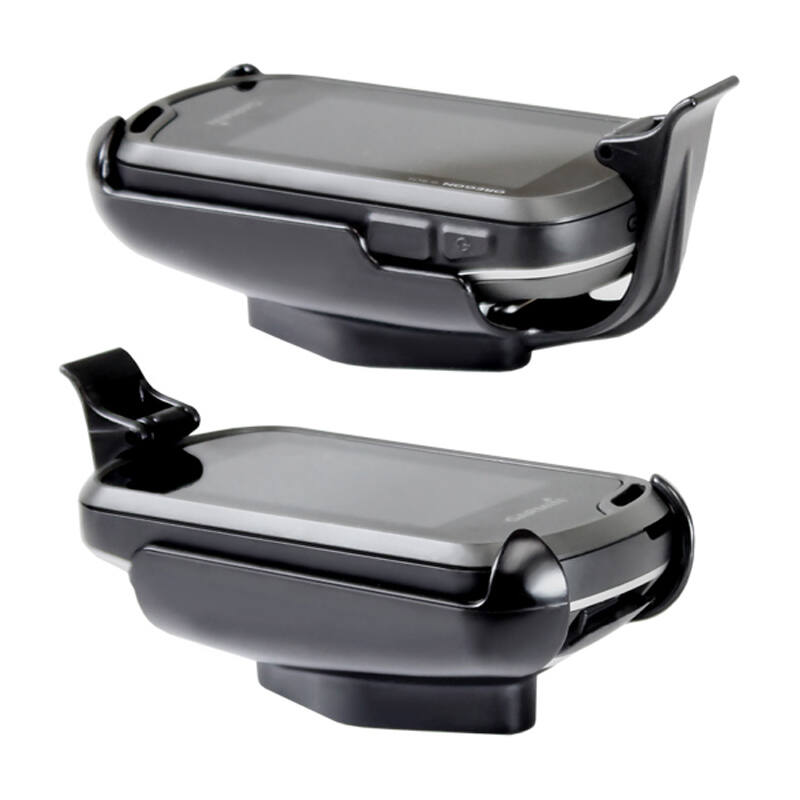

RAM-HOL-GA31U cradle for Garmin Approach G5 & Oregon series

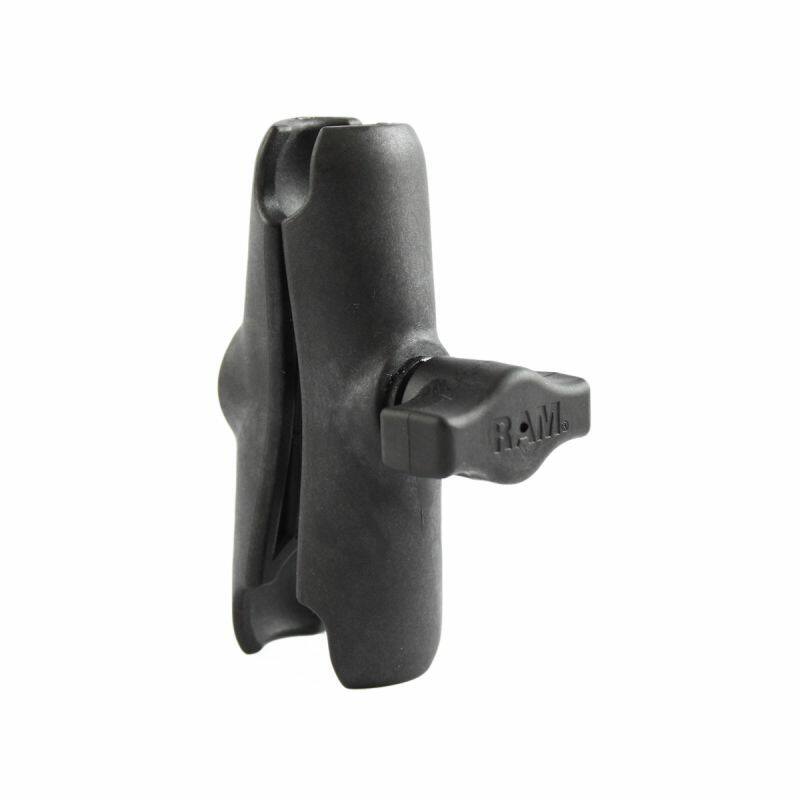

RAP-B-201U composite double socket arm for 1" ball
RAP-B-238U diamond base with 1" B-size ball

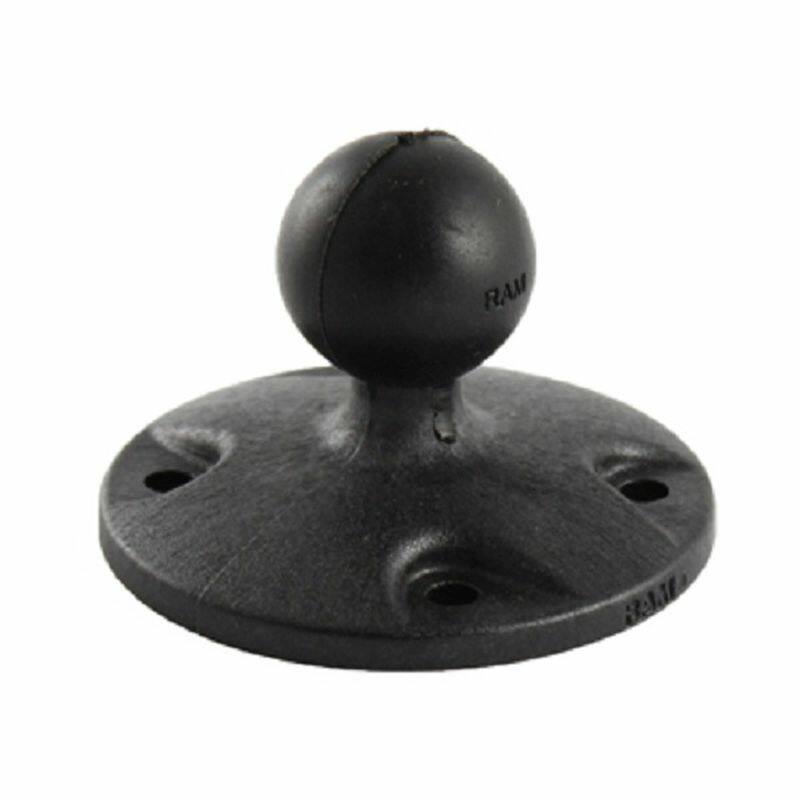

RAP-B-202U 63mm (2.5") round base with 1" ball
Assembly hardware
Dimensions & Specifications
Arm overall length: 94mm (3.69"); socket-to-socket 76mm (3")

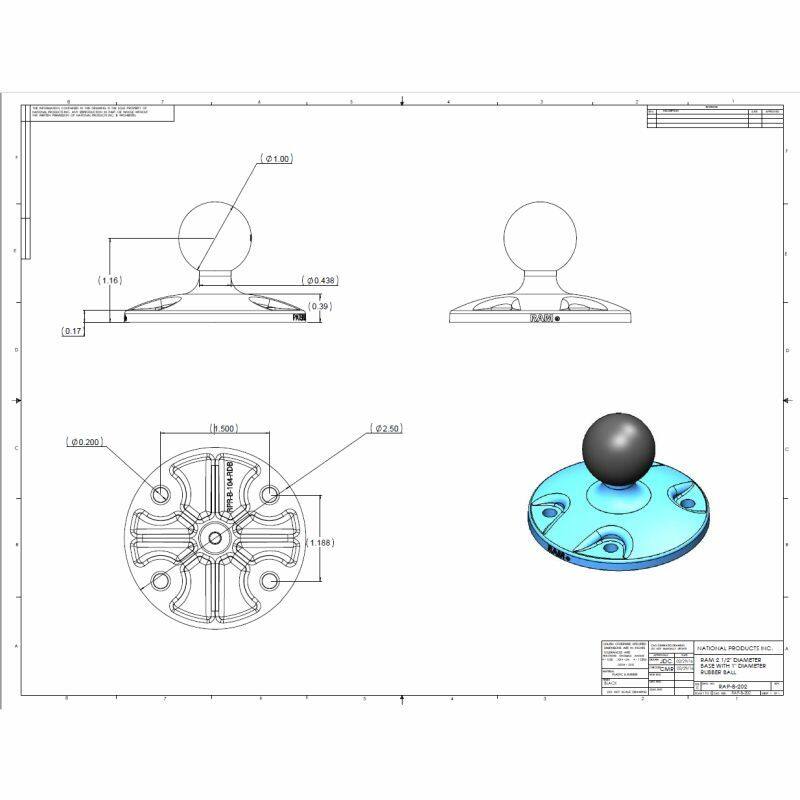

Round base hole pattern: 4-hole AMPS 30mm x 38mm (1.181" x 1.496")
Ball size: B size, 1" rubber ball
Load capacity: 907g (2 lb) standard use; 454g (1 lb) heavy-duty use
