RAM-B-149Z-GA47 RAM® Handlebar U-Bolt Double Ball Mount for Garmin Rino 610, 650 & 655t
Features:
* High strength composite cradle for Garmin Rino 610, 650 & 655t
* Full access to all ports
* Handlebar base is designed to mount on bars 12.7 to 32mm diameter
* Powder Coated Marine Grade Aluminium and high strength composite construction ensures product longevity
* Lifetime warranty

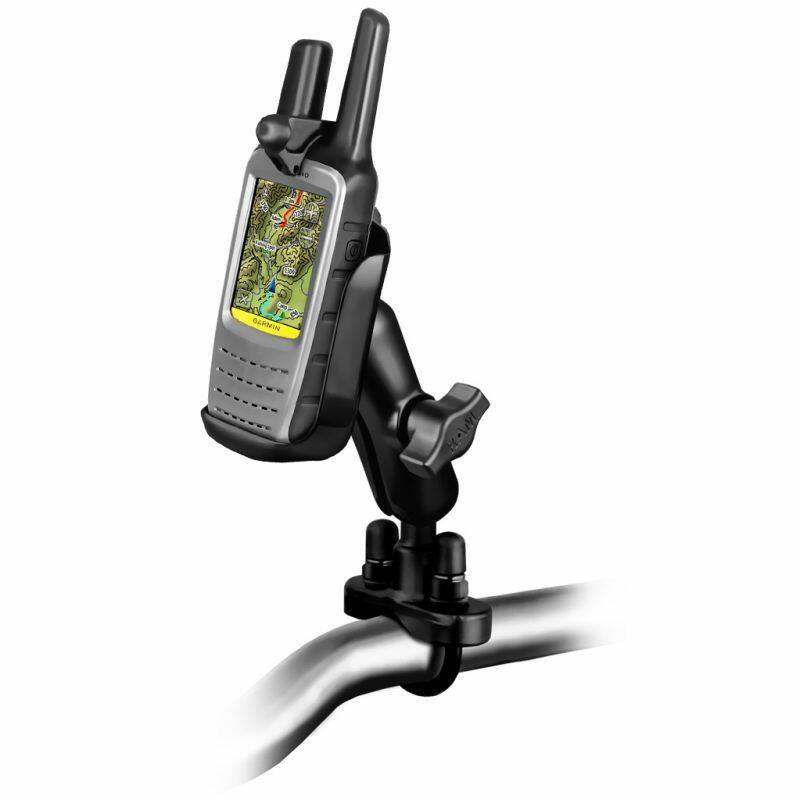

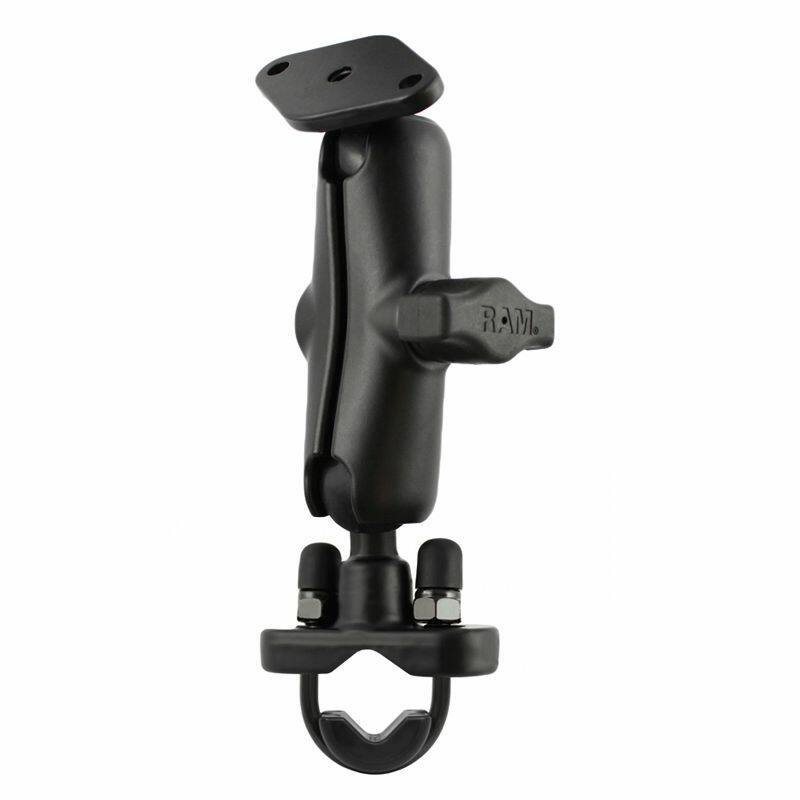

The RAM-B-149Z-GA47 consists of a double socket arm, zinc coated u-bolt base, diamond adapter base and custom high strength composite cradle for the Garmin Rino 600 series. Designed into the mount is a 1" diameter patented rubber ball and socket system with adjustment points at the base and cradle. With a twist of the arm knob, you can move the motorcycle Rino mount to your optimum viewing position.

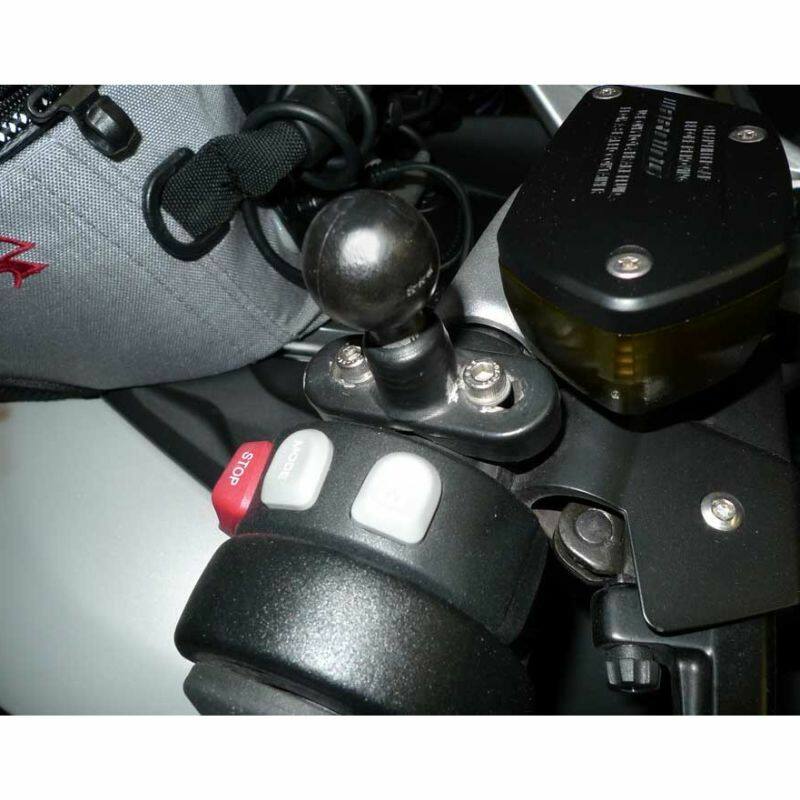

The motorcycle handlebar base with Zinc Coated U-Bolt & 1" Ball for Rails will fit bars 12.7mm to 32mm (0.5" to 1.25") in Diameter. The zinc coated metal u-bolt will fit all common motorcycle and bicycle handlebars. Includes black cover caps to cover the exposed ends of the u-bolt and a composite adapter that can narrow the rail to a minimum width of 13mm (1/2").
Compatible Devices
Garmin
Rino 610
Rino 650
Rino 655t
Note: this is does not include the Garmin GPS unit itself

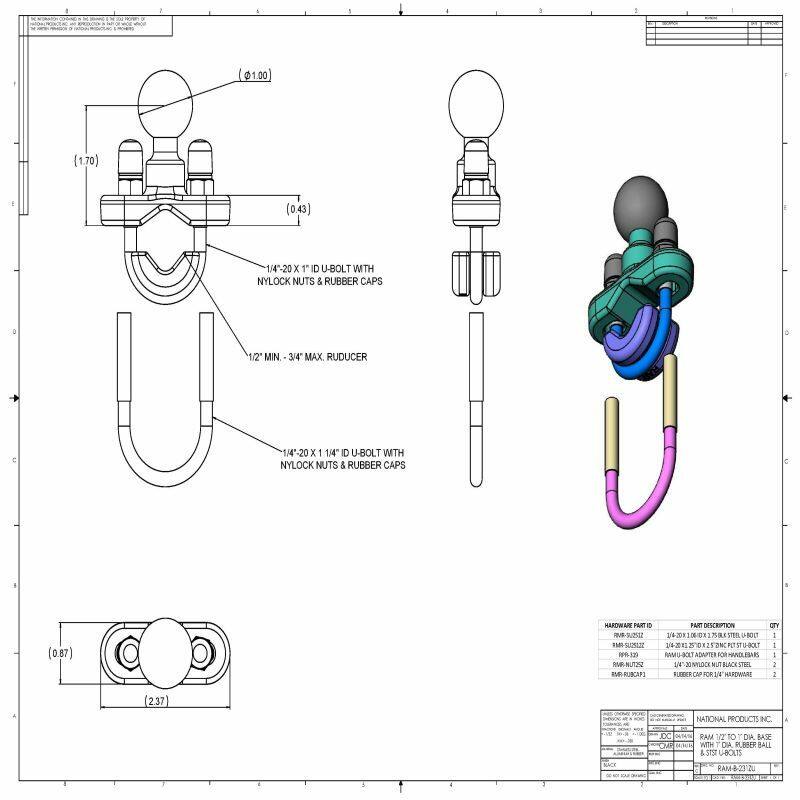

U-Bolt Dimensions:
Rails from 12.7 to 32mm (0.5" to 1.25") diameter.
Arm Dimensions:
Overall Length:
94mm (3.69")
Socket-To-Socket Length:
76mm (3")
YouTube:
https://www.youtube.com/watch?v=Ip0bJ7nNpLs
Components:

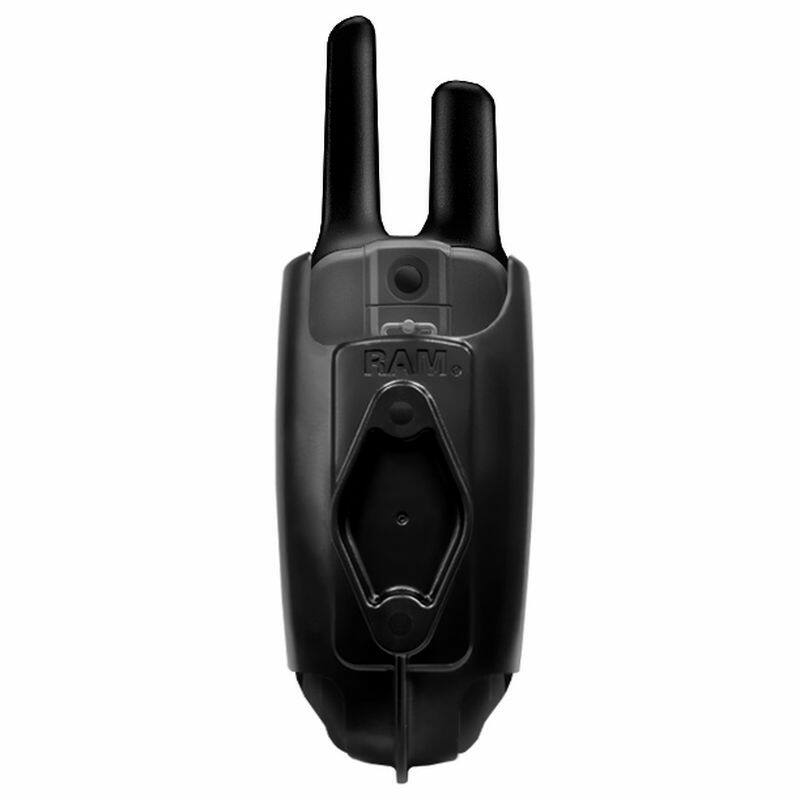

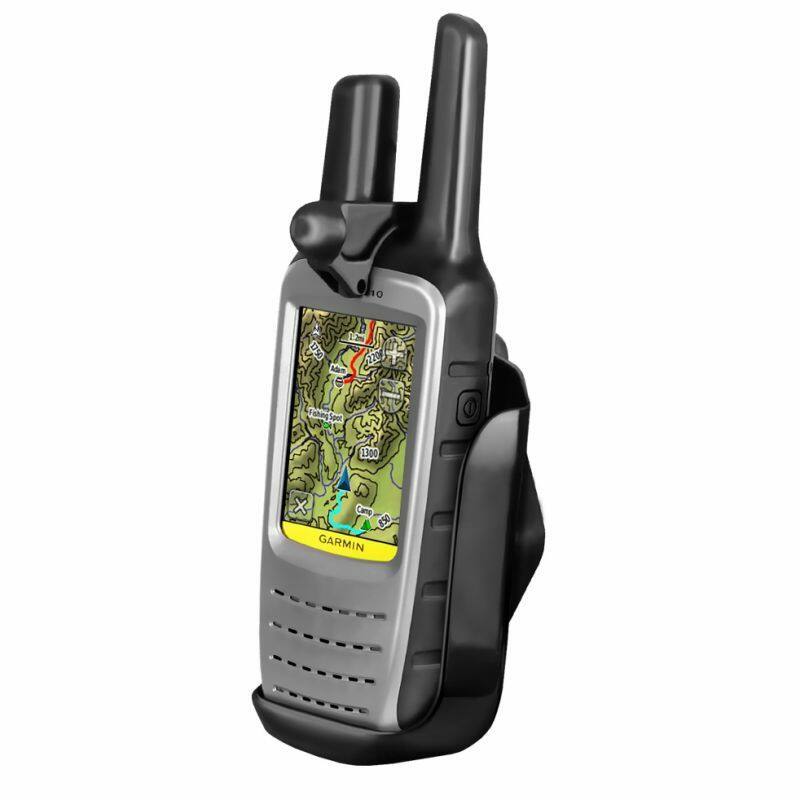

RAM-HOL-GA47U HOLDER FOR RINO 610, 650 & 655t

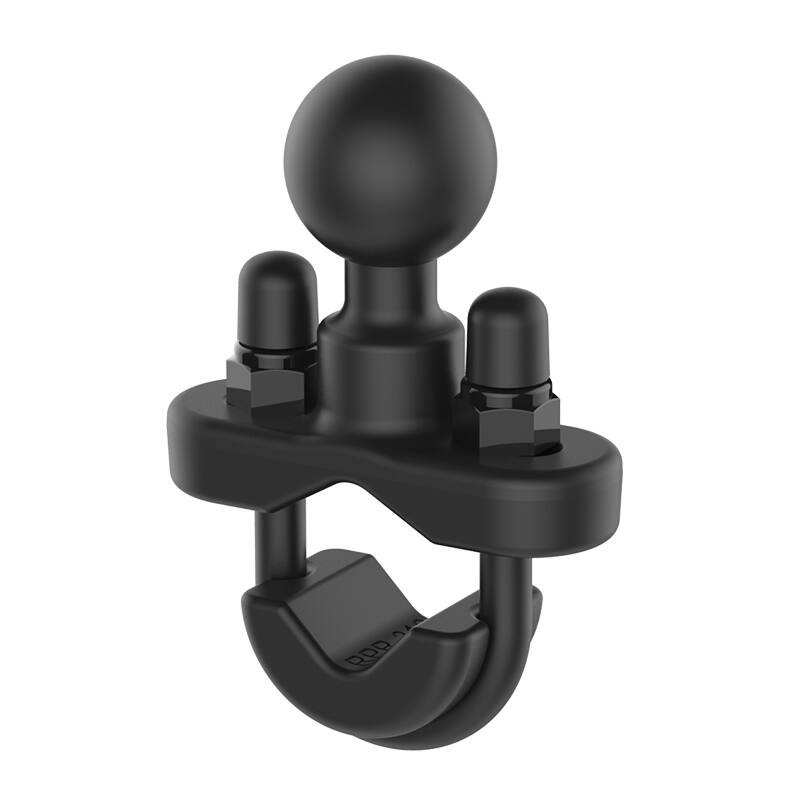

RAM-B-231ZU RAIL BASE W/ U-BOLT FOR 13 - 32MM BARS
RAM-B-201U DOUBLE SOCKET ARM FOR 1" BALL
RAM-B-238U 62 X 33mm DIAMOND BASE W/ 1 BALL
