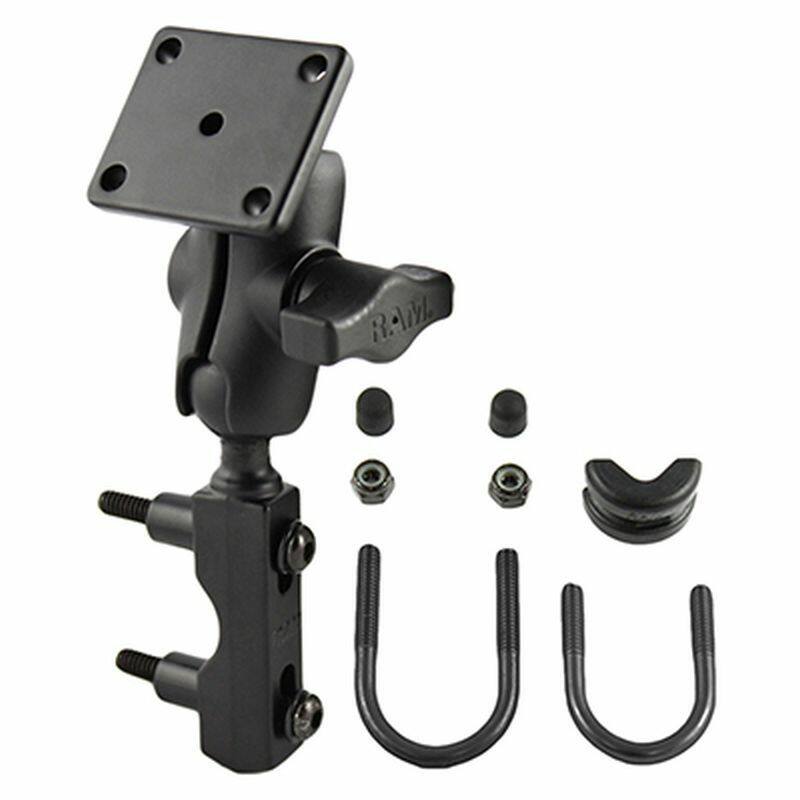

RAM-B-178U-A RAM® Brake/Clutch Reservoir Mount for Garmin Zumo 400-660 (Short Arm)
The RAM-B-178U-A is a combination handlebar and brake/clutch reservoir mount for motorcycles, supplied with a short B size 1" double socket arm and full U-bolt hardware. It holds your Garmin Zumo (or compatible GPS) close to the bars for a compact, low-profile setup.
Key Features

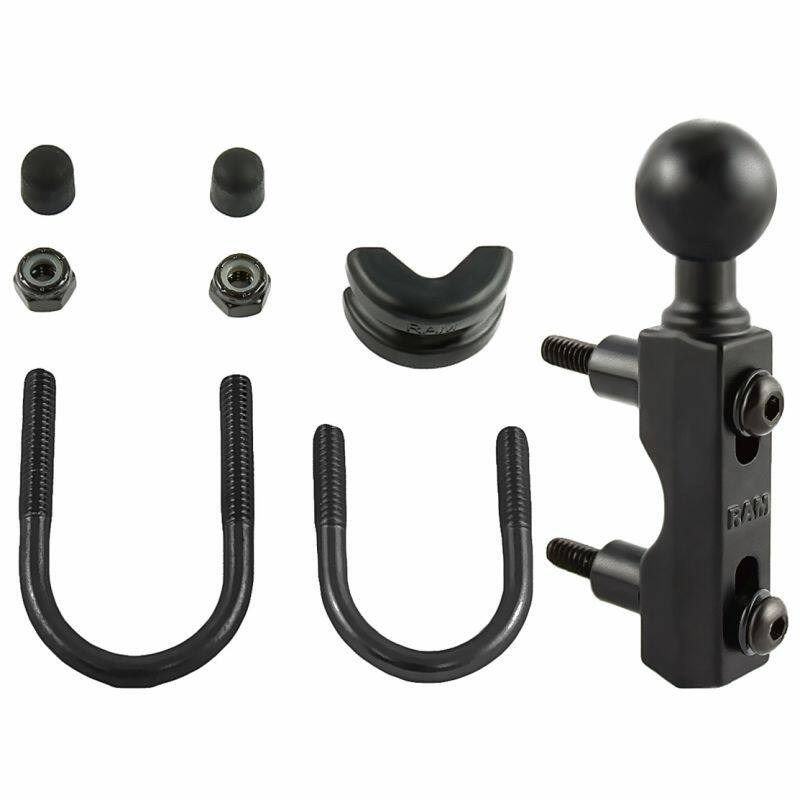

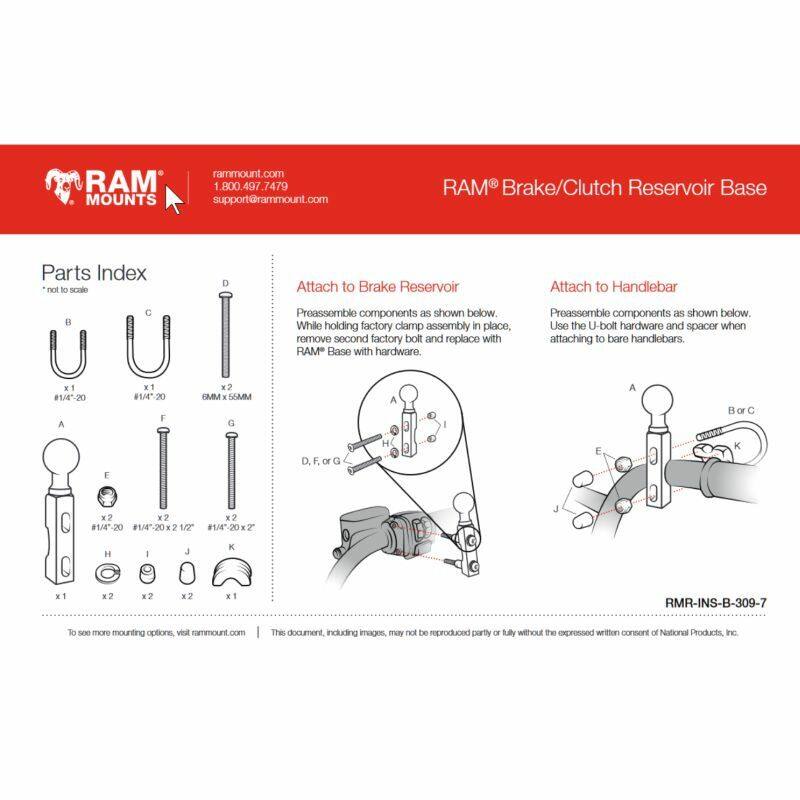

Combination handlebar and brake/clutch reservoir base, with U-bolt hardware included for either mounting method

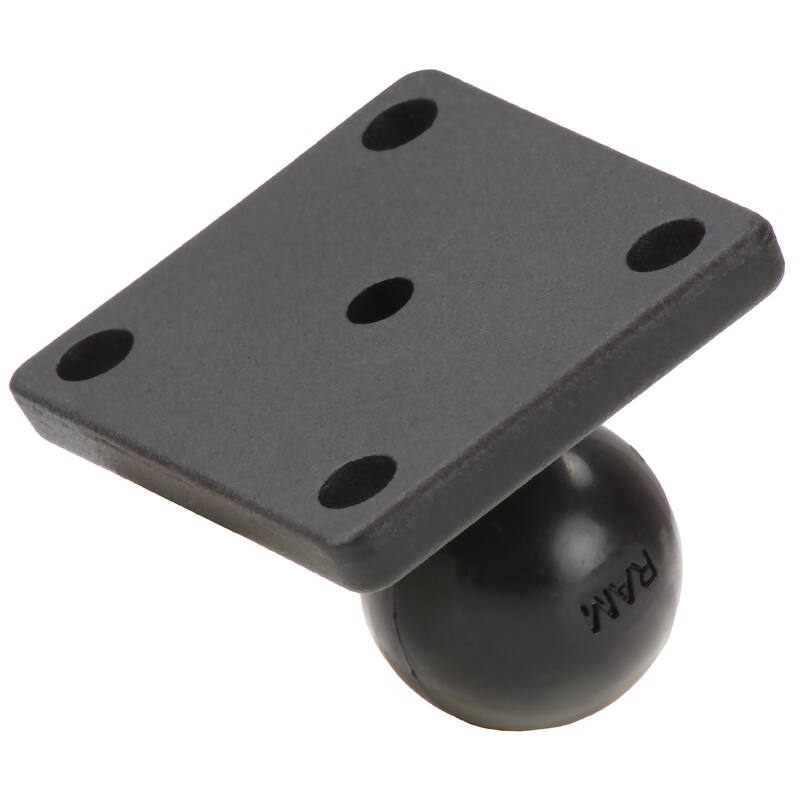

51 x 43mm ball base with the industry-standard 4-hole AMPS pattern (one hole at each corner)
Short B size 1" RAM® double socket arm for a tight, low-profile mount with near-infinite adjustability
Powder-coated marine-grade aluminium for durability in demanding conditions
Patented design dampens shock and vibration to help protect your device
Backed by a lifetime warranty
Works With

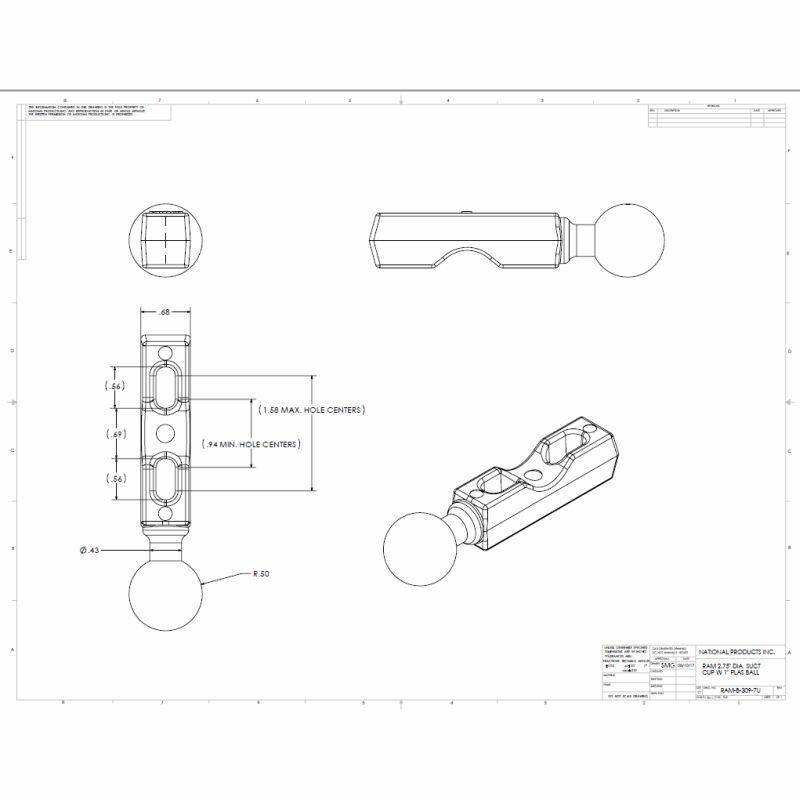

The zinc-coated U-bolt and nuts fit motorcycle handlebars or circular rail from 12.7 to 32mm (0.50" to 1.25") in diameter. To confirm the reservoir base will fit your bike, check your clutch/brake reservoir hole spacing against the base: hole centres span a minimum of 23.9mm (0.94") to a maximum of 40.1mm (1.58").

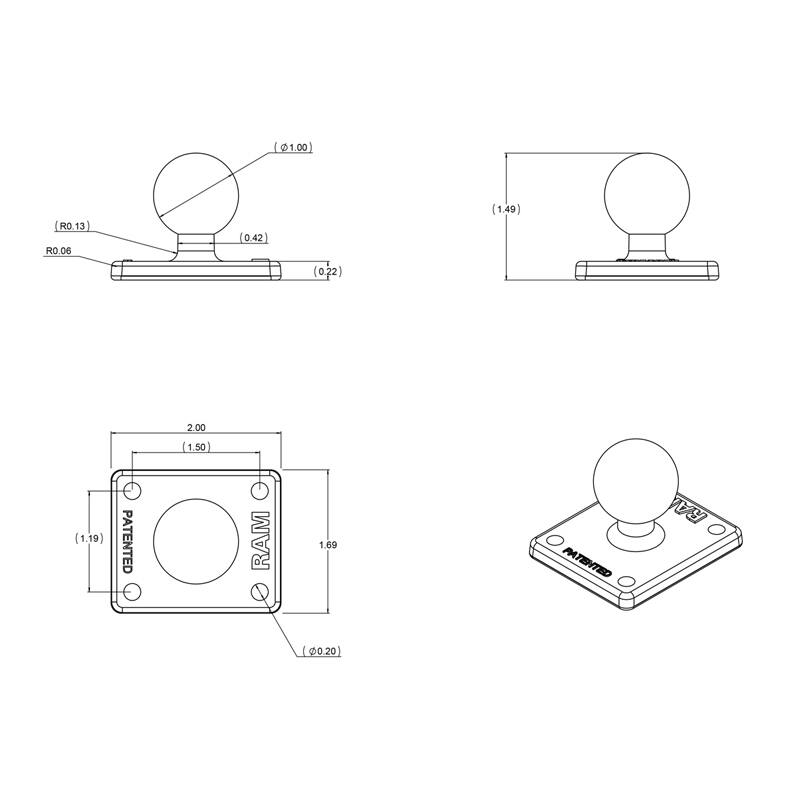

Dimensions & Specifications
Plate size: 50.8 x 43.2mm (2" x 1.7")
Plate hole pattern: 4-Hole AMPS, 30mm x 38mm (1.181" x 1.496")
U-bolt clamp range: 12.7 to 32mm (0.50" to 1.25") diameter
Ball size: 1" rubber ball (B size)
Arm length: overall 60.5mm (2.38"); socket-to-socket 51mm (2")
