RAM-GDS-CHARGE-V9U - GDS Hardwire Charger - 20-60V In, 12V Out - DC 5.5mm Barrel

RAM-GDS-CHARGE-V9U GDS® 20-60VDC Hardwire Charger, Male DC 5.5mm

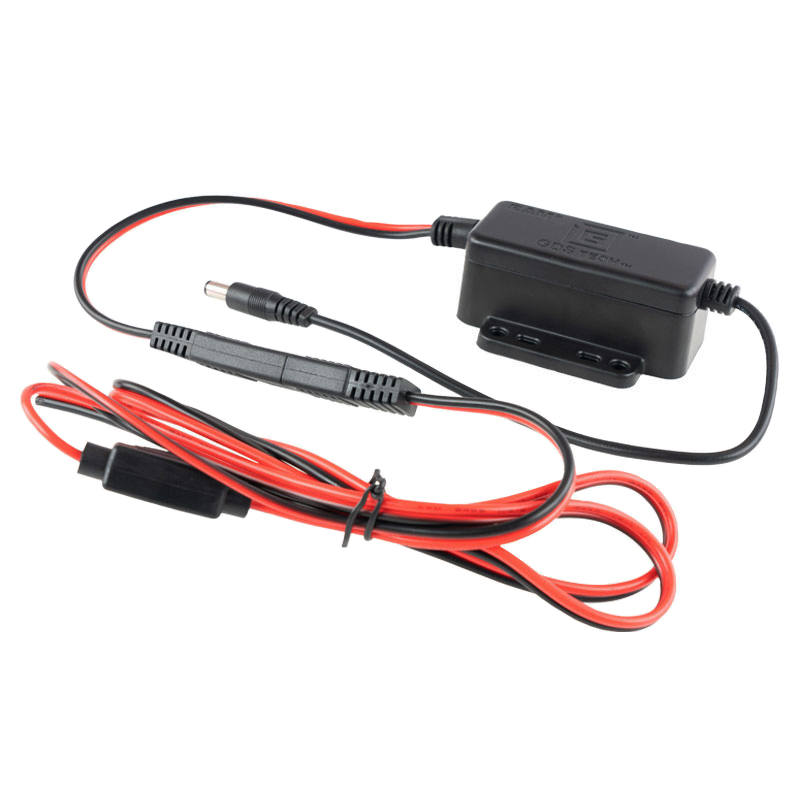

RAM-GDS-CHARGE-V9U is a GDS® modular hardwire charger that takes 20-60V DC from a forklift, pallet truck or other industrial vehicle and delivers a regulated 12V DC at up to 3.5A through a 5.5mm barrel plug, ready for any RAM® or GDS® DC powered dock.

Key Features

• Built for material handling: the 20-60V input range covers 24V, 36V and 48V forklift systems.
• Modular design: the power connector unplugs, so changing the device end does not mean rewiring the machine.
• Properly protected: IP66 sealed, with a 3A inline ATC fuse, 18AWG copper wire, and over-voltage, short circuit and reverse polarity protection.
• Rated for vehicle use: SAE J-1113-5 load dump and moisture resistant.
• Backed by RAM's three-year warranty.

Works With

Any RAM® or GDS® dock that takes a 12V DC input on a 5.5mm barrel. If your machine runs a lower voltage, RAM makes the same charger in 10-32V; get in touch and we can bring the right one in. The rest of the range sits in Chargers and Docks and GDS Tech.

Dimensions & Specifications

• Input voltage: 20-60V DC
• Output voltage: 12V DC (±300mV)
• Output current: 3.5A max
• Barrel connector: male, 5.5mm outer diameter × 2.5mm inner
• Input cable length: 1.2m, including 2-pole flat marine connector
• Output cable length: 0.2m
• Operating temperature: -10°C to +70°C
• Storage temperature: -40°C to +70°C
• Weight: 136g (0.3lb)
• Ingress protection: IP66
• Protection: over voltage, short circuit, reverse polarity, SAE J-1113-5 load dump, moisture resistant; 3A inline ATC fuse
• Certifications: FCC, CE, UKCA, IC, E-Mark, RCM; RoHS and WEEE compliant
• Warranty: 3 years

Documents

GDS Hardwire Charger Compatibility Guide (PDF): compares input voltage, output voltage and connector type across the GDS hardwire charger range, so you can confirm this one suits your dock and your vehicle.

FAQs

Will it run a tablet directly? No. It outputs 12V on a barrel plug for a powered dock, not USB. For a device that charges over USB, you want one of the USB-C or Micro-B chargers instead.

What machines is a 20-60V input for? Electric forklifts, pallet trucks, order pickers and similar 24V, 36V and 48V industrial equipment.
