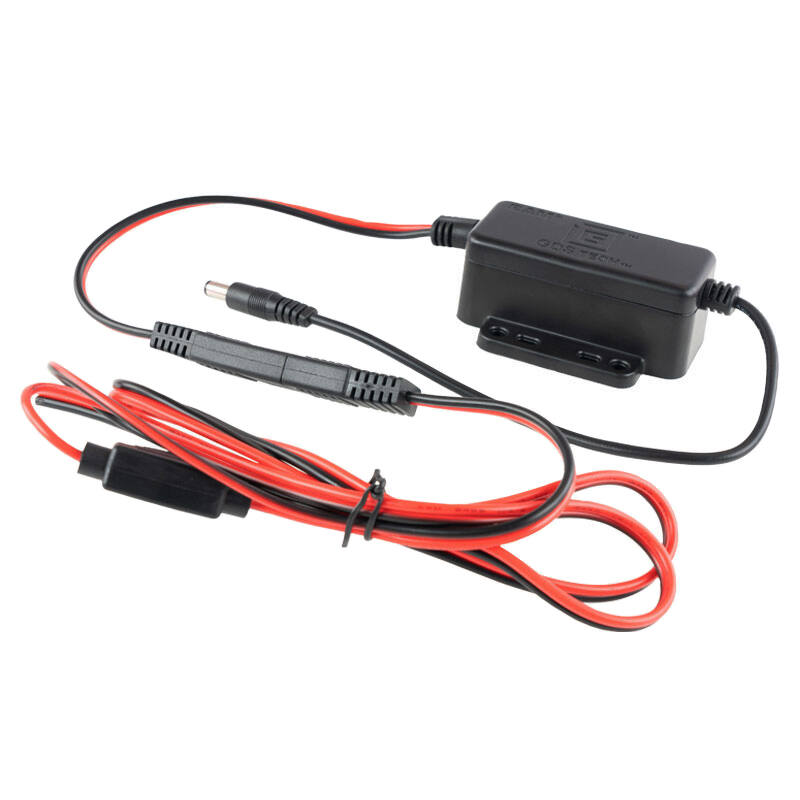

RAM-GDS-CHARGE-V9U GDS® 20-60VDC Input (12VDC Output) Hardwire Charger with Male DC 5.5mm
Alternative parts code RAM-GDS-CHARGE-V9U
Features
* Hardwire charger includes male 5.5mm barrel connector; 20-60VDC input range, 12VDC output
* When upgrading devices, avoid rewiring by unplugging power connector and attaching new charger components
* Part of the GDS® Ecosystem™ to keep devices protected, connected, and charged in nearly any application
* Backed by a 3-year warranty
The GDS® Modular Hardwire Charger with 5.5mm Male DC cable is the ideal solution for providing power to any RAM® or GDS® DC powered docking station. When it comes time to upgrade, avoid any rewiring by simply unplugging the power connector and attaching the new charger components. This hardwire charger has an input of 20-60VDC input, making it ideal for forklift mounts and material handling applications.
Input Voltage
20V-60V DC
Output Voltage
12VDC
Output Current
3.5A max
Input Connector
Male 5.5mm OD x 2.5mm ID Barrel Connector
Input Cable Length
1.2 Meters including 2 Pole Flat Marine Connector
Output Cable Length
.2 Meters
Operating Temperature
-10°C to +70°C
Storage Temperature
-40°C to +70°C
Compliance
Over Voltage Protection
Short Circuit Protection
Reverse Polarity Protection
RoHS Compliance
WEEE Compliance
SAE J-1113-5 Load Dump (Transient Voltage)
Moisture Resistant
Certifications
CE Certification
e-Mark Certification
RCM Certification
FCC Certification
Weight
136 grams (0.3 lbs.)
Warranty Status
3 year warranty
YouTube:
https://www.youtube.com/watch?v=PxVdHB7h3K4&feature=emb_logo
