RAM-GDS-CHARGE-USBC-V7B1-1U - GDS Modular Hardwire Charger 10-30V with Type-C Cable

RAM-GDS-CHARGE-USBC-V7B1-1U GDS® Modular 10-30V Hardwire Charger with Type-C 2.0 Cable

The RAM-GDS-CHARGE-USBC-V7B1-1U wires directly into your vehicle's 10-30V supply and powers any GDS® dock or vehicle solution. It ships with the GDS® genuine USB Type-C 2.0 cable, so it is ready to charge a Type-C device out of the box. The quick-disconnect design means that when you change devices you unplug the charger components rather than rewiring the vehicle.

Key Features

• Hardwires into a 10-30V DC vehicle supply, suiting 12V cars, utes, boats and 24V trucks and machinery
• USB Type-A female connector on the charger body, supplied with a GDS® Type-A to Type-C 2.0 cable
• Quick-disconnect at the power connector, so upgrading a device does not mean re-running wiring
• Protected supply: over-voltage, short-circuit and reverse-polarity protection, plus moisture resistance and SAE J-1113-5 load dump compliance
• Part of the GDS® Ecosystem™, and backed by RAM®'s 3-year warranty on electronics

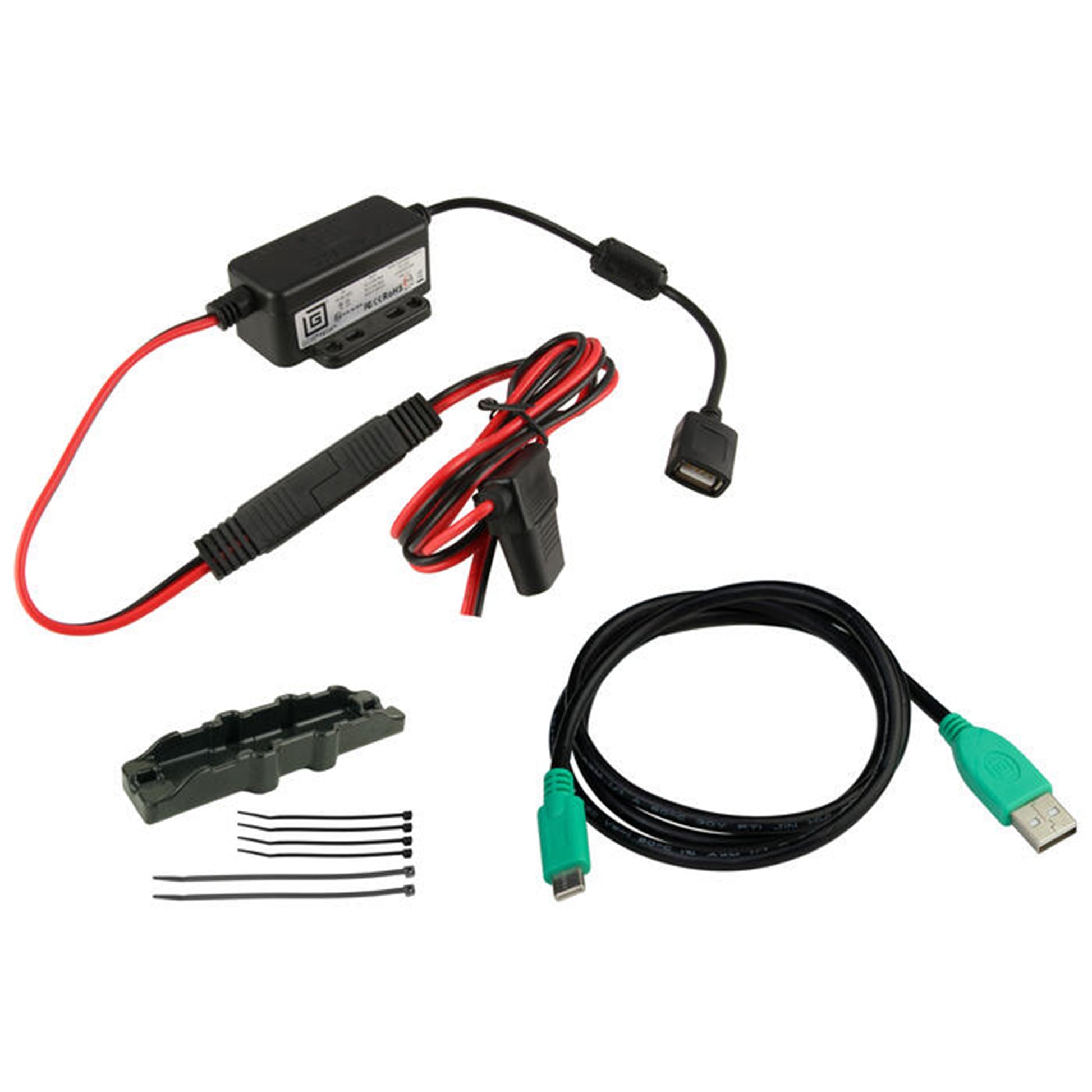

What's Included

• RAM-GDS-CHARGE-V7B1U 10-30V modular hardwire charger with USB Type-A female connector
• RAM-GDS-CAB-USBC-AMCMU-1 GDS® genuine USB Type-C 2.0 cable (Type-A male to Type-C male)

Works With

Powers any GDS® vehicle dock or GDS® solution drawing 5V at 2.5A or less. If you are running a 30-64V system such as a forklift or a heavy commercial vehicle, you need the 30-64V version instead, not this one.

Dimensions & Specifications

• Input voltage: 10-30V DC
• Output voltage: 5-9V DC (5V via USB 2.0 BC1.2 and DCP; 9V via AFC and QC 2.0)
• Output current: 2.5A maximum
• Input cable length: 1.2m, including the 2-pole flat marine quick-disconnect
• Output cable length: 0.2m
• Operating temperature: -10°C to +70°C
• Storage temperature: -40°C to +70°C
• Weight: 231g (0.51 lb)
• Compliance: RoHS, WEEE, SAE J-1113-5 load dump, FCC, CE, UKCA, IC
• Certifications: E-Mark, RCM, IEC/UL 62368-1
• Warranty: 3 years

Installation Notes

• This is a hardwired charger, so it needs to be wired to a switched or permanent supply. If you are not comfortable working on vehicle wiring, have an auto electrician fit it.
• Fuse the supply appropriately and observe polarity, even though the unit has reverse-polarity protection.
• The 2-pole flat marine connector is the disconnect point. Leave it accessible so future device changes stay a plug-and-play job.

FAQs

Will this work on a 24V truck?
Yes. The input range is 10-30V DC, which covers both 12V and 24V systems. For anything above 30V, such as a 36V or 48V forklift, you need the 30-64V version.

Does it fast-charge?
It delivers up to 9V at 2.5A maximum via AFC and QC 2.0. It is not a USB Power Delivery charger, so a device that only fast-charges over USB-PD will charge at standard speed.

Is the cable included?
Yes. The GDS® genuine Type-A to Type-C 2.0 cable is supplied with this kit. The charger on its own, without the cable, is the RAM-GDS-CHARGE-V7B1U.

What warranty does it carry?
Three years. RAM®'s lifetime warranty applies to their mounting hardware; electronics such as chargers and cables carry a 3-year term instead.
