GDS Uni-Conn Powered 7" Pedestal Dock with PoE

RAM-GDS-DOCK-D11-7-U3E - GDS® Uni-Conn™ Powered 7" Pedestal Dock with PoE

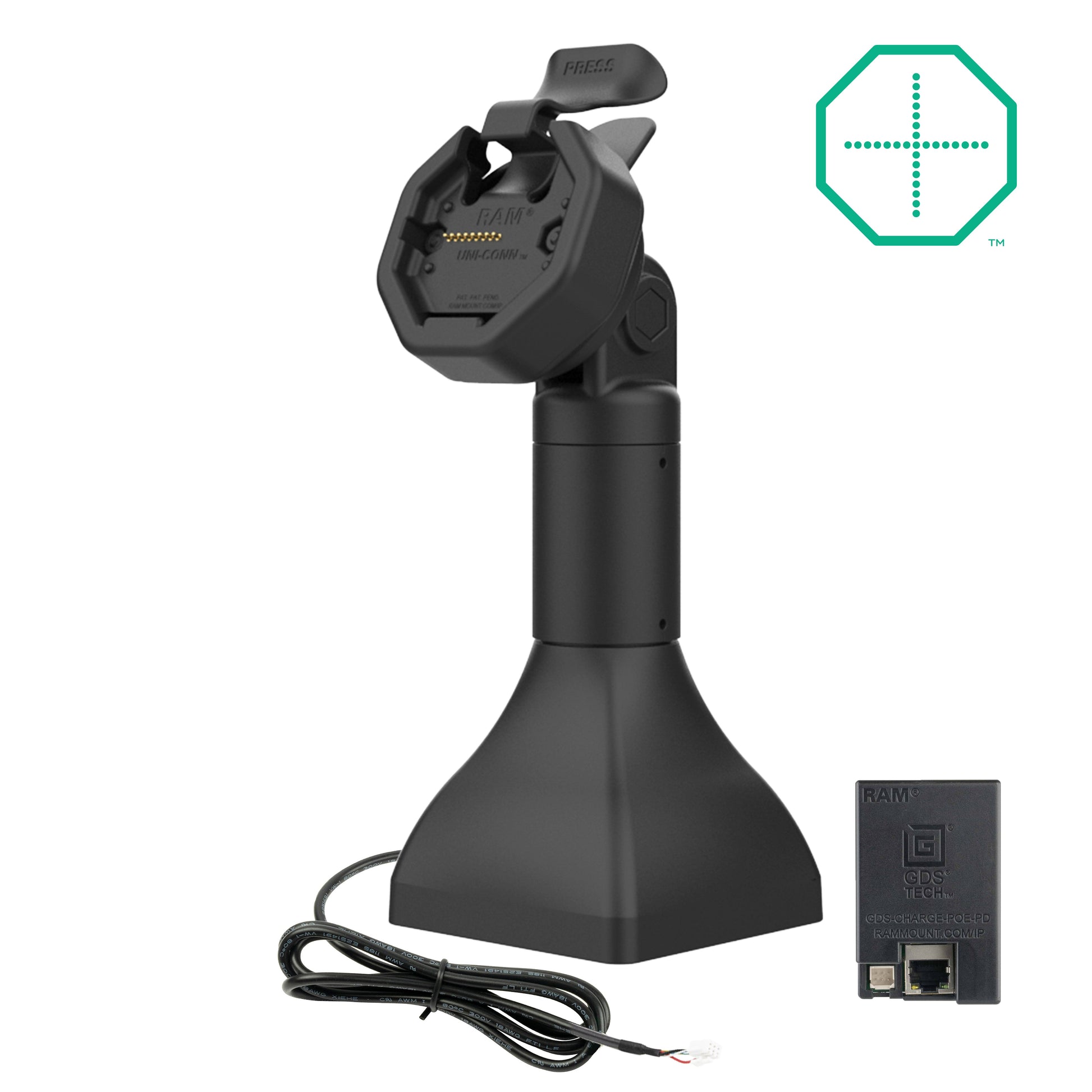

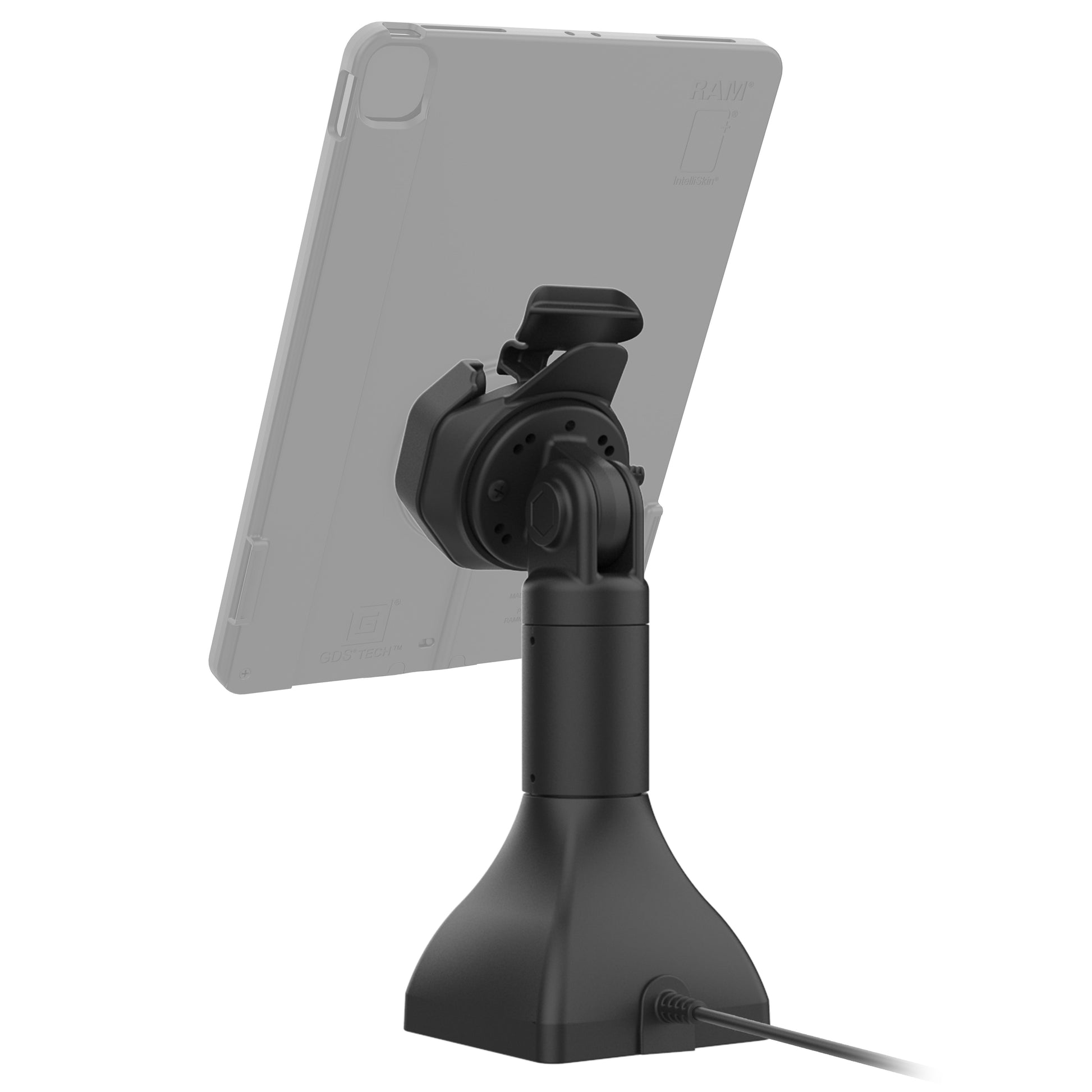

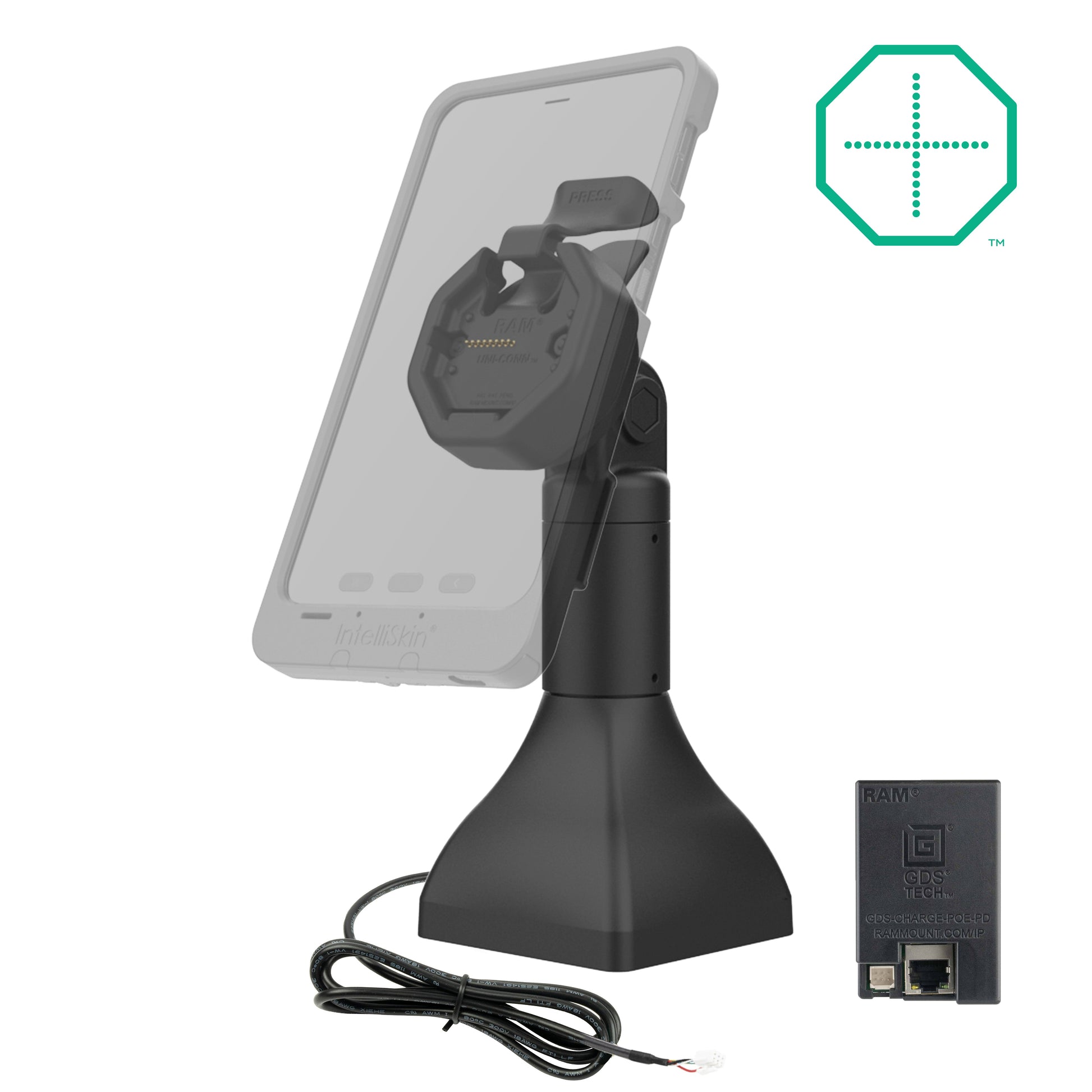

The RAM-GDS-DOCK-D11-7-U3E is a free-standing 7" pedestal dock with ethernet for tablets housed in a GDS® Uni-Conn™ IntelliSkin® Thin-Case™ with Rear Pogo Pads. It lifts the device to a comfortable viewing and signing height, swivels 180° and tilts 180°, and delivers power and data down a single Power over Ethernet (RJ45) cable through the Uni-Conn pogo-pin connection. It is built for managed retail, hospitality and reception stations where a tablet needs to stay powered, connected, and ready all day.

Key Features

• Powered docking over PoE: the GDS® Uni-Conn™ pogo-pin connector delivers power and data via a single RJ45 (Power over Ethernet) cable.
• Secure downtime updates: the wired ethernet link lets you push software updates and manage the device securely out of hours.
• Snap-in attachment: the U3 mechanical snap-in mechanism holds the device positively in the dock.

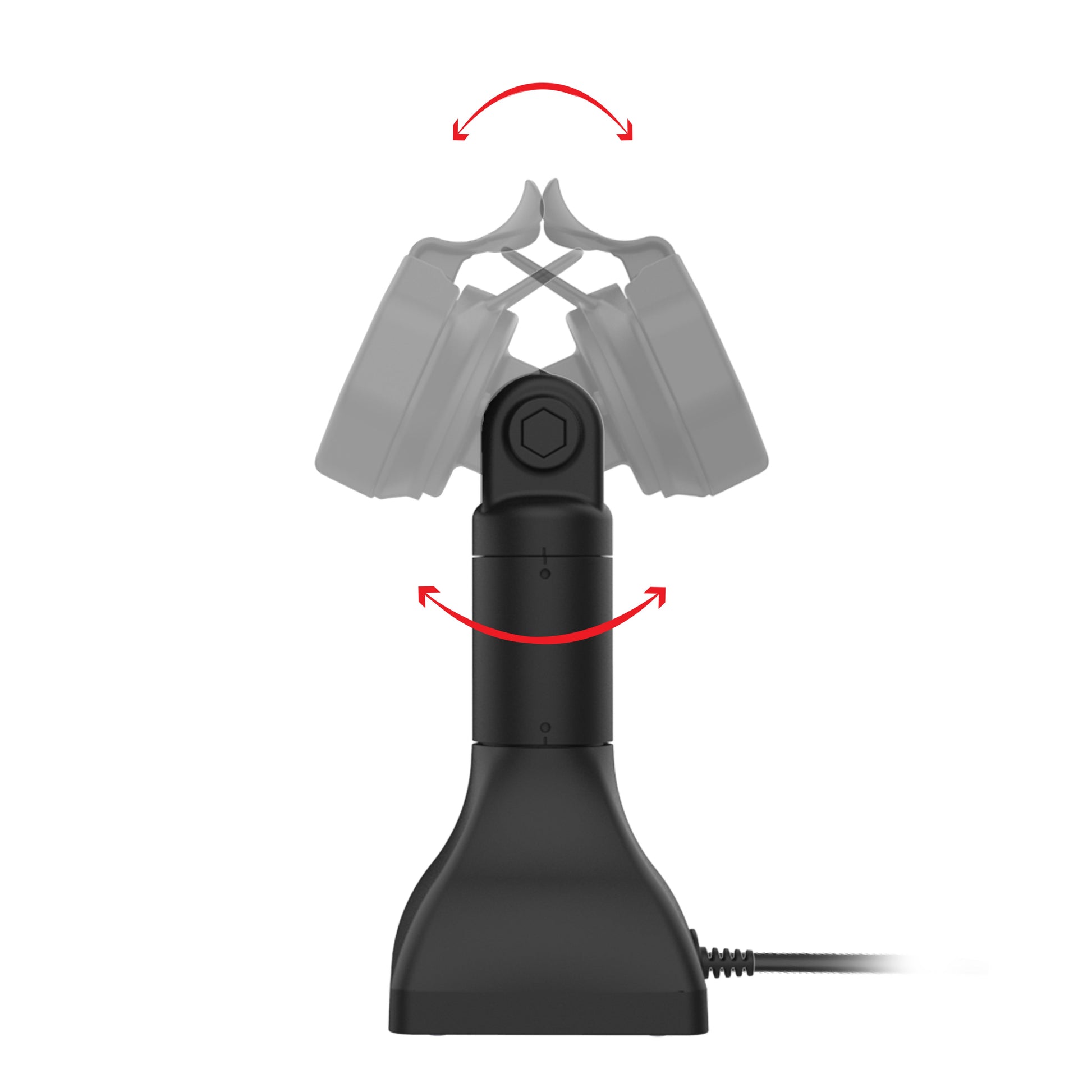

• 180° swivel and 180° tilt: turn the screen to face staff or customer and set the viewing angle.
• 7" pedestal on a drill-down base: bolts securely to a counter or desk for a stable mount.

Works With

Every D11 pedestal dock connects through the GDS® Uni-Conn™ system, so it works with any tablet housed in a Uni-Conn IntelliSkin® Thin-Case™ with Rear Pogo Pads rather than being locked to one model. You will need the matching case (and, for some models, a Uni-Conn adapter) for your device:

• IntelliSkin Thin-Cases: iPad 10th Gen, Samsung Galaxy Tab A9+
• Uni-Conn adapters: Uni-Conn Adapter, Adjustable Uni-Conn Adapter

Need a different option? See the USB-C version, the taller 14" pedestal, or the same dock in grey.

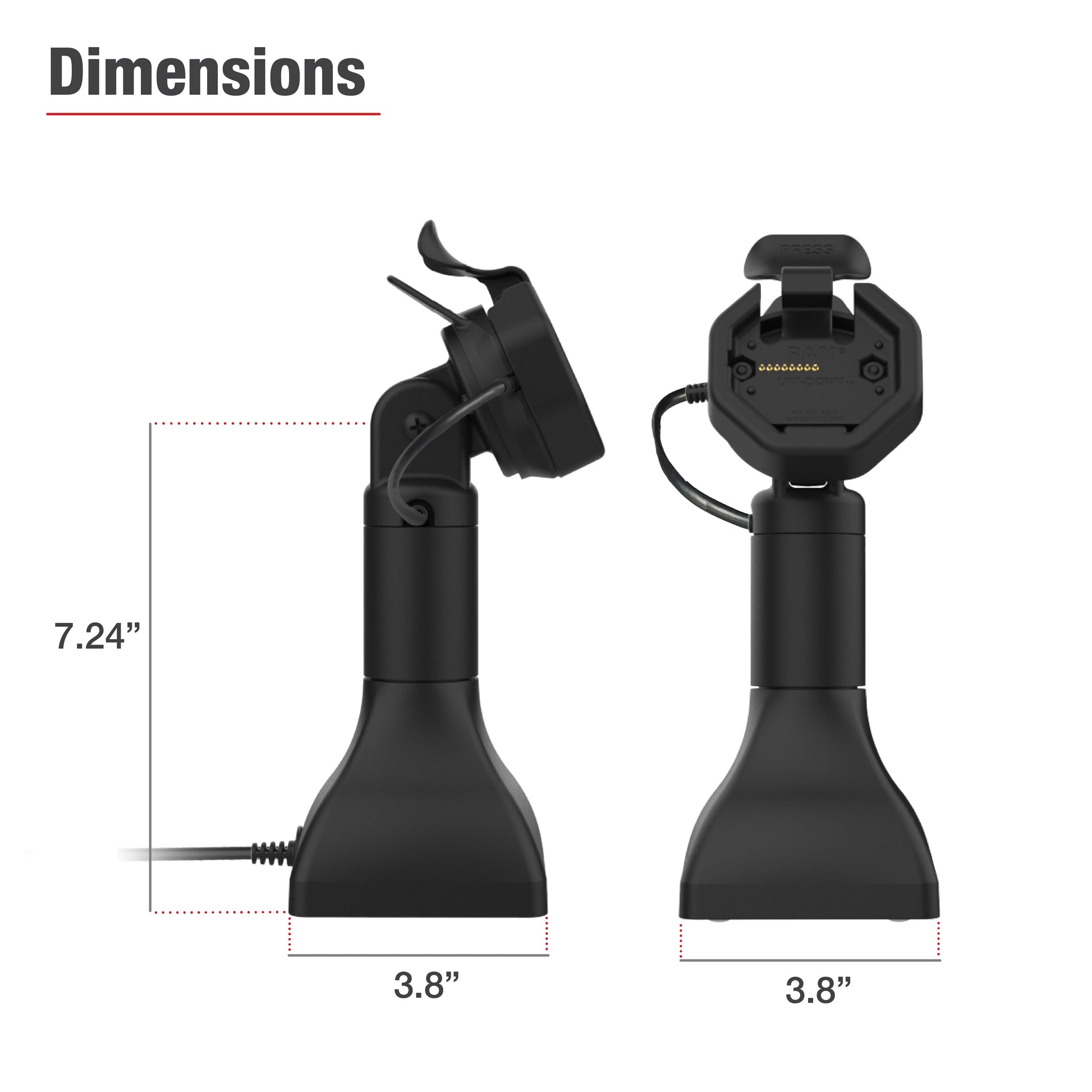

Dimensions & Specifications

• SKU: RAM-GDS-DOCK-D11-7-U3E
• Type: Free-standing 7" pedestal dock
• Connection system: GDS® Uni-Conn™ (rear pogo pads)

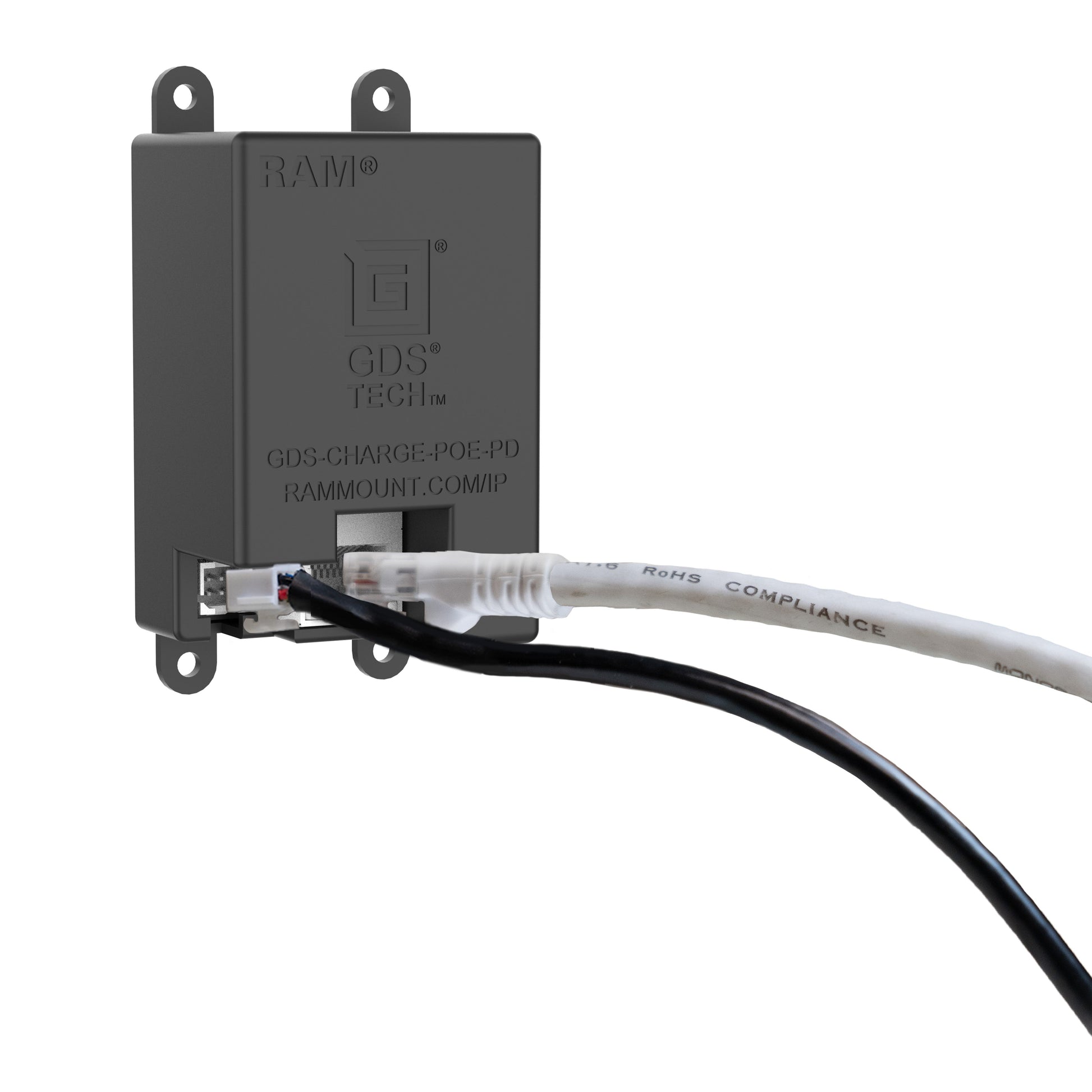

• Power / data: Power over Ethernet (PoE+, 802.3at), 20 W max, PD 3.0, RJ45
• Data transfer: 10/100 Mbps
• Attachment: U3 mechanical snap-in
• Pedestal height: 178 mm (7")
• Adjustment: 180° swivel, 180° tilt
• Base: Drill-down mount
• Material: Powder-coated steel and high-strength composite
• Colour: Black
• Warranty: 3-year
• Requires: Uni-Conn IntelliSkin Thin-Case with Rear Pogo Pads (sold separately)

FAQs

Does the dock include a case? No. The dock connects to a tablet held in a GDS® Uni-Conn™ IntelliSkin® Thin-Case™ with Rear Pogo Pads, which is sold separately. Pick the case that matches your device.

What does PoE give me over USB-C? Power over Ethernet runs power and network down one cable, so you can wire a bank of docks tidily and push secure updates during downtime. The USB-C version is simpler where you just need charging from a nearby power source.

7" or 14" pedestal? The 7" suits counters and desks; the 14" lifts the screen higher for reception and self-service stations.

Shipping: If this item shows as being in stock then it will usually ship from our Auckland warehouse in 1 business day. If it says to enquire then please get in touch as we may be able to get this back in for you.
