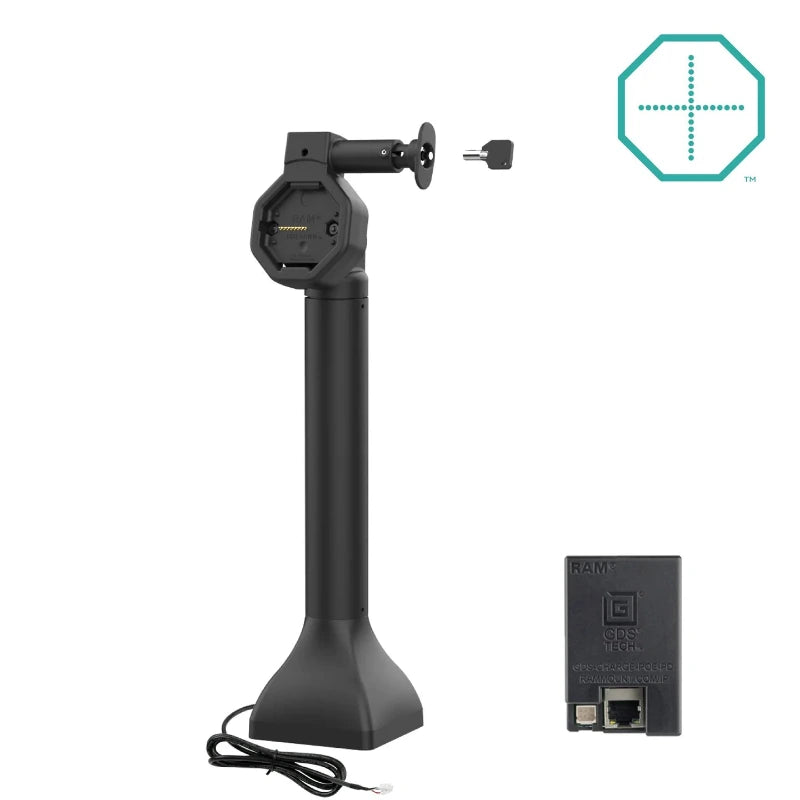

GDS Uni-Conn Powered 14" Locking Pedestal Dock with PoE

RAM-GDS-DOCKL-D11-14-U5E - GDS® Uni-Conn™ Powered 14" Locking Pedestal Dock with PoE

The RAM-GDS-DOCKL-D11-14-U5E is a free-standing 14" locking pedestal dock with ethernet for tablets housed in a GDS® Uni-Conn™ IntelliSkin® Thin-Case™ with Rear Pogo Pads. The taller pedestal raises the screen to a comfortable standing height, a key lock secures the device against walk-off theft, the head swivels 180° and tilts 180°, and the Uni-Conn pogo-pin connection delivers power and data down a single Power over Ethernet cable. It is built for managed reception, self-service and hospitality stations where a tablet needs to stay secure, powered, connected, and ready all day.

Key Features

• Key-lock theft deterrence: an integrated lock keeps the device secured in busy, public spaces (two keys included).
• Powered docking over PoE: the GDS® Uni-Conn™ pogo-pin connector delivers power and data via Power over Ethernet, and the dock ships with RAM's PoE-to-PD charging module.
• Secure downtime updates: the wired ethernet link lets you push software updates and manage the device securely out of hours.
• 180° swivel and 180° tilt: turn the screen to face staff or customer and set the viewing angle.
• 14" pedestal on a drill-down base: lifts the screen higher and bolts securely to a counter or desk.

Works With

Every DOCKL pedestal dock connects through the GDS® Uni-Conn™ system, so it works with any tablet housed in a Uni-Conn IntelliSkin® Thin-Case™ with Rear Pogo Pads rather than being locked to one model. You will need the matching case (and, for some models, a Uni-Conn adapter) for your device:

• IntelliSkin Thin-Cases: iPad 10th Gen, Samsung Galaxy Tab A9+
• Uni-Conn adapters: Uni-Conn Adapter, Adjustable Uni-Conn Adapter

Need a different option? See the USB-C version, the shorter 7" pedestal, or the same dock in grey.

Dimensions & Specifications

• SKU: RAM-GDS-DOCKL-D11-14-U5E
• Type: Free-standing 14" locking pedestal dock
• Connection system: GDS® Uni-Conn™ (rear pogo pads)
• Power / data: Power over Ethernet (PoE+, 802.3at), 20 W max, PD 3.0, JST connector
• Data transfer: 10/100 Mbps
• Security: Key lock (two keys included)
• Attachment: U5 release-button mechanism
• Pedestal height: 356 mm (14")
• Base: 96.5 mm × 96.5 mm (3.8" × 3.8"), drill-down mount
• Adjustment: 180° swivel, 180° tilt
• Material: Powder-coated steel and high-strength composite
• Weight: 1.26 kg (2.78 lb)
• In the box: 2 keys, RAM PoE-to-PD charging module (RAM-GDS-CHARGE-POE-PDU)
• Colour: Black
• Warranty: 3-year
• Requires: Uni-Conn IntelliSkin Thin-Case with Rear Pogo Pads (sold separately)

FAQs

What makes this a "locking" dock? It has an integrated key lock that secures the device to the dock, deterring theft in high-traffic public areas. The non-locking D11 pedestal docks are the same shape without the lock.

Does the dock include a case? No. The dock connects to a tablet held in a GDS® Uni-Conn™ IntelliSkin® Thin-Case™ with Rear Pogo Pads, which is sold separately. Pick the case that matches your device.

What's included for PoE? This version ships with RAM's PoE-to-PD charging module, which converts Power over Ethernet to the dock's power delivery, so you can run power and network to the dock over one ethernet cable.
