GDS Uni-Conn Powered 7" Locking Pedestal Dock with USB-C - Gray

RAM-GDS-DOCKL-D11-7-U5C-GRY - GDS® Uni-Conn™ Powered 7" Locking Pedestal Dock with USB-C - Grey

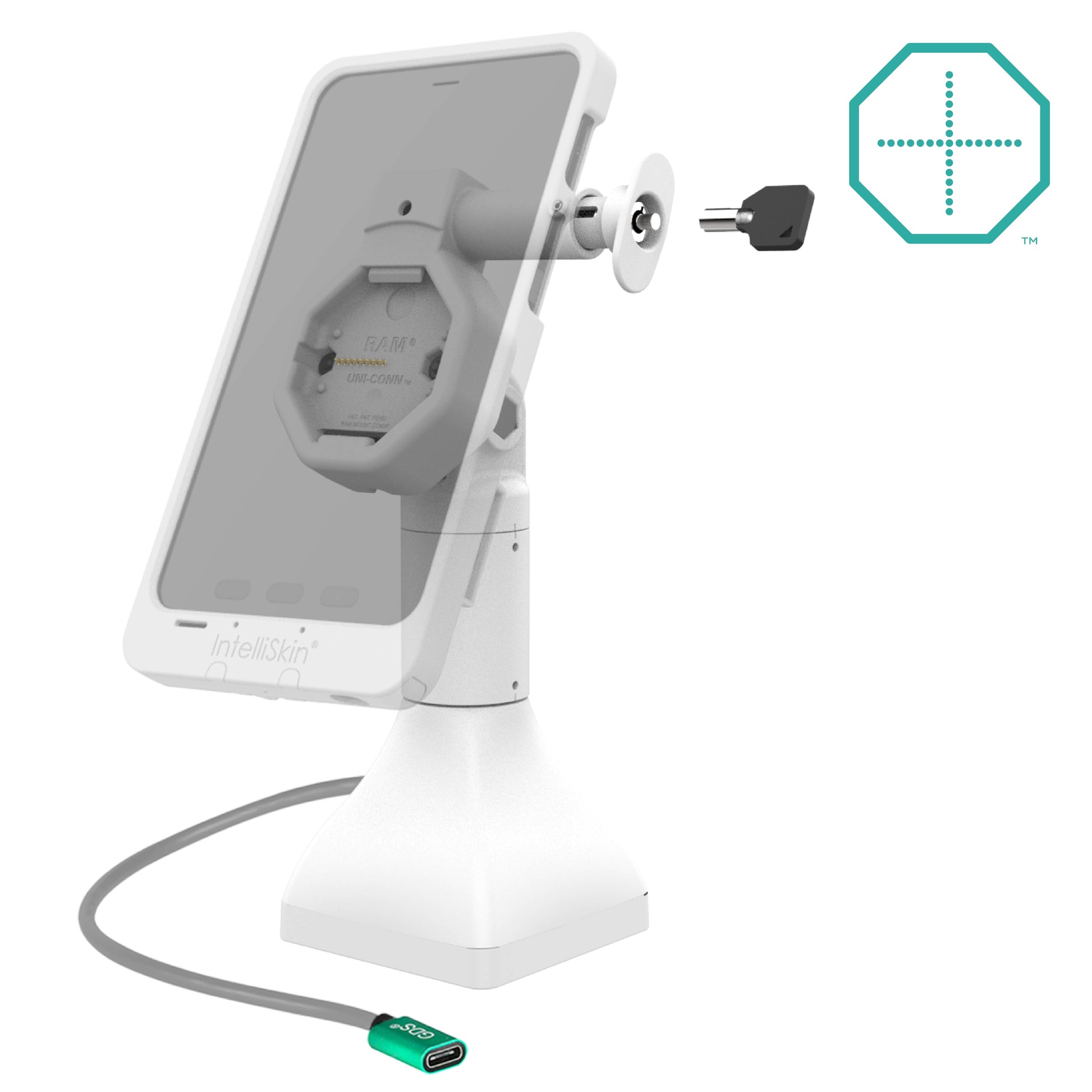

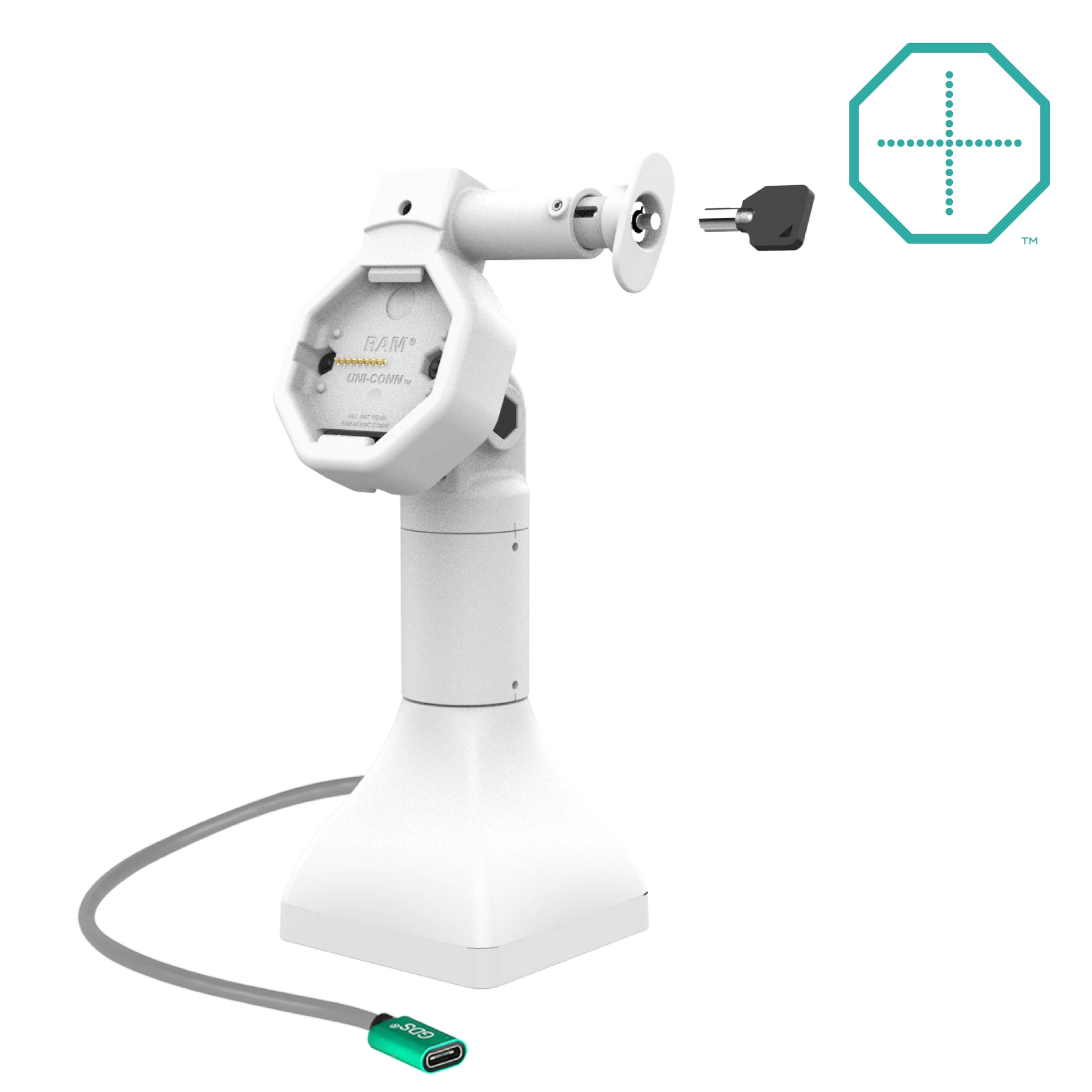

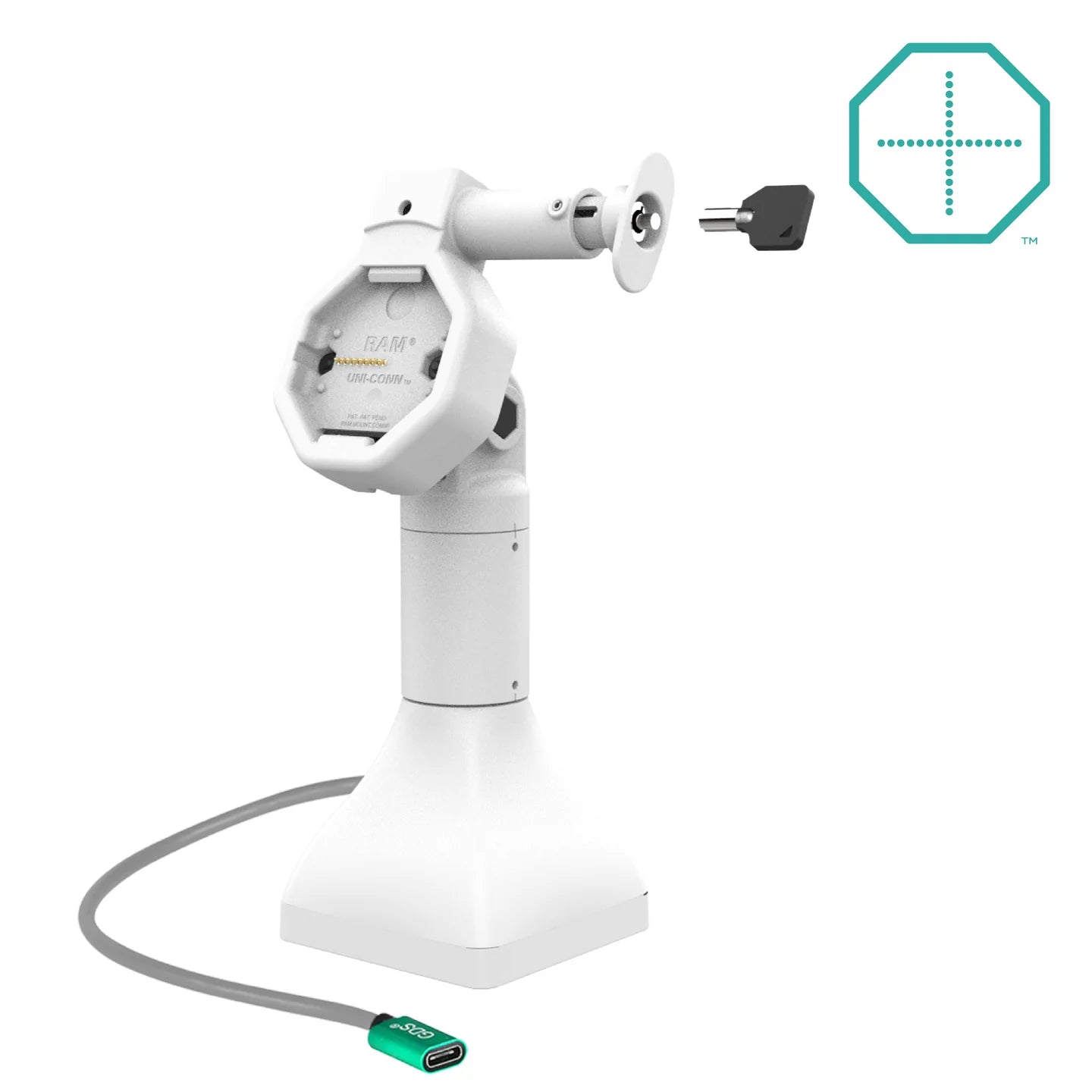

The RAM-GDS-DOCKL-D11-7-U5C-GRY is a free-standing 7" locking pedestal dock for tablets housed in a GDS® Uni-Conn™ IntelliSkin® Thin-Case™ with Rear Pogo Pads, finished in light grey to suit bright, modern interiors. A key lock secures the device against walk-off theft, the head swivels 180° and tilts 180°, and the Uni-Conn pogo-pin connection charges over USB-C. It is built for retail, hospitality and self-service counters where a tablet needs to stay secure, powered, and ready all day.

Key Features

• Key-lock theft deterrence: an integrated lock keeps the device secured in busy, public spaces (two keys included).
• Powered docking: the GDS® Uni-Conn™ pogo-pin connector charges the docked device over USB-C, up to 60 W.
• Light grey finish: a clean, neutral look for reception desks, showrooms and bright workspaces.
• 180° swivel and 180° tilt: turn the screen to face staff or customer and set the viewing angle.
• 7" pedestal on a drill-down base: bolts securely to a counter or desk for a stable, tamper-resistant mount.

Works With

Every DOCKL pedestal dock connects through the GDS® Uni-Conn™ system, so it works with any tablet housed in a Uni-Conn IntelliSkin® Thin-Case™ with Rear Pogo Pads rather than being locked to one model. You will need the matching case (and, for some models, a Uni-Conn adapter) for your device:

• IntelliSkin Thin-Cases: iPad 10th Gen, Samsung Galaxy Tab A9+
• Uni-Conn adapters: Uni-Conn Adapter, Adjustable Uni-Conn Adapter

Need a different option? See the black version, the PoE version in grey, or the taller 14" pedestal in grey.

Dimensions & Specifications

• SKU: RAM-GDS-DOCKL-D11-7-U5C-GRY
• Type: Free-standing 7" locking pedestal dock
• Connection system: GDS® Uni-Conn™ (rear pogo pads)
• Power / charging: USB-C, 60 W max (5 V–20 V @ 3 A)
• Security: Key lock (two keys included)
• Attachment: U5 release-button mechanism
• Pedestal height: 178 mm (7")
• Base: 96.5 mm × 96.5 mm (3.8" × 3.8"), drill-down mount

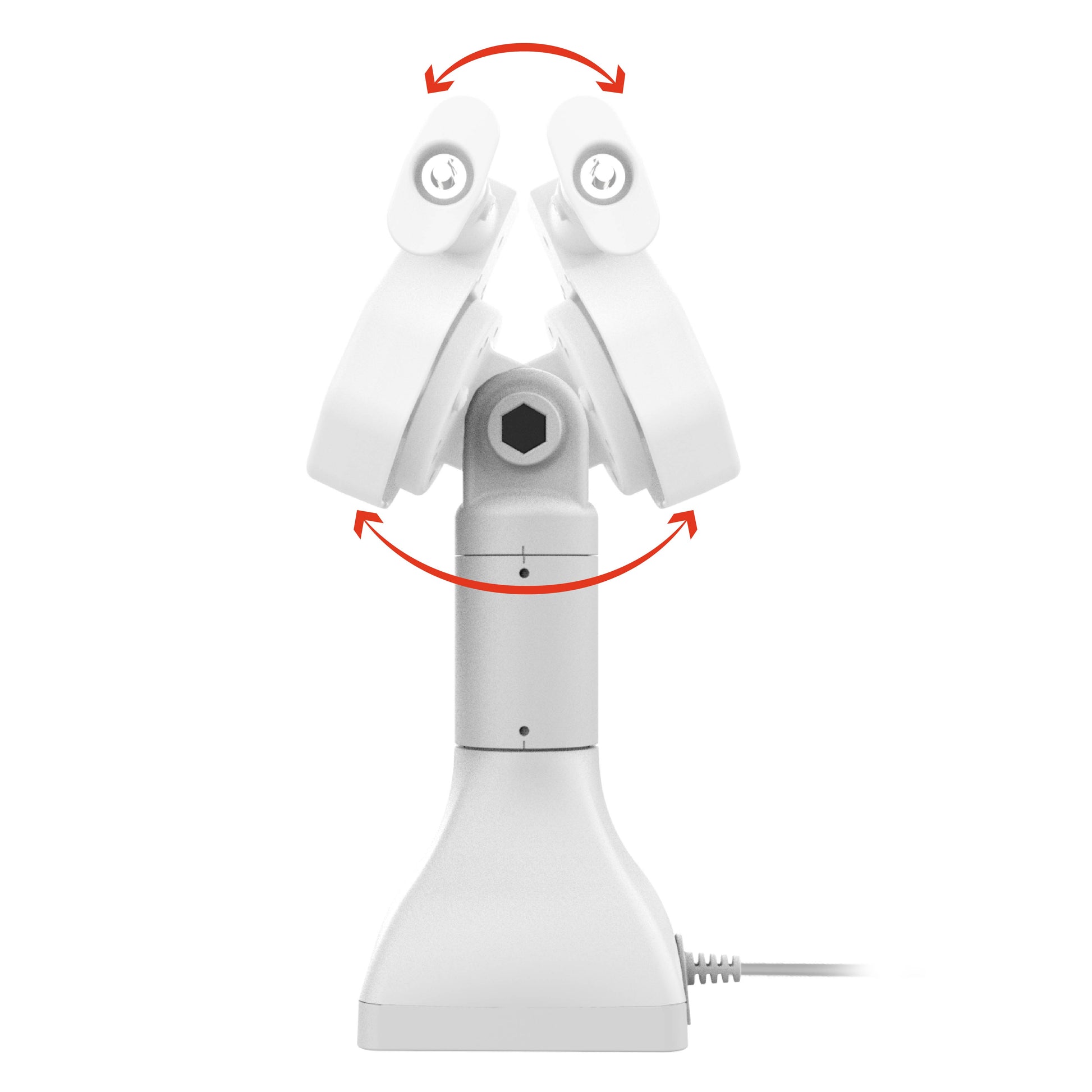

• Adjustment: 180° swivel, 180° tilt
• Material: Powder-coated steel and high-strength composite
• In the box: 2 keys, 1 m USB-C 2.0 cable
• Colour: Light grey
• Warranty: 3-year
• Requires: Uni-Conn IntelliSkin Thin-Case with Rear Pogo Pads (sold separately)

FAQs

What makes this a "locking" dock? It has an integrated key lock that secures the device to the dock, deterring theft in high-traffic public areas. The non-locking D11 pedestal docks are the same shape without the lock.

Does the dock include a case? No. The dock connects to a tablet held in a GDS® Uni-Conn™ IntelliSkin® Thin-Case™ with Rear Pogo Pads, which is sold separately. Pick the case that matches your device.

USB-C or PoE? This USB-C version charges from a standard USB-C power source, the simplest setup for most counters. The PoE version runs power and data down a single ethernet cable and includes RAM's PoE-to-PD charging module.

Shipping: If this item shows as being in stock then it will usually ship from our Auckland warehouse in 1 business day. If it says to enquire then please get in touch as we may be able to get this back in for you.
