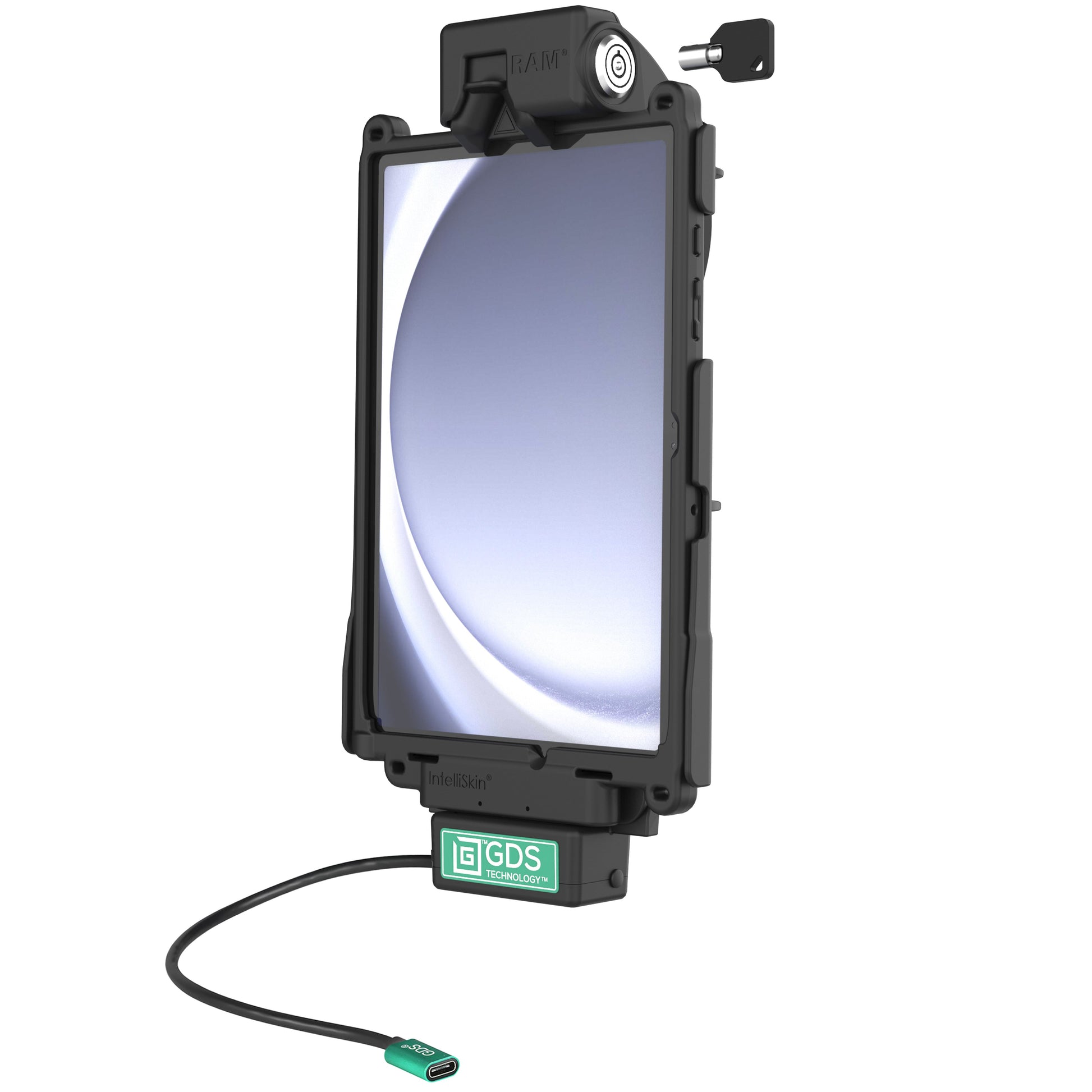

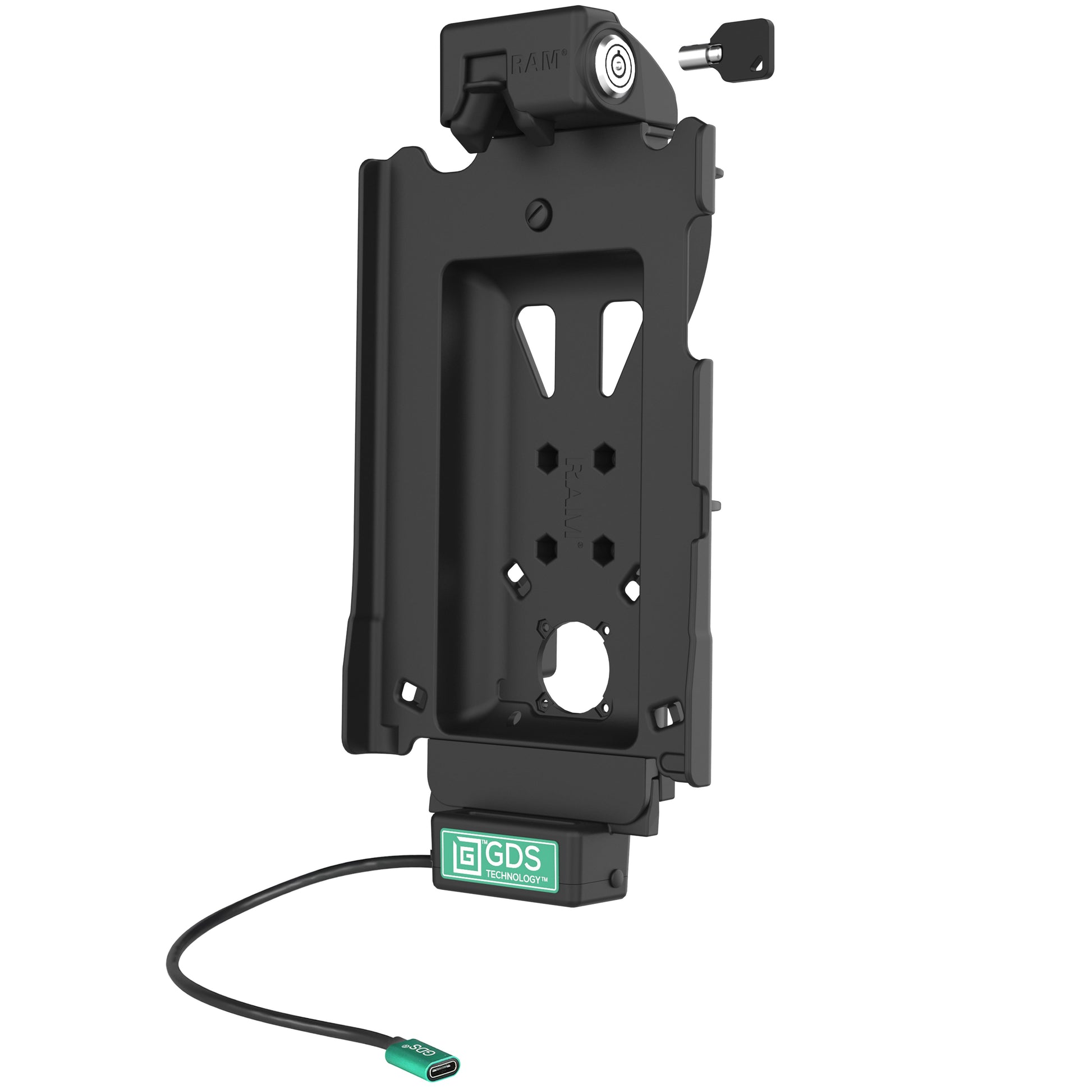

RAM Locking GDS Tough-Dock for Samsung Tab A9+

RAM-GDS-DOCKL-SAM88CPU – Locking GDS® Tough-Dock™ for Samsung Galaxy Tab A9+

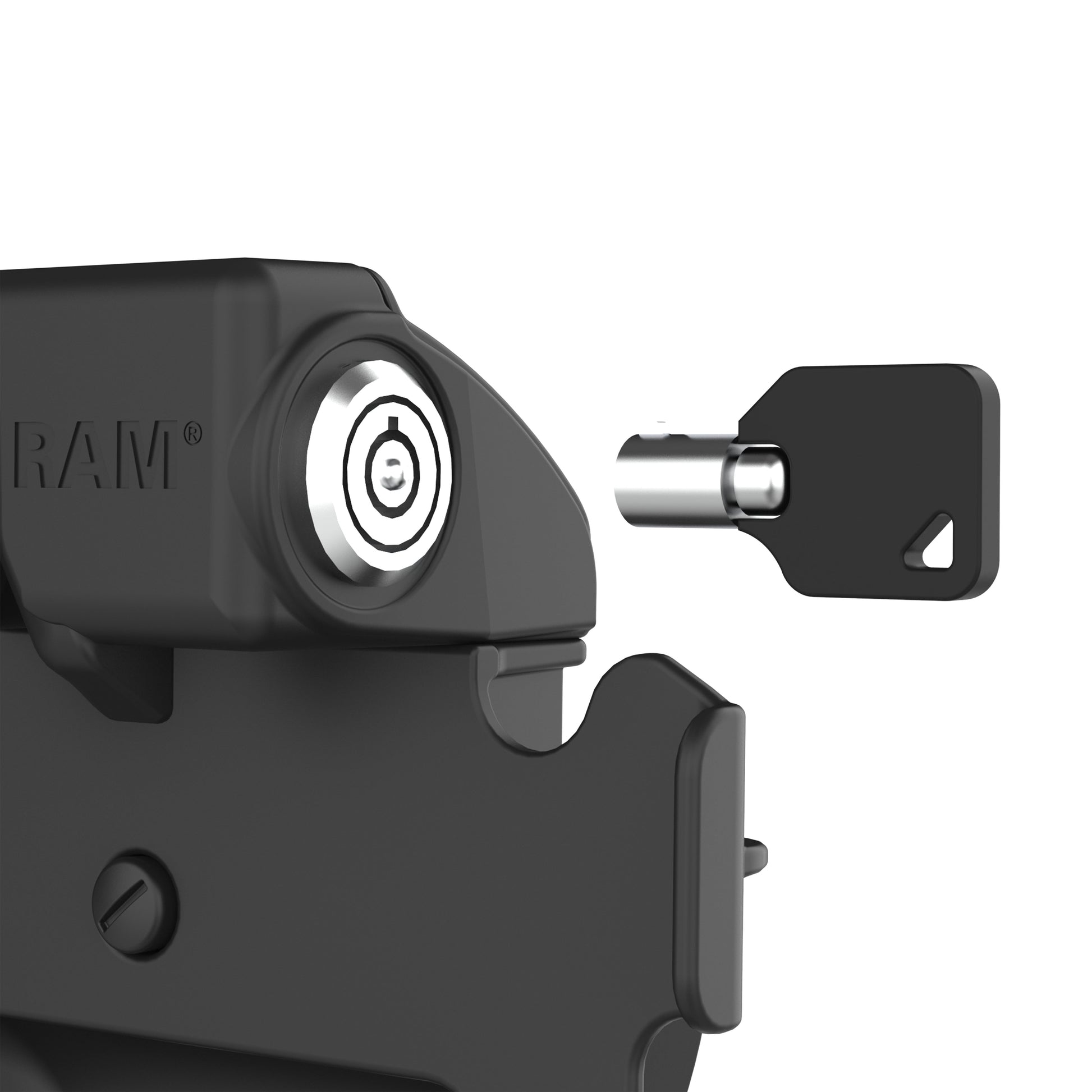

The RAM-GDS-DOCKL-SAM88CPU is a spring-loaded, key-locking GDS® Tough-Dock™ that holds and fast-charges a Samsung Galaxy Tab A9+ wrapped in an IntelliSkin® Next Gen sleeve. The keyed lock adds theft deterrence for fleet vehicles, and pogo pin contacts charge the tablet the moment it docks.

Key Features

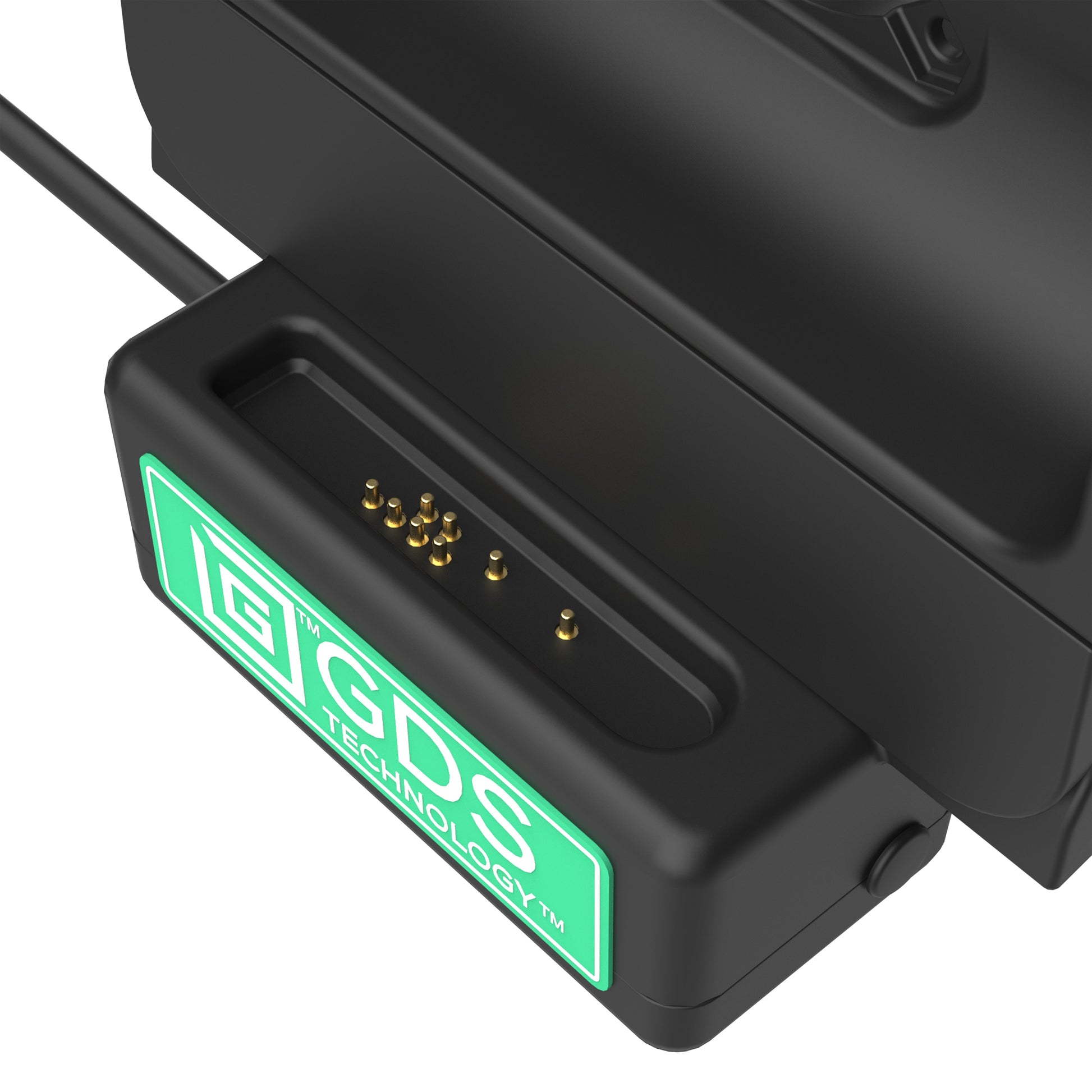

• Spring-loaded, key-locking vehicle dock with GDS® Technology™; integrated pogo pin connector provides high-speed charging
• Designed specifically for the Galaxy Tab A9+ in an IntelliSkin® Next Gen protective sleeve
• USB Type-C female connector in the bottom cup supplies power; USB C-to-A cable included
• RAM® Mounts Compatible™ and works with the GDS® Hand-Stand™ hand strap and kickstand attachment
• Backed by a 3-year warranty

Works With

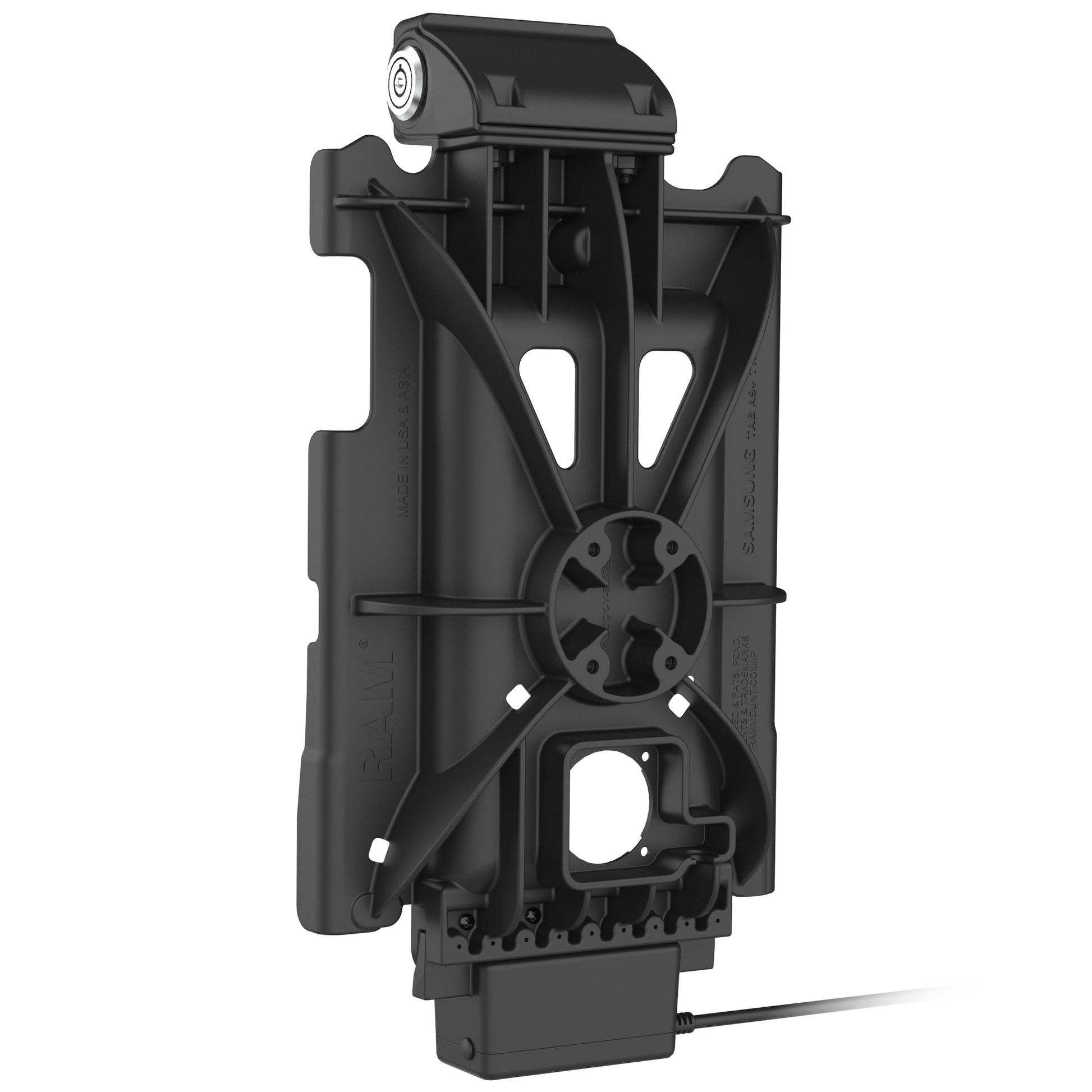

Samsung Galaxy Tab A9+ wrapped in the IntelliSkin® Next Gen sleeve. The dock connects to RAM® ball and socket systems via a 4-hole AMPS pattern ball adaptor (sold separately).

Dimensions & Specifications

• Hole pattern: 4-hole AMPS, 1.181" x 1.496" (30mm x 38mm)
• Output voltage: 5V–12V @ 3A; power output 60W max
• Input connector: USB Type-C; input cable length 215mm
• Material: high-strength composite
• Weight: 771g (1.7 lb)
• Hardware included: (2) keys, (4) #8-32 x 5/8" machine screws, (4) #8-32 nylock nuts, (1) USB Type-C to Type-A cable
• Warranty: 3 years

FAQs

Which IntelliSkin does the Tab A9+ need?

The tablet must be wrapped in the IntelliSkin® Next Gen sleeve for the Tab A9+ so the dock's pogo pins line up with the sleeve's contacts.
