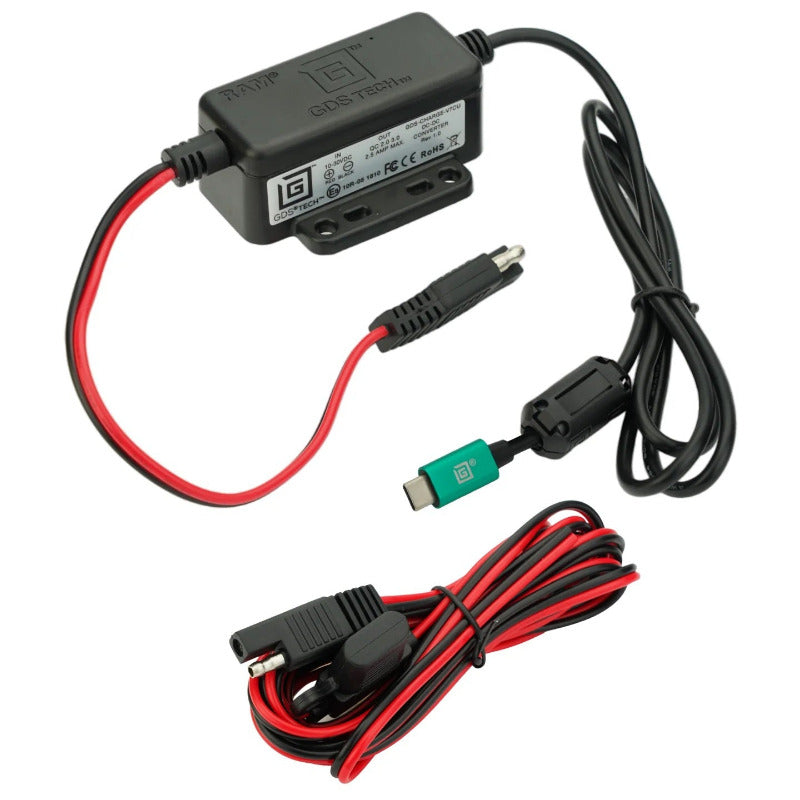

RAM GDS Modular Charger 10-30V with Male USB Type-C

RAM-GDS-CHARGE-V7CU GDS® 10-30V Hardwire Charger, Male USB Type-C (No Power Delivery)

RAM-GDS-CHARGE-V7CU is a GDS® hardwire charger with a bare wire 10-30V DC input and a Male USB Type-C output, delivering up to 9V. This version does not support USB Power Delivery.

Key Features

• Bare wire input for direct connection to your vehicle's power source.
• Modular design: swap chargers without rewiring your vehicle.
• 3 year warranty.

Works With

Any GDS® USB Type-C vehicle solution not requiring Power Delivery. For a Power Delivery version at the same 10-30V input, see RAM-GDS-CHARGE-V3C-3U in this range.

Dimensions & Specifications

• Input voltage: 10-30V DC
• Output voltage: 5.42-9V DC
• Output current: 2.5A max
• Input connector: bare wire
• Input cable length: 2.5m
• Output connector: USB Type-C male
• Output cable length: 1m
• Operating temperature: -10°C to +70°C
• Storage temperature: -40°C to +70°C
• Compliance: over voltage, short circuit and reverse polarity protection, SAE J-1113-5 load dump, RoHS, WEEE, CE, e-Mark, RCM, FCC, UL 62368-1
• Weight: 213g (0.47lb)
• Warranty: 3 years

Documents

GDS Hardwire Charger Compatibility Guide (PDF): compares input voltage, output voltage and connector type across the GDS hardwire charger range, so you can confirm this one suits your dock and your vehicle.

FAQs

Does this support Power Delivery? No. For a Power Delivery version with the same 10-30V input, see RAM-GDS-CHARGE-V3C-3U.

How fast does it ship? If this item shows as being in stock then it will usually ship from our Auckland warehouse in 1 business day. If it says to enquire then please get in touch as we may be able to get this back in for you.
