RAM-GDS-DOCKL-V9-OMT1U GDS® USC-C Vehicle Dock for IntelliSkin® Next Gen Tablets
Features
Vehicle dock with integrated GDS® Technology™ offers a universal charging platform for any device wrapped in IntelliSkin® Next Gen
Type-C port provides high speed charging and supports up to 5GPs data sync rate with the device

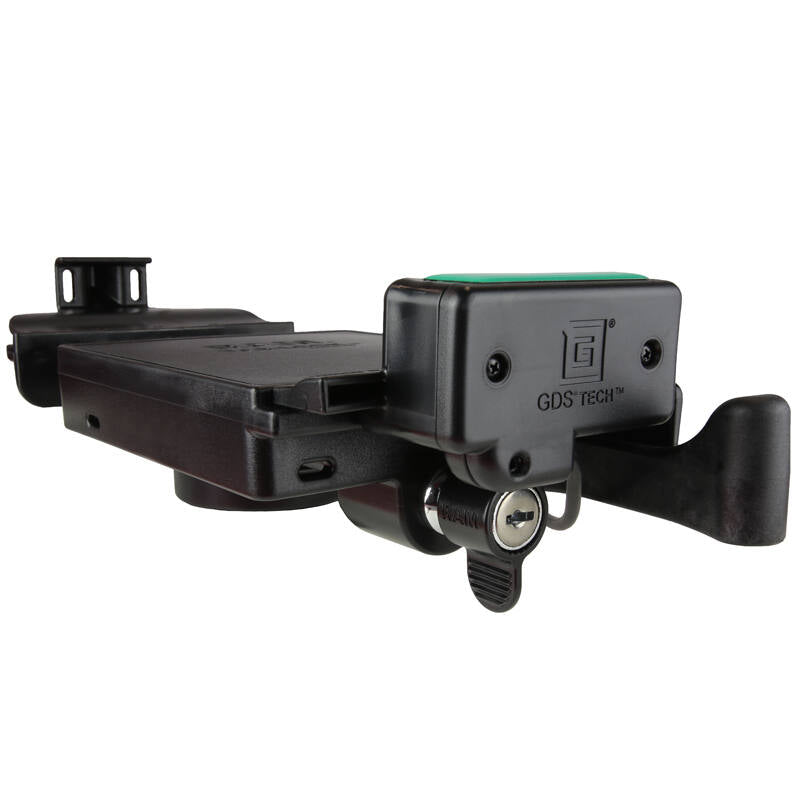

Keyed lock for theft deterrence
Easy, quick release of your tablet for on-the-go applications
Backed by a 3-year warranty

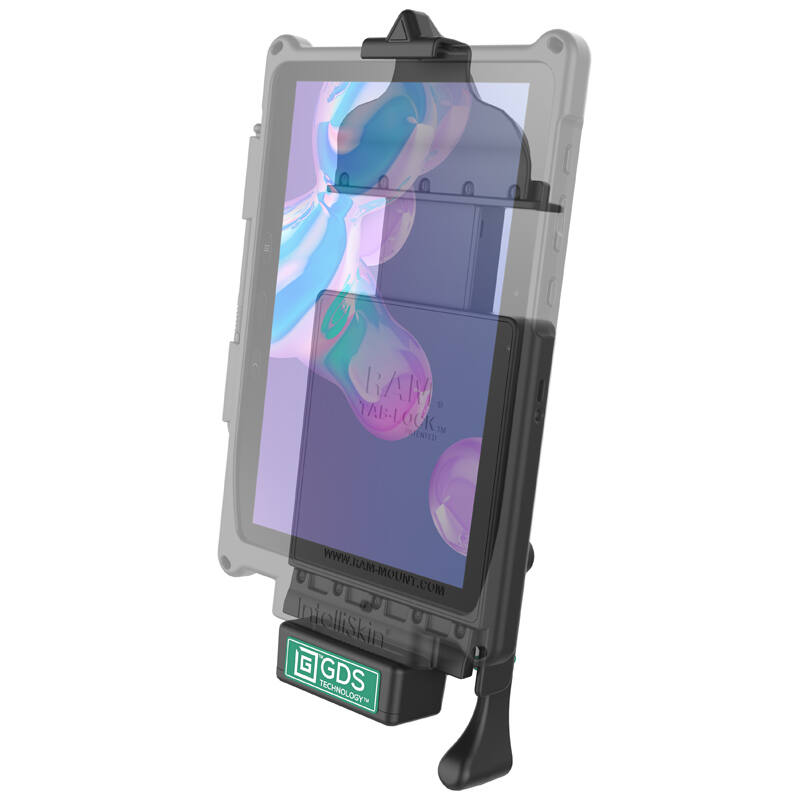

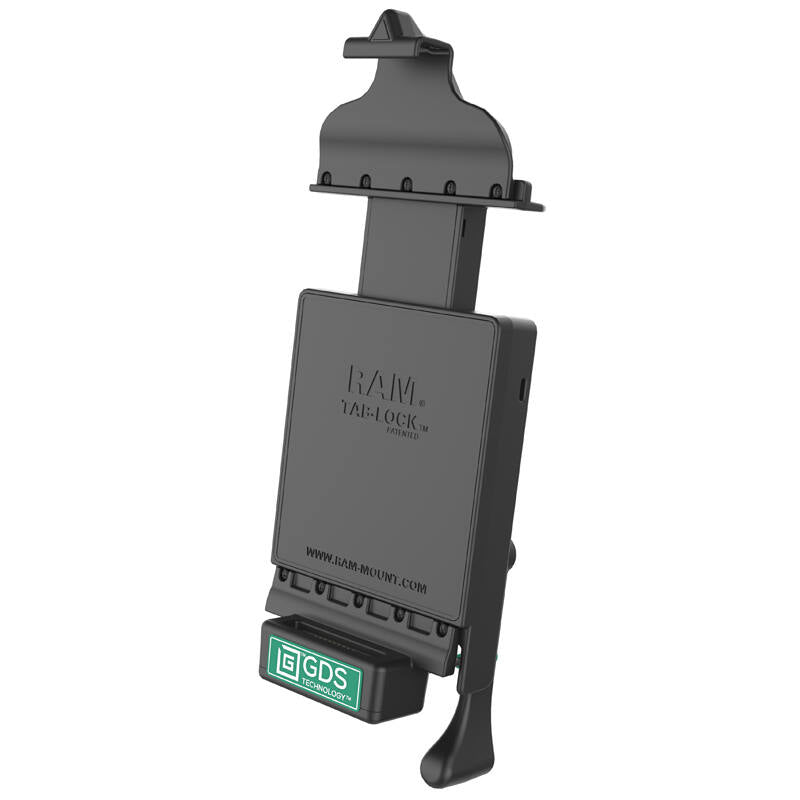

The USB Type-C locking vehicle dock for IntelliSkin® Next Generation features GDS® Technology™ to enable data sync and charging capabilities on the go.

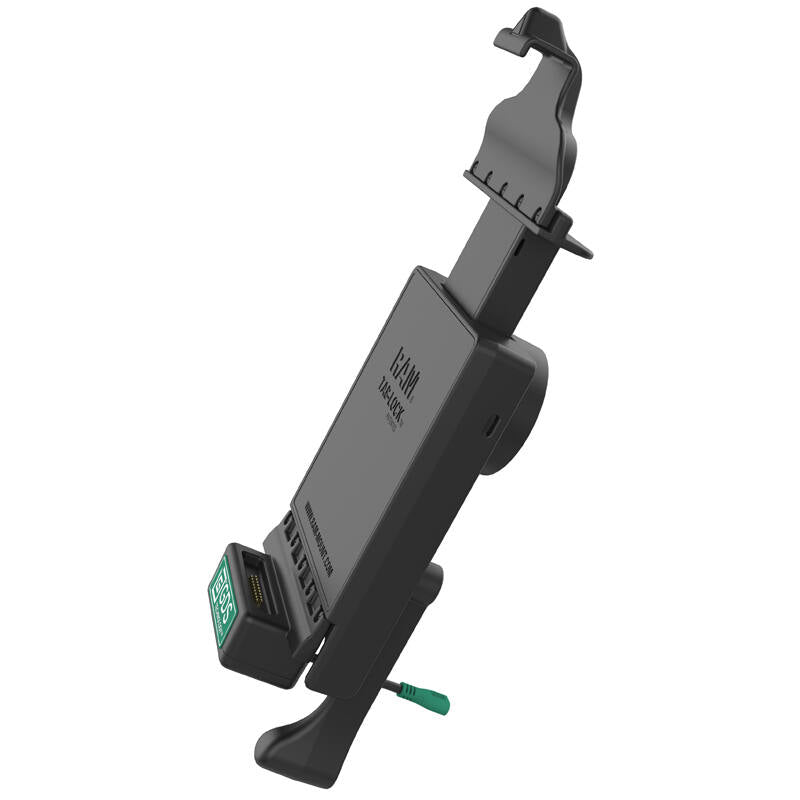

This spring-loaded, quick release cradle features a keyed lock that offers a secure fit with easy access to your mounted tablet. A bottom dock cup includes 18 pogo pins and a USB Type-C pigtail. Without the need to remove your IntelliSkin® Next Generation sleeve from the device, efficiently mount the tablet in the vehicle dock to keep your tablet charged and locked in place. This dock is designed to meet the demands of field workers in a variety of applications, including transportation, field sales, logistics, manufacturing, and much more.
Compatible Devices
Tablets with IntelliSkin® Next Gen
Hardware Included
Assembly Hardware
(2) M4 x 32mm Machine Screws
(2) M4 Nylock Nuts
(2) #8 x 5/8" Sheet Metal Screws
(1) Cable Clamp
(2) Keys
Hole Pattern
4-Hole AMPS: 1.181" x 1.496"
Materials
High strength composite
Packaging Type
Poly Bag
Output Voltage
5V - 20V @ 3A
Power Output
60W
Input Connector
USB Type-C
Transfer Speed
5Gbps
Weight
658 grams / 1.45 lbs.
Warranty Status
3 year warranty
YouTube:
https://youtu.be/PxVdHB7h3K4
