RAM GDS Powered Vehicle Dock - Universal with Adhesive Dashboard Mount

RAP-SB-180-GDS-DOCK-V1U – RAM® GDS® Powered Universal Phone Dock with Lil Buddy™ Adhesive Dash Mount

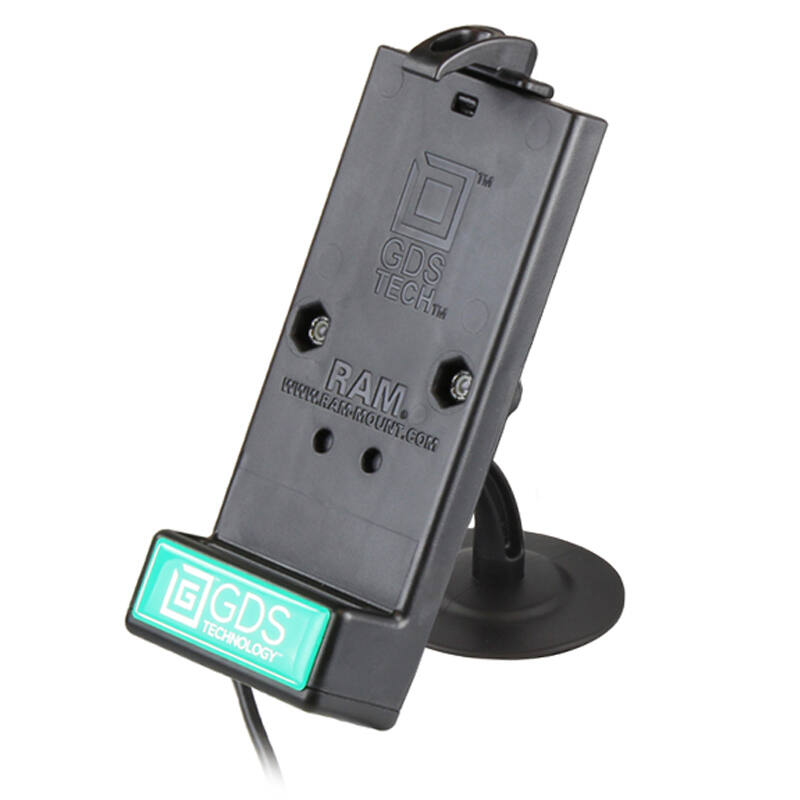

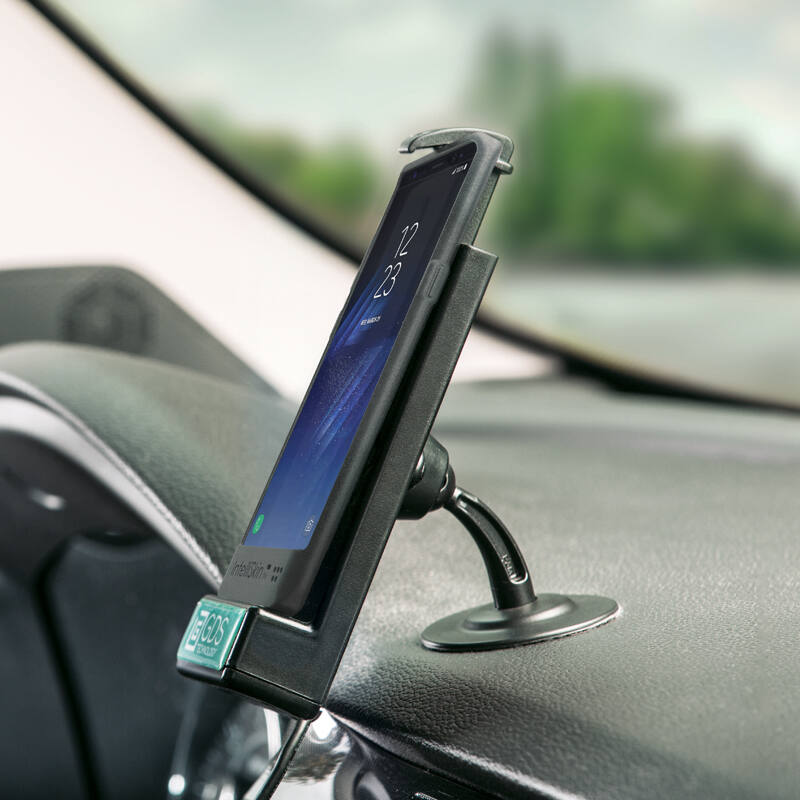

The RAP-SB-180-GDS-DOCK-V1U is a waterproof powered phone dock on a low-profile adhesive dash mount. It pairs the RAM® Universal Phone Dock with GDS® Technology with the RAM® Lil Buddy™ adhesive base, which sticks to your dash or console and rotates through 180 degrees. Any phone or phablet wrapped in a RAM IntelliSkin™ sleeve drops in, charges and releases in seconds.

Key Features

• GDS® Technology charges any device wrapped in an IntelliSkin™ sleeve — dock it and it charges, no separate cable to fit
• Spring-loaded, quick-release cradle holds the device securely even in high vibration
• Waterproof, so it suits motorcycles, ATVs, boats and other open-air use

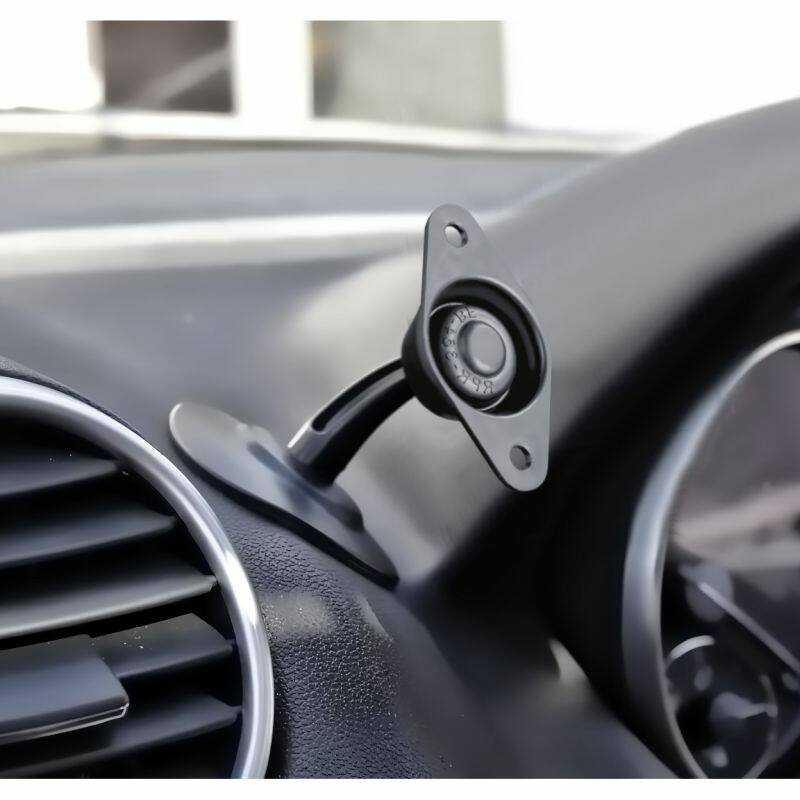

• Lil Buddy™ adhesive base sticks to dash or console and rotates through 180 degrees for ideal placement
• High-strength composite for longevity in a range of environments

Works With

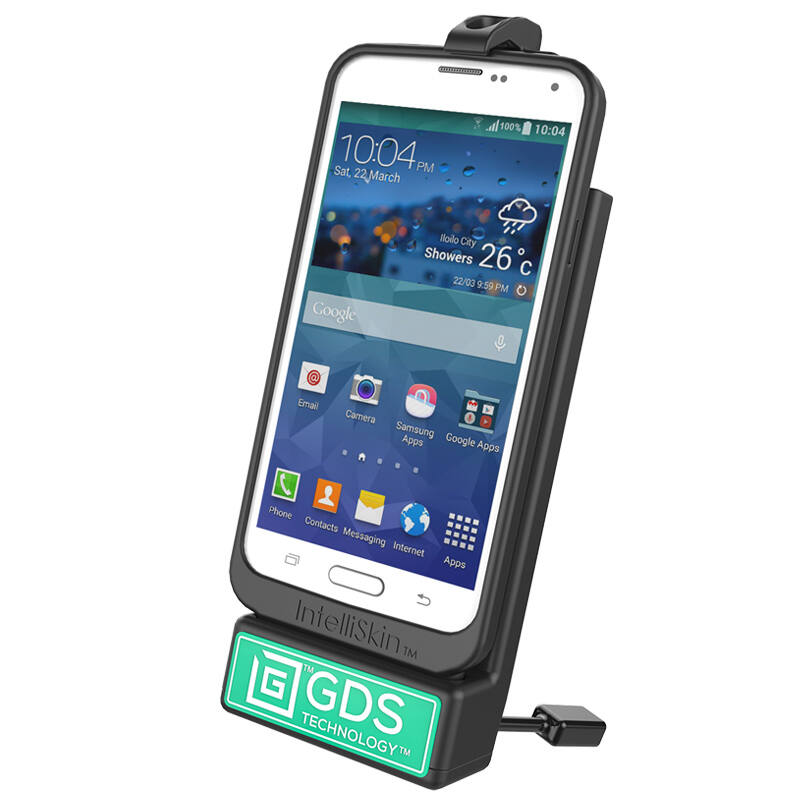

Any GDS Compatible™ phone or phablet wrapped in a RAM IntelliSkin™ sleeve. The Lil Buddy mounts to any clean, flat dash or console surface via its adhesive pad.

Dimensions & Specifications

• Base rotation: 180 degrees
• Ball size: RAM Snap-Link (3/4")
• Input range: 5–12V at 2A (mUSB on USB 2.0/3.0 caps at 1.5A)

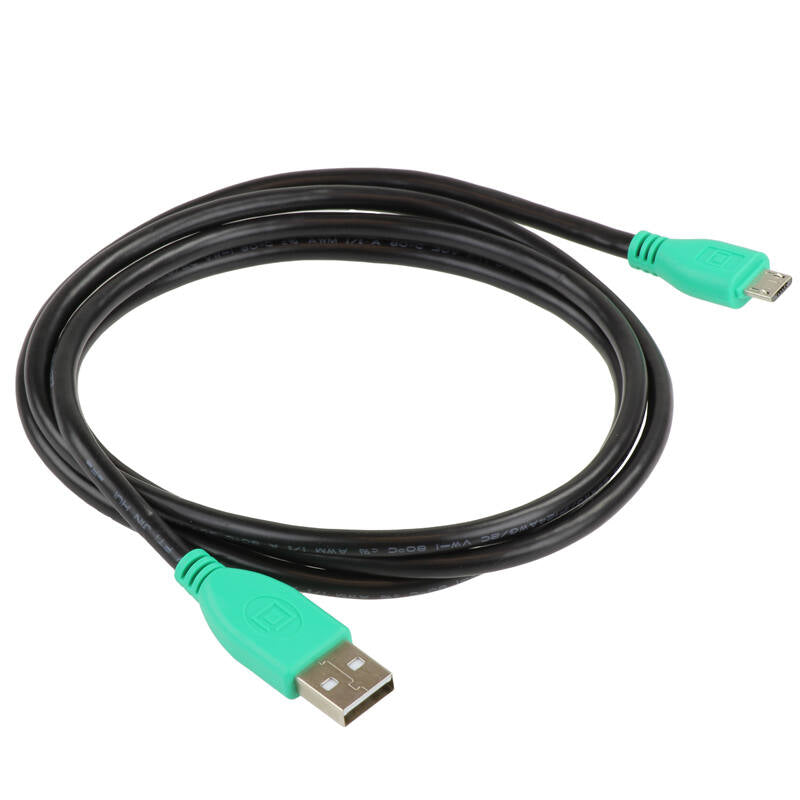

• Connector: micro USB 2.0 female
• Output cable length: 323mm (12.75")
• Weight capacity: 226g (0.5 lb)
• Materials: high-strength composite, marine-grade aluminium

Compatible Devices

Any GDS Compatible™ device, including any phone or phablet wrapped in a RAM IntelliSkin™ sleeve. The IntelliSkin sleeve is sold separately to suit your specific phone.

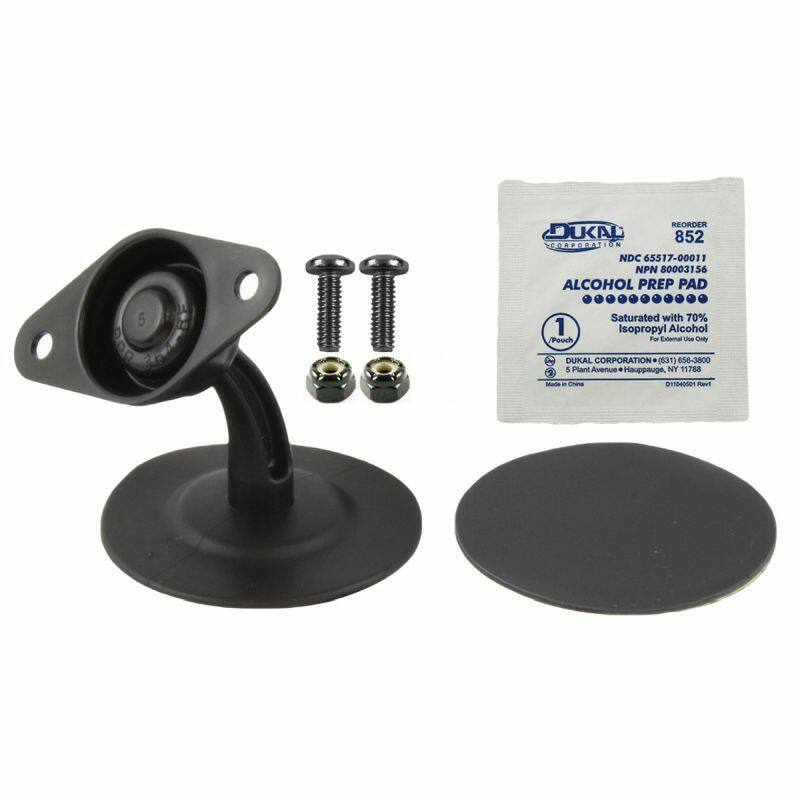

What's Included

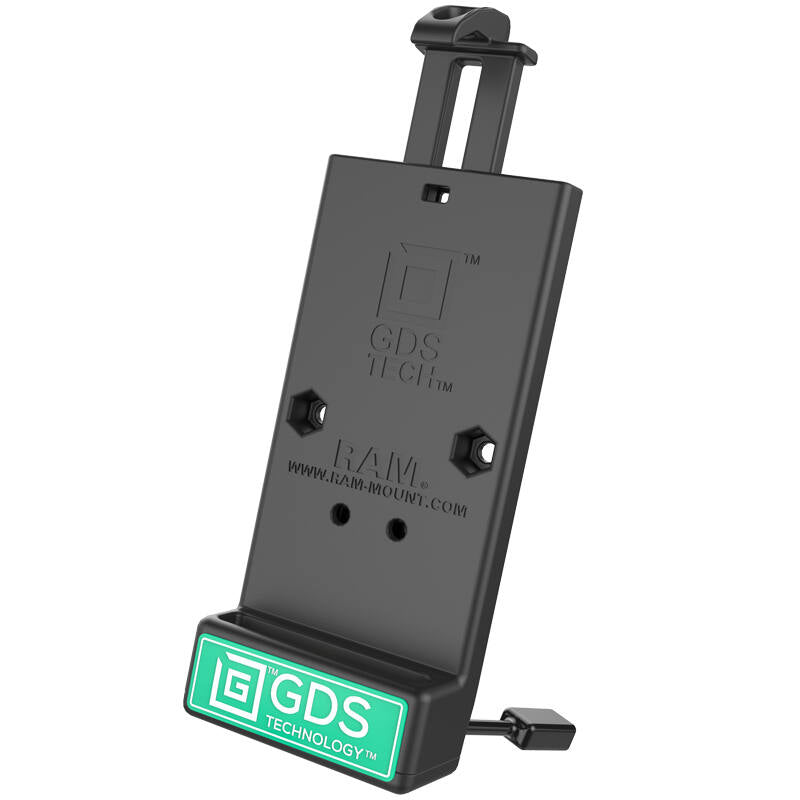

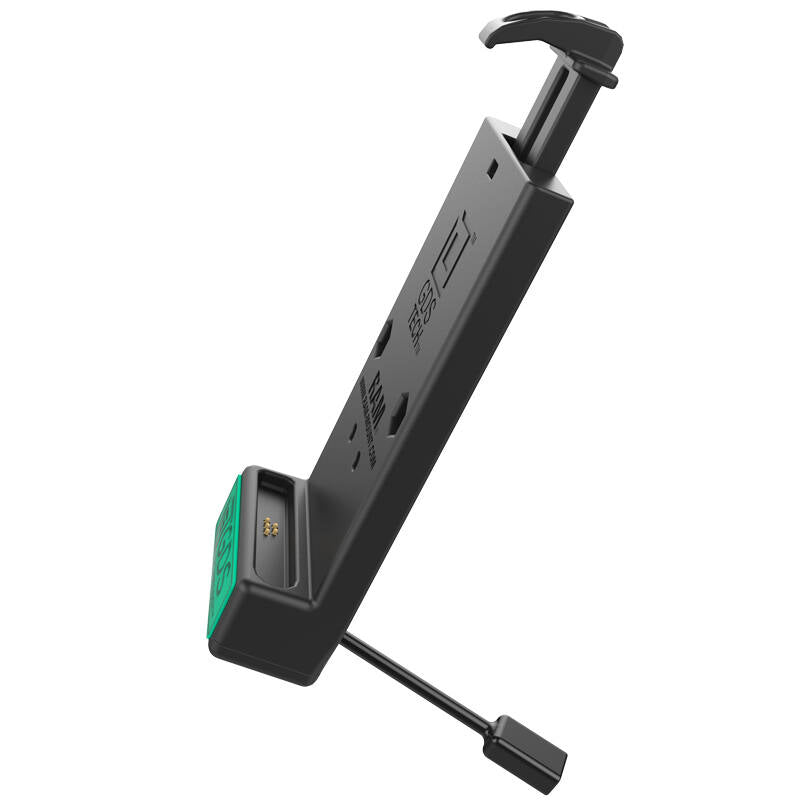

• RAM-GDS-DOCK-V1U Universal Phone Dock with GDS® Technology
• RAP-SB-180U Lil Buddy™ adhesive dash mount

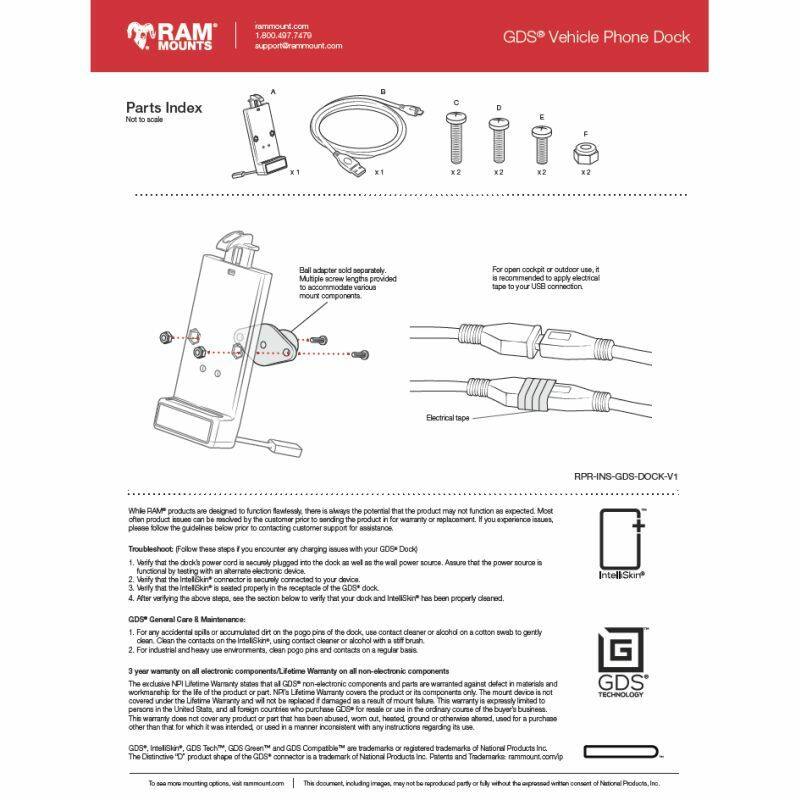

• Hardware: 2.5" double-sided adhesive pad, alcohol prep pad, assembly hardware

FAQs

Where can I stick it? Any clean, flat dash or console surface. Use the alcohol pad first, press the adhesive pad firmly and leave it to cure before loading the dock. The base then rotates through 180 degrees to set the angle.

Do I need anything else for charging? Yes — your phone needs a matching RAM IntelliSkin™ sleeve, and you wire the dock's micro USB lead to a 5–12V supply.

How fast does it ship? Items shown in stock will normally be shipped from our Auckland warehouse in 1 business day. For out of stock items please enquire.
