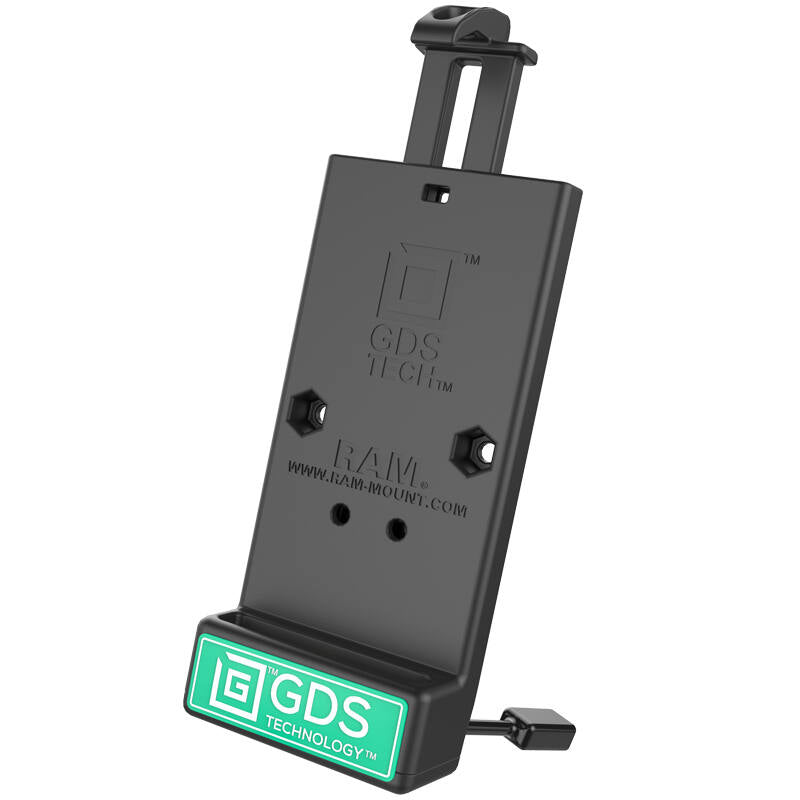

  • RAM-GDS-DOCK-V1U GDS® Universal Phone Dock

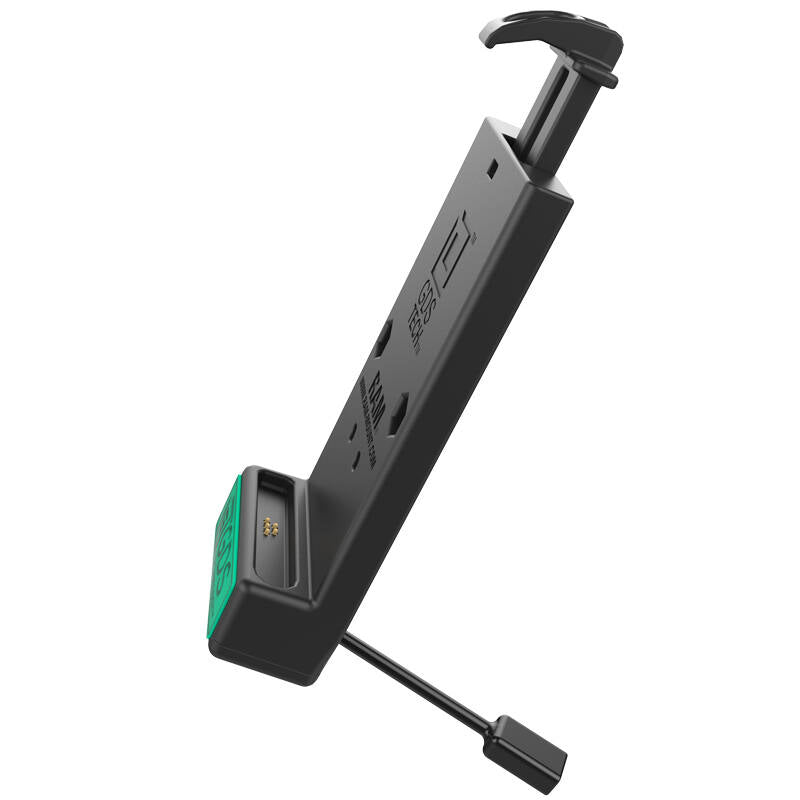

  • RAM-GDS-DOCK-V1U GDS® Universal Phone Dock from side

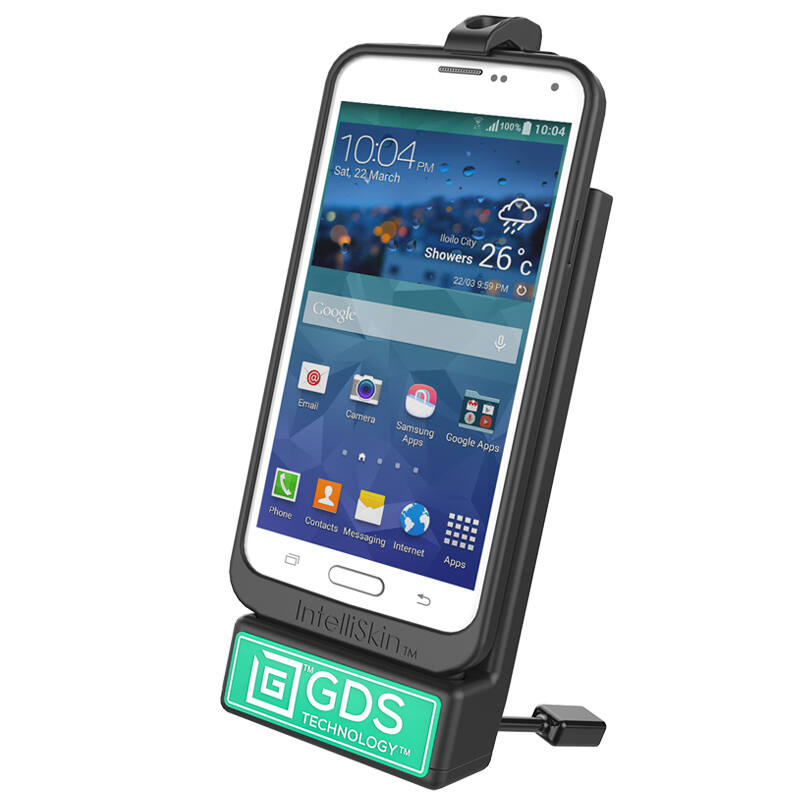

  • RAM-GDS-DOCK-V1U GDS® Universal Phone Dock with intelliskin and phone

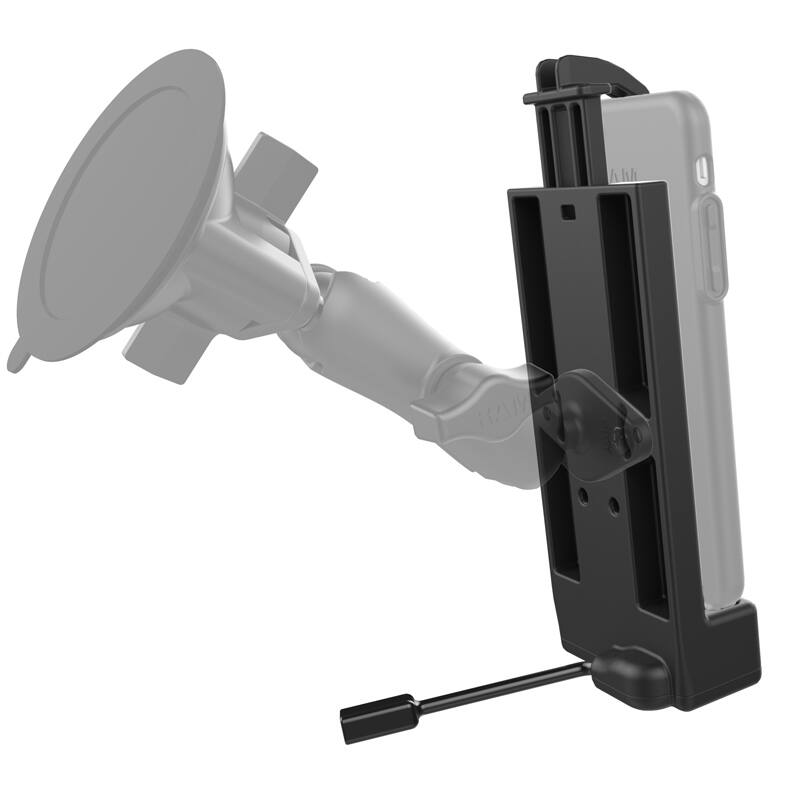

  • RAM-GDS-DOCK-V1U GDS® Universal Phone Dock from rear
  • ram-gds-cab-musb2 charging cradle

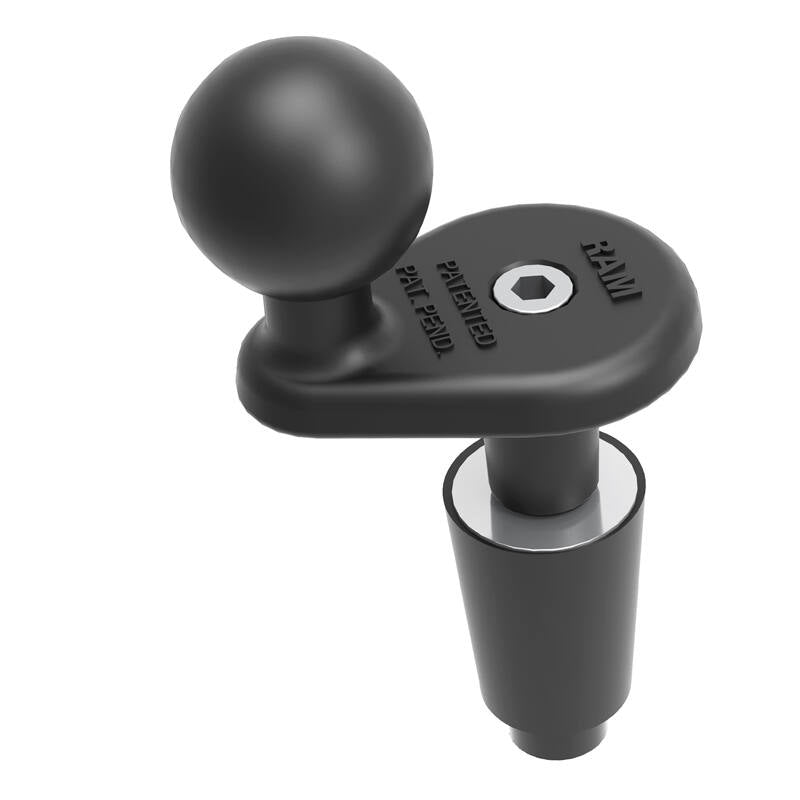

  • ram-b-342u motorcycle fork stem base
  • ram-b-238u diamond plate
  • ram-b-201u arm expanded
  • ram-b-201u medium arm

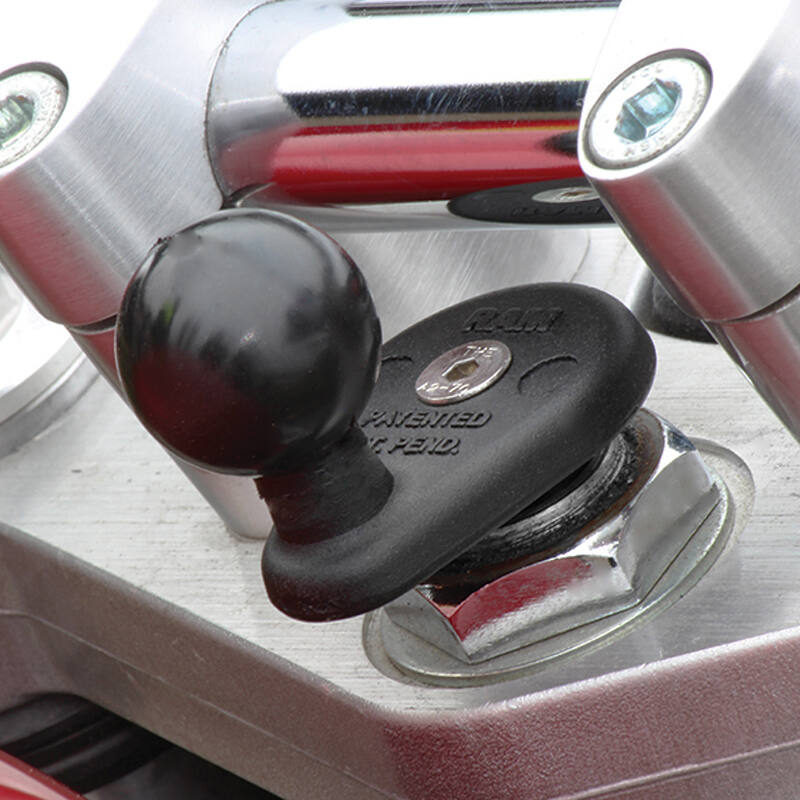

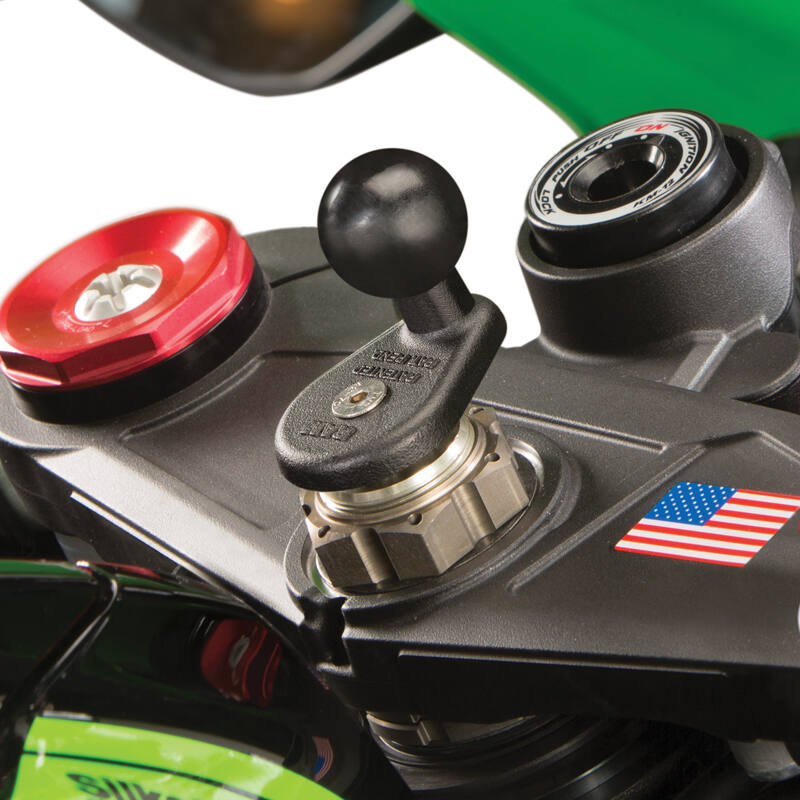

  • ram-b-342u fork stem base installed
  • ram-b-342u fork stem base installed

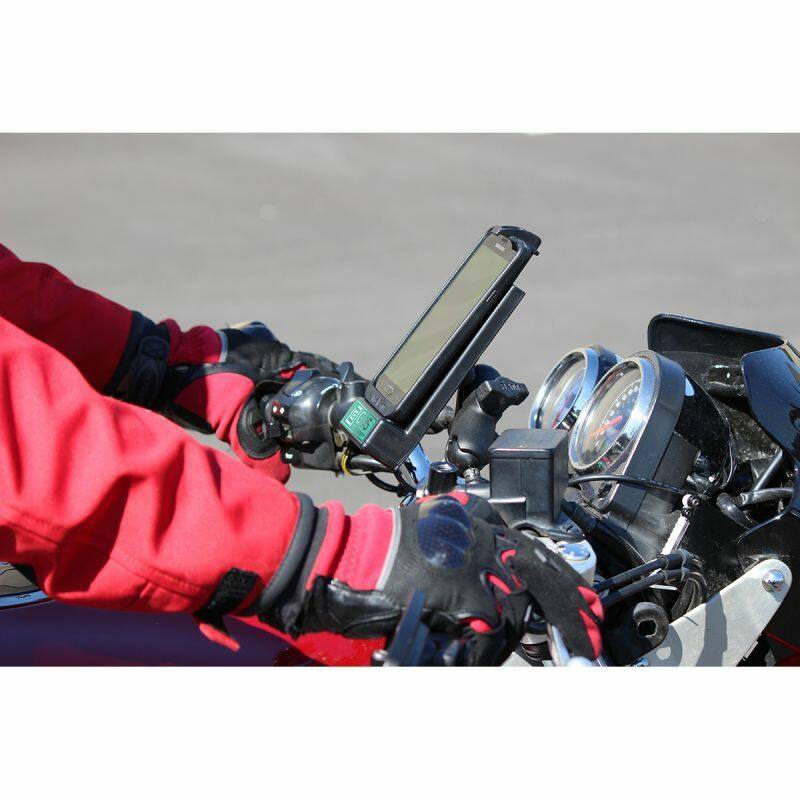

  • ram-b-400-gds-dock-v1u on motorcycle

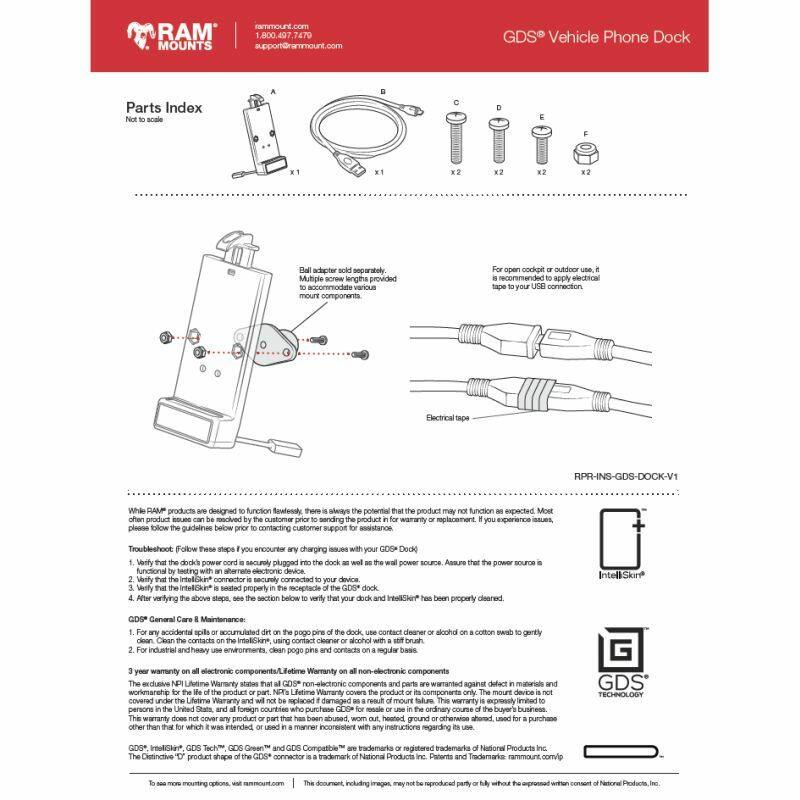

  • ram-gds-dock-v1u RAM GDS Phone Dock instruction sheet

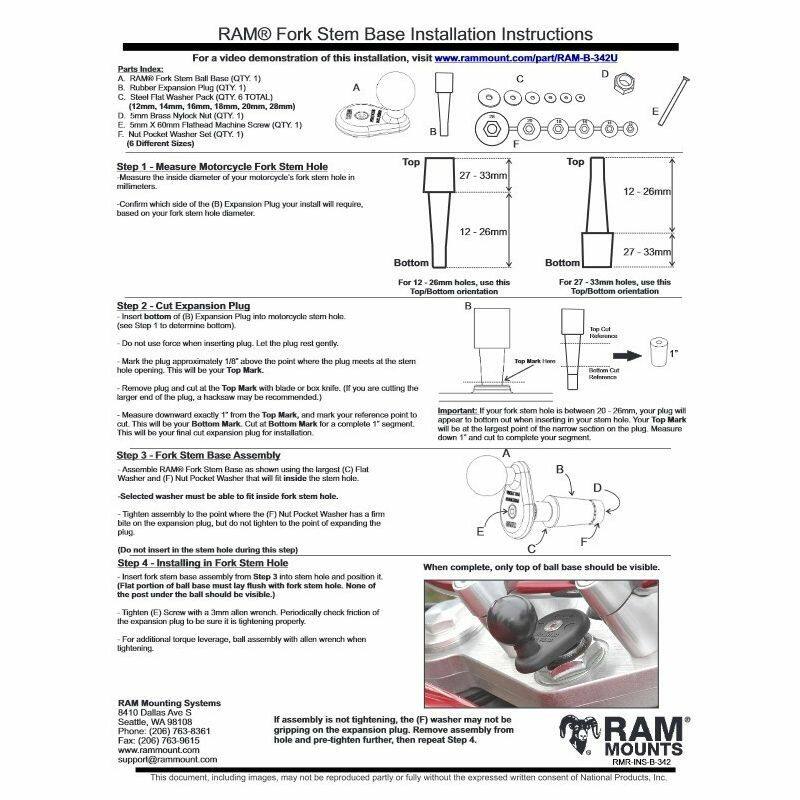

  • ram-b-342u RAM Fork stem base installation instructions
  • ram-b-238u diamond plate dimensions and hole patterns
  • ram-b-201u medium arm dimensions
1 19

RAM Mounts

RAM GDS Powered Vehicle Dock - Universal with Fork Stem base

RAM GDS Powered Vehicle Dock - Universal with Fork Stem base

$226.95 NZD
$226.95 NZD
Sale Sold out
Taxes included. Shipping calculated at checkout.

Low stock: 1 left

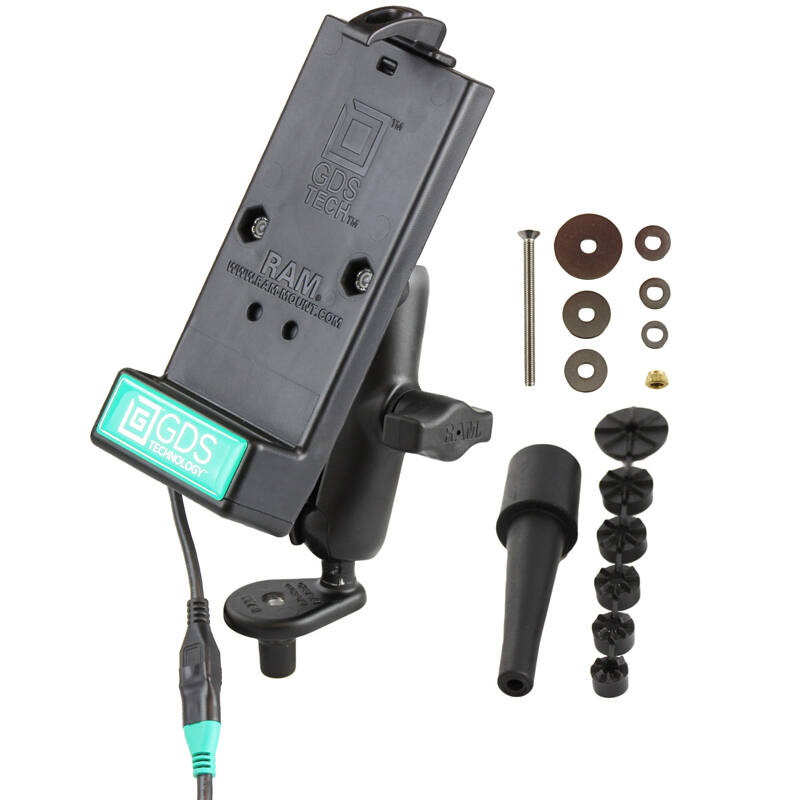

RAM-B-176-GDS-DOCK-V1U – RAM® GDS® Powered Universal Phone Dock with Motorcycle Fork Stem Base

The RAM-B-176-GDS-DOCK-V1U is a waterproof powered phone dock that mounts into a motorcycle's fork stem bore — one of the cleanest ways to mount electronics on a bike. It pairs the RAM® Universal Phone Dock with GDS® Technology with a fork stem base and a medium double socket arm. Any phone or phablet wrapped in a RAM IntelliSkin™ sleeve drops in, charges and releases in seconds.

Key Features

  • GDS® Technology charges any device wrapped in an IntelliSkin™ sleeve — dock it and it charges, no separate cable to fit
  • Spring-loaded, quick-release cradle holds the device securely even in high vibration
  • Waterproof, so it suits motorcycles, ATVs, boats and other open-air use
  • Fork stem base slides into the cylindrical bore and expands for a tight fit; works with stems from 12mm to 38mm
  • High-strength composite and powder-coated marine-grade aluminium; backed by a lifetime warranty

Works With

Any GDS Compatible™ phone or phablet wrapped in a RAM IntelliSkin™ sleeve. The fork stem base fits cylindrical bores from 12mm to 38mm (0.5" to 1.49").

Dimensions & Specifications

  • Fork stem bore range: 12mm to 38mm (0.5" to 1.49")
  • Arm overall length: 94.7mm (3.73"); socket-to-socket 76.2mm (3")
  • Input range: 5–12V at 2A (mUSB on USB 2.0/3.0 caps at 1.5A)
  • Connector: micro USB 2.0 female
  • Output cable length: 323mm (12.75")
  • Weight capacity: 907g (2 lb)
  • Materials: high-strength composite, marine-grade aluminium

Compatible Devices

Any GDS Compatible™ device, including any phone or phablet wrapped in a RAM IntelliSkin™ sleeve. The IntelliSkin sleeve is sold separately to suit your specific phone.

What's Included

  • RAM-GDS-DOCK-V1U Universal Phone Dock with GDS® Technology
  • RAM-B-342U motorcycle fork stem base with 1" ball
  • RAM-B-201U medium double socket arm
  • RAM-B-238U diamond base with 1" ball
  • Hardware: expansion plug (12–38mm stems), M5 x 60mm machine screw, steel washer set, nut pocket washer set, brass Nylock nut

FAQs

How does it fit the bike? The base slides into the fork stem bore and the machine screw expands it for a tight grip, so the dock sits neatly centred above the forks. It suits stems from 12mm to 38mm.

Do I need anything else for charging? Yes — your phone needs a matching RAM IntelliSkin™ sleeve, and you wire the dock's micro USB lead to a 5–12V supply.

How fast does it ship? Items shown in stock will normally be shipped from our Auckland warehouse in 1 business day. For out of stock items please enquire.
