RAM® GDS® Rugged Keyboard with Track Pad (USB)

RAM-KB2-USB GDS® Rugged Keyboard with Track Pad

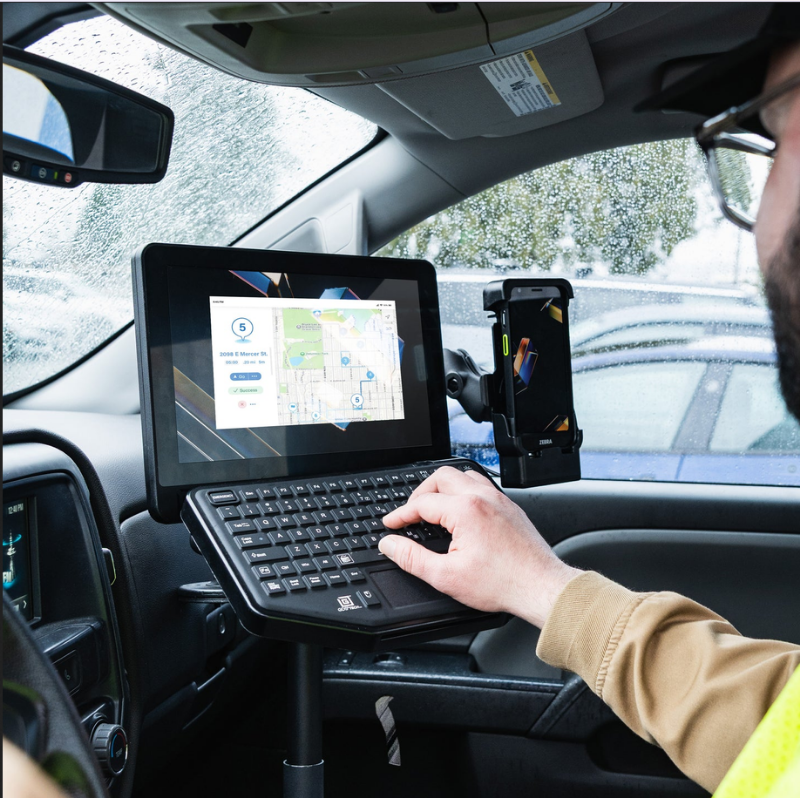

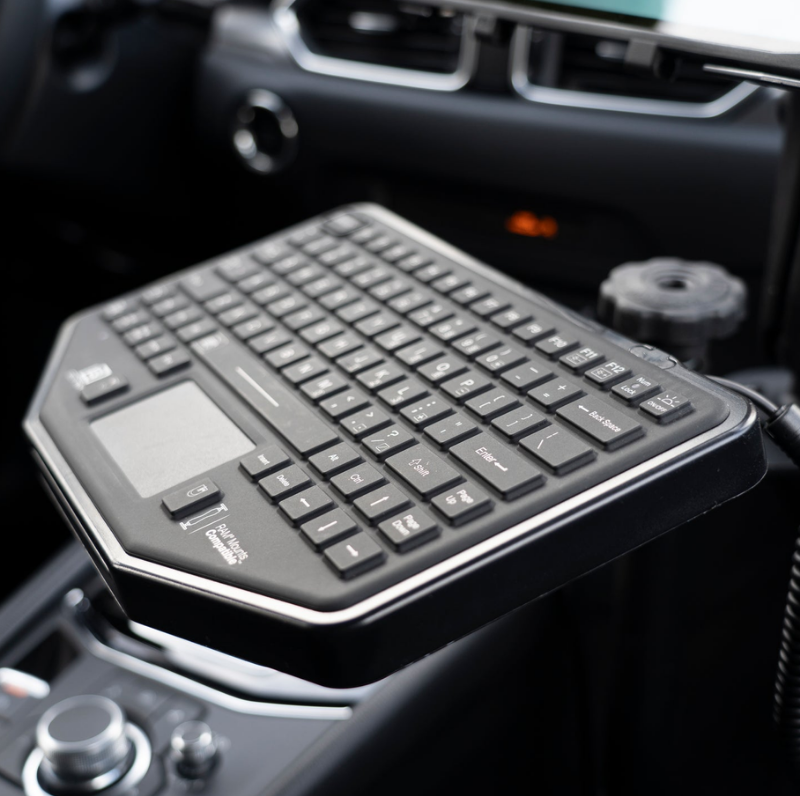

The RAM-KB2-USB is a rugged, backlit USB keyboard with a built-in multi-touch track pad, built for in-vehicle mobile offices in forklifts, utes, service trucks and emergency vehicles. VESA 75 x 75 mm and AMPS hole patterns let it mount on a wide range of RAM® hardware, and when docked in a RAM® Tab-Tite™ or Tab-Lock™ holder it lifts straight out for use on your lap or the centre console.

Key Features

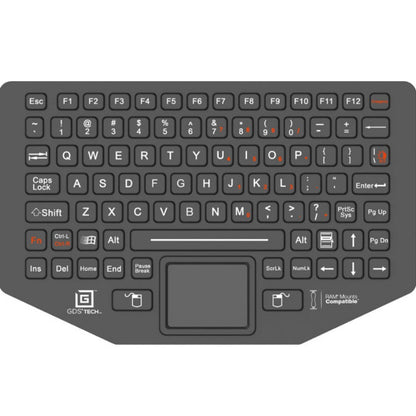

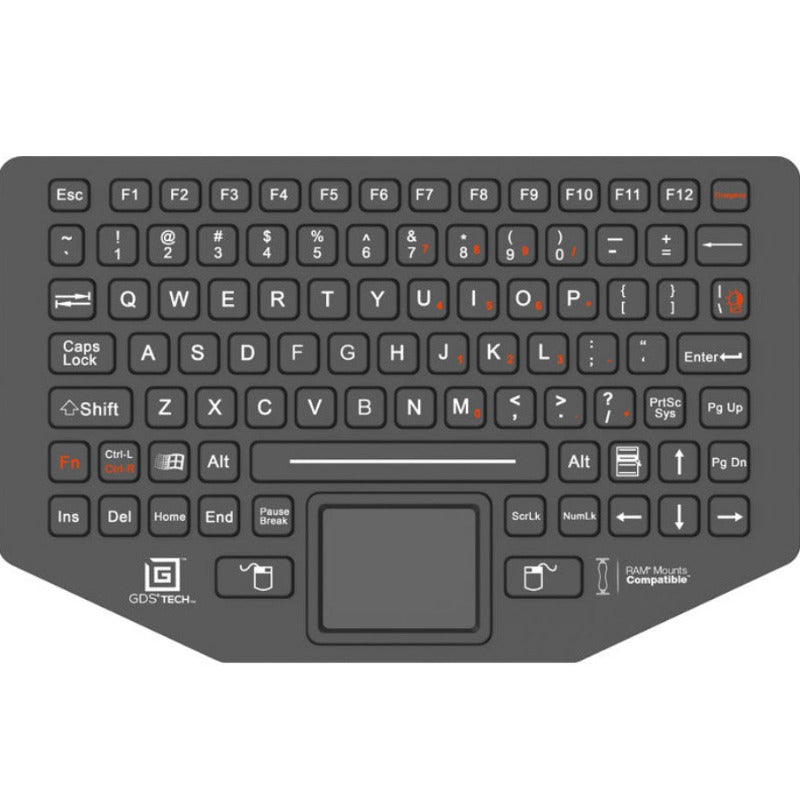

• Full layout: 89 keys including 12 function keys.
• Built-in track pad: two-finger multi-touch, so no separate mouse rattling around the cab.
• Red backlighting: easy on the eyes during night shifts and low-light work.
• Clean key: disables the keyboard so it can be wiped down without stray input.
• Built tough: IP65 sealed and tested to MIL-STD-810G 514.5 vibration and SAE J1455.
• Plug and play: USB 1.1/2.0 via an 84 cm (33") coiled strain-relief cable; works with Windows and Mac.

Works With

Designed to sit in the RAM® Tab-Tite™ Holder for GDS® Keyboard (RAM-HOL-TAB-KBU) or the key-locking RAM® Tab-Lock™ Holder (RAM-HOL-TABL-KBU). The VESA 75 x 75 mm pattern also suits RAM VESA plates, and the AMPS pattern suits AMPS-pattern bases and adapters. Get in touch and we can help you put together the right mount for your vehicle.

Dimensions & Specifications

• Part number: RAM-KB2-USB
• Overall size: 295 x 191 mm (11.625" x 7.5")
• Weight: 1.16 kg (2.56 lb)

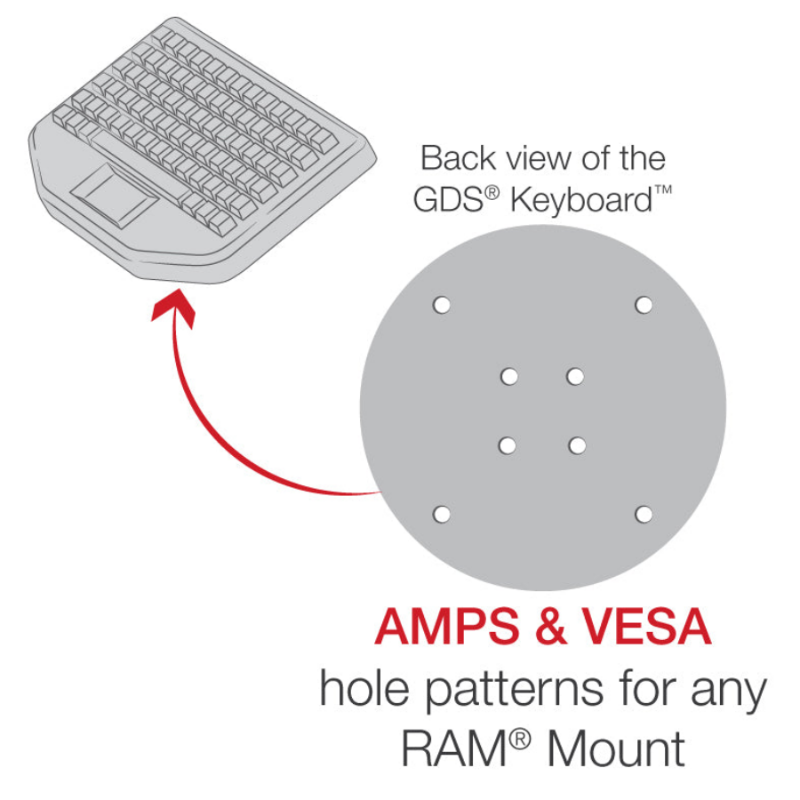

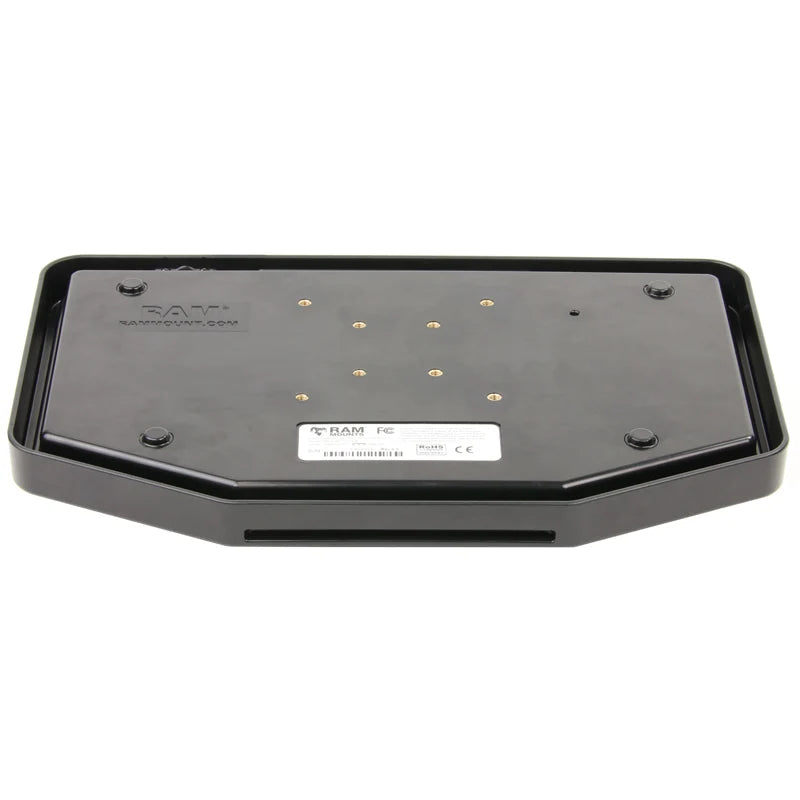

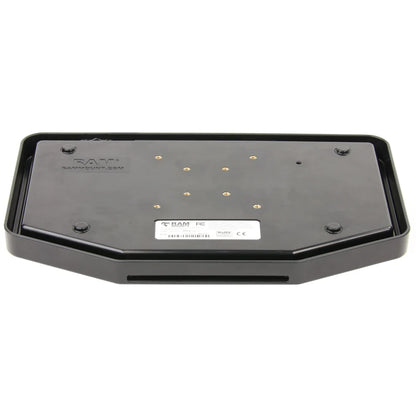

• Hole patterns: VESA 75 x 75 mm; 4-hole AMPS 30 x 38 mm (1.181" x 1.496")
• Cable: 84 cm (33") coiled USB with strain relief
• Operating temperature: -20°C to +60°C
• Storage temperature: -40°C to +85°C
• Material: high-strength composite
• Certifications: IP65, MIL-STD-810G 514.5, SAE J1455, FCC, CE, RoHS
• Compatibility: Windows 98 to Windows 8, macOS
• Hardware included: 4 x #8-32 x 1/2" machine screws
• Warranty: 1 year

FAQs

Can I take the keyboard out of the holder? Yes. In a Tab-Tite or Tab-Lock holder it lifts out for use on your lap or the console, and the Tab-Lock version adds a key lock for security.

Does it need drivers? No. It's a standard USB keyboard and track pad, so it works straight out of the box.

When will it ship? If this item shows as being in stock then it will usually ship from our Auckland warehouse in 1 business day. If it says to enquire then please get in touch as we may be able to get this back in for you.
