RAM GDS Slide Dock for IntelliSkin Products - Drill Down Attachment

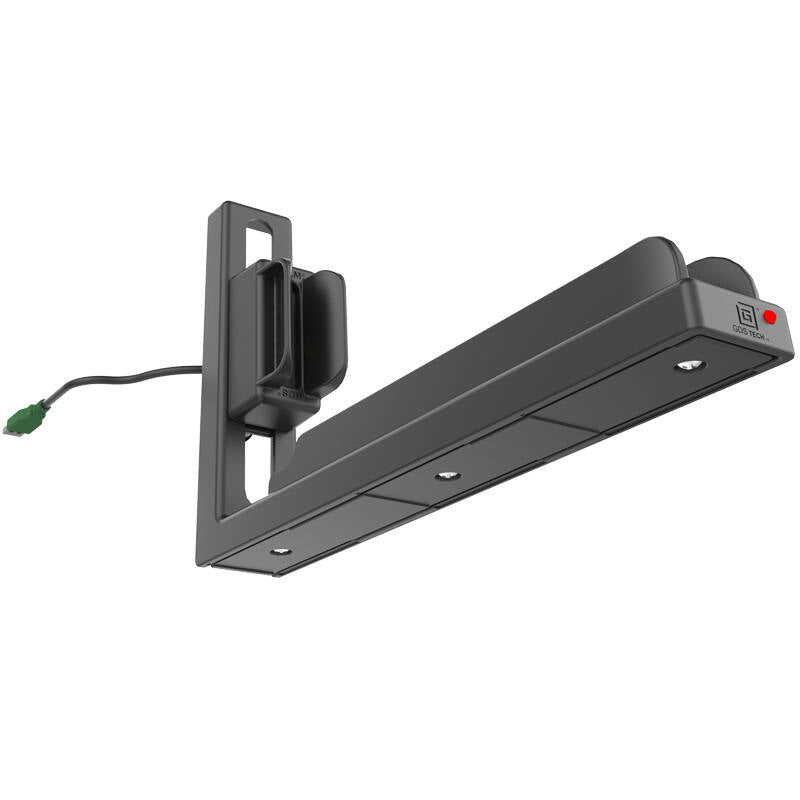

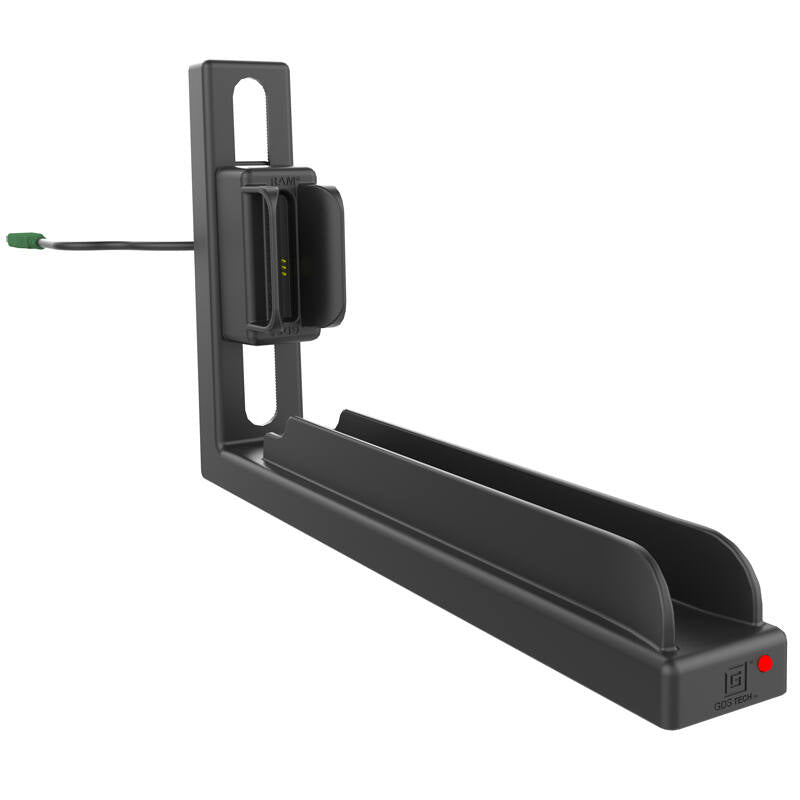

RAM-GDS-DOCK-G7U – GDS® Slide Dock™ for IntelliSkin® Products, Drill-Down Attachment

The RAM-GDS-DOCK-G7U is a drill-down GDS® Slide Dock™ that charges any device wrapped in IntelliSkin®, regardless of operating system. Bolt or screw it to a cart, bench or charging station, slide the device in, and pogo pin contacts handle the power connection; no cables plugged into the device.

Key Features

• Adjustable-height GDS® connector with numbered settings to suit different devices
• Drill-down base for permanent mounting to carts and charging stations (mounting hardware not included)
• Pogo pin contacts eliminate plugging in cables; LED indicator confirms the dock has power
• USB Type-A male output plugs into an existing USB port or the GDS® 6-port USB charger

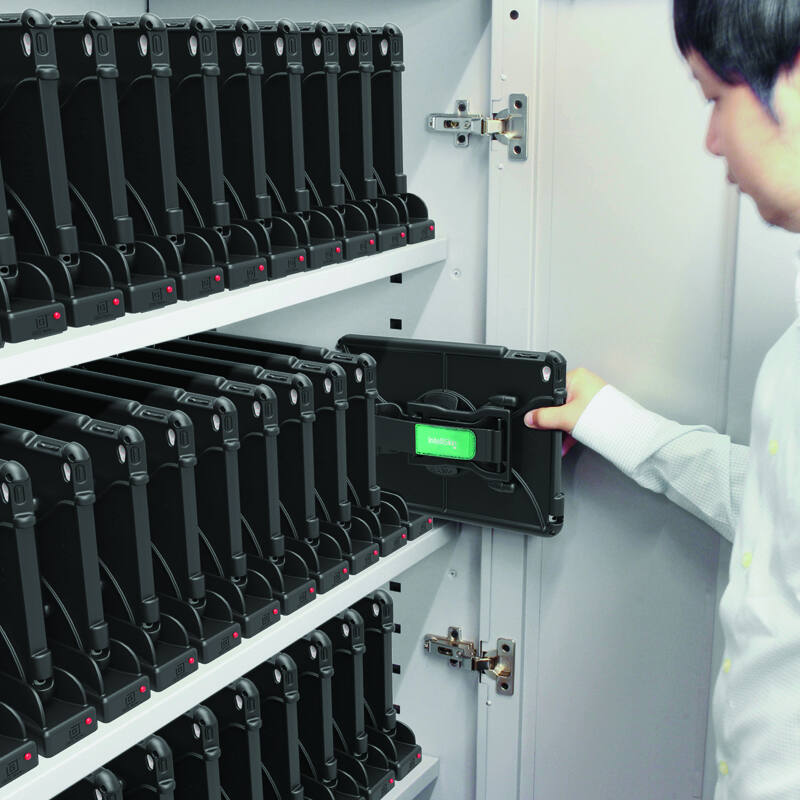

• Scalable; run multiple Slide Docks off one charging station
• Backed by a 3-year warranty

Works With

Any phone or tablet wrapped in an IntelliSkin® sleeve. The adjustable connector height makes it a universal charging dock across mixed fleets, and the integrated GDS® connector carries over to future IntelliSkin devices.

Dimensions & Specifications

• Max power: 5V–12V @ 2A (mUSB devices supporting USB 2.0/3.0 max 1.5A)
• Output: USB Type-A male
• Material: high-strength composite
• Warranty: 3 years

FAQs

Is mounting hardware included?

No. The drill-down base is designed to be bolted or screwed to your surface, but fasteners are not included as they depend on what you are mounting to.

When will my order ship?

If this item shows as being in stock then it will usually ship from our Auckland warehouse in 1 business day. If it says to enquire then please get in touch as we may be able to get this back in for you.

Videos

GDS® Technology overview
