RAM Mounts

RAM Glareshield Clamp with Diamond Base & Long Arm

RAM Glareshield Clamp with Diamond Base & Long Arm


Regular price $127.29 NZD
Regular price Sale price $127.29 NZD
Sale Sold out
Tax included. Shipping calculated at checkout.
View full details

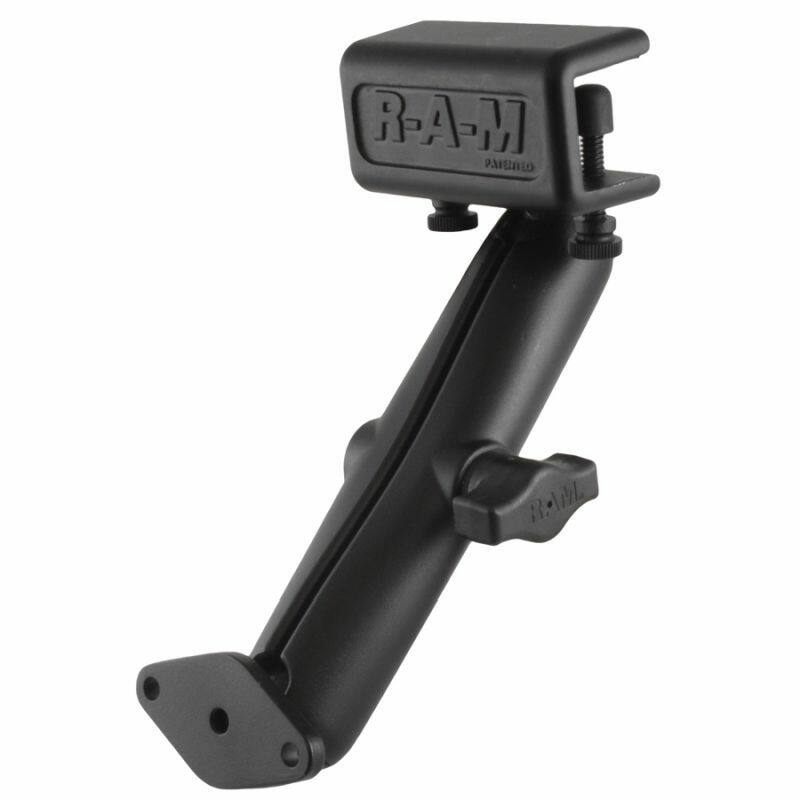

RAM-B-177-C RAM® Glare Shield Clamp Mount with Diamond Plate - Long

* Flat surface clamp provides stable base on surfaces such as aircraft glare shields, boat windscreen frames etc.
* This product will attach to flat surfaces from 0 - 15.9mm thick
* Long RAM® arm with ball and socket system allows for almost infinite adjustment
* Diamond plate with 2 hole AMPs pattern will attach to many lighter RAM cradles
* Powder Coated Marine Grade Aluminium construction for maximum longevity

The RAM-B-177-C consists of a glare shield clamp base, LONG double socket arm and diamond base adapter. This mount is designed to mount to the lip edge of a flat surface up to 15.9mm (5/8") thick. Popular mounting edges include a car side window edge lip or glare shield on an aeroplane. The base has two composite bolts that, when tightened, clamp the base to the lip surface. The 2.43" x 1.31" diamond base contains two holes 1.912" from centre to centre, matches the industry standard AMPS hole pattern and will connect to a large variety of RAM Mount and third party cradles. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles.

Clamp Range
0 - 15.875mm (0 to 0.625" (5/8)") max

Arm Dimensions:

Overall Length:
152 mm (6 inches)

Socket-To-Socket Length:
134 mm (5.25 inches)

Diamond Plate Hole Pattern
2-Hole AMPs:
1.912” (48.5mm)

Powder Coated Marine Grade Aluminium

Ball Size:
1" Rubber Ball "B" Size

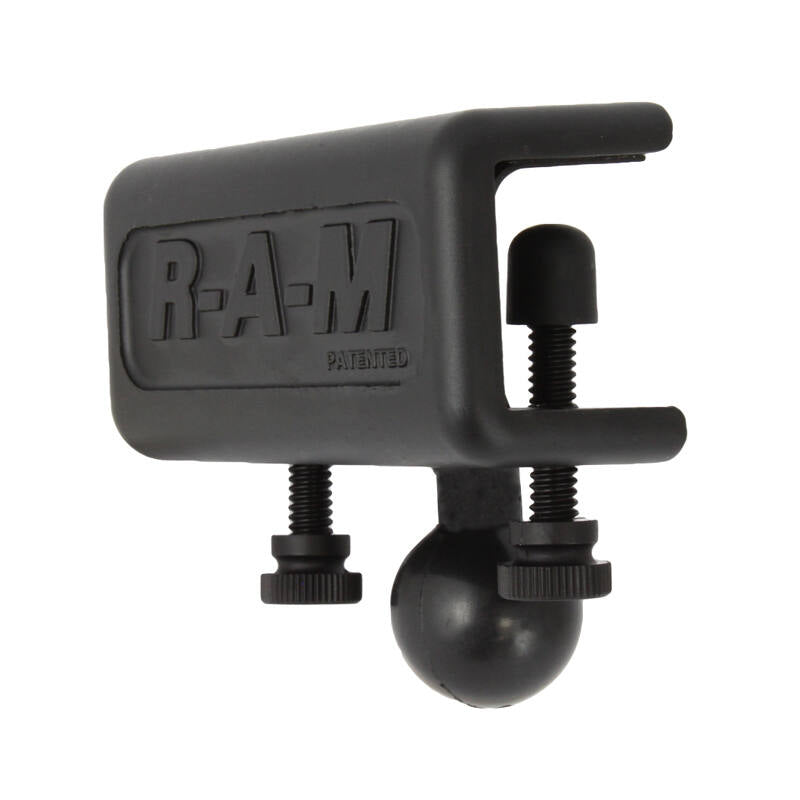

RAM-B-259U / RAM-B-127U - glare-shield mount
RAM-B-201U-C - Long 152mm double socket mount
RAM-B-238U - Diamond shaped base with 1" ball
