RAM Glareshield Clamp with Rectangular Base & Short Arm

RAM Glareshield Clamp with Rectangular Base & Short Arm

SKU:RAM-B-177-347U-v

Regular price $114.92 NZD
Regular price Sale price $114.92 NZD
Sale Sold out
Tax included. Shipping calculated at checkout.
View full details

RAM-B-177-347U RAM® Glare Shield Clamp Double Ball Mount with AMPS Hole Pattern

Features
* Flat surface clamp provides stable base on surfaces such as aircraft glare shields, boat windscreen frames etc.
* This product will attach to flat surfaces from 0 - 15.9mm thick
* Short RAM® arm with ball and socket system allows for almost infinite adjustment
* 51 x 43mm square ball base features industry-standard AMPS hole pattern with four pre-drilled holes at each corner
* Powder Coated Marine Grade Aluminium construction for maximum longevity

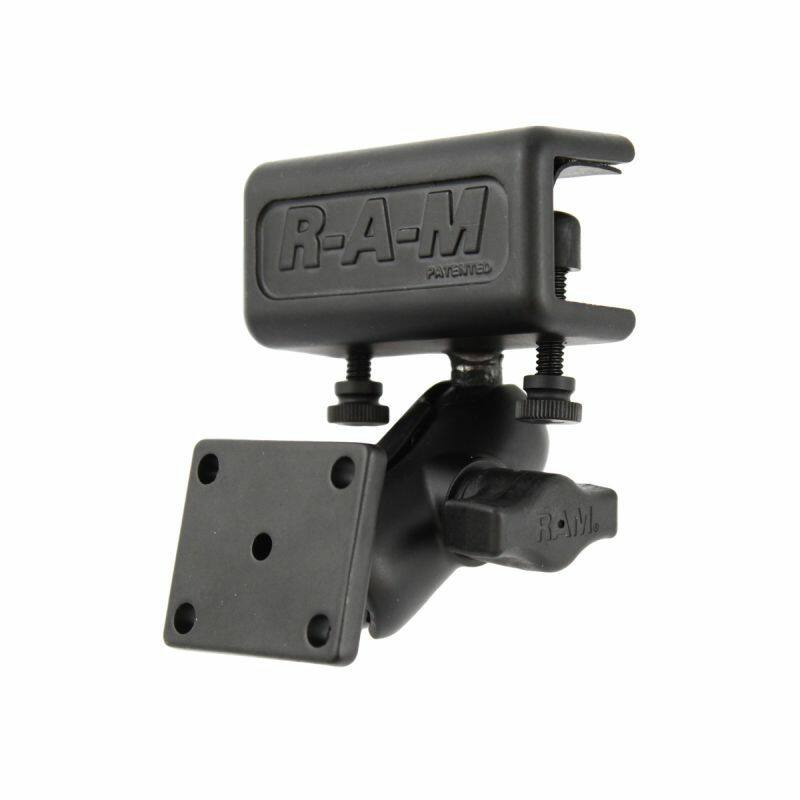

The RAM-B-177-347U consists of a glare shield clamp base, short double socket arm and 51 x 43mm rectangular base that contains the universal AMPs hole pattern.

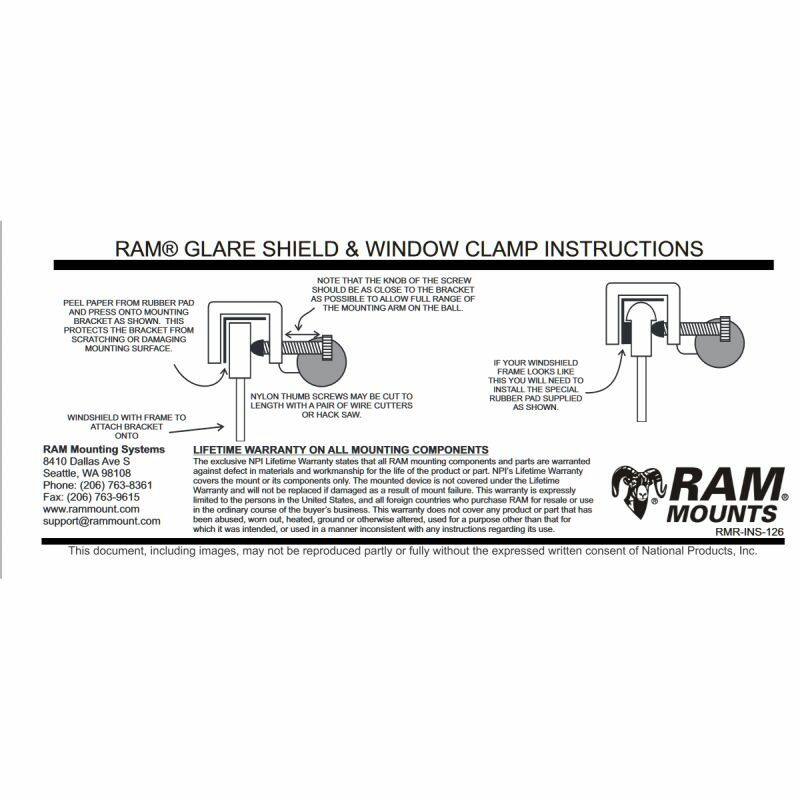

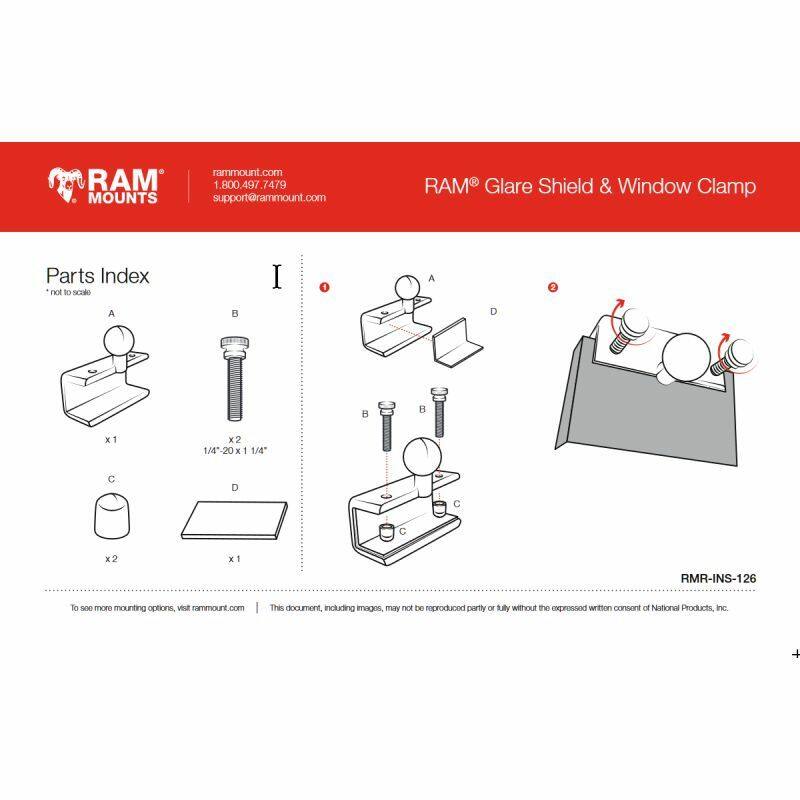

This mount is designed to mount to the lip edge of a flat surface from 4.4mm to 28mm thick. Popular mounting edges include a car side window edge lip or glare shield on an aeroplane. The base has two composite bolts that, when tightened, clamp the base to the lip surface.

A RAM 1" diameter rubber ball is connected to the base allowing you to connect a RAM 1" diameter arm socket and connection plates to create the perfect mount for your application. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles.


This 51 x 43mm (2" x 1.7") rectangular ball base features industry-standard AMPS hole pattern (38MM X 30MM / 1.5" x 1.188") with four pre-drilled holes at each corner

Ideal for the Garmin Zumo, TomTom Rider & Urban Rider


Compatible Devices Include


Garmin
GPSMAP 276Cx
zumo 390LM
zumo 396 LMT-S
zumo 400
zumo 450
zumo 500
zumo 550
zumo 590
zumo 595LM
zumo 660
zumo 665

Magellan
TRX7
TRX7 CS
Road
Tech Zumo 590
Tech Zumo 660
Tech Zumo 665

TomTom
Rider 2
Urban Rider


Square Plate Hole Pattern
4 Hole AMPs
1.181" x 1.496" (30mm x 38mm)


Glareshield Clamp dimensions:
4.4 mm - 15.875mm (0.17 to 0.625")

Arm Dimensions:
Overall Length: 60.5mm (2.38")
Socket-To-Socket Length: 51mm (2")

Material:
Powder Coated Marine Grade Aluminium

Ball Size:
1" Rubber Ball "B" Size

Weight Capacity
Standard Use:
907 grams (2 lbs)
Heavy-Duty Use:
454 grams (1 lb)


Weight:
277 grams (0.61 lbs.)



Components:

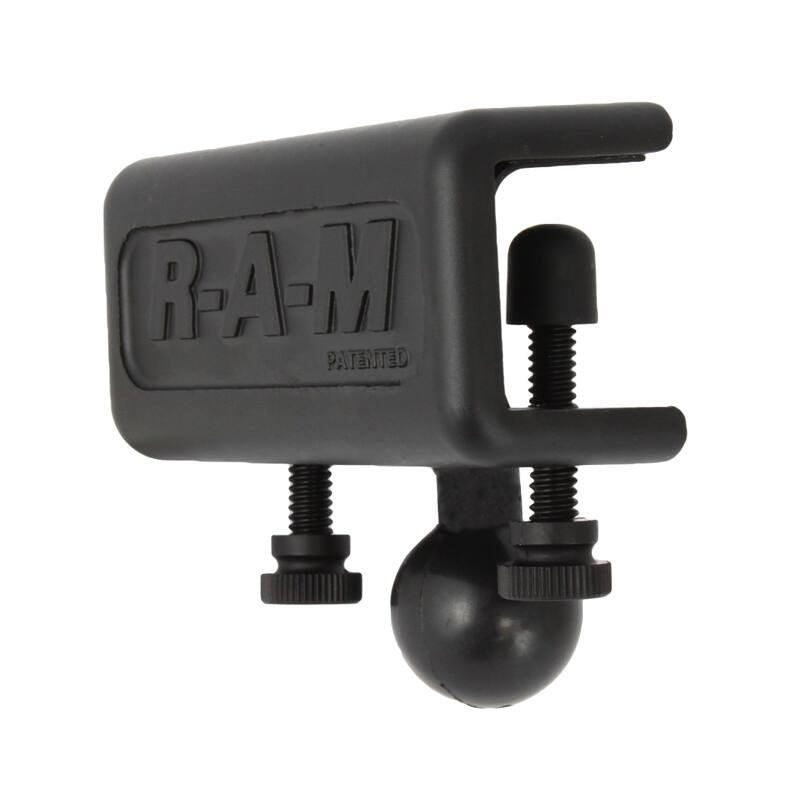

RAM-B-127b - glareshield mount
RAM-B-201U-A - short double socket mount

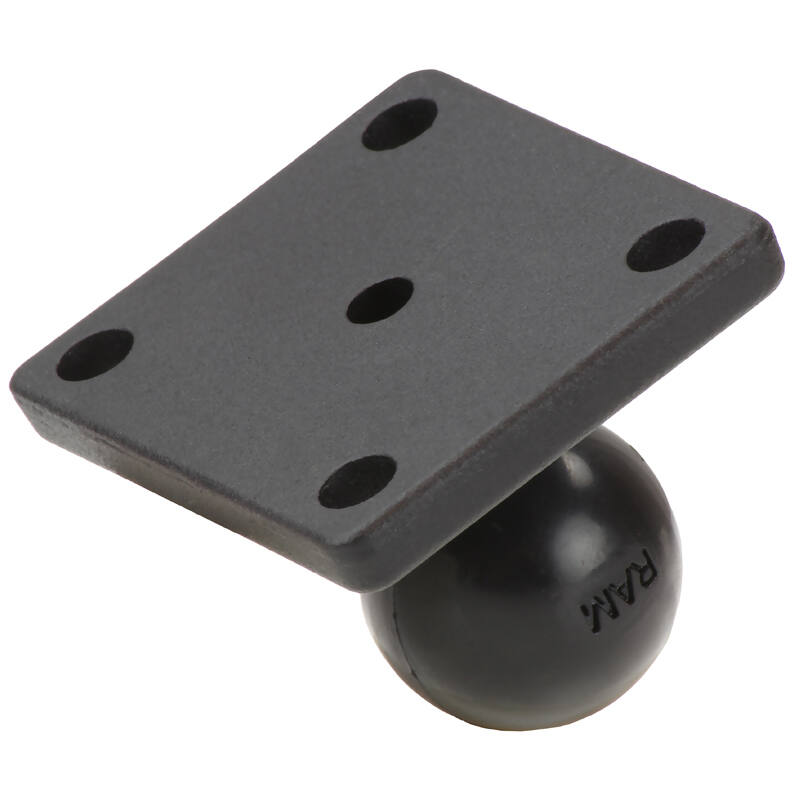

RAM-B-347U - 50.8mm x 43.2mm (2" x 1.7") plate with 1" ball
