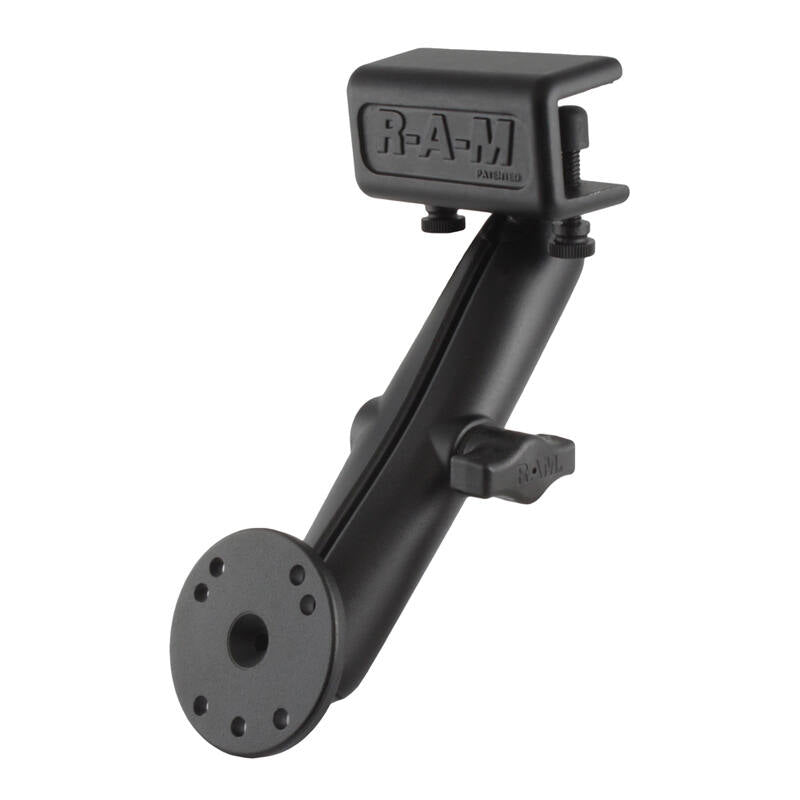

RAM-B-177-C-202 RAM® Glare Shield Clamp Mount with Round Plate and LONG arm
Features
* Flat surface clamp provides stable base on surfaces such as aircraft glare shields, boat windscreen frames etc.
* This product will attach to flat surfaces from 0 - 15.9mm thick
* Long RAM® arm with ball and socket system allows for almost infinite adjustment
* Round plate with 4 and 3 hole AMPs pattern will attach to many RAM cradles
* Powder Coated Marine Grade Aluminium construction for maximum longevity

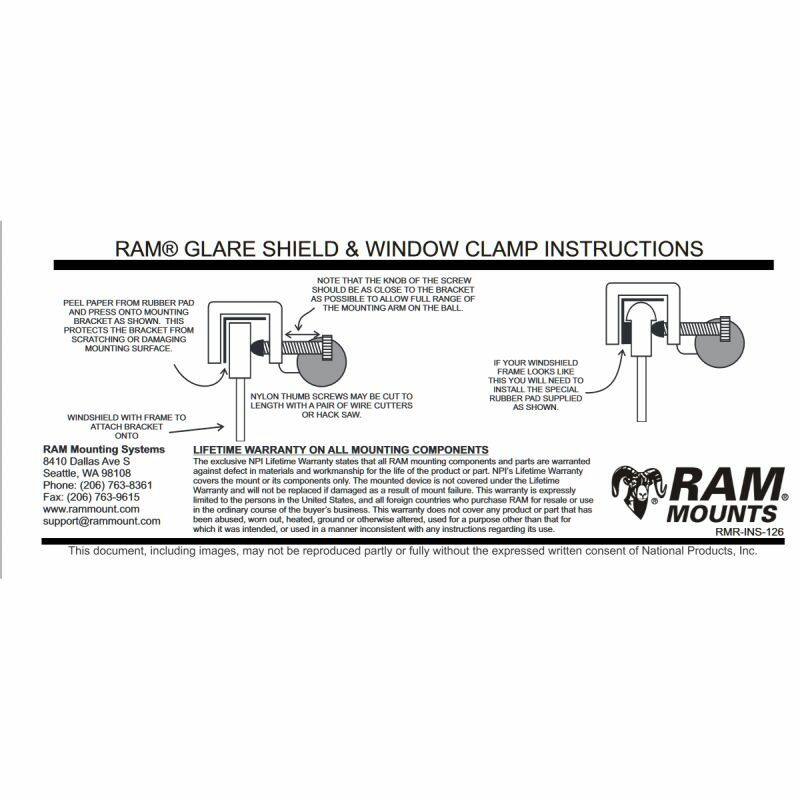

This consists of a glare shield clamp base, LONG double socket arm and round base adapter. This mount is designed to mount to the lip edge of a flat surface up to 15.9mm (5/8") thick. Popular mounting edges include a car side window edge lip or glare shield on an aeroplane. The base has two composite bolts that, when tightened, clamp the base to the lip surface.
The 63mm diameter round base with a 1" diameter rubber ball has pre-drilled holes, including the universal AMPs 4-hole pattern and will match most RAM cradles and many third party devices.
The Glareshield Clamp will attach to flat surfaces with thickness within the following range:
Clamp Range
0 - 15.875mm (0 to 0.625" (5/8)") max
Arm Dimensions:
Overall:
152 mm (6 inches)
Socket-To-Socket:
134mm (5.25 inches)
Round Plate Hole Pattern
4-Hole AMPS:
1.181" x 1.496" (30mm x 38mm)
3-Hole AMPS 120- Degree
1.812” (46.0mm)
Material:
Powder Coated Marine Grade Aluminium
Ball Size:
1" Rubber Ball "B" Size
Weight
0.508kg (1.12lbs )

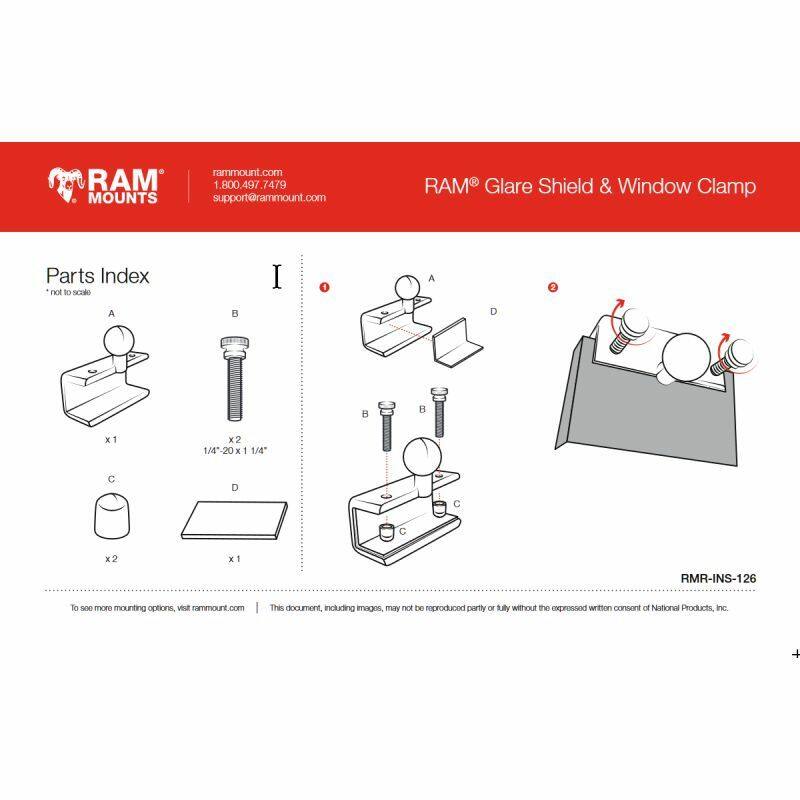

Components:

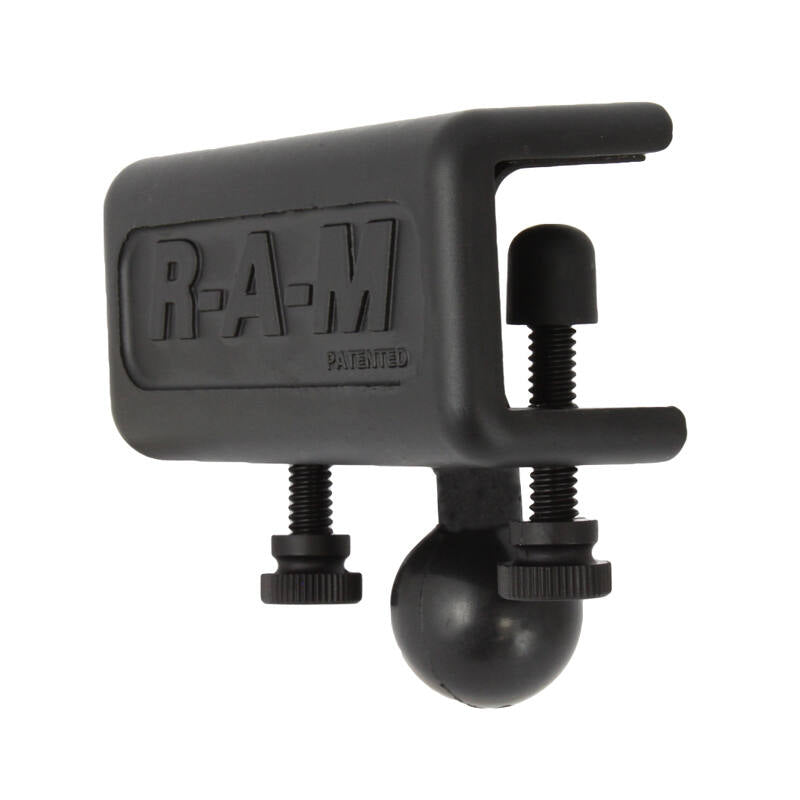

RAM-B-259U / RAM-B-127U glare-shield mount
RAM-B-201U-C Double socket mount
RAM-B-202U 62mm DIA.BASE WITH 1" BALL
