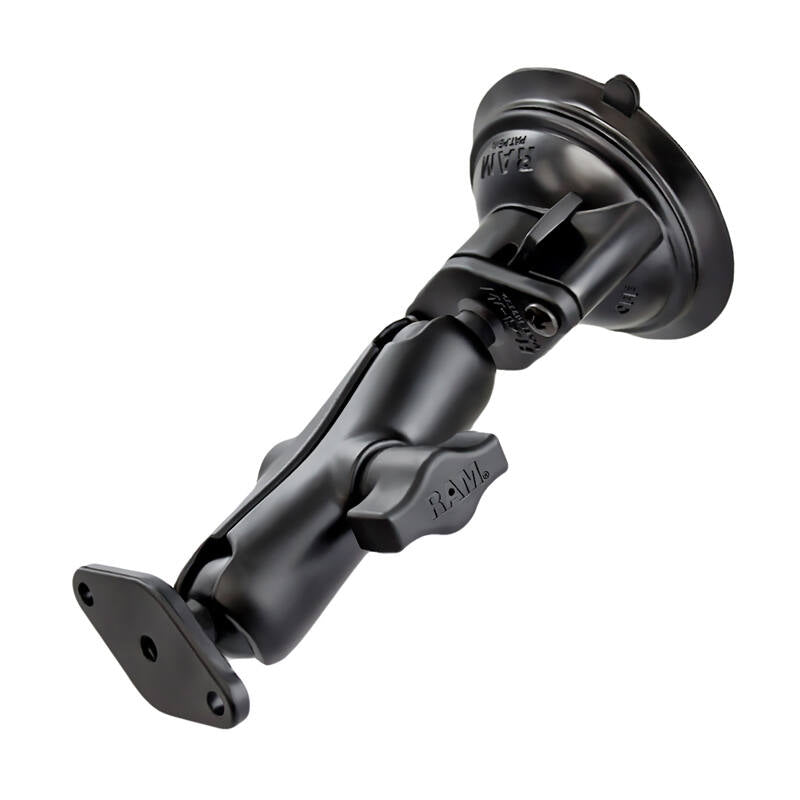

RAM-B-166-SPO5U RAM EZ-ROLL'R Model Specific Cradle for the SPOT X GPS with Twist-Lock Suction Cup Base
Features
* Cradle designed specifically for the SPOT X™ secures your device while keeping all buttons and the power port fully accessible
* Compatible with RAM® Mounts B and C size diamond ball bases for attaching to double socket arms and mounting bases
* Made of high-strength composites for durability and reliability in the most demanding environments

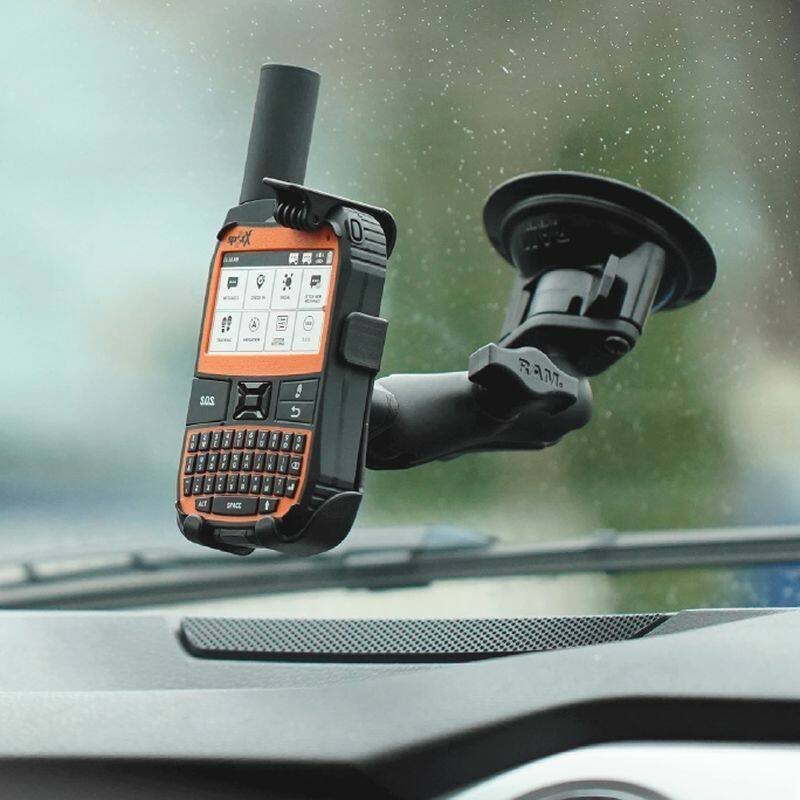

* RAM® Twist-Lock™ suction cup base is ideal for vehicle windshields and other nonporous surfaces
* Includes B size medium length RAM® double socket arm and diamond bases with B size 1" rubber balls
* RAM ball and socket technology allows for near-infinite adjustability
* Backed by a lifetime warranty
The form-fitting, high-strength composite RAM® EZ-Roll’r™ cradle for the SPOT X™ allows for the attachment of RAM® components containing the universal AMPS hole pattern. With the device in the cradle, all buttons and the power port remain fully accessible. The RAM® EZ-Roll’r™ cradle for the SPOT X™ is compatible and interchangeable with a wide range of RAM® diamond ball bases.
The suction cup base is designed to have a strong hold on glass and non-porous plastic surfaces, including RAM adhesive disks. The RAM 1" diameter patented rubber ball and socket system allows for almost infinite adjustment and perfect viewing angles.
Compatible Devices

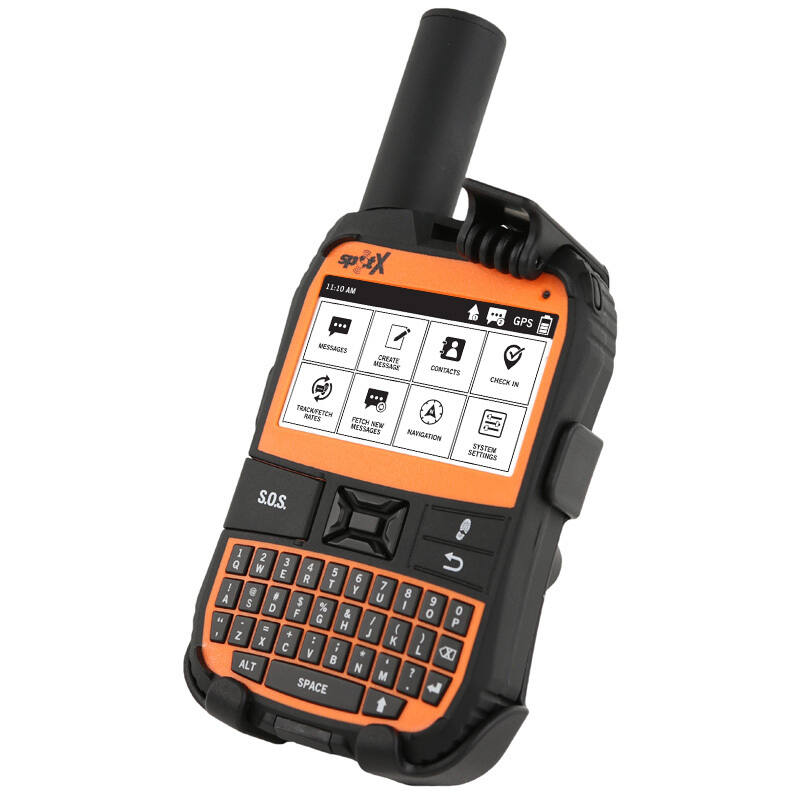

SPOT X™

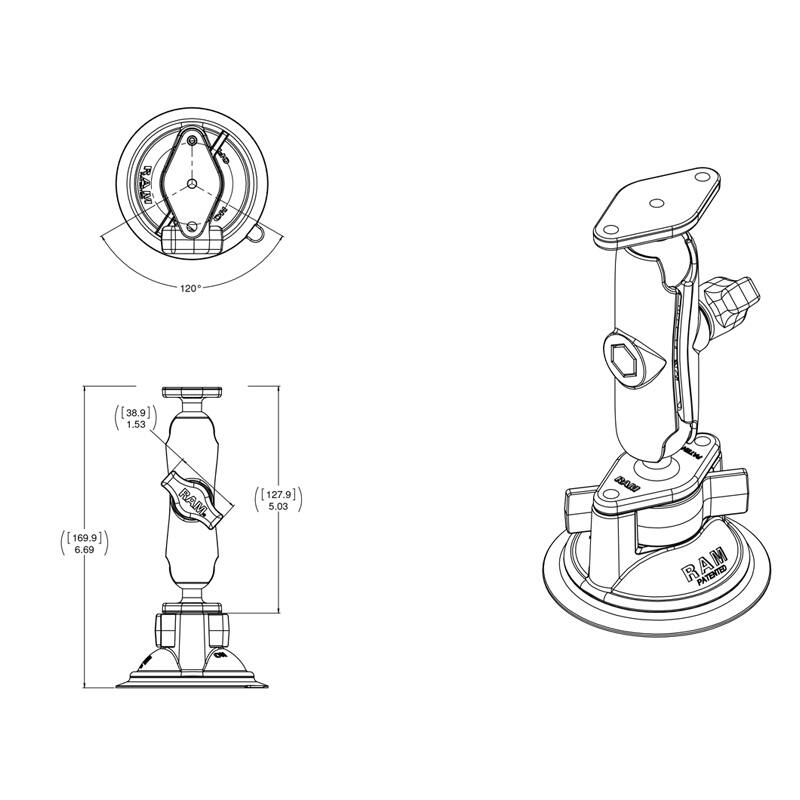

Arm Dimensions:
Overall Length:
94mm (3.69")
Socket-To-Socket Length:
76mm (3")
Ball Size:
1" Rubber Ball "B" Size
Hole Pattern
2-Hole AMPs:
1.912” (48.5mm)
Material:
High Strength Composite
Powder Coated Marine Grade Aluminium
Note: this does not include the SPOT GPS unit itself
YouTube:
https://www.youtube.com/watch?v=EC-bdR3KAww

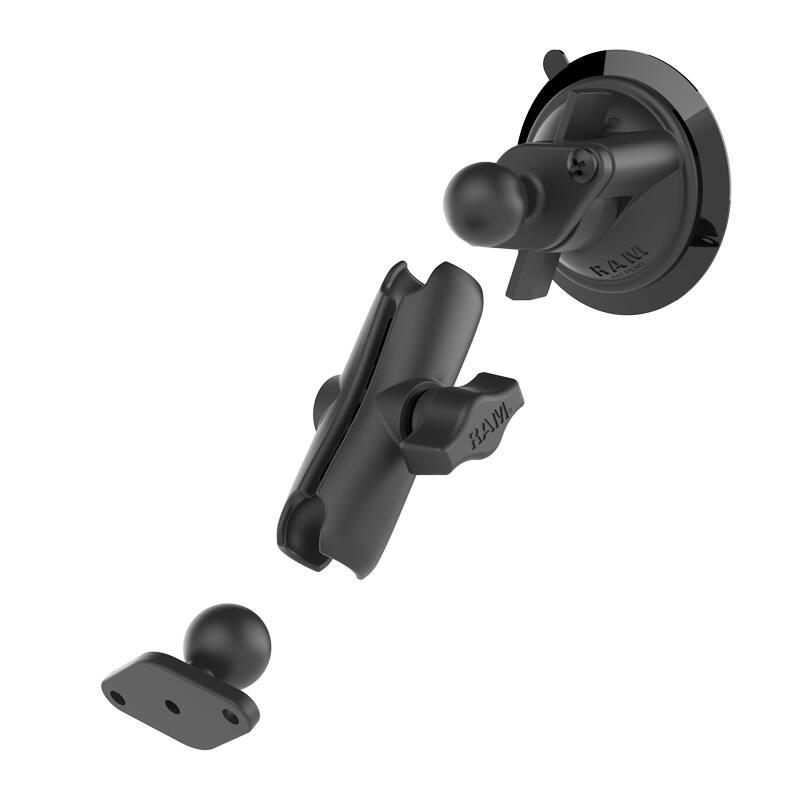

Components:

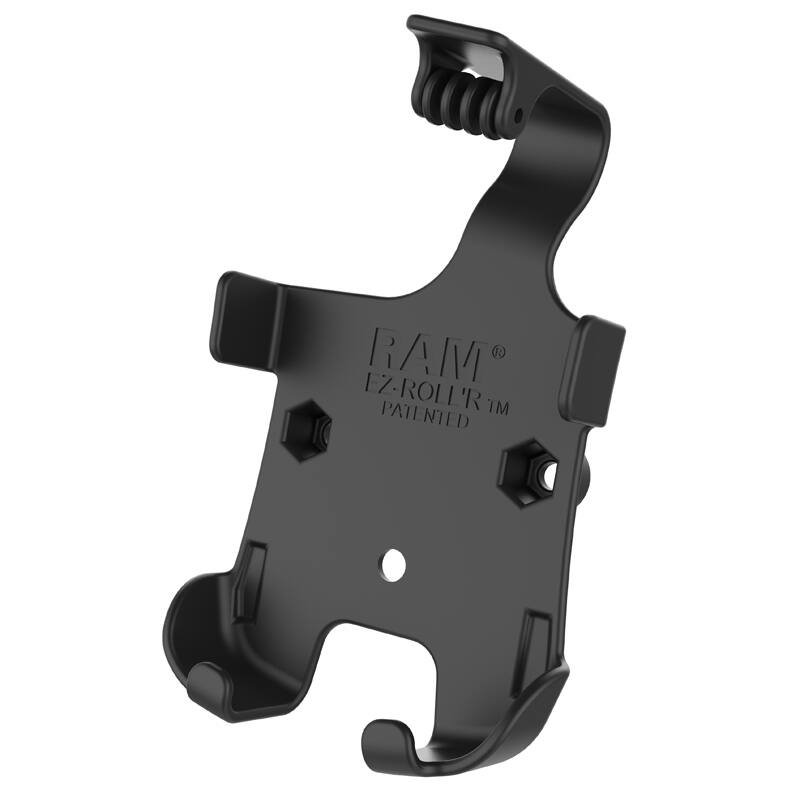

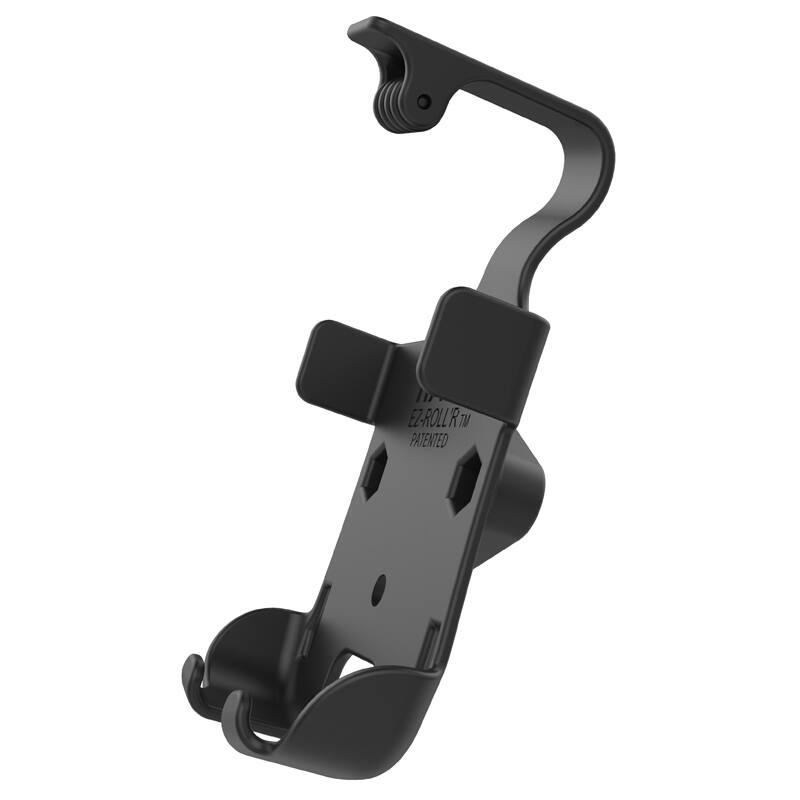

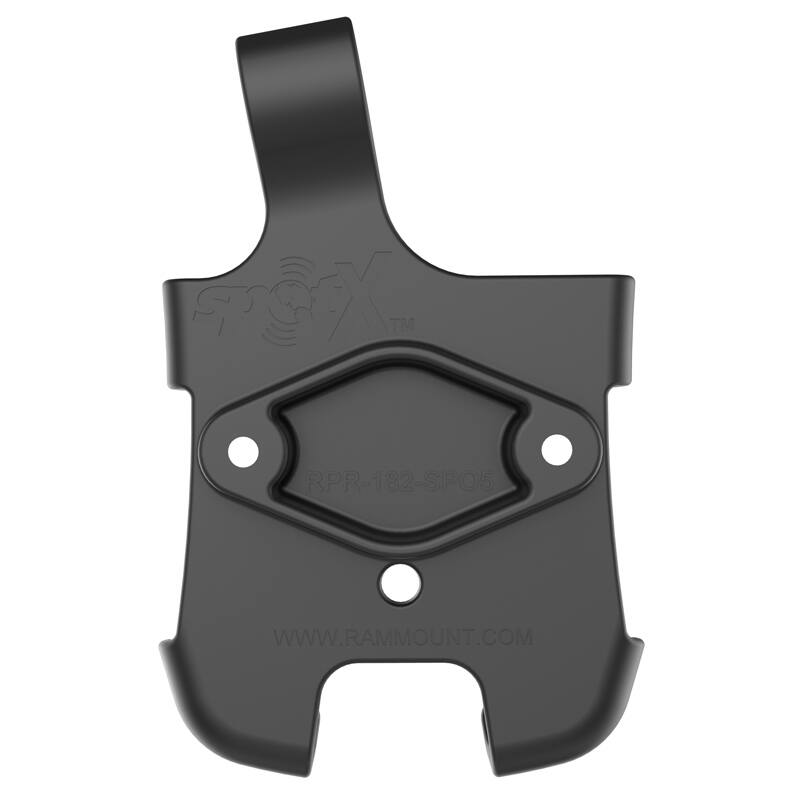

RAM-HOL-SPO5U EZ-Roll'r Cradle for SPOT X
RAM-B-238U 62 X 33mm DIAMOND BASE W/ 1 BALL
RAM-B-224-1U 83mm DIA. SUCTION CUP BASE with 1" BALL
RAM-B-201U DOUBLE SOCKET ARM FOR 1" BALL
