RAM Mounts

RAM GPS Cradle - Trimble TDS Nomad & Nomad X with Drill Down Mount

RAM GPS Cradle - Trimble TDS Nomad & Nomad X with Drill Down Mount

SKU:RAM-B-101U-TD4

Regular price $107.75 NZD
Regular price Sale price $107.75 NZD
Sale Sold out
Tax included. Shipping calculated at checkout.
View full details

RAM-B-101U-TD4 RAM® Form-Fit Cradle for TDS Nomad & Nomad X

Features:

* High strength composite cradle for TDS Nomad & Nomad X
* Full access to all ports
* Drill down mount is ideal for any flat surface where permanent mounting is required
* Powder Coated Marine Grade Aluminium and high strength composite construction ensures product longevity
* Lifetime warranty

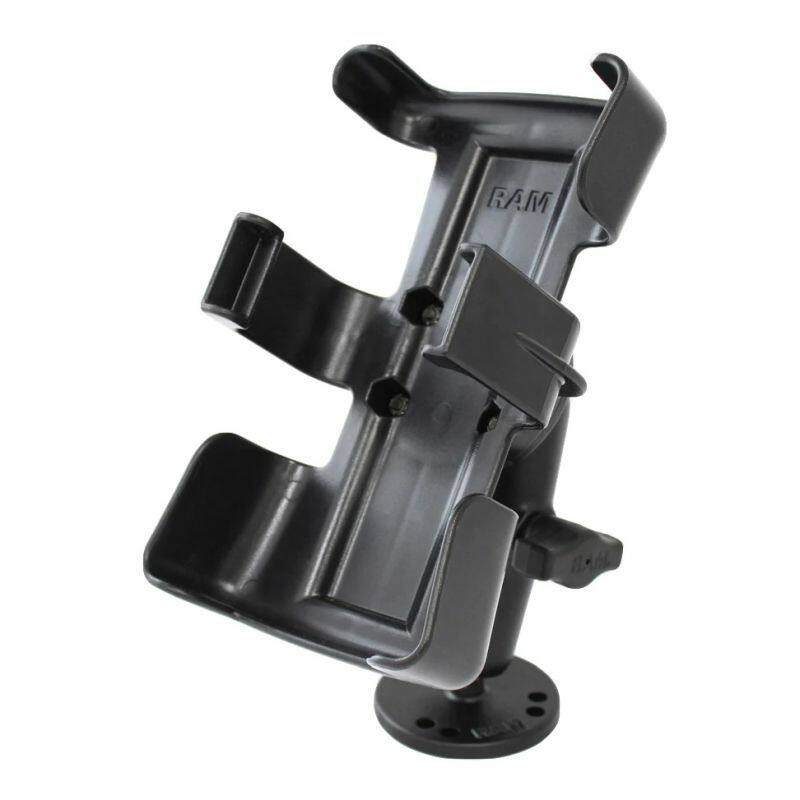

The RAM-B-101U-TD4 combines the RAM-HOL-TD4U cradcle for Trimble / TDS Nomad / Nomad X with a RAM-B-101U Drill down base.

The base consists of a double socket arm and two 63mm diameter round bases that contain the universal AMPS hole pattern. The mount is designed with a 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. The hole pattern found on the round base adapter will connect to many RAM cradles, including all iPad cradles.

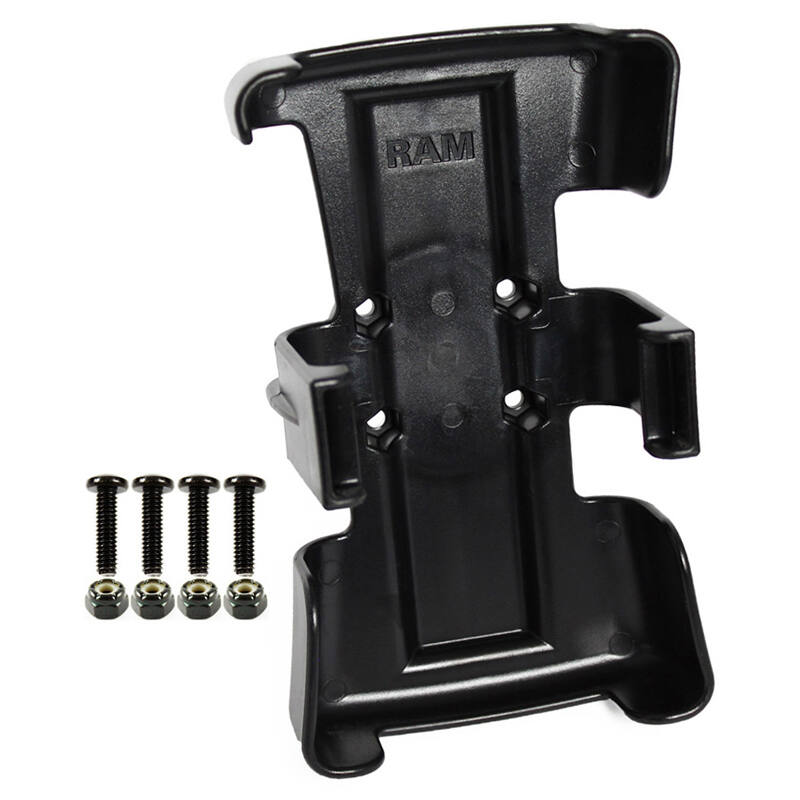

The RAM-HOL-TD4U consists of a high strength composite cradle and hole pattern that will allow the attachment to all RAM components or mounts that contain the universal AMPs hole pattern. Compatible and interchangeable with a wide range of popular RAM Mounting products, this cradle is ready to compliment your mobile device and become the most useful accessory in your vehicle.

Compatible Devices

TDS
Nomad
Nomad X


Included is a set of four nuts and bolts to connect the cradle to any RAM components or mounts that contain the universal AMPs hole pattern.
Hardware Included
(4) #8-32 x 5/8" Machine Screws
(4) #8-32 Nylock Nuts

Hole Pattern
4-Hole AMPS:
1.181" x 1.496" (30mm x 38mm)

Materials
High strength composite
Powder Coated Marine Grade Aluminium

Ball Size
1" Rubber "B" Ball Size

Overall Height:
127mm (5")

Socket To Socket Length
76.2mm (3")

Components:
RAM-HOL-TD4U RAM Form-Fit Cradle for TDS Nomad & Nomad X
RAM-B-201U RAM DOUBLE SOCKET ARM FOR 1" BALL
RAM-B-202U RAM 62mm DIA.BASE WITH 1" BALL
