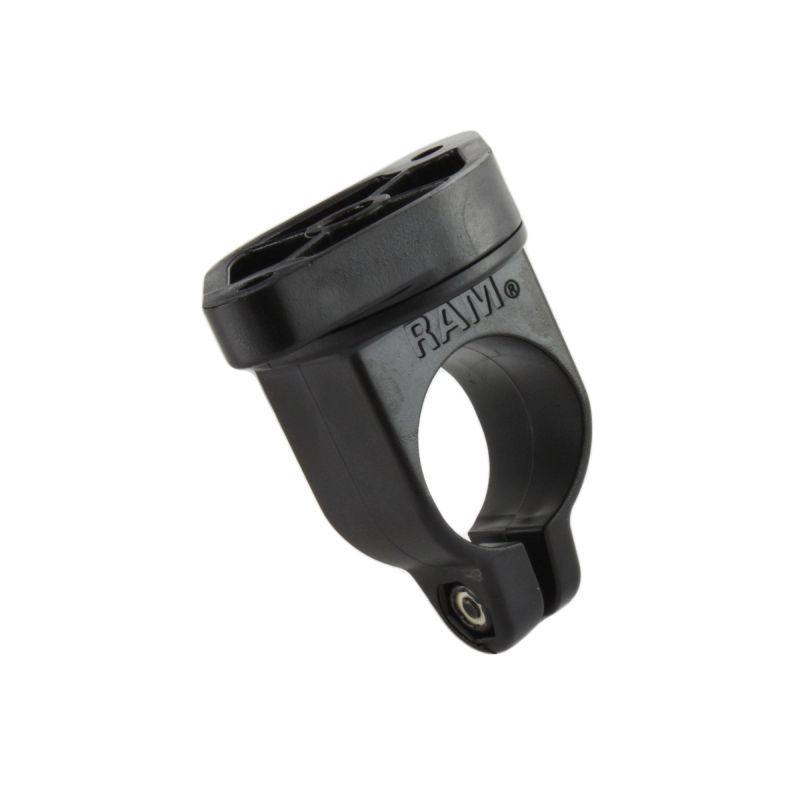

RAP-274U Composite Handlebar Swivel Base
The RAM high strength composite rail mount consists of a locking tooth system with a standard diamond plate end. The mount will accommodate rails up to 25mm / 1" in diameter. The hole pattern found on the diamond base adapter will connect to most RAM cradles.
Specs & Features
Material:
High Strength Composite
Installation Instructions:
To mount to a circular rail, simple press the plastic "U" clamp around the rail and then connect and tighten the small nut and bolt to close the U clamp. Next connect the diamond plate to the mounted clamp at the required angle and screw in the other bolt through the diamond plate. Now you are ready to connect any of the RAM composite or any other cradle with two holes positioned 1.9305mm centre to centre. Placing a rubber lining (not included) between the tube and the mount for a tube with a diameter less than 1" will help the base grab the rail.
Weight
40 grams (0.09lbs)
