RAM® Tough-Charge™ 15W Waterproof Wireless Charging Holder with Charger

RAM-HOL-UN12WB-V7M-1 – RAM® Tough-Charge™ 15W Waterproof Wireless Charging Holder with Charger

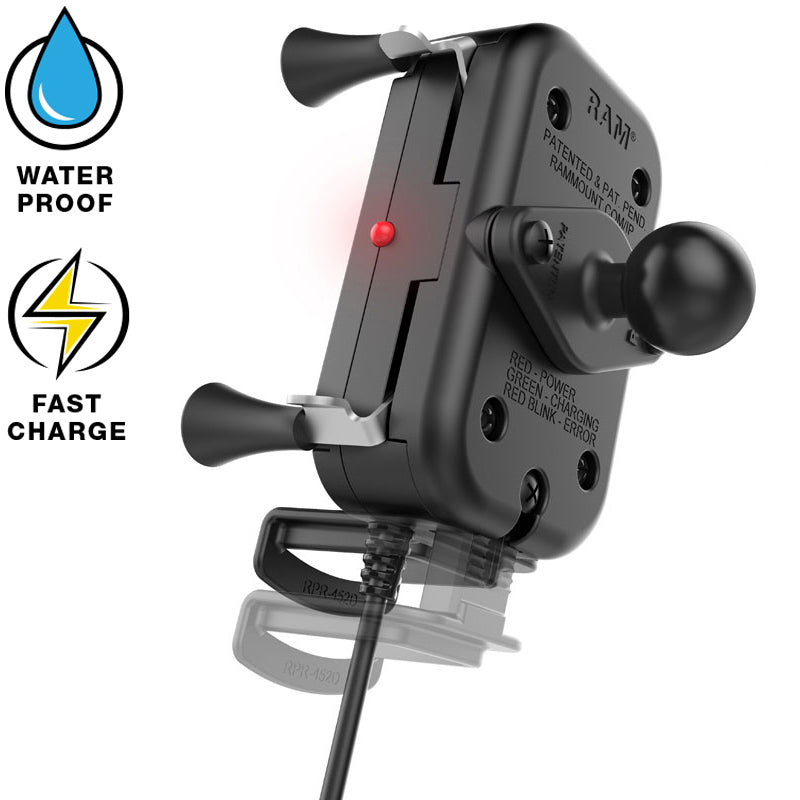

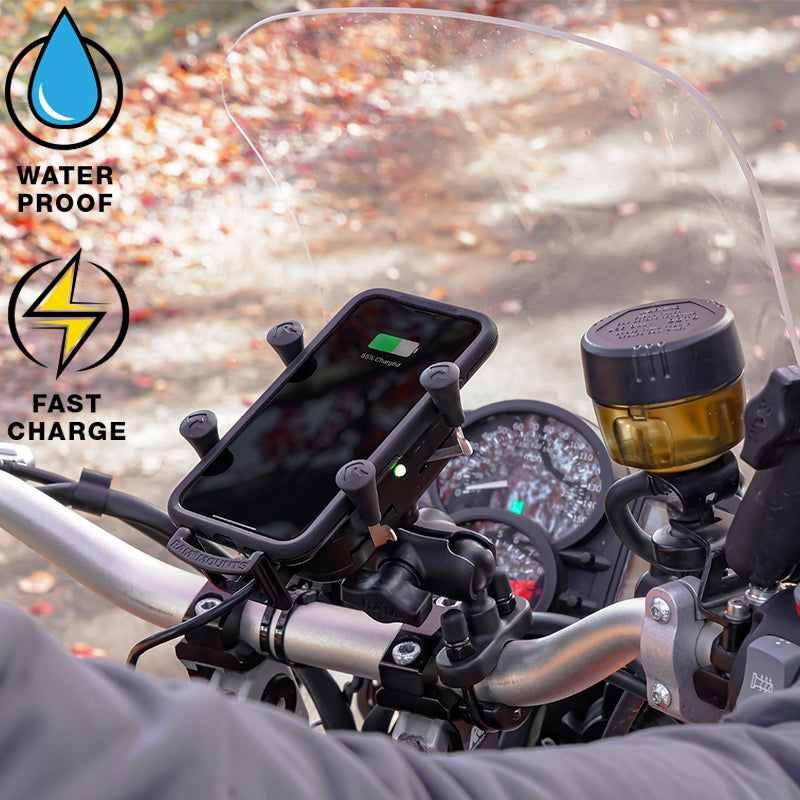

The RAM-HOL-UN12WB-V7M-1 is a waterproof, universal Qi wireless charging cradle that pairs spring-loaded RAM® X-Grip® arms with 15W charging, supplied as a complete motorcycle kit with a B size diamond ball base and a hardwire charger. Built to keep almost any smartphone powered and accessible in rugged, open-cockpit environments.

Key Features

• Waterproof Qi wireless charging cradle with 15W maximum output

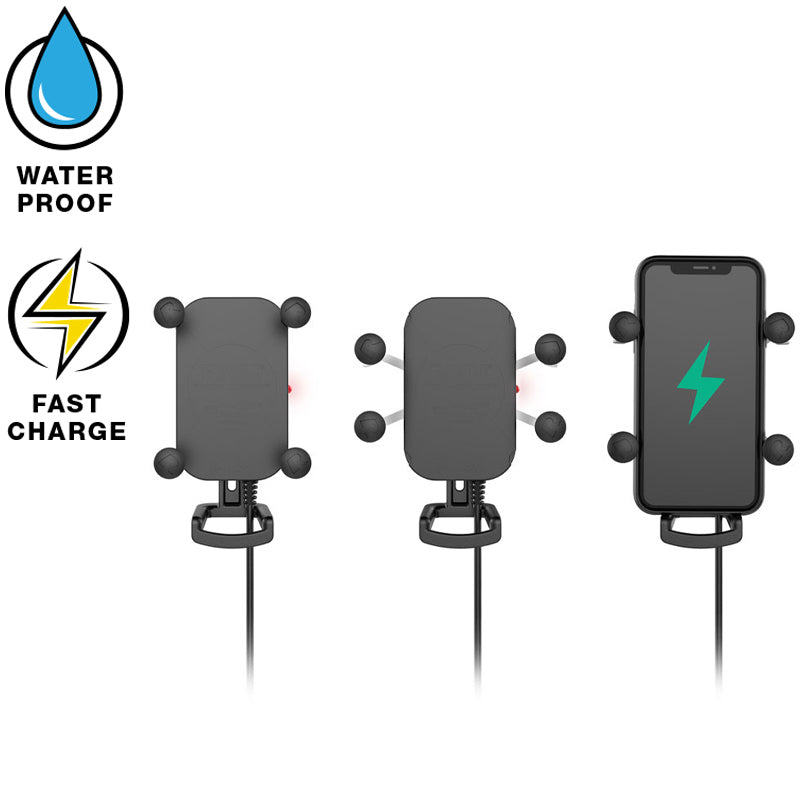

• Spring-loaded X-Grip® arms with rubber-coated caps grip nearly any smartphone; open frame keeps buttons and ports clear

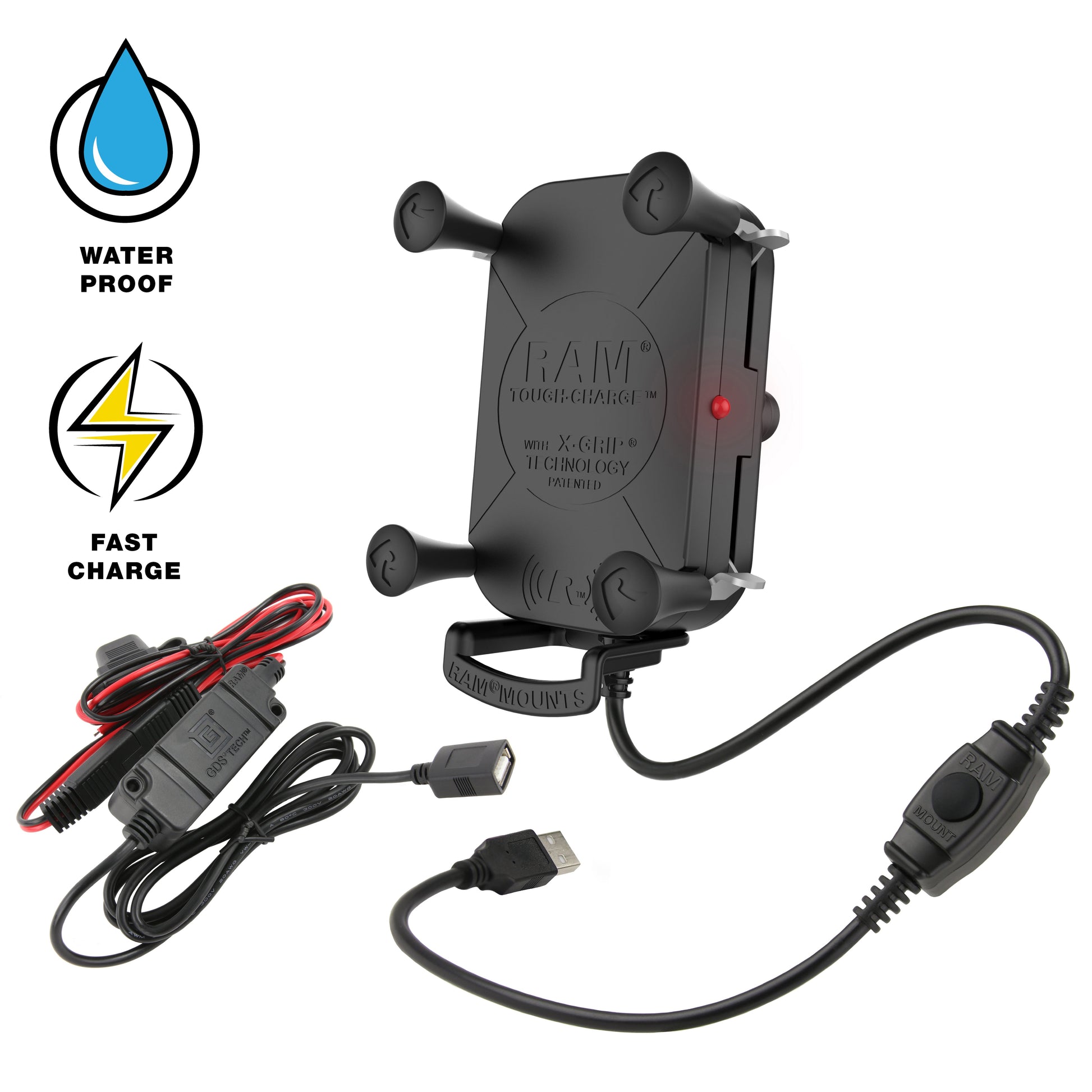

• Kit includes wireless cradle, B size diamond ball base and hardwire charger; fits B size double socket arms
• In-line power switch on the Type-A pigtail; 1.2m Type-A extension cable for in-vehicle use
• Device tether and removable, adjustable support leg included
• Powder-coated marine-grade aluminium, stainless steel and high-strength composite
• RAM® mount lifetime warranty; RAM® electronics 1-year warranty (proof of purchase required)

Works With

Qi-compatible smartphones 60.3–82.6mm (2.375"–3.25") wide and up to 22.2mm (0.875") deep, including a 6mm maximum case thickness. Attaches to any B size (1") RAM® double socket arm. A wide range of Apple, Google, Samsung, LG, Sony and other Qi phones is listed below.

Dimensions & Specifications

• Holder width range: 60.3–82.6mm (2.375"–3.25"); depth up to 22.2mm (0.875")
• Ball size: B (1")
• Load capacity: 907g (2 lb) standard use; 454g (1 lb) heavy-duty use
• Power: input 5V/2A or 9V/1.67A; output 15W; 85% max efficiency; 110–205kHz; WPC v1.2.4 Qi; QC2.0/QC3.0 compatible
• Operating temperature: 0°C to 37.7°C
• Protections: over-voltage, short-circuit, reverse-polarity; RoHS/WEEE; SAE J-1113-5 load dump; moisture resistant
• Certifications: CE, E-Mark, RCM, FCC
• Weight: 635g (1.4 lb)

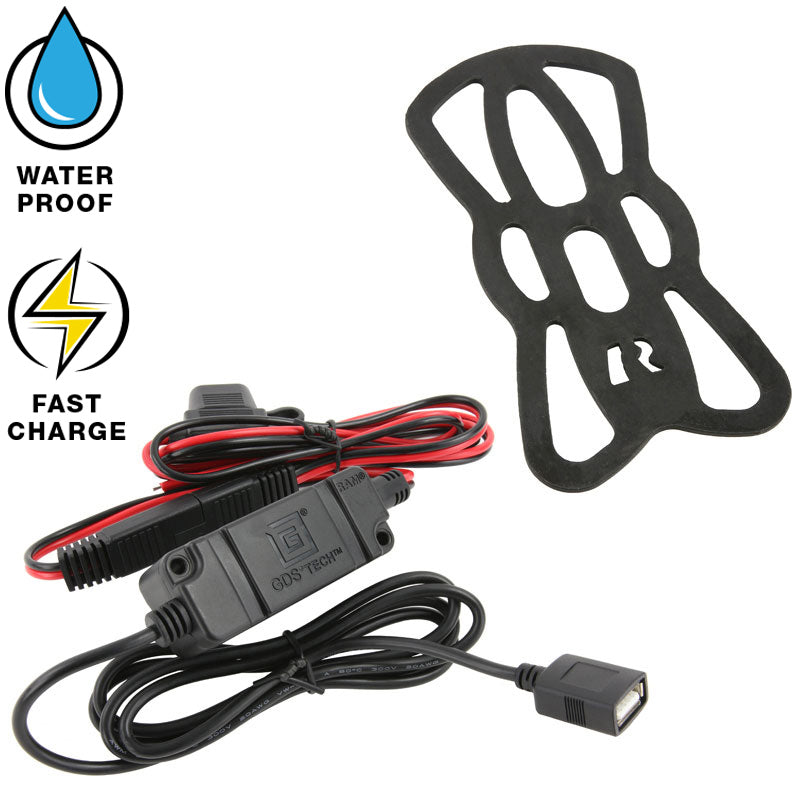

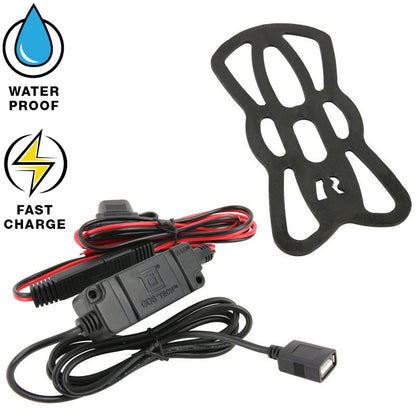

• Hardware included: (1) safety tether, (1) glue tube for rubber caps, (1) cradle leg, (1) cradle leg cover, (1) silicone sleeve for the USB waterproof connection, (1) hardwire charger with cable, (4) small zip ties, (4) large zip ties
• Materials: high-strength composite, stainless steel
• Warranty: 1 year

Compatible Devices

FAQs

Will it fit newer iPhones (12 and up, including iPhone 17)?

No. This cradle suits iPhones up to the iPhone 11. It is not recommended for the iPhone 12, 13 and 14, which favour Apple's MagSafe over the Qi standard (MagSafe charges roughly 33–45% faster; RAM® wireless products deliver the WPC Qi BPP/EPP standard up to 15W). For newer devices, use the RAM-HOL-PD7B-W2MU instead.

Can I leave a phone charging on it for long periods?

There's no built-in trickle charger, but the in-line on/off switch lets you cut charging when the phone is docked but you don't want it charging.

Anything to watch for on a motorcycle?

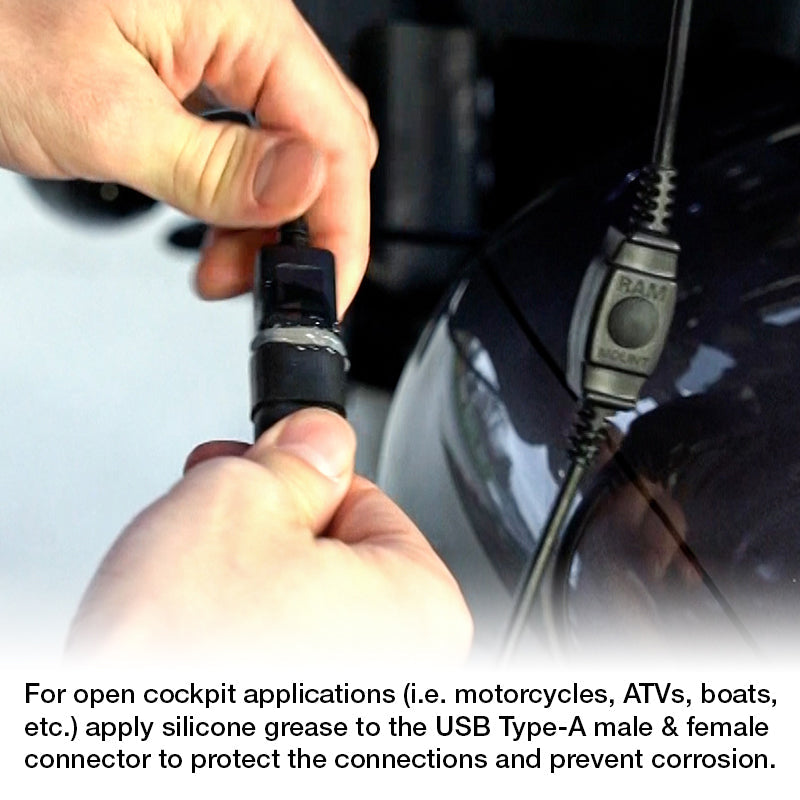

Apply silicone grease to the USB Type-A male and female connectors on open-cockpit applications to prevent corrosion; failure to do so voids the warranty. High-engine vibration may also affect iPhone cameras.
