RAM Locking Arm with 2 x Round Bases - C Series

RAM-101-SU – RAM® Double Socket Arm with Pin-Lock™ Security & Two AMPS Plates

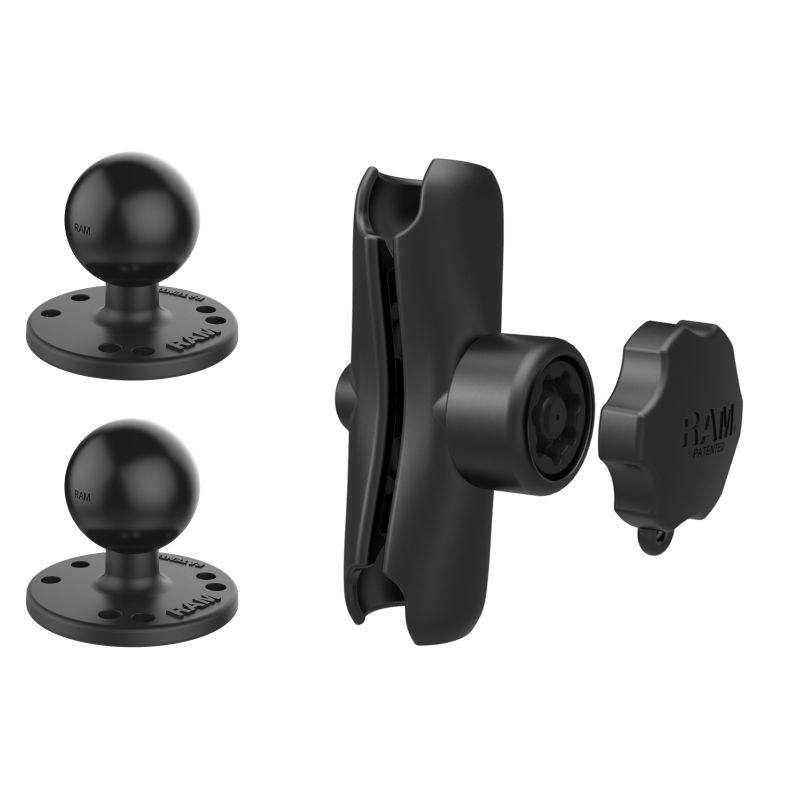

The RAM-101-SU is a C size double socket arm fitted with a Pin-Lock™ security knob, supplied with two AMPS round plates so you can build a secure drill-down mount. The key-locking knob deters tampering and theft, while the ball-and-socket arm dampens vibration and adjusts to almost any angle. The plates fit most RAM cradles, including all iPad cradles.

Key Features

• C size double socket arm with a Pin-Lock™ security nut and key knob for tamper resistance
• Two AMPS round plates with both 3-hole and 4-hole patterns connect to most RAM cradles, including all iPad cradles
• Drill-down mounting; choose either plate as the base
• Ball-and-socket design dampens shock and adjusts to almost any angle; powder-coated marine-grade aluminium, lifetime warranty

Works With

Most RAM and third-party cradles with a 3-hole or 4-hole AMPS pattern, including all RAM iPad cradles. The plates drill down to any flat surface.

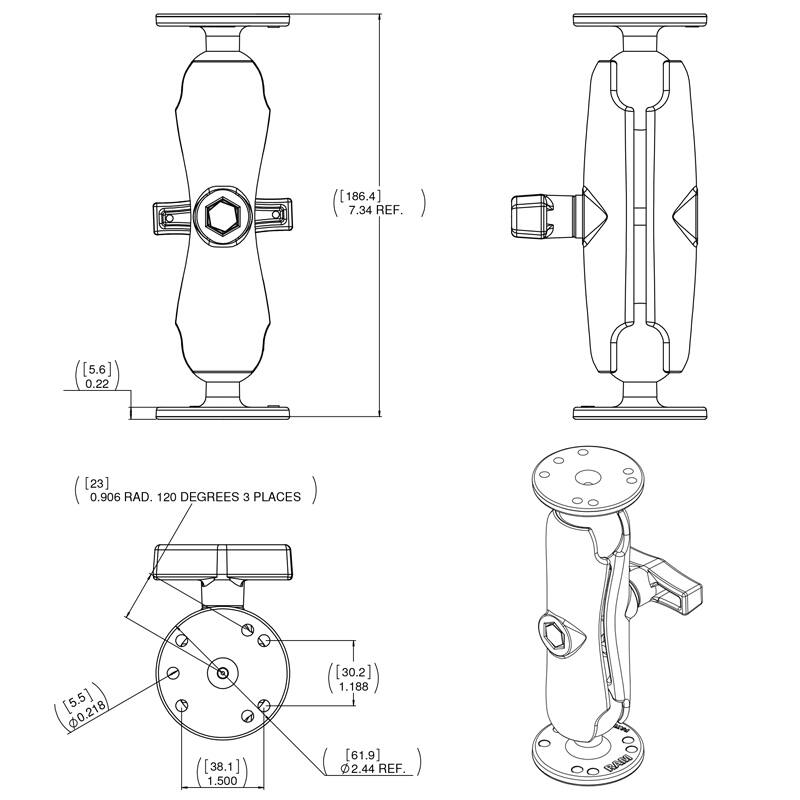

Dimensions & Specifications

• Overall length: 187mm (7.35")
• Round plate 4-hole AMPS pattern: 1.181" x 1.496" (30mm x 38mm)
• Round plate 3-hole AMPS 120-degree pattern: 1.812" (46.0mm)
• Arm overall length: 143mm (5.625"); socket-to-socket 114mm (4.5")
• Ball size: C size, 1.5" rubber ball
• Weight capacity: 1.814kg (4 lb) standard use; 1.36kg (3 lb) heavy-duty use
• Unit weight: 499g (1.1 lb)
• Material: powder-coated marine-grade aluminium

What's Included

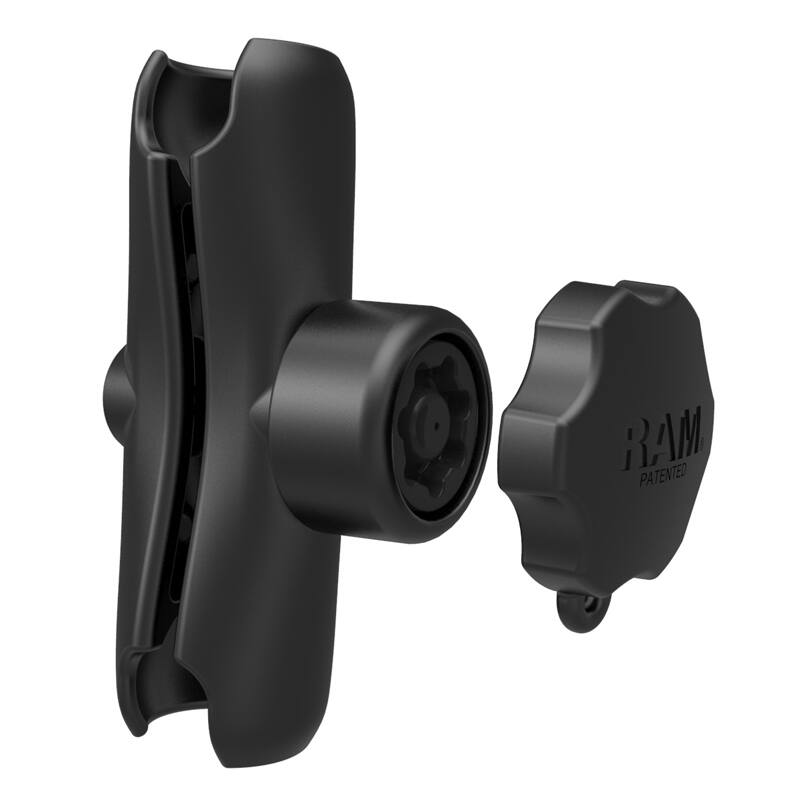

• RAM-201-SU medium double socket arm with Pin-Lock™ security knob (C size)
• RAM-202U x2 63mm round AMPS plate with 1.5" ball

FAQs

What does the Pin-Lock knob do? It's a key-locking security knob in place of the standard hand knob, adding tamper and theft resistance with only a little extra bulk.

What cradles fit it? Any with a 3-hole or 4-hole AMPS pattern, including all RAM iPad cradles and many third-party holders.

How fast does it ship? Items shown in stock will normally be shipped from our Auckland warehouse in 1 business day. For out of stock items please enquire.

Videos

• RAM double socket arm overview
