RAM-202-24-202U – RAM® Drill-Down Double Ball Mount for Humminbird Helix 7 (Medium Arm)

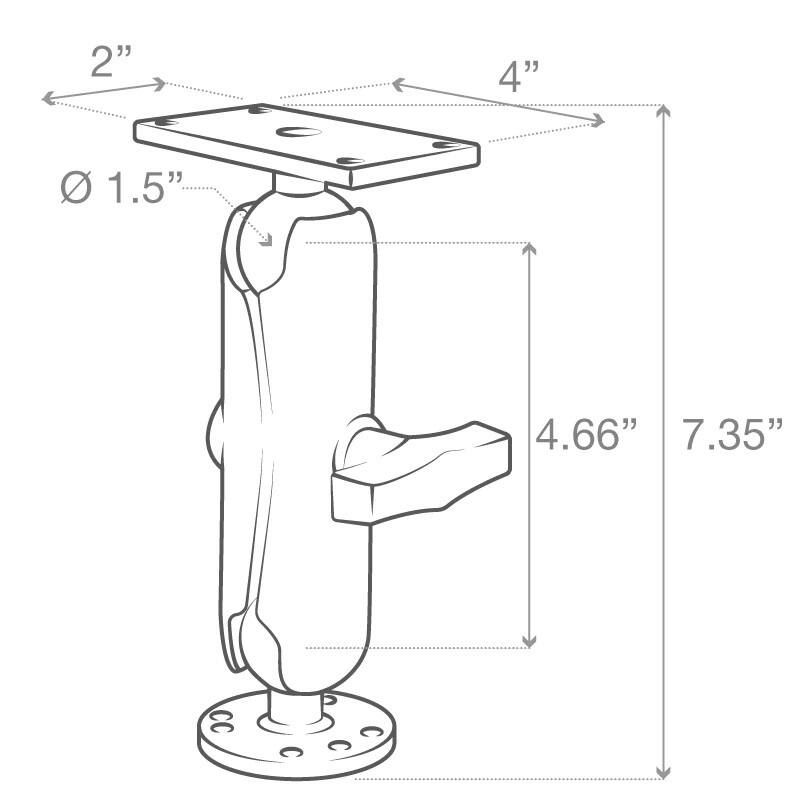

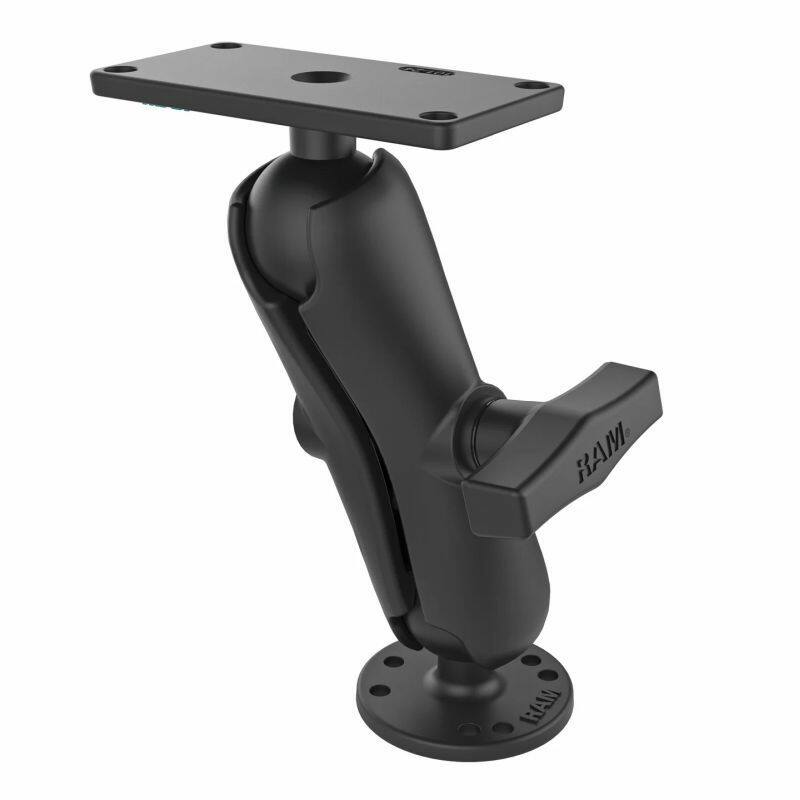

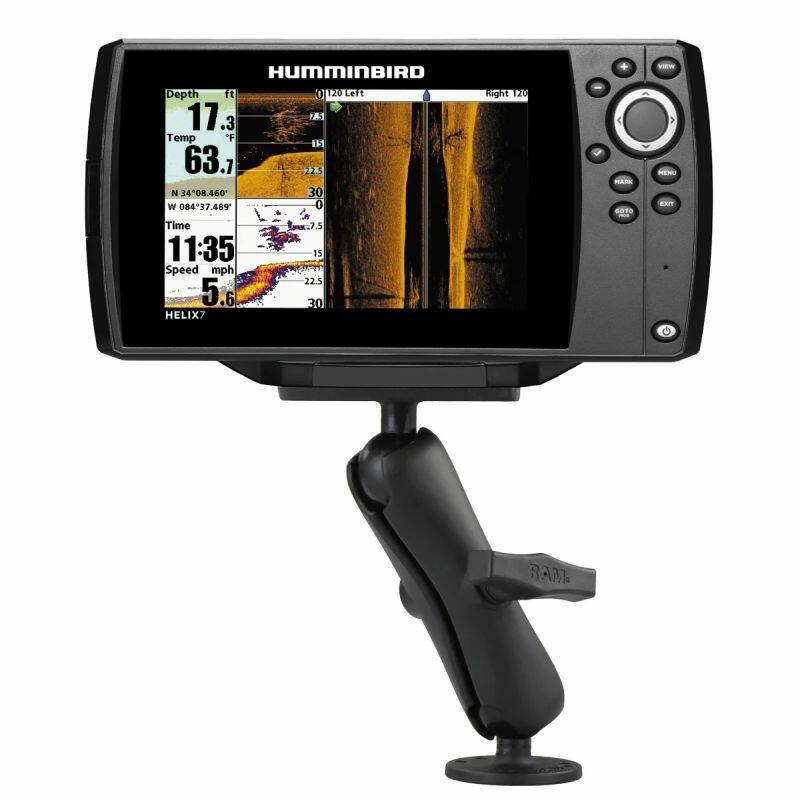

The RAM-202-24-202U is a drill-down mount for the Humminbird Helix 7 and Helix 7 G4N, pairing a rectangular device base and a medium-length C-size double socket arm with a 63.5mm round base for a solid, fully adjustable fix on a flat surface.
Key Features
Rectangular plate with a 4-hole pattern that fits the Humminbird Helix 7
Medium-length C-size (1.5") double socket arm
Round 63.5mm plate is an ideal drill-down base with the universal AMPS hole pattern

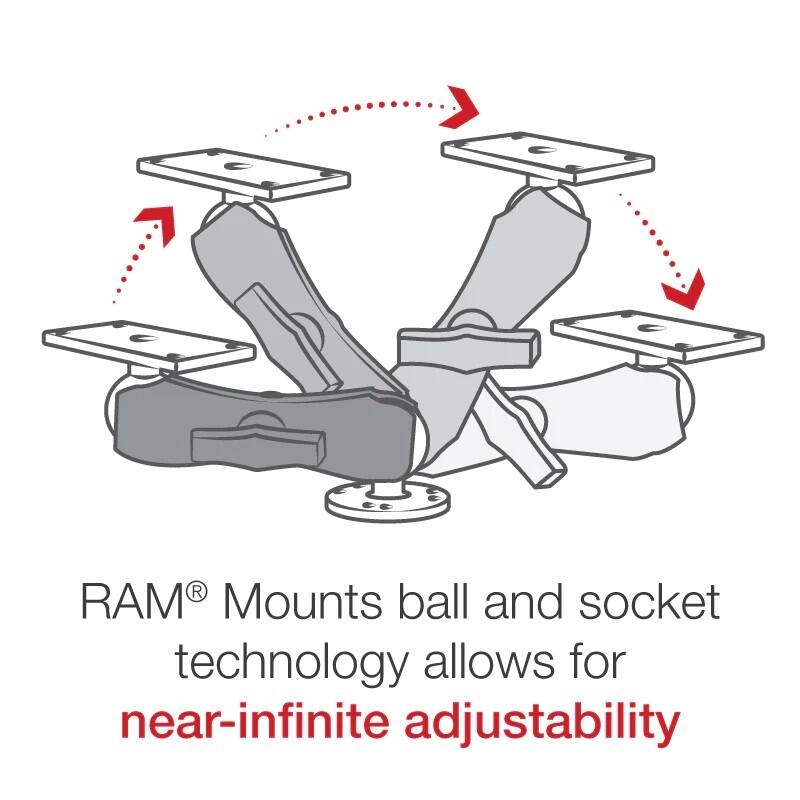

RAM® ball-and-socket technology dampens shock and vibration while allowing near-infinite adjustability
Powder-coated, marine-grade aluminium; backed by a lifetime warranty

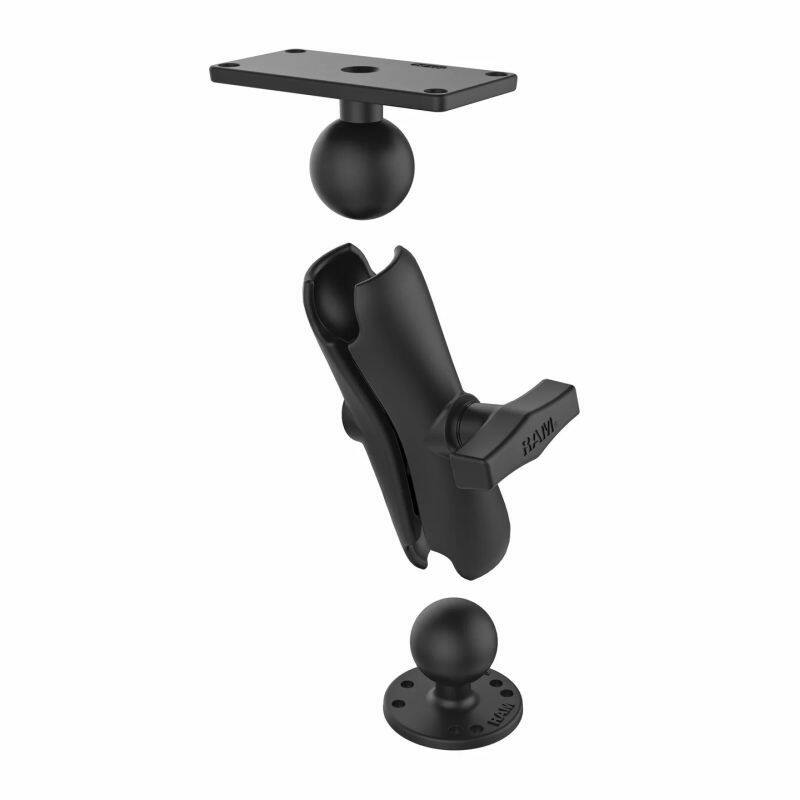

What's Included

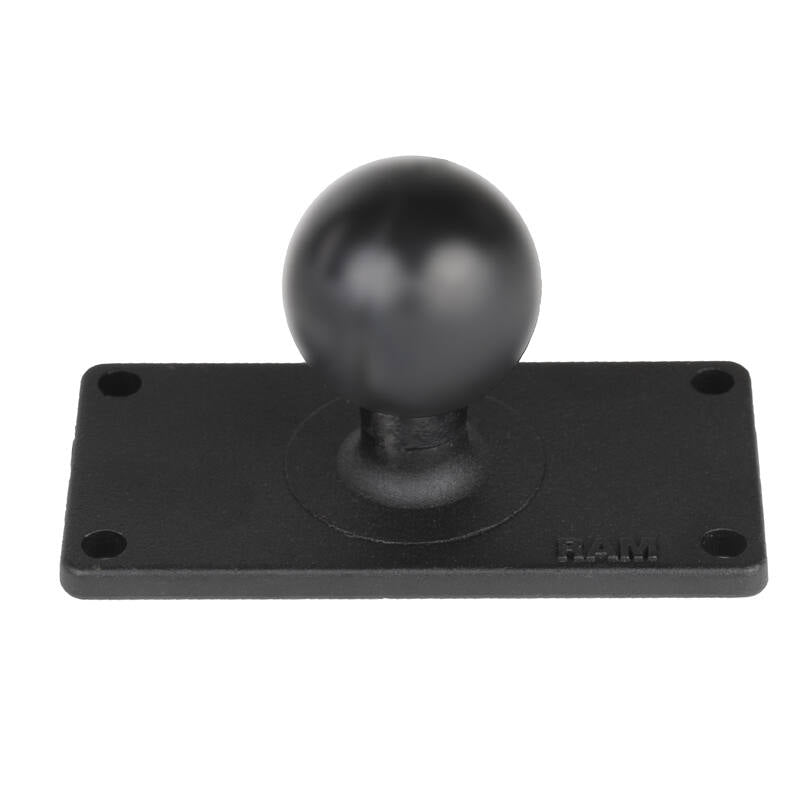

RAM-202U-24 ball base with 1.5" x 3.5" 4-hole pattern

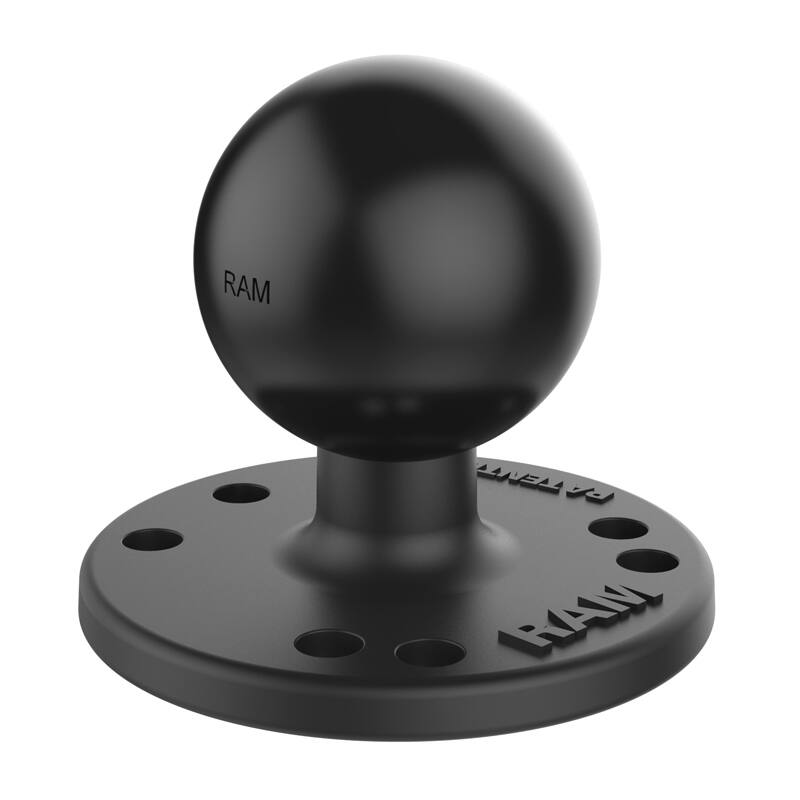

RAM-202U 63.5mm round base with 1.5" ball

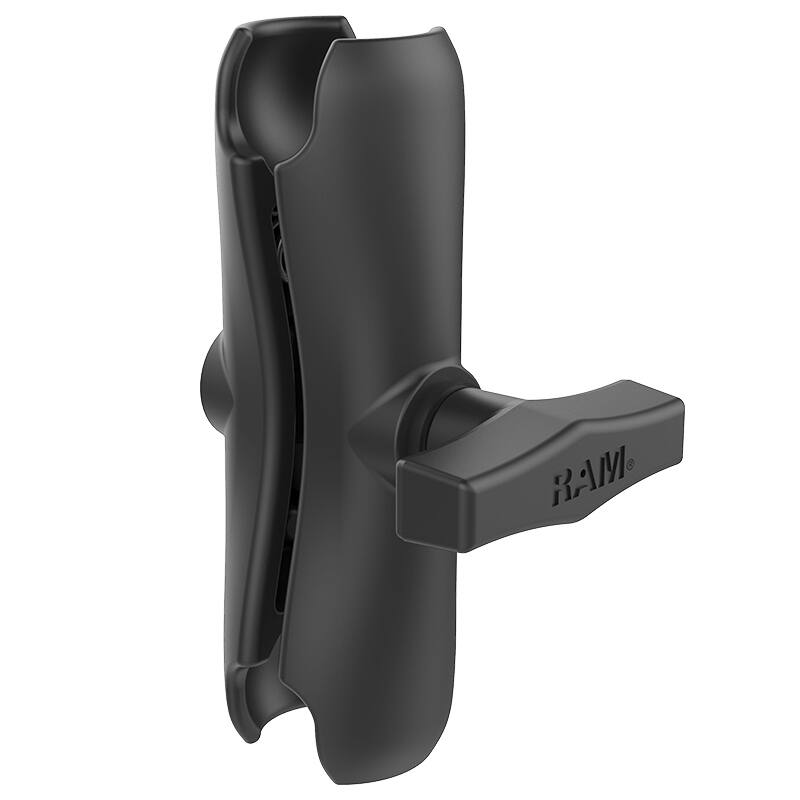

RAM-201U C-series alloy arm
Dimensions & Specifications

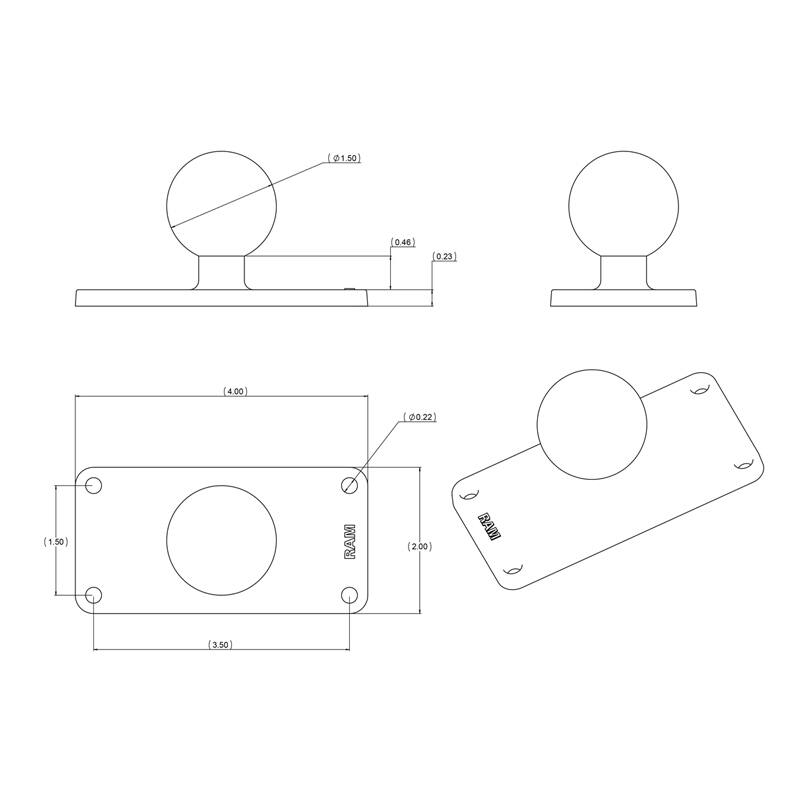

Rectangular plate size: 50.8mm x 101.6mm (2" x 4")
Rectangular plate hole pattern: 38.1mm x 88.9mm (1.5" x 3.5") centre to centre

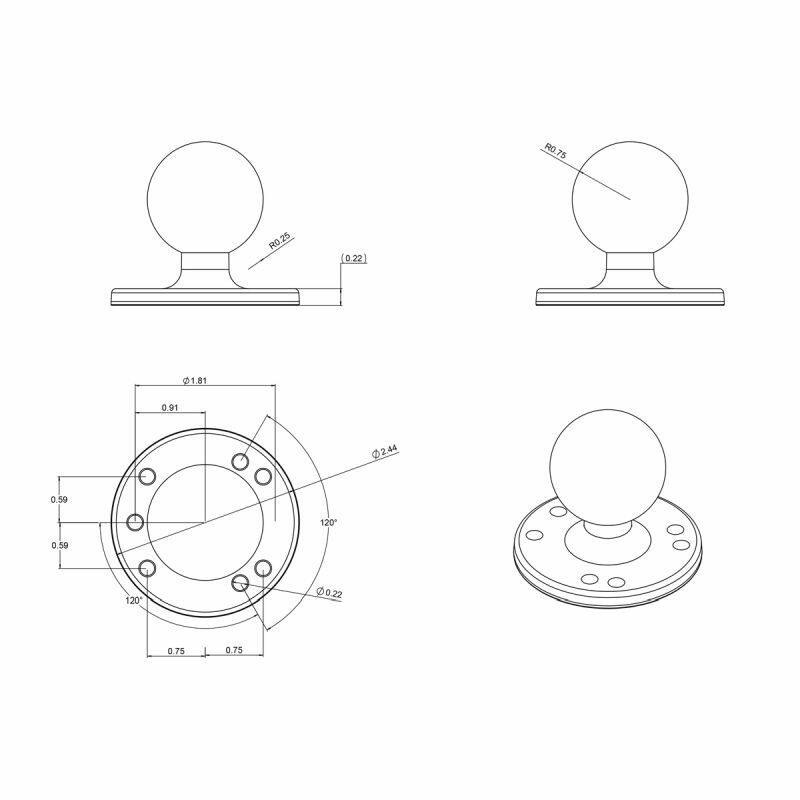

Round plate hole pattern: 4-hole AMPS 30mm x 38mm (1.181" x 1.496"); 3-hole 120-degree 46mm (1.812")

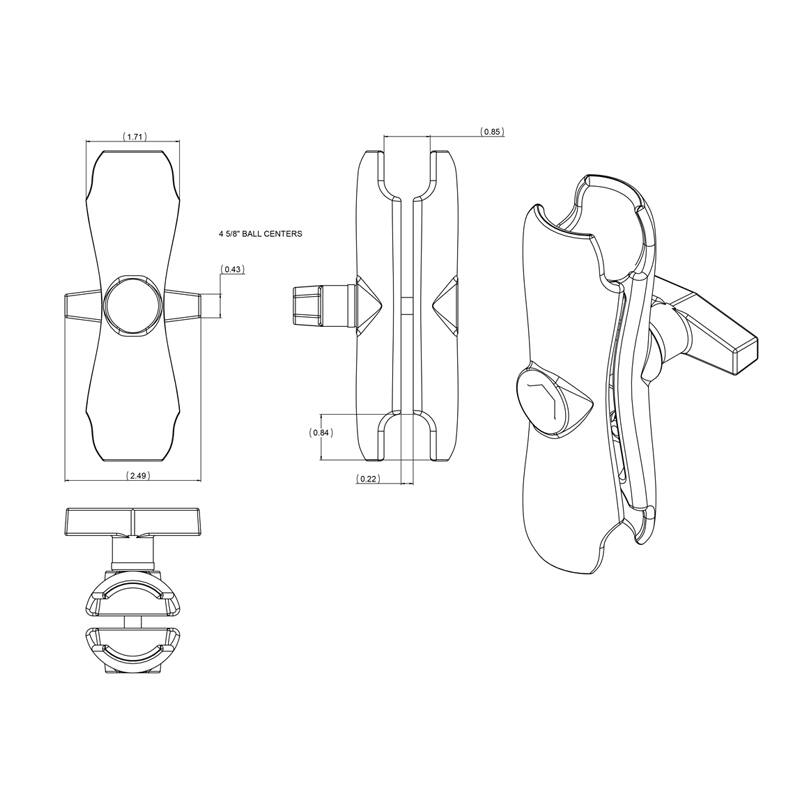

Arm overall length: 143mm (5.625"); socket-to-socket 114mm (4.5")
Ball/socket size: C size (1.5")
Weight capacity: standard use 1.814kg (4 lbs); heavy-duty use 1.36kg (3 lbs)
How fast does it ship? If it's shown in stock here, it ships from our Auckland warehouse, normally within one business day. If it's shown as out of stock, get in touch and we may be able to get it in for you.
What screws are used to attach the RAM mount to the gimbal bracket? Typically the gimbal bracket included with your fishfinder also comes with mounting screws that connect to the RAM® mounting plate. As these mounts are universal and used for many applications, the hardware needed will vary. For marine applications, RAM® recommends stainless steel hardware to prevent corrosion.
Will this work with the Helix 7 G4N? Yes, the RAM-202-24-202U accommodates the Humminbird Helix 7 G4N.
Will the Helix 7 G4N fit a 6" swing arm mount? No — the Helix 7 G4N won't line up with swing arm mounts unless you drill additional holes in the bracket or mounting plate.
