RAM-101-G2U RAM® Double Ball Mount with Garmin Fishfinder Hardware
Features
* Drill-down mounting solution
* Round plates featuring the AMPS hole pattern for attachment to compatible device holders
* Mounting Hardware for Garmin Fishfinders & GPSMAP Devices is included
* Includes two round ball bases and C size medium length double socket arm
* RAM ball and socket technology allows for near-infinite adjustability
* Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
* Backed by a lifetime warranty

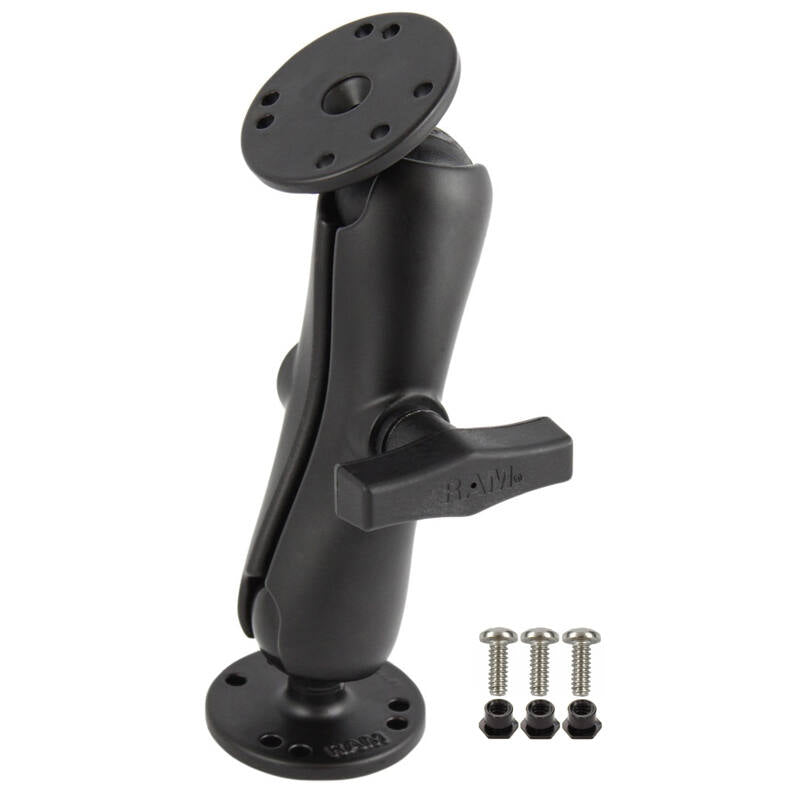

The RAM-101-G2U consists of a double socket arm and two 2.5" (63.5mm) diameter round bases with the universal AMPS hole pattern. Mounting Hardware for Garmin Fishfinders & GPSMAP Devices is included.
This RAM mount consists of a double socket arm and two 63mm diameter round bases with the universal AMPS hole pattern. Designed into the mount is a 1.5" diameter patented rubber ball and socket system with adjustment points at both ends of the double socket arm. With a twist of the arm knob, you can move the RAM-101-G2U mount to your optimum viewing position.
Compatible Devices
Garmin Fishfinder 80-120
Garmin GPSMAP 172-555

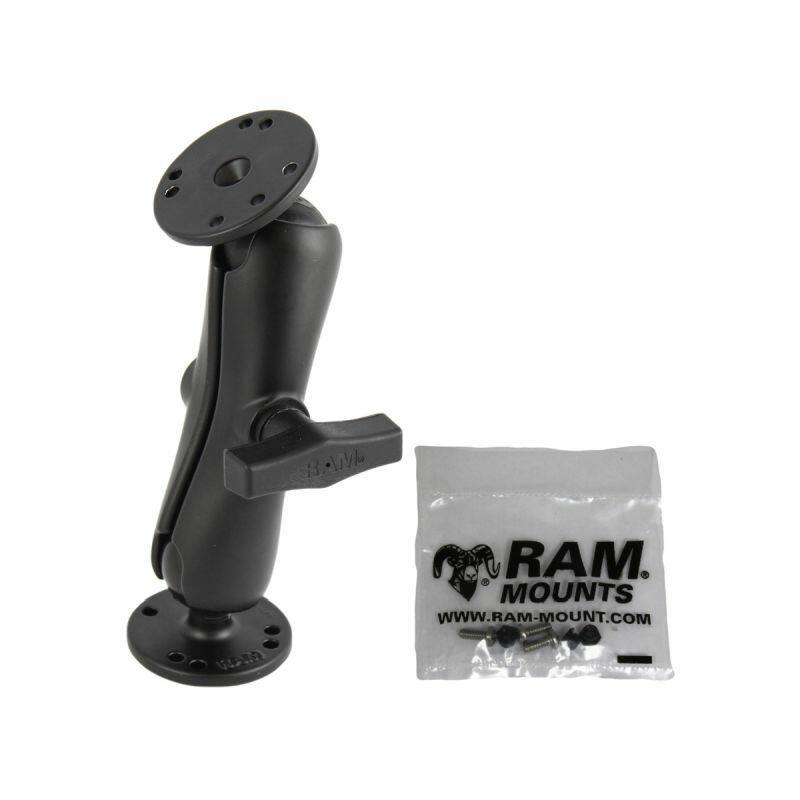

Hardware Included

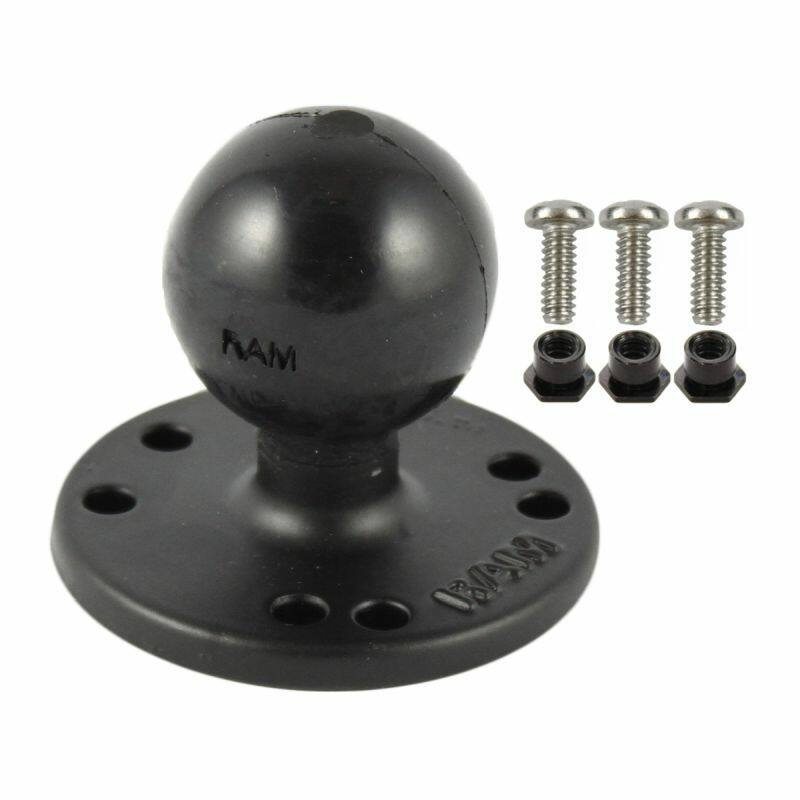

(3) #6-32 x 3/8" Machine Screws
(3) #6-32 Nut Inserts

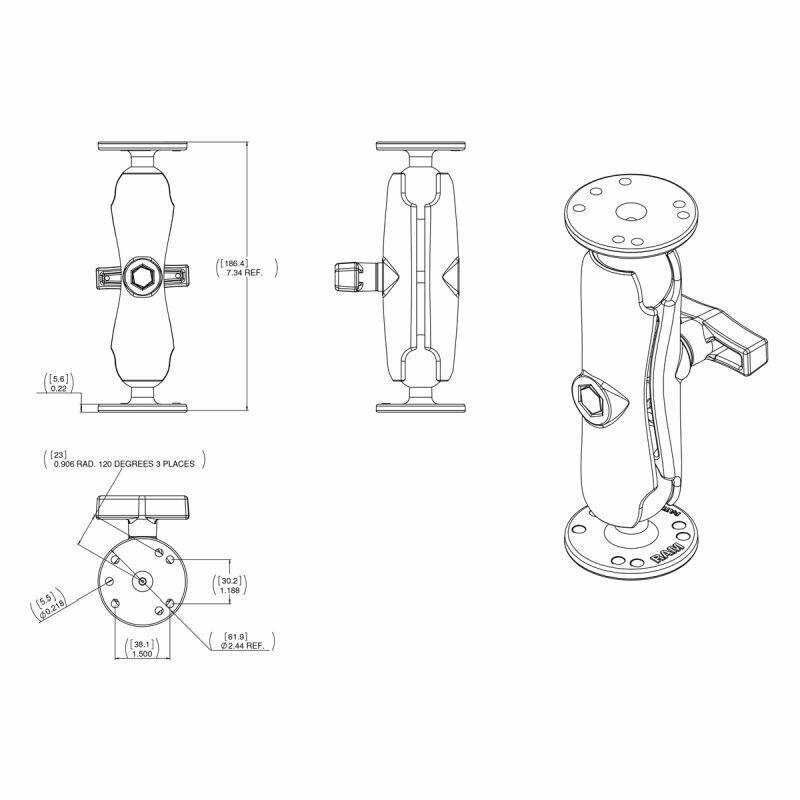

Hole Pattern
4-Hole AMPS:
1.181" x 1.496"
3-Hole 120-Degree:
1.812" Diameter
Overall Length:
187 mm (7.35")
Arm Length:
Overall Length:
143mm (5.625")
Socket-To-Socket Length:
114mm (4.5")
Material:
Powder Coated Marine Grade Aluminium
Ball Size:
1.5" Rubber Ball Size (C Series)
Weight:
508 grams (1.12lbs)
Weight Capacity
Standard Use: 1.814kg (4 lbs)
Heavy-Duty Use: 1.36kg (3 lbs)
