RAM Marine Humminbird Helix 5 Series mount - "HEAVY USE" - Short Arm

RAM Marine Humminbird Helix 5 Series mount - "HEAVY USE" - Short Arm

SKU:RAM-202-153-B-202U-V

Regular price $125.79 NZD
Regular price Sale price $125.79 NZD
Sale Sold out
Tax included. Shipping calculated at checkout.
View full details

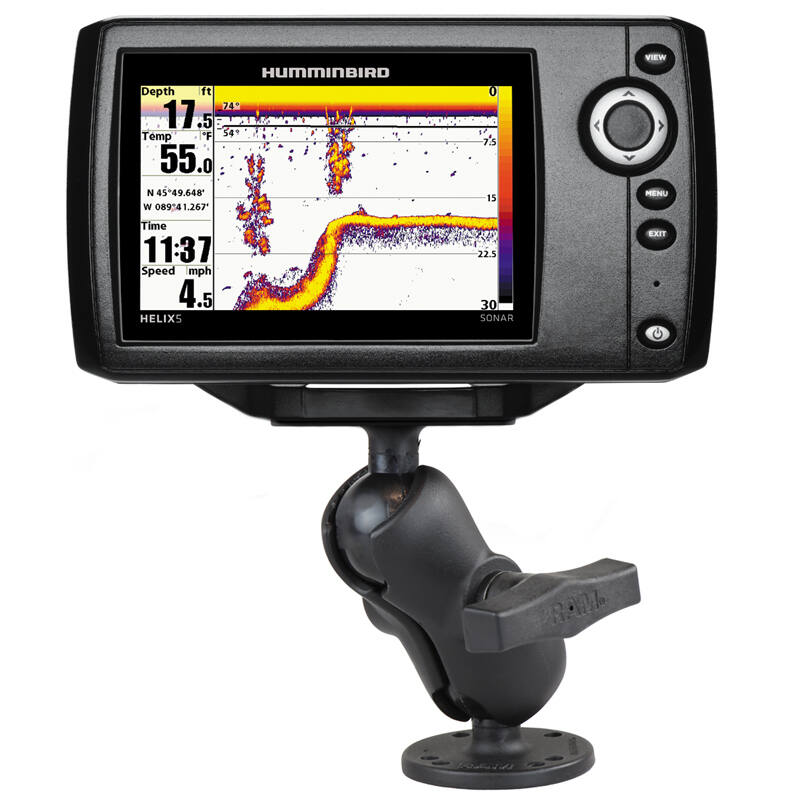

RAM-202-153-B-202U RAM® Drill-Down Double Ball Mount for Humminbird Helix 5 - Short

Features

* Complete flat surface, drill-down mounting solution for Humminbird Helix 5 with an overall height of 7133mm
* Includes rectangular plate with Rectangular Plate with 25.4 x 63.5mm hole pattern for Lowrance marine electronics
* SHORT C size double socket arm, and round plate with 1.5" C size ball
* RAM® Mounts ball and socket technology allows for near-infinite adjustability
* Made of Powder Coated Marine Grade Aluminium and High strength composite for durability and reliability in the most demanding environments
* Backed by a lifetime warranty

This is a rugged mount perfect for many applications outside of depth sounders - consider this option for anything requiring a solid mounting.

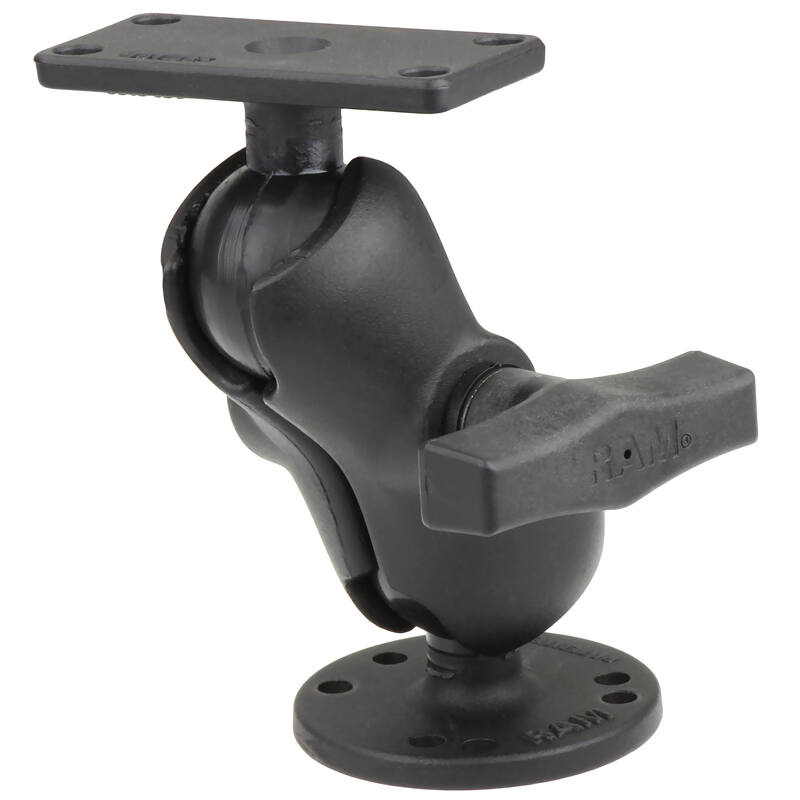

The RAM-202-153-B-202U consists of a round 63.5mm diameter round base (Universal AMPs Hole Pattern), SHORT double socket arm and 38mm x 76mm rectangular base. The rectangular base contains four holes with a centre to centre pattern of 25.4mm x 63.5mm. For most applications this mount will support up to 1.8kgs.

Compatible Devices

Humminbird HELIX 5 DI
Humminbird HELIX 5 DI GPS
Humminbird HELIX 5 SI GPS
Humminbird HELIX 5 SI GPS KVD
Humminbird HELIX 5 SONAR GPS
Humminbird HELIX 5 SONAR
Humminbird HELIX 5 XD GPS

Centre to Centre Hole Pattern:


Weight Capacity:
Standard Use:
1.814kg (4 lbs)
Heavy-Duty Use:
1.36kg (3 lbs)


Overall Height:
132.72mm (5.225")

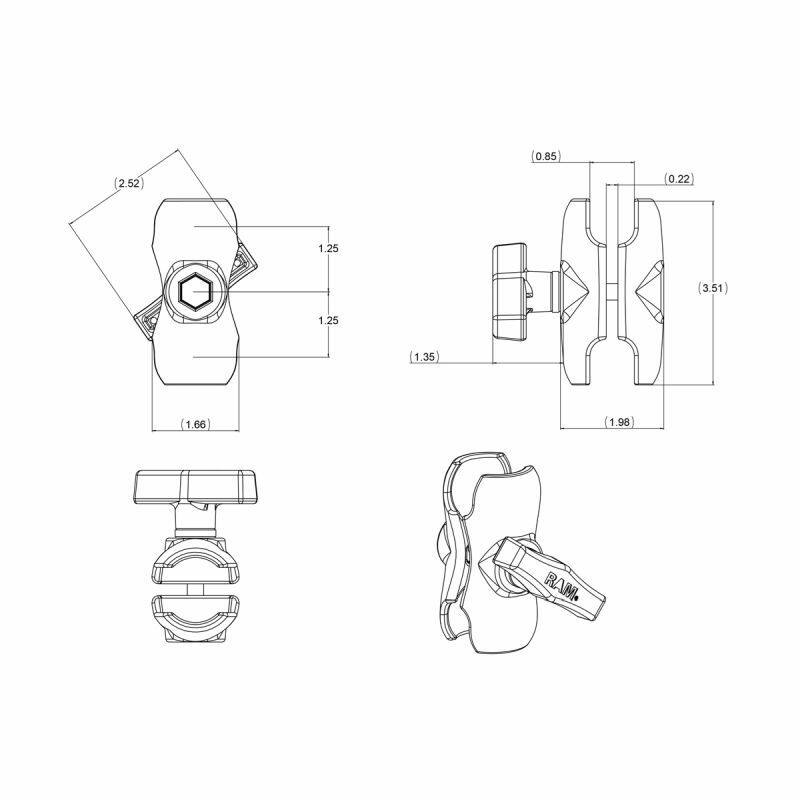

Arm Dimensions
Overall Length:
90 mm (3.56")
Socket-To-Socket Length:
63.5 mm (2.5")


Ball size
C Size (1.5")


Hole Pattern

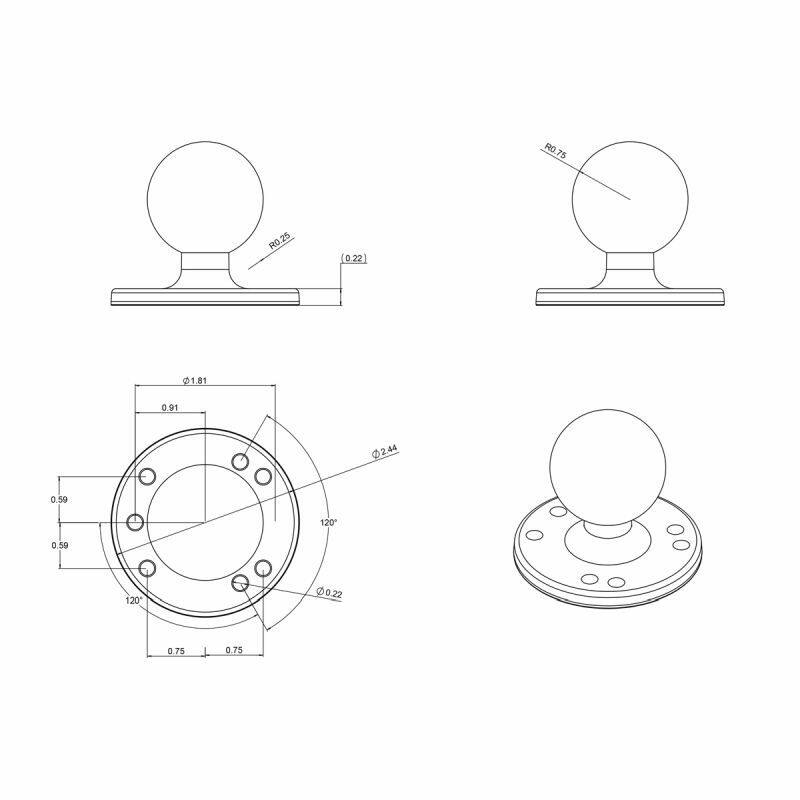

Round Plate: 4-Hole AMPS:
1.181" x 1.496" & 3-Hole 120-Degree 1.812" Diameter
Rectangular Plate:
25.4 x 63.5mm (1" x 2.5")


Material:
Powder coated marine grade alloy

Components:

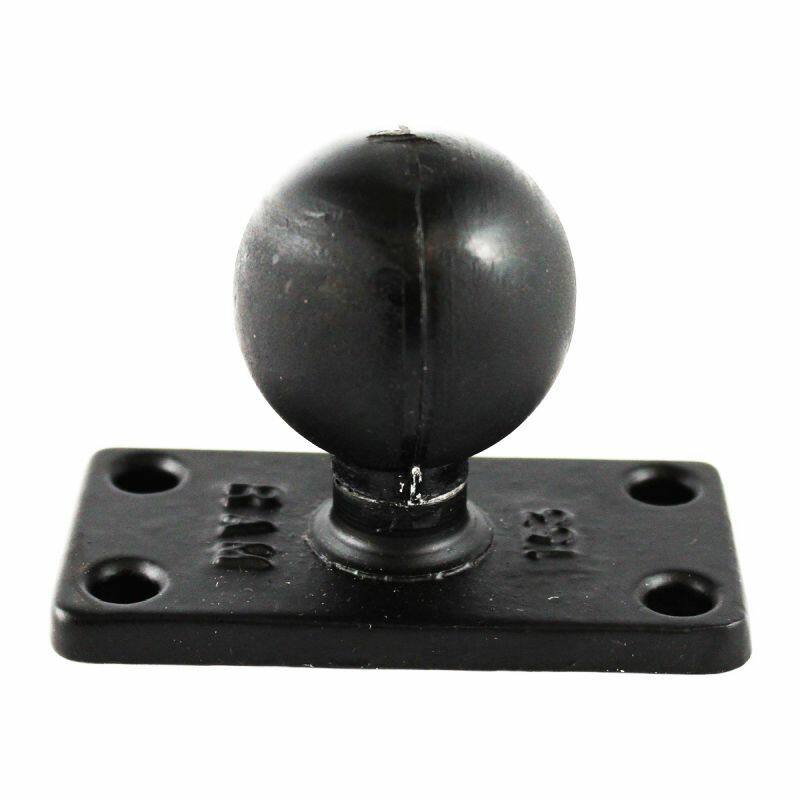

RAM-202U-153 1.5" ball base, 38mm x 100mm

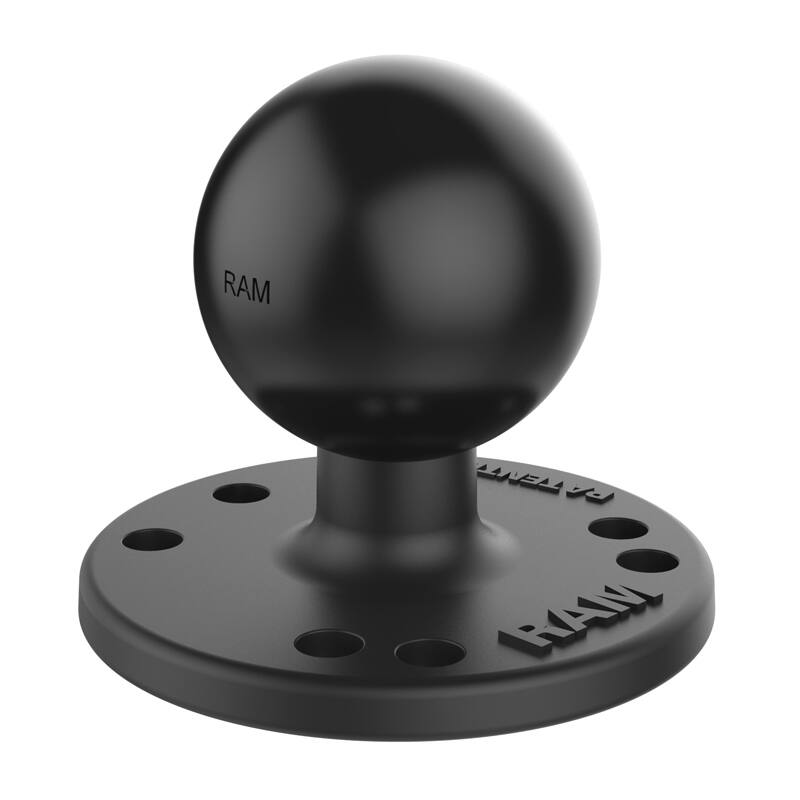

RAM-202U 2.5" / 63mm DIA. BASE 1.5" Ball
RAM-201U-B Short 1.5" (C-Series) Alloy Arm
