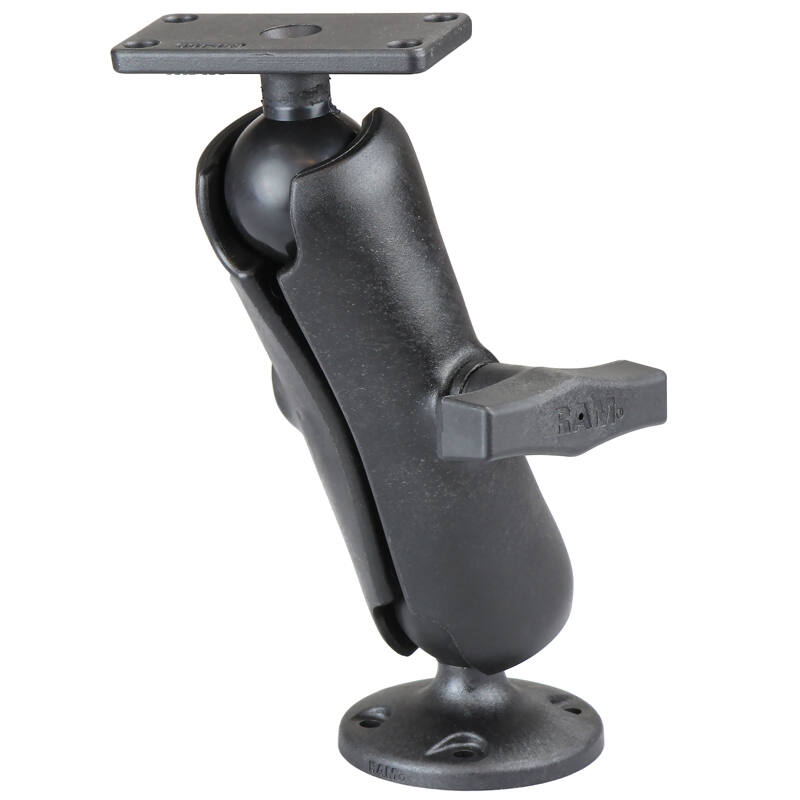

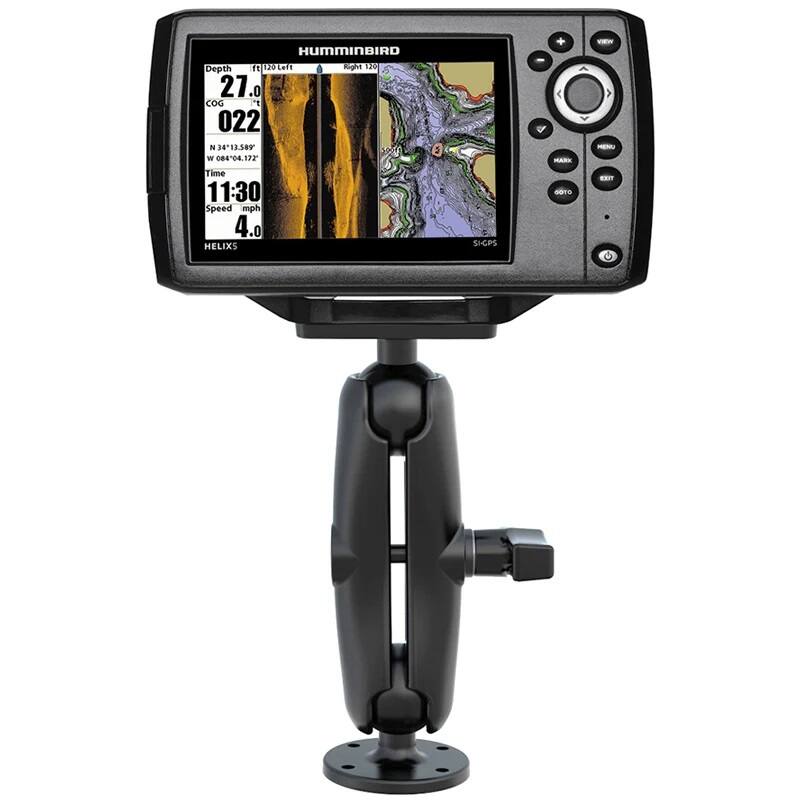

RAP-202-153-202 RAM® Composite Double Ball Mount for Humminbird Helix 5
Features
* Complete flat surface, drill-down mounting solution for Humminbird Helix 5 with an overall height of 187mm
* Includes 38mm x 100mm plate for mounting Lowrance marine electronics, C size double socket arm, and round plate with 1.5" C size ball
* RAM® Mounts ball and socket technology allows for near-infinite adjustability
* Made of Powder Coated Marine Grade Aluminium and High strength composite for durability and reliability in the most demanding environments
* Backed by a lifetime warranty
This marine mount consists of a composite round 2.5" diameter round base (Universal AMPs Hole Pattern), composite double socket arm and 38 x 76mm (1.5" x 3") rectangular base. The rectangular base contains four holes with a centre to centre pattern of 1" x 2.5". The round base and double socket arm are made of a corrosion resistant high-strength composite material.
Compatible Devices:
HELIX 5 DI
HELIX 5 DI GPS
HELIX 5 SI GPS
HELIX 5 SI GPS KVD
HELIX 5 SONAR GPS
HELIX 5 SONAR
HELIX 5 XD GPS
Rectangular Base Dimensions
38.1 x 76.2m (1.5" x 3" )
Centre to Centre Hole Pattern:
25.4mm to 63.5mm (1" x 2.5")
Weight Capacity
Standard Use:
1.814kg (4 lbs)
Heavy-Duty Use:
1.36kg (3 lbs)
Overall Height:
186.7mm (7.35")
Arm Dimensions:
Overall Length:
143mm (5.625")
Socket-To-Socket Length:
114mm (4.5")
Material:
High Strength Composite
Marine Grade Aluminium
Ball Size:
C Size 1.5" Rubber Ball
Assembly:

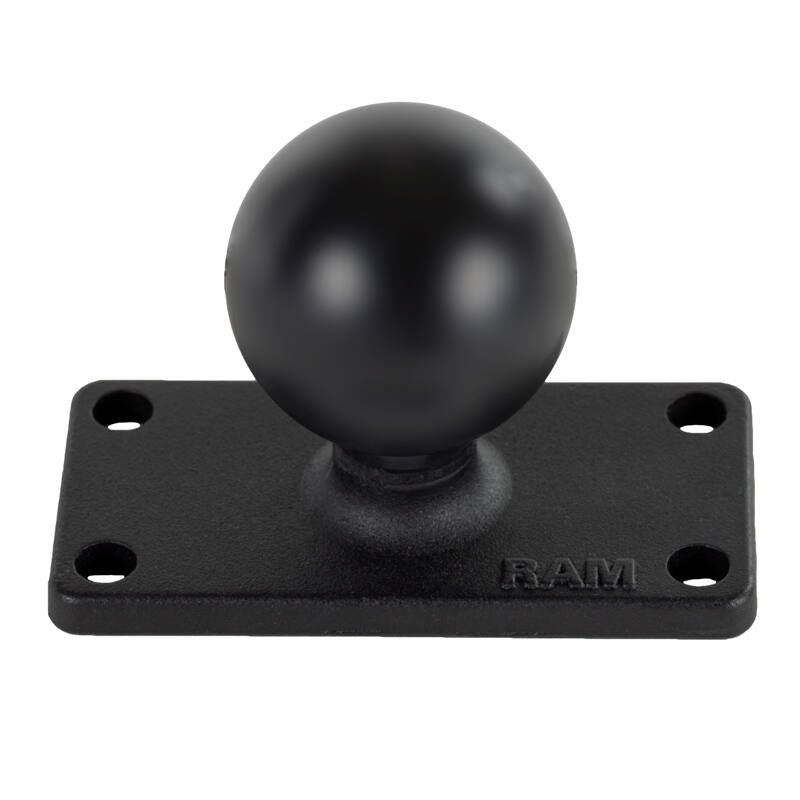

RAM-202U-153 1.5" ball base, 38mm x 100mm

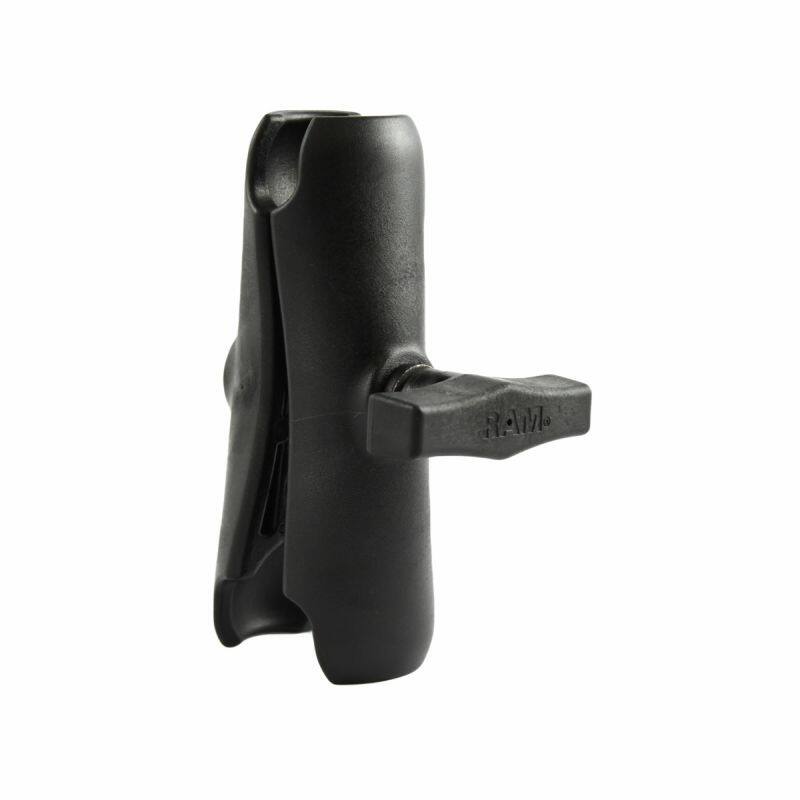

RAP-201U Composite DOUBLE SOCKET ARM FOR 1.5" BALL

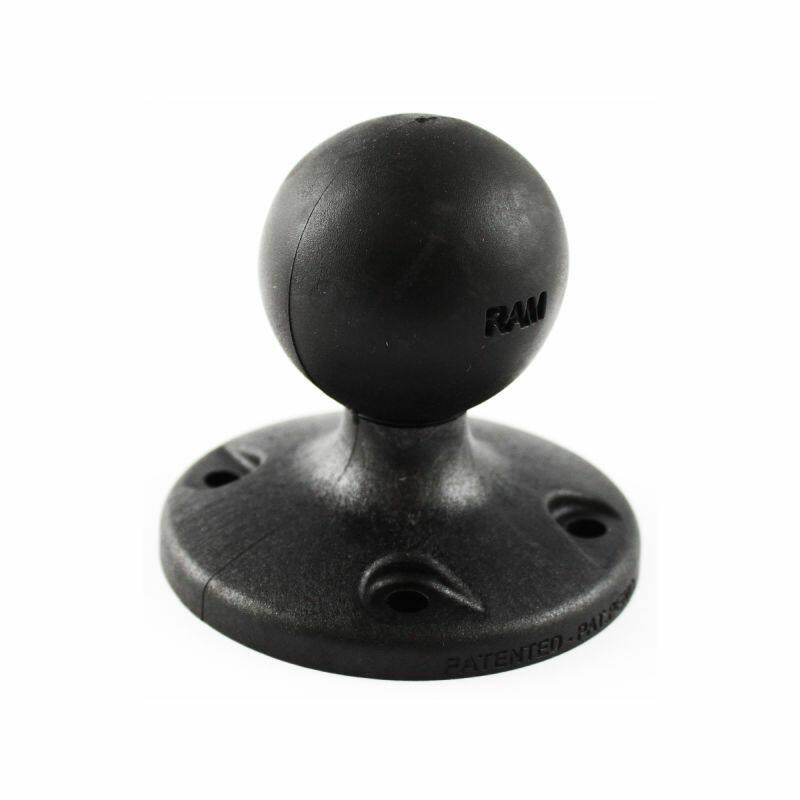

RAP-202U 2.5" DIA.BASE W 1 1/2" BA
