RAP-B-107U RAM® Composite Fishfinder Mount for Humminbird Devices
Features
* Complete flat surface, drill-down mounting solution for Humminbird, Lowrance and Raymarine devices with an overall height of 127mm
* Includes quick release B size ball adapter for Lowrance marine electronics, double socket arm, and round plate with 1" B size ball
* RAM® Mounts ball and socket technology allows for near-infinite adjustability
* Made of Powder Coated Marine Grade Aluminium and High strength composite for durability and reliability in the most demanding environments
* Backed by a lifetime warranty

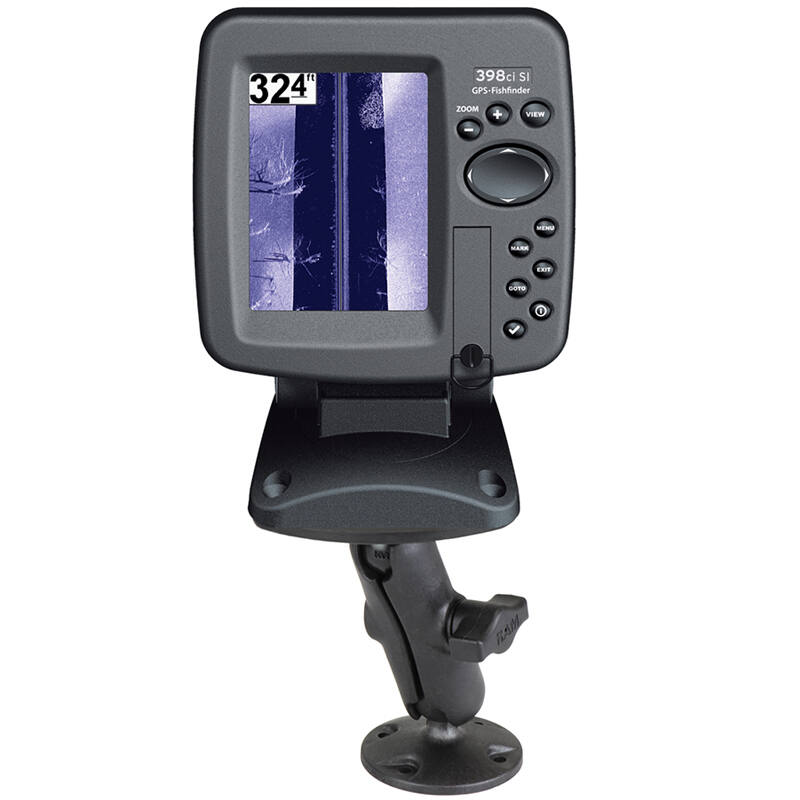

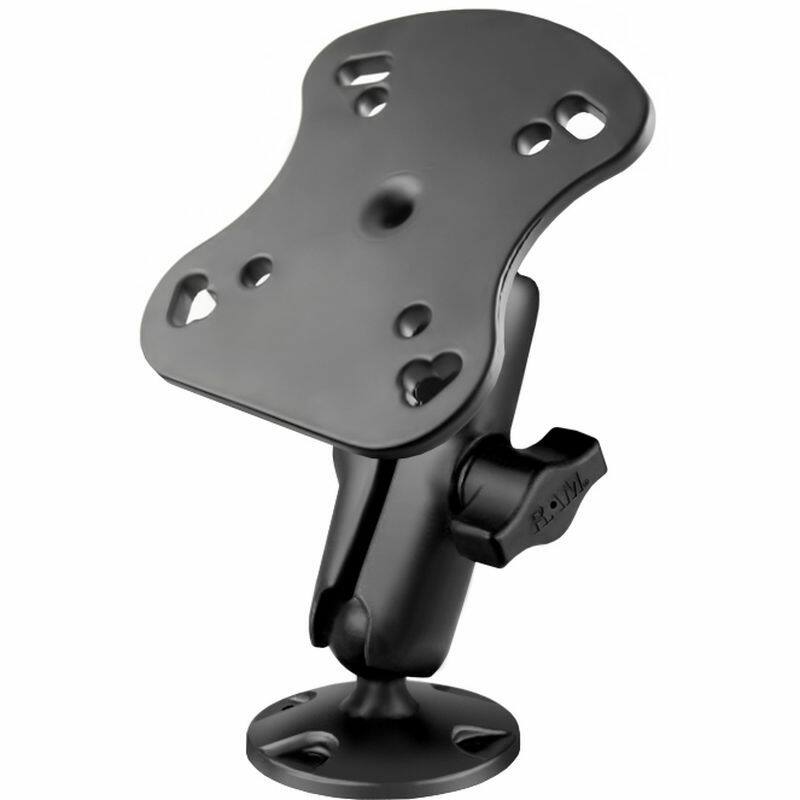

The RAP-B-107U consists of a 63mm composite diameter round base with the universal AMPs hole pattern, composite 94mm double socket arm and connecting Humminbird/Apelco marine adaptor base. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; thus allowing for almost infinite adjustment and perfect viewing angles.
The RAP-B-107U is a "LIGHT USE" mount, designed to hold smaller marine electronic devices for a "RUGGED USE" version see RAM-107U
Compatible Devices
Humminbird
700 Series
600 Series
500 Series
300 Series
100 Series
Matrix Series (excluding Matrix 97)
Lowrance
Elite-5
Elite-5M
Elite-5X
Raymarine
Apelco Fishfinder with matching hole pattern
Overall Height:
127mm (5")
Arm Dimensions:
Overall Length:
94mm (3.69")
Socket-To-Socket Length:
76mm (3")
Round Plate Hole Pattern
4-Hole AMPS:
1.181" x 1.496"
Adaptor Hole Pattern

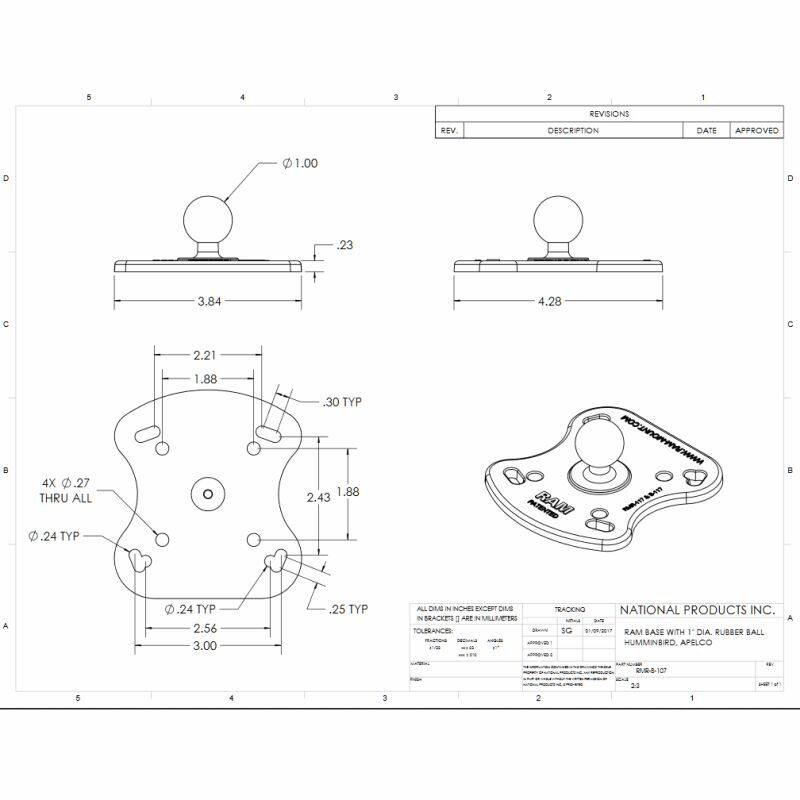

See Drawing
Plate Size
Fishfinder Plate:
107.95mm x 91.69mm (4.25" x 3.81")
Round Plate:
63.5mm (2.5") Diameter
Ball/Socket Size
B Size (1")
Weight Capacity
Standard Use:
907 grams (2 lbs)
Heavy-Duty Use:
454 grams (1 lb)
Materials
Marine-grade aluminium (Marine mount)
High strength composite (arm and baseplate)
Components:

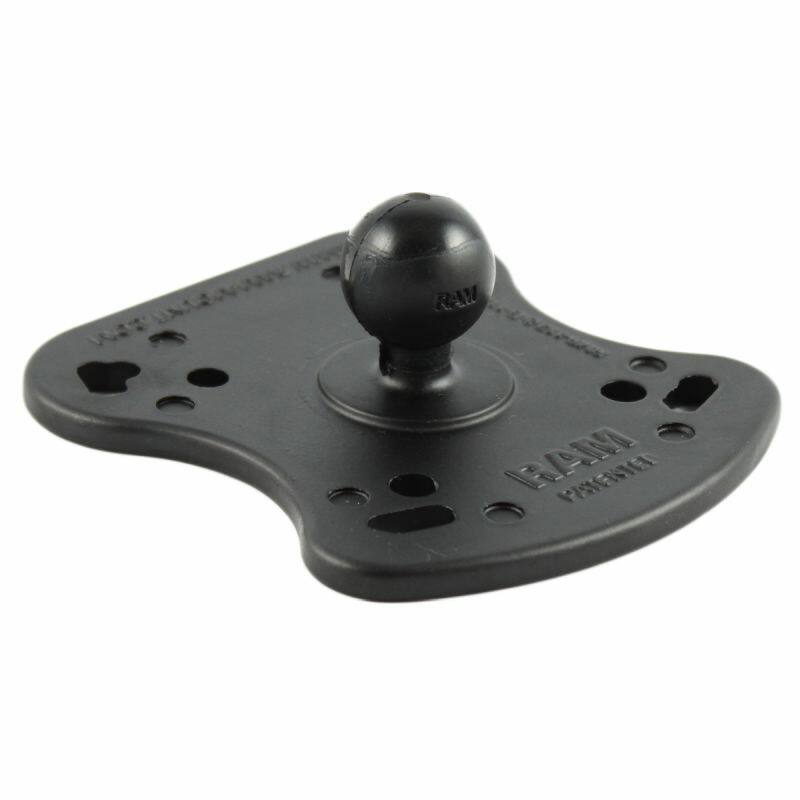

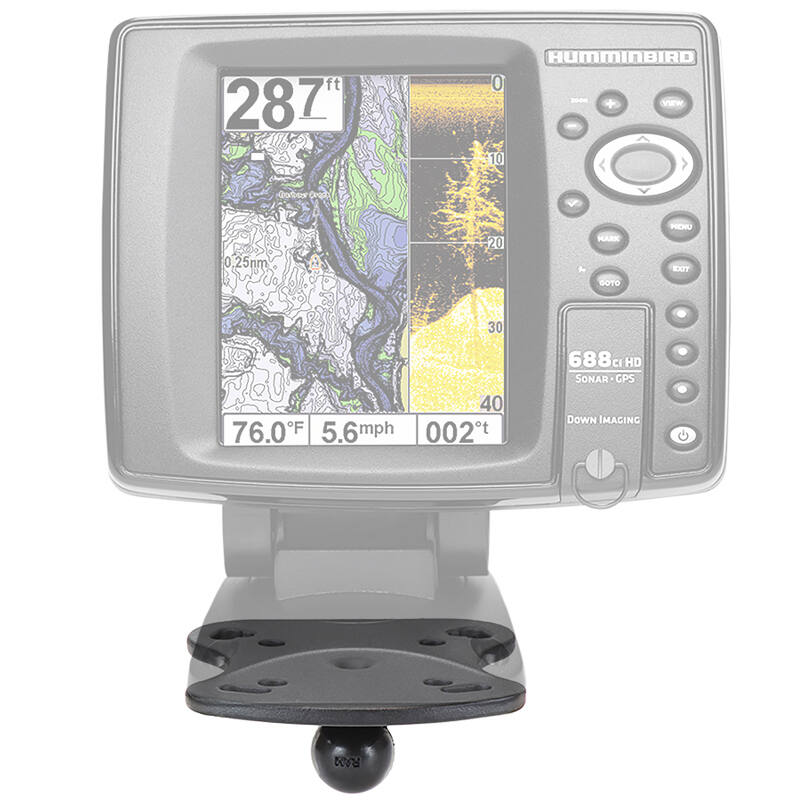

RAM-B-107BU Light Use Marine Mount - Humminbird / Elite

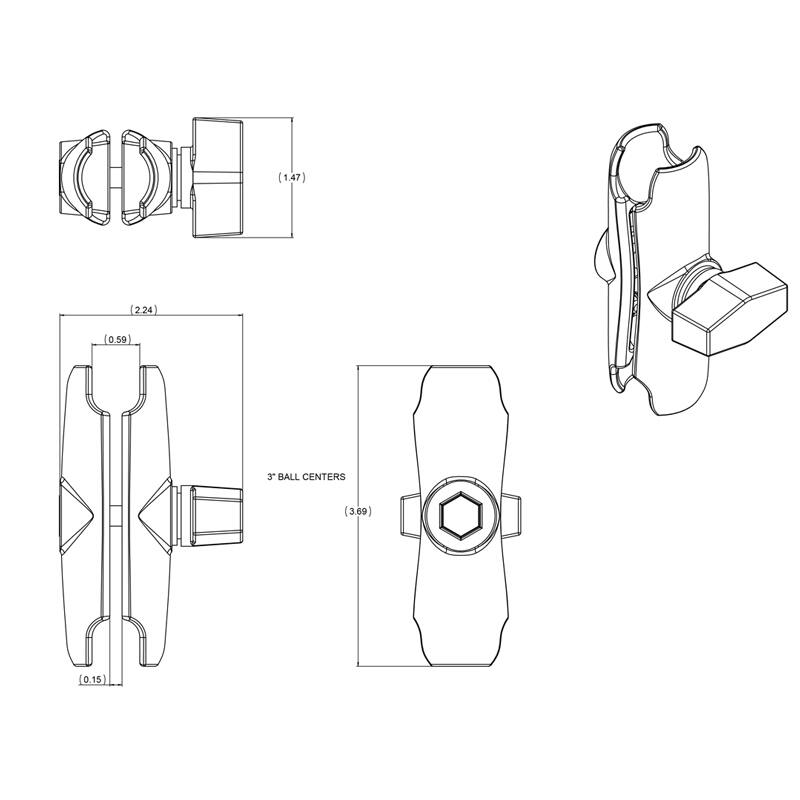

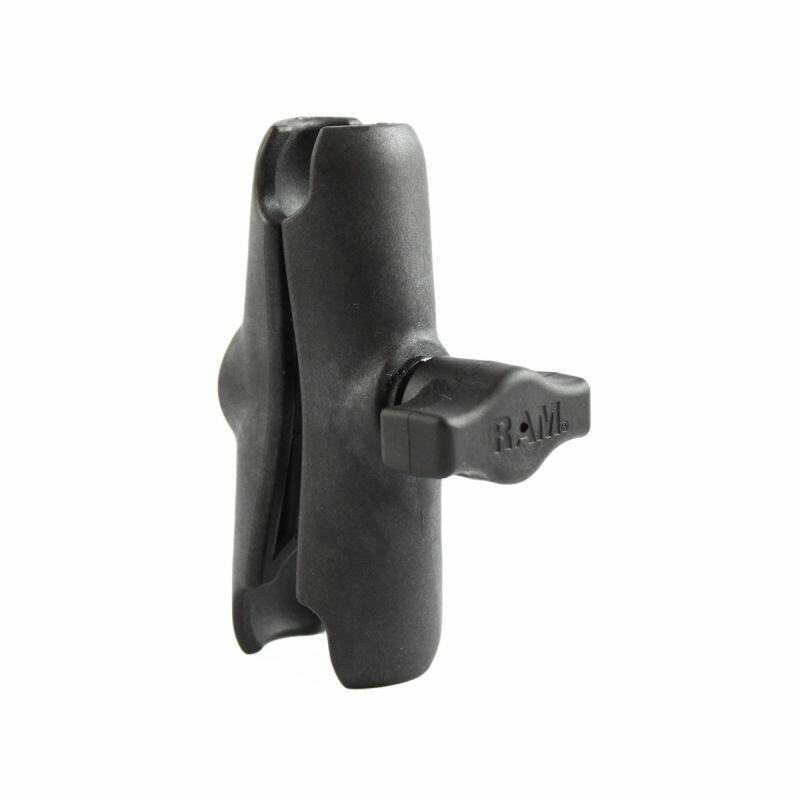

RAP-B-201U DOUBLE SOCKET ARM FOR 1" BALL composite

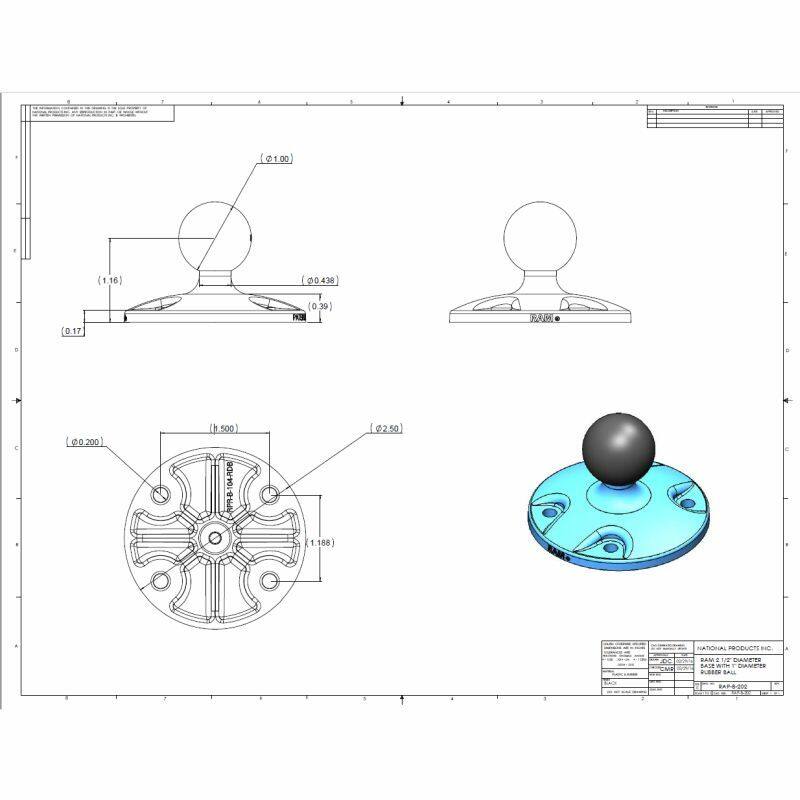

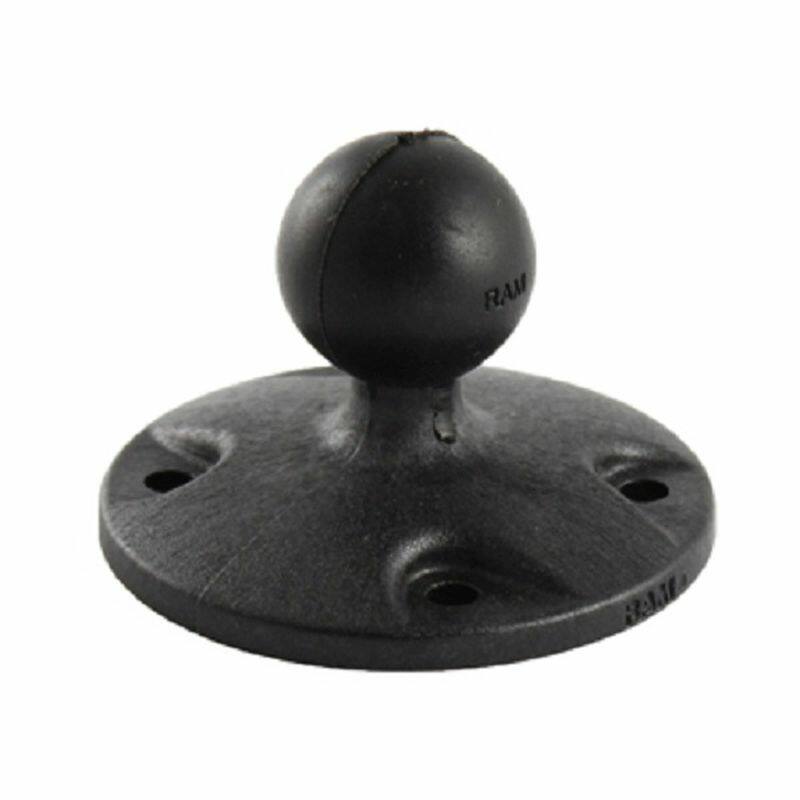

RAP-B-202U 62mm DIA.BASE WITH 1" BALL composite
