RAM Marine Humminbird / Lowrance "LIGHT USE" Electronic Mount - Diamond Base

RAM-B-107U-238 RAM® Fishfinder Diamond Plate Mount for Humminbird Devices (Light Use)

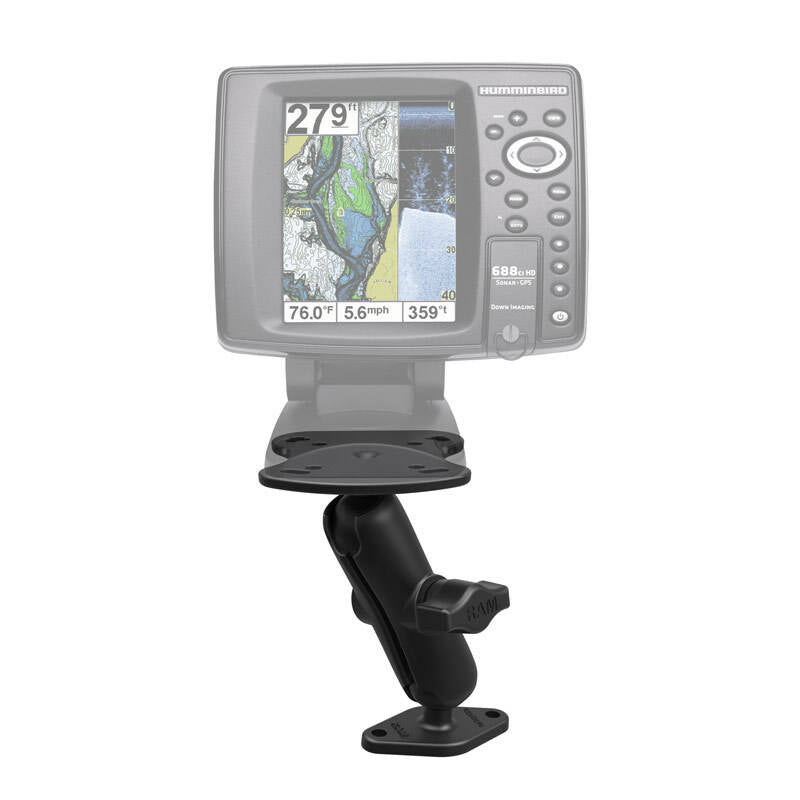

The RAM-B-107U-238 is a complete drill-down "light use" mount for the Humminbird 100, 300, 500 and 700 Series, Matrix Series, and Lowrance Elite-5 Series, built on a two-hole diamond base rather than a round AMPS base. It pairs a quick-release B-size adapter with a double socket arm.

Key Features

• Complete flat-surface, drill-down mounting solution with an overall height of 127mm (5")
• Two-hole diamond base, 48.6mm (1.912") centre-to-centre, for a low-profile permanent mount
• Quick-release B-size ball adapter for Humminbird, Lowrance and Raymarine marine electronics
• RAM® ball-and-socket technology for near-infinite adjustability
• Powder-coated marine-grade aluminium; lifetime warranty

Works With

This is a "light use" mount, designed to hold smaller marine electronic devices. For the same mount on a round AMPS base, see the RAM-B-107U.

Dimensions & Specifications

• Fishfinder plate: 107.95mm x 91.69mm (4.25" x 3.81")

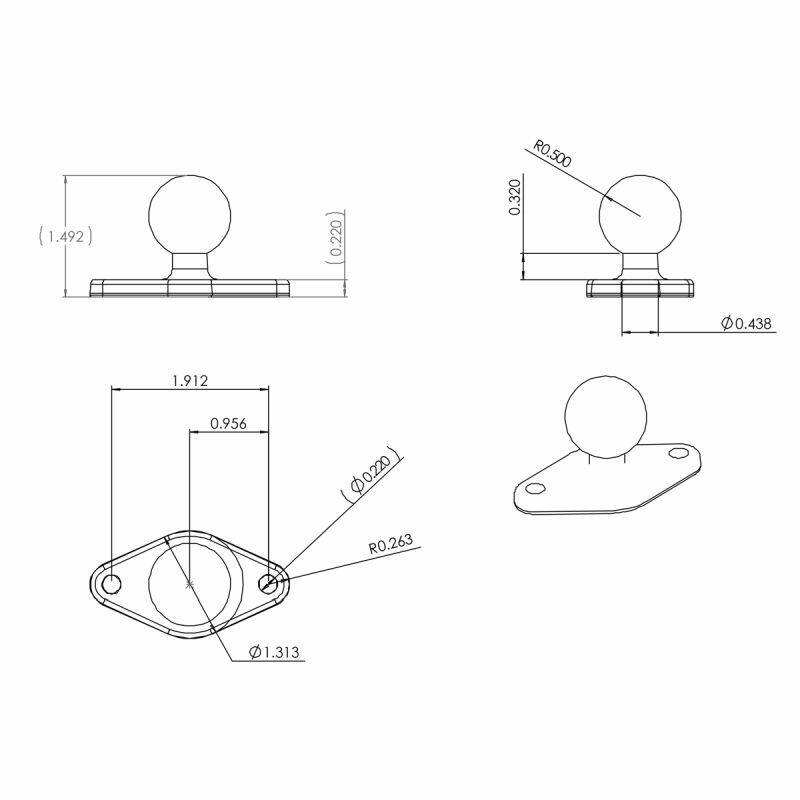

• Diamond plate: 61.7mm x 33.3mm (2.43" x 1.31")
• Diamond plate hole pattern: 2-Hole AMPS, 48.6mm (1.912") centre-to-centre
• Overall height: 127mm (5")

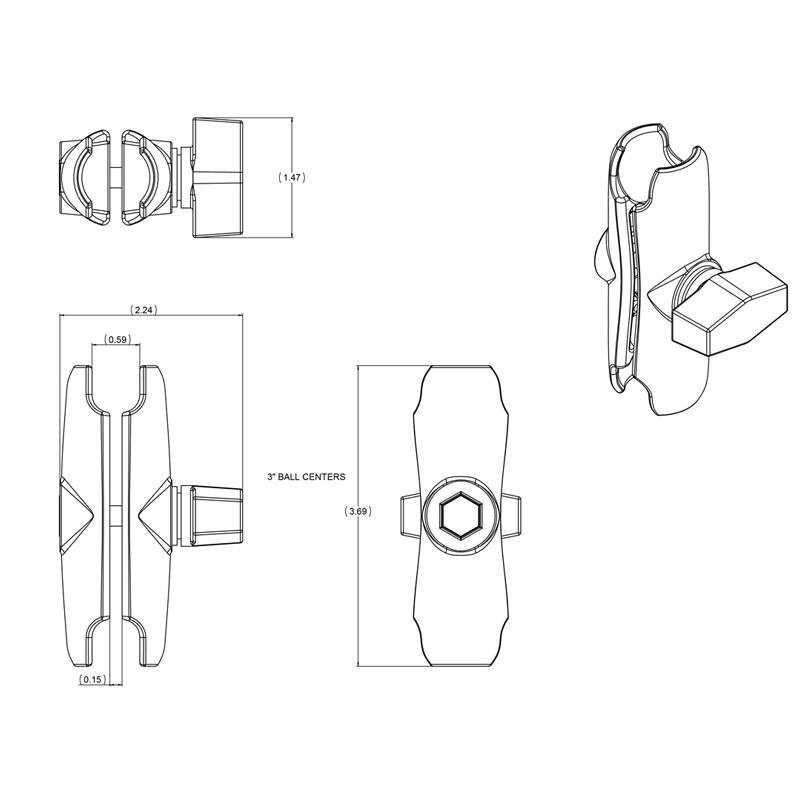

• Arm length: overall 94mm (3.69"); socket-to-socket 76mm (3")
• Ball/socket size: 1" (B size)
• Weight: 327g (0.72 lbs)
• Weight capacity: standard use 907g (2 lbs); heavy-duty use 454g (1 lb)

Compatible Devices

Humminbird

• 100 Series
• 300 Series
• 500 Series
• 600 Series
• 700 Series
• Matrix Series (excluding Matrix 97)

Lowrance

• Elite-5
• Elite-5M
• Elite-5X

Raymarine

• Apelco fishfinder with matching hole pattern

Components

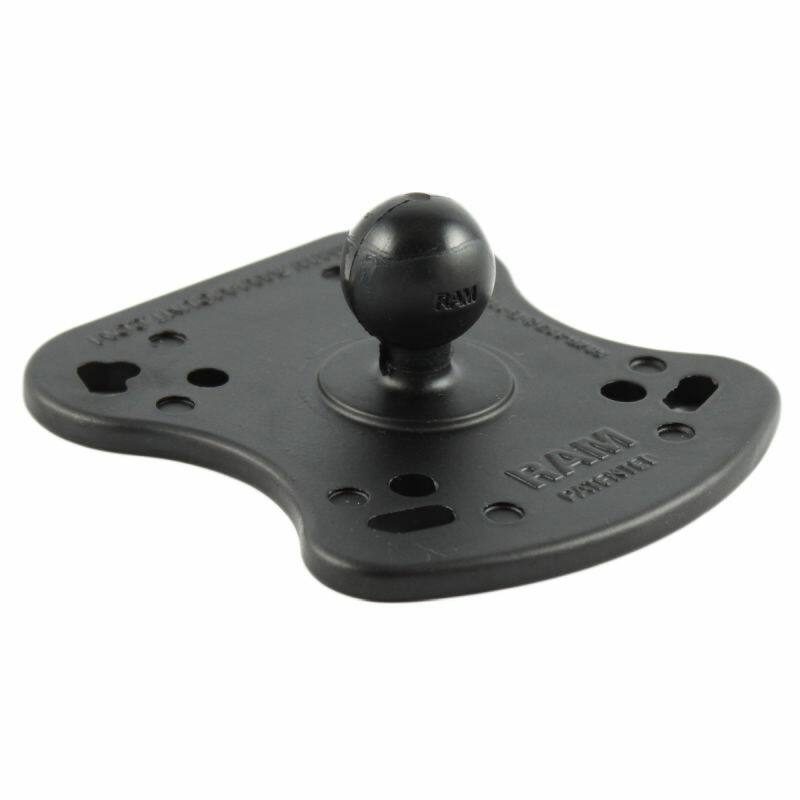

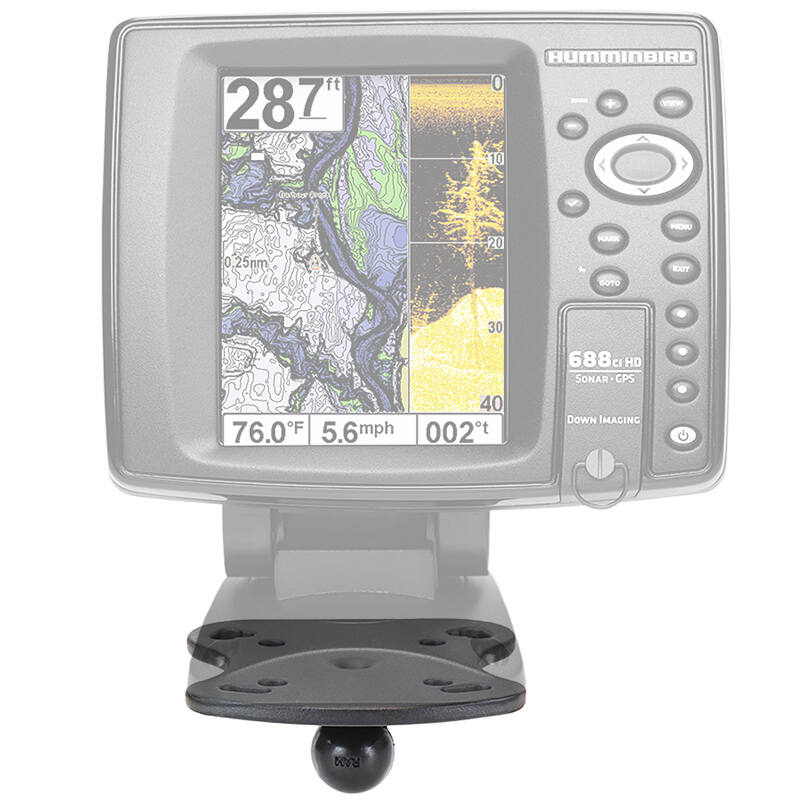

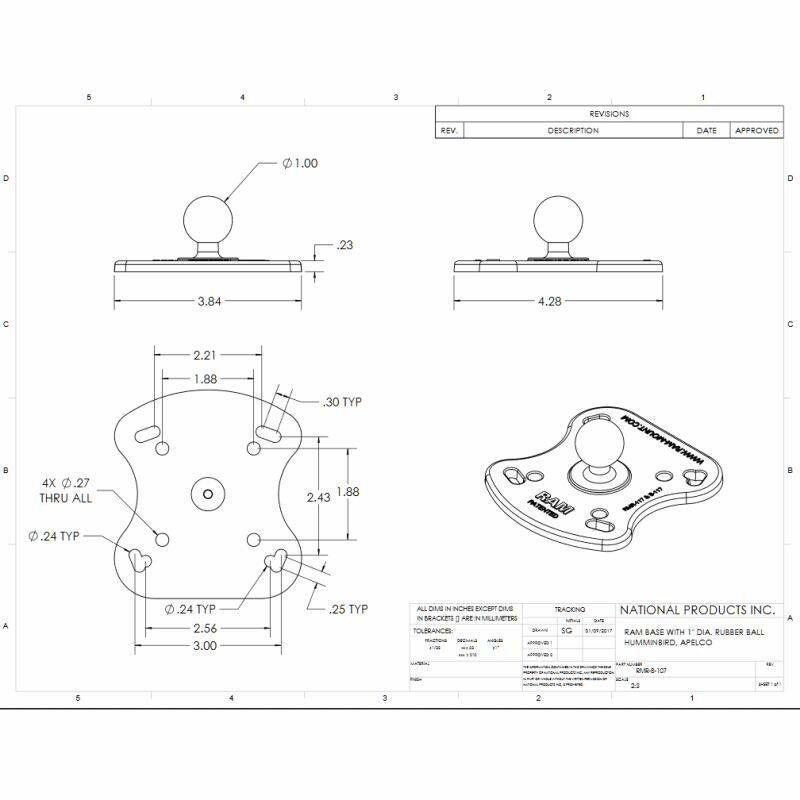

• RAM-B-107BU light use marine mount base for Humminbird/Elite

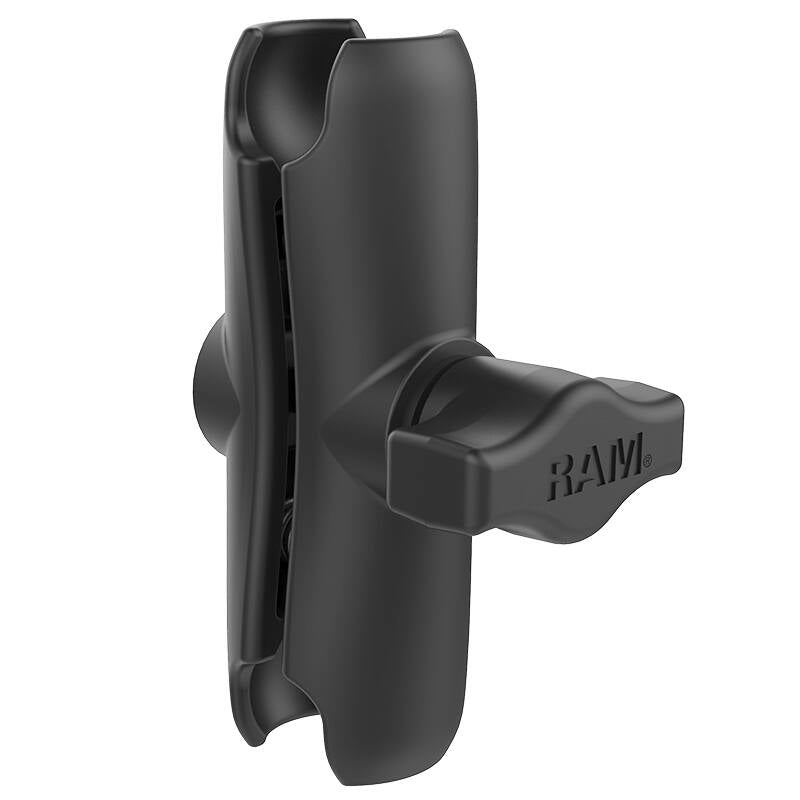

• RAM-B-201U double socket arm for 1" ball

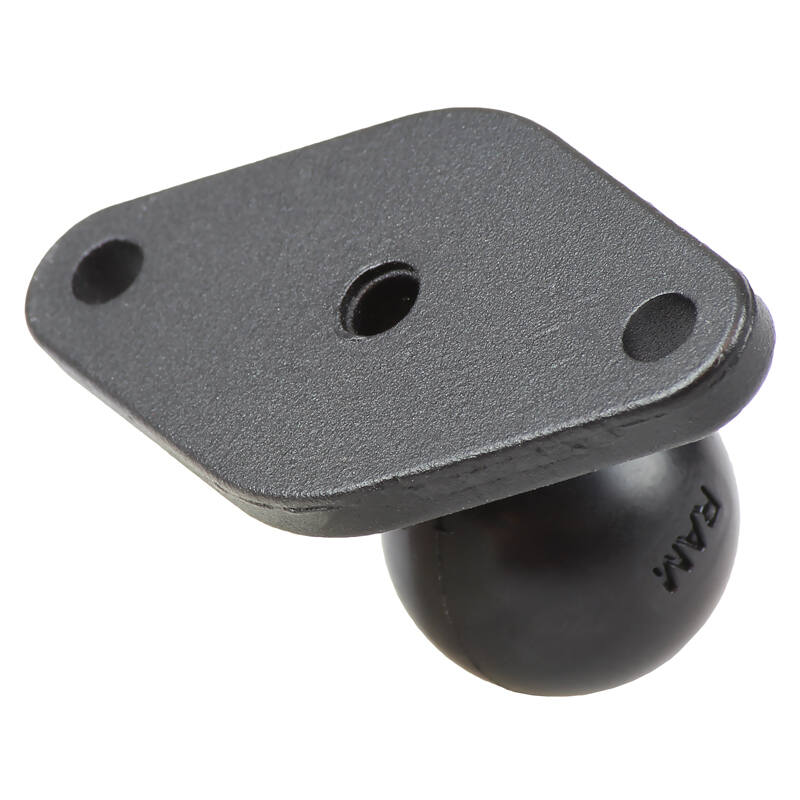

• RAM-B-238U diamond base plate
