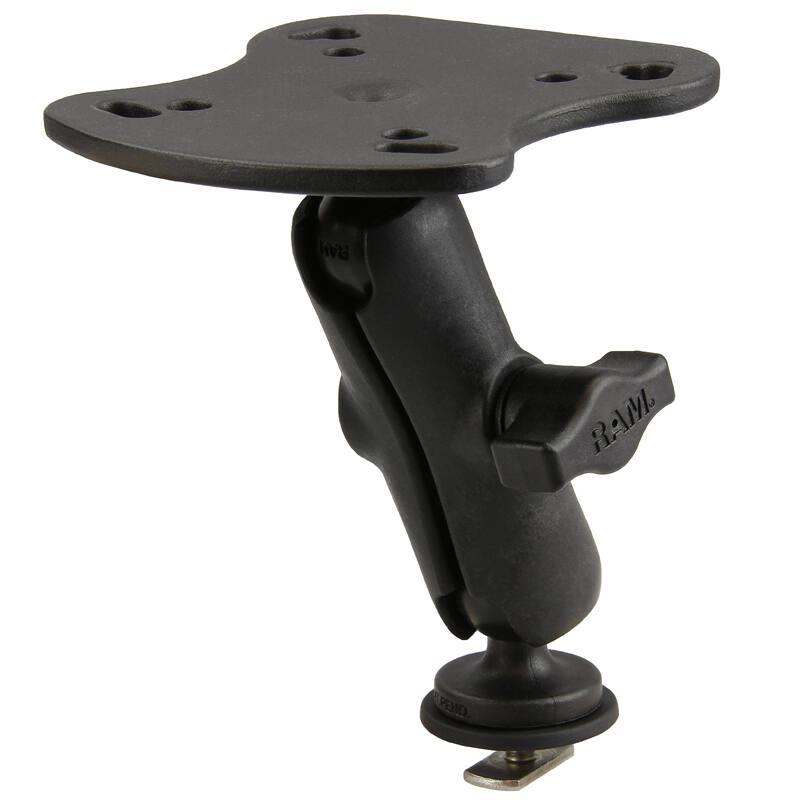

RAP-B-107B-354-TRA1U RAM® Track Ball® Composite Fishfinder Mount for Humminbird Devices
Features
* Complete for the Humminbird, Lowrance and Raymarine series to suit many track systems including RAM Tough-Track™
* Includes quick release B size ball adaptor for Lowrance marine electronics, medium B size double socket arm, and Track-Ball base
* RAM® Mounts ball and socket technology allows for near-infinite adjustability
* Made of High strength composite for durability and reliability in the most demanding environments
* Backed by a lifetime warranty
The RAP-B-107B-354-TRA1U consists of a Track Ball™ base, composite double socket arm and connecting Humminbird/Apelco marine adapter base. The mount is designed with a RAM 1" diameter rubber ball and socket system that has adjustment points at both ends of the double socket arm - allowing for high adjust-ability to achieve perfect viewing angles. This kit is compatible with virtually any track system including the RAM Tough-Track™
Compatible Devices

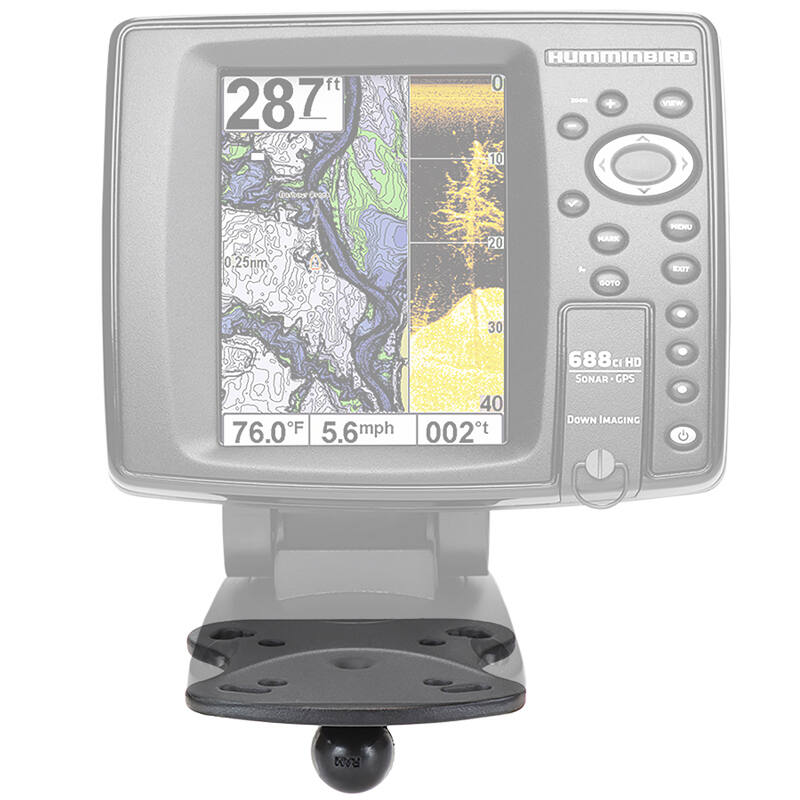

Humminbird 700 Series
Humminbird 600 Series
Humminbird 500 Series
Humminbird 300 Series
Humminbird 100 Series
Humminbird Matrix Series (excluding Matrix 97)

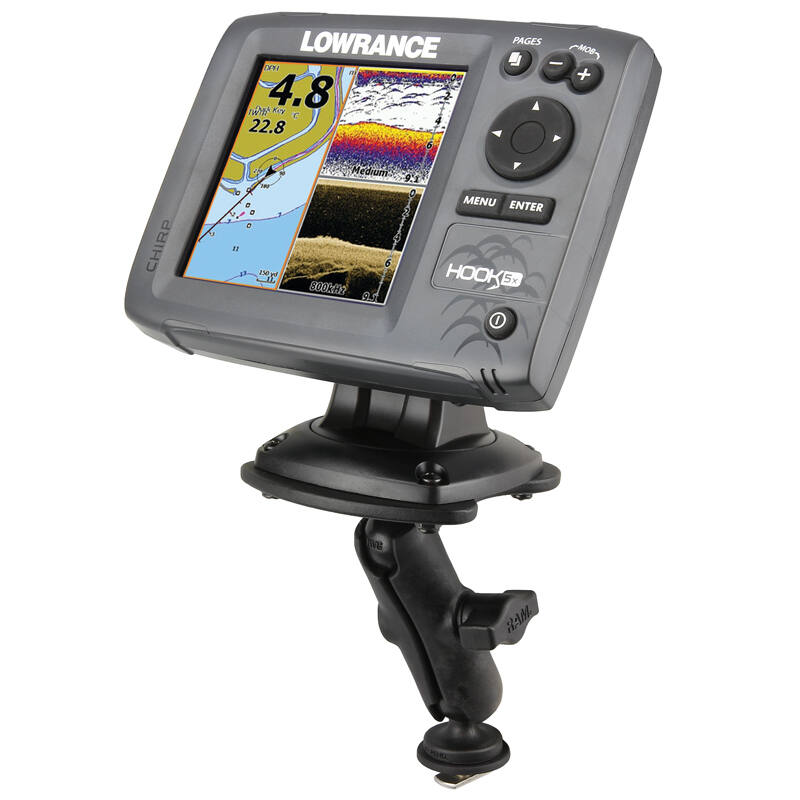

Lowrance Elite-5
Lowrance Elite-5M
Lowrance Elite-5X
Raymarine Apelco Fishfinder with matching hole pattern
Ball Size:
1" Rubber Ball "B" Size
Hole Pattern

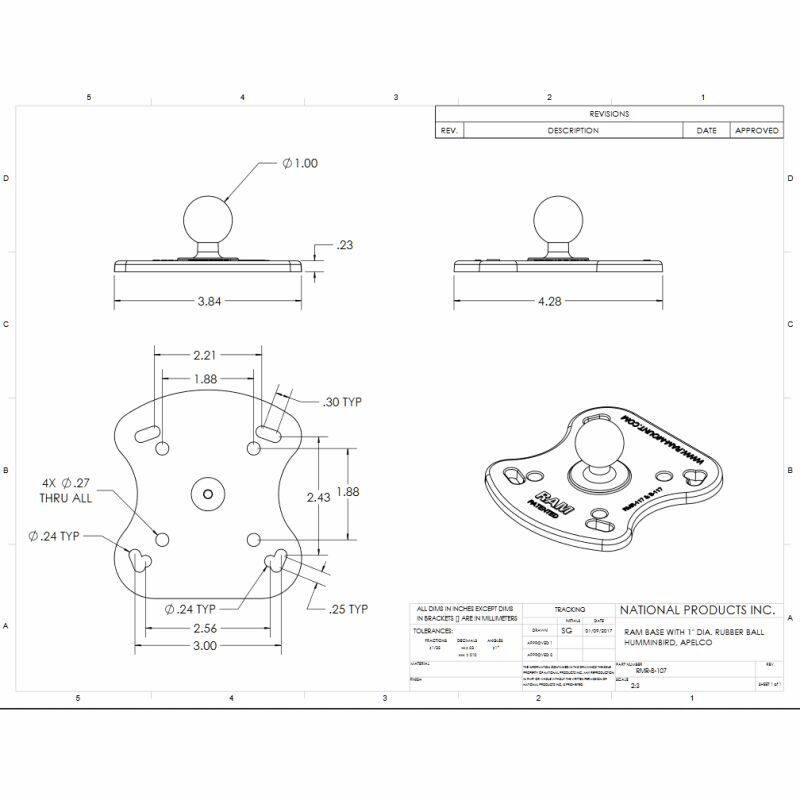

See Drawing
Arm Dimensions
Overall Length:
94mm (3.69")
Socket-To-Socket Length:
76mm (3")
Plate Size
107.9mm x 96.8mm (4.25" x 3.81")
Weight Capacity
Standard Use:
907 grams (2 lbs)
Heavy-Duty Use:
454 grams (1 lb)
Materials
Marine-grade aluminium
High strength composite
Components:

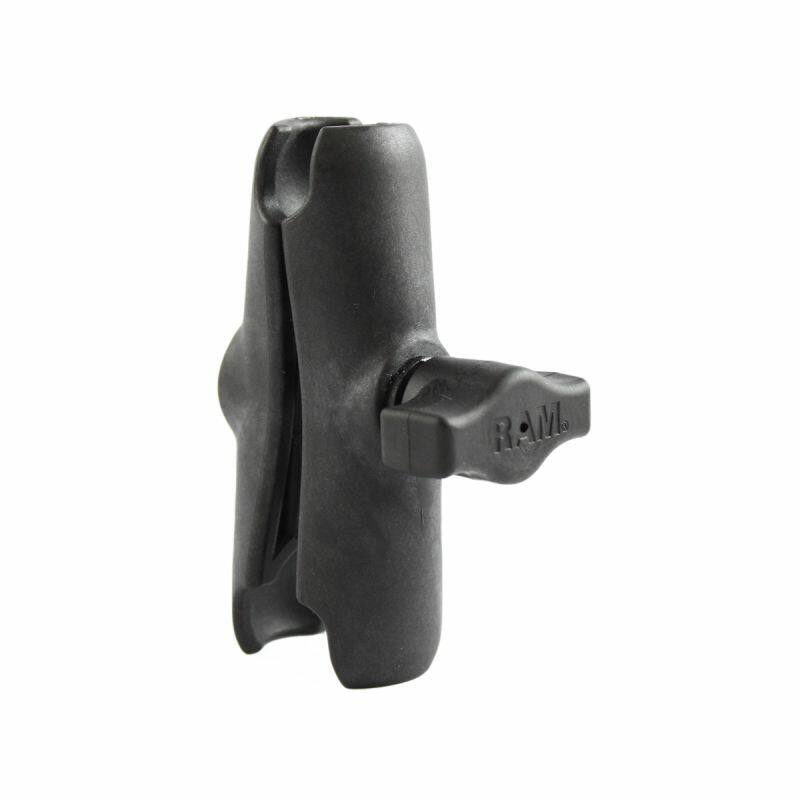

RAP-B-201U DOUBLE SOCKET ARM FOR 1" BALL

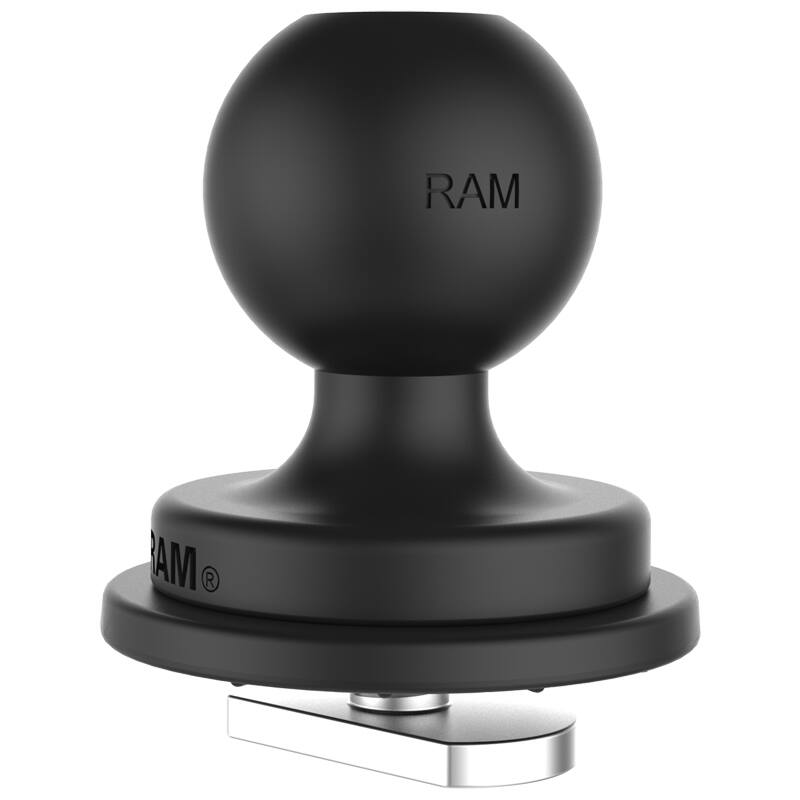

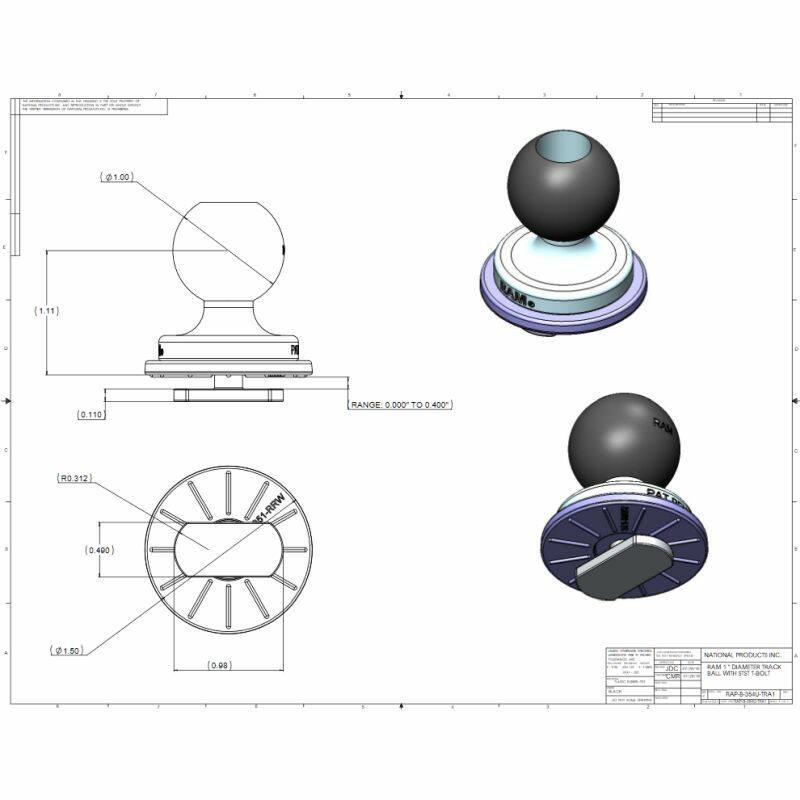

RAP-B-354U-TRA1 1" Track Ball with T-Bolt Attachment

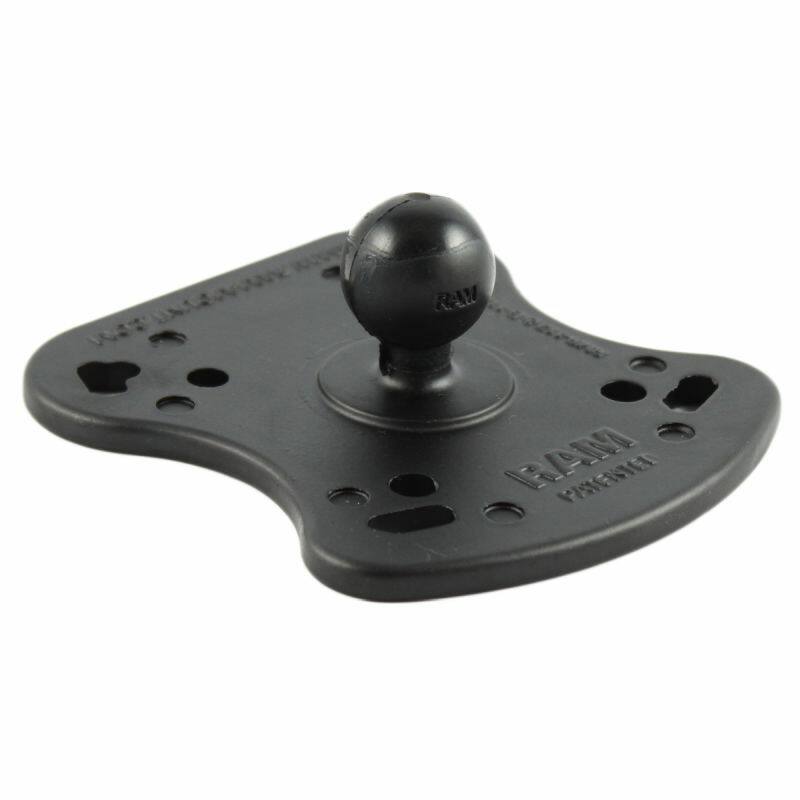

RAM-B-107BU Humminbird mount
