RAP-107U RAM® Composite Double Ball Mount for Humminbird, Matrix + More
Features
* Complete flat surface, drill-down mounting solution for Humminbird, Lowrance and Raymarine devices with an overall height of 187mm
* Includes quick release B size ball adapter for Lowrance marine electronics, C size double socket arm, and round plate with 1" B size ball
* RAM® Mounts ball and socket technology allows for near-infinite adjustability
* Made of Powder Coated Marine Grade Aluminium and High strength composite for durability and reliability in the most demanding environments
* Backed by a lifetime warranty

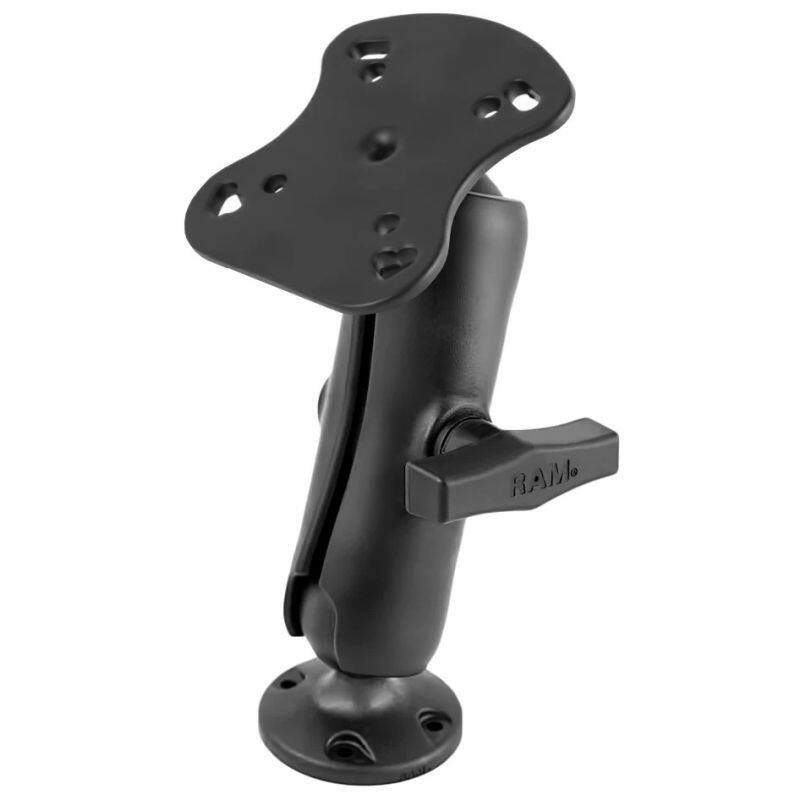

The RAP-107U consists of a composite 2.5" diameter round base with the universal AMPS hole pattern, composite double socket arm, and connecting Humminbird/Apelco marine adapter base. The mount is designed with a RAM 1.5" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; thus allowing for almost infinite adjustment and perfect viewing angles.
Note:
The RAP-107U is a "rugged use" mount, designed to hold large marine electronic devices. For a "Light Use" version see RAM-B-107U
Compatible Devices
Humminbird
700 Series
600 Series
500 Series
300 Series
100 Series
Matrix Series (excluding Matrix 97)
Lowrance
Elite-5
Elite-5M
Elite-5X
Raymarine
Apelco Fishfinder with matching hole pattern
Round Plate Hole Pattern
4-Hole AMPS:
1.181" x 1.496" (30mm x 38mm)

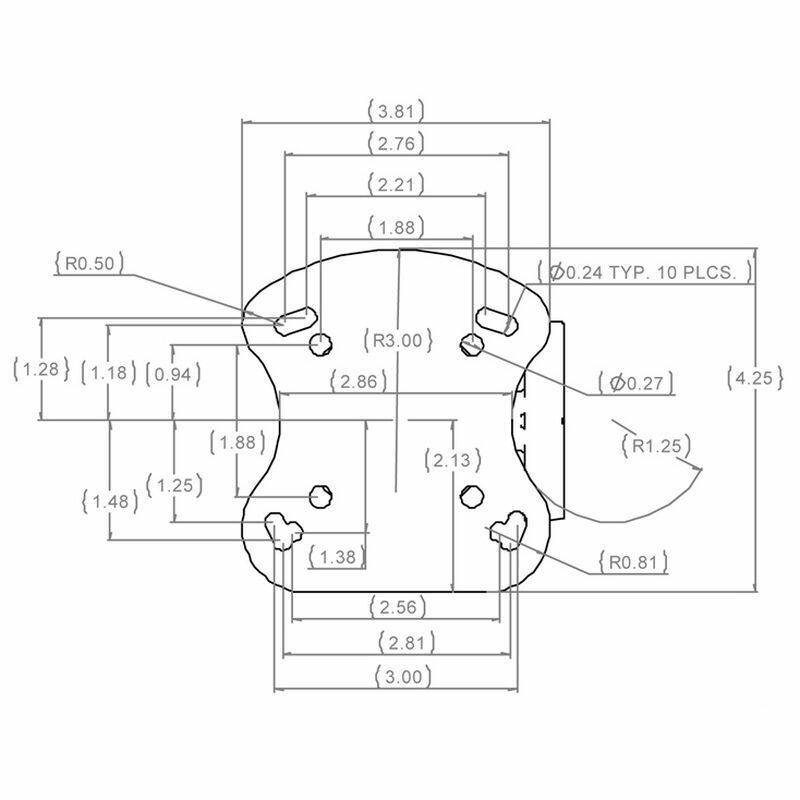

See Drawing
Overall Height
186.7mm (7.35")
Arm Dimensions:
Overall Length:
143mm (5.625")
Socket-To-Socket Length:
114mm (4.5")
Ball Size:
1.5" Rubber Ball Size
Material:
Marine-grade aluminum
High strength composite
Weight:
0.499kg (1.1 lbs.)
Weight Capacity
Standard Use:
1.814kg (4 lbs)
Heavy-Duty Use:
1.36kg (3 lbs)
Components:

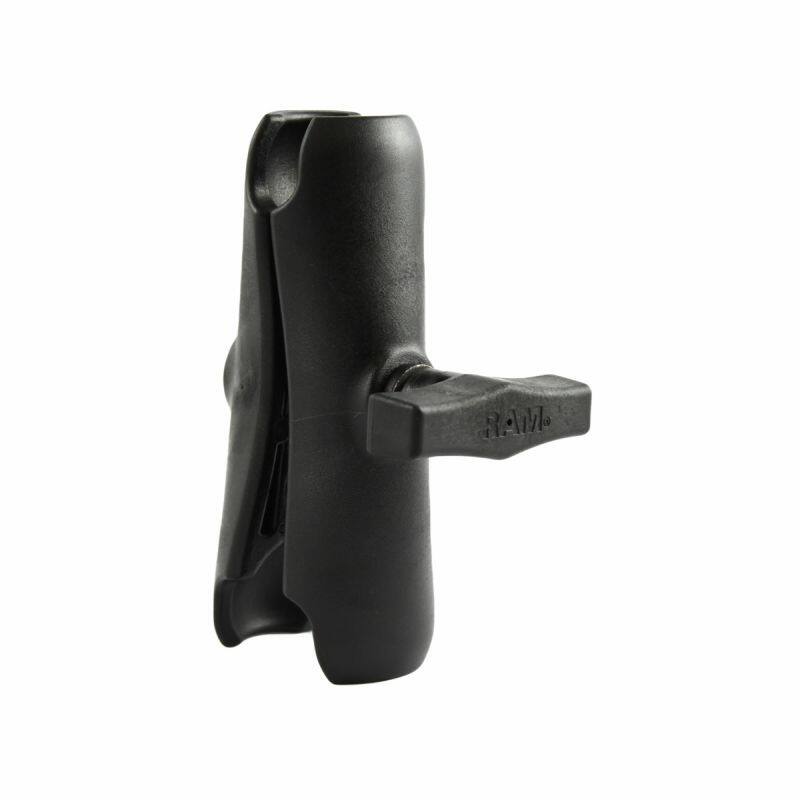

RAP-201U RAM Composite DOUBLE SOCKET ARM FOR 1.5" BALL

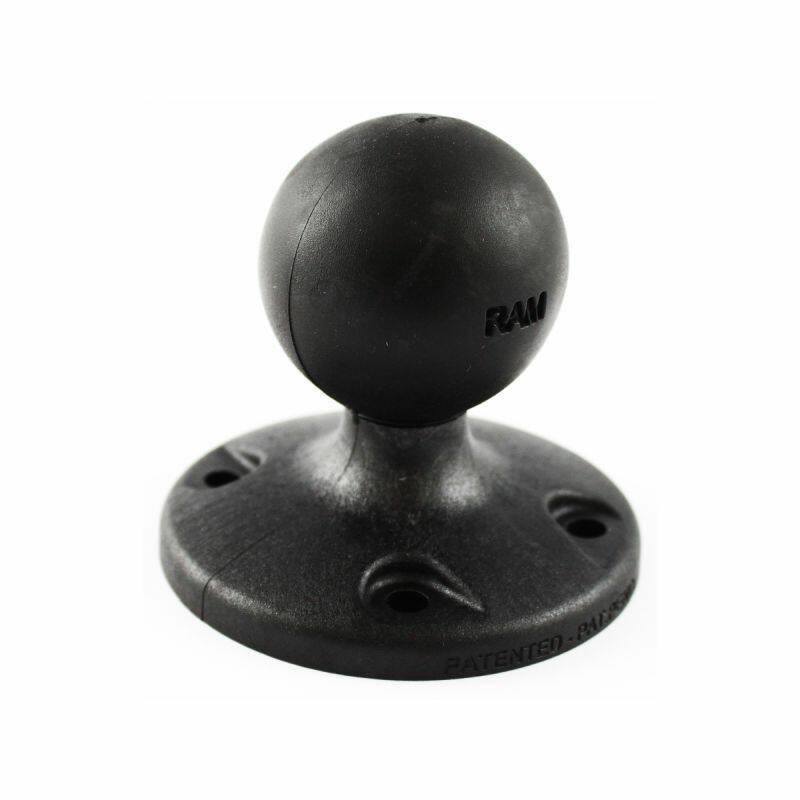

RAP-202U RAM 2.5" DIA.BASE W 1 1/2" BALL

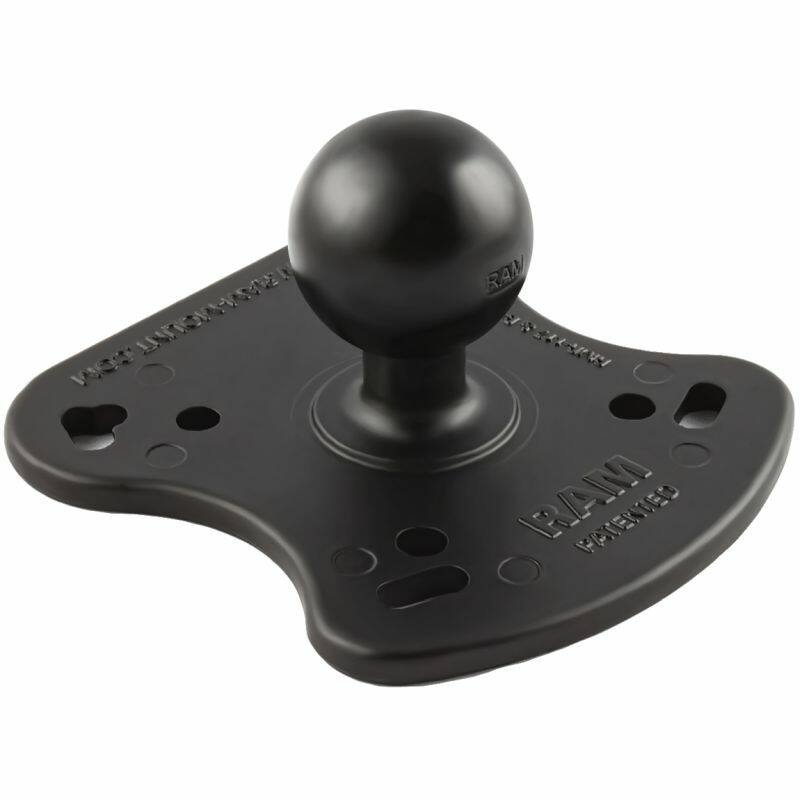

RAM-107BU RAM BASE FOR HUMMINBIRD APELCO ETC
