RAM-107U RAM® Fishfinder Mount for Humminbird Devices
Features
* Complete flat surface, drill-down mounting solution for Humminbird, Lowrance and Raymarine devices with an overall height of 187mm
* Includes quick release C size ball adapter for Lowrance marine electronics, double socket arm, and round plate with 1.5" C size ball
* RAM® Mounts ball and socket technology allows for near-infinite adjustability
* Made of Powder Coated Marine Grade Aluminium for durability and reliability in the most demanding environments
* Backed by a lifetime warranty
This is a RAM 1.5" Ball Marine Electronic "RUGGED USE" Mount for the Humminbird 100, 300, 500, 700 Series, Matrix Series and Lowrance Elite-5 Series

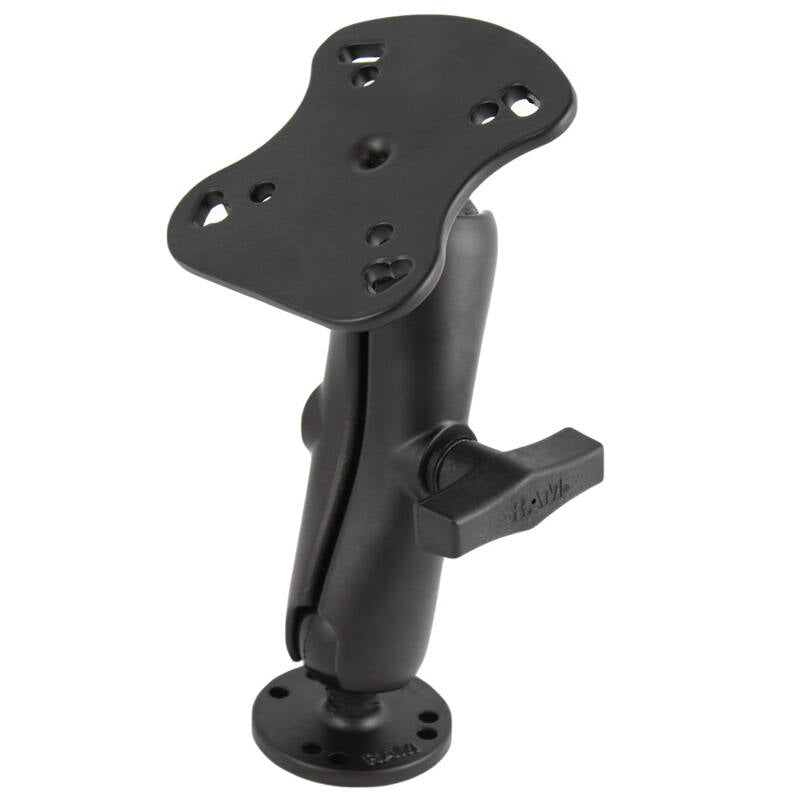

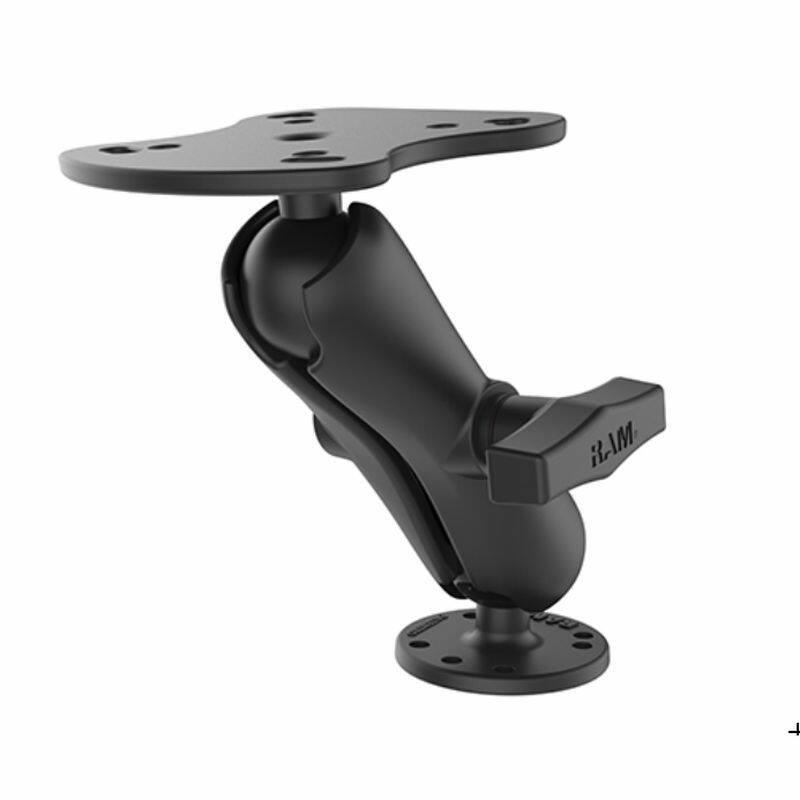

The RAM-107U consists of a double socket arm, 2.5" diameter round base with the universal AMPS hole pattern and connecting Humminbird/Apelco marine adapter base. The mount is designed with a RAM 1.5" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles.Rubber ball and socket technology allows for almost infinite adjustment and perfect viewing angles.
Compatible Devices
Humminbird
700 Series
600 Series
500 Series
300 Series
100 Series
Matrix Series (excluding Matrix 97)
Lowrance

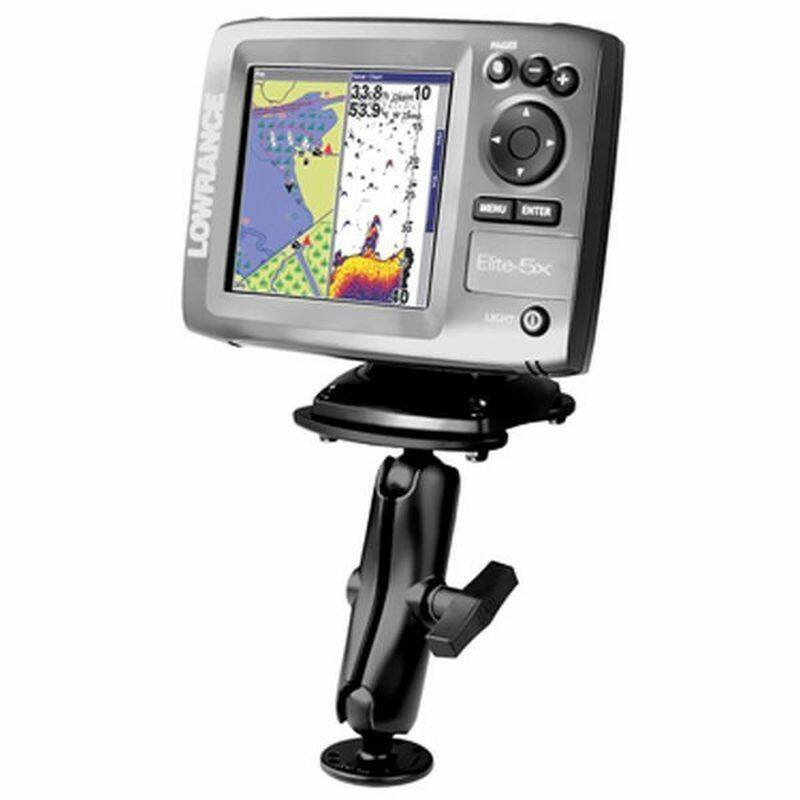

Elite-5
Elite-5M
Elite-5X
Raymarine
Apelco Fishfinder with matching hole pattern
Note:
The RAM-107U is a "rugged use" mount, designed to hold large marine electronic devices. For a "Light Use" version see RAM-B-107U
Specs & Features

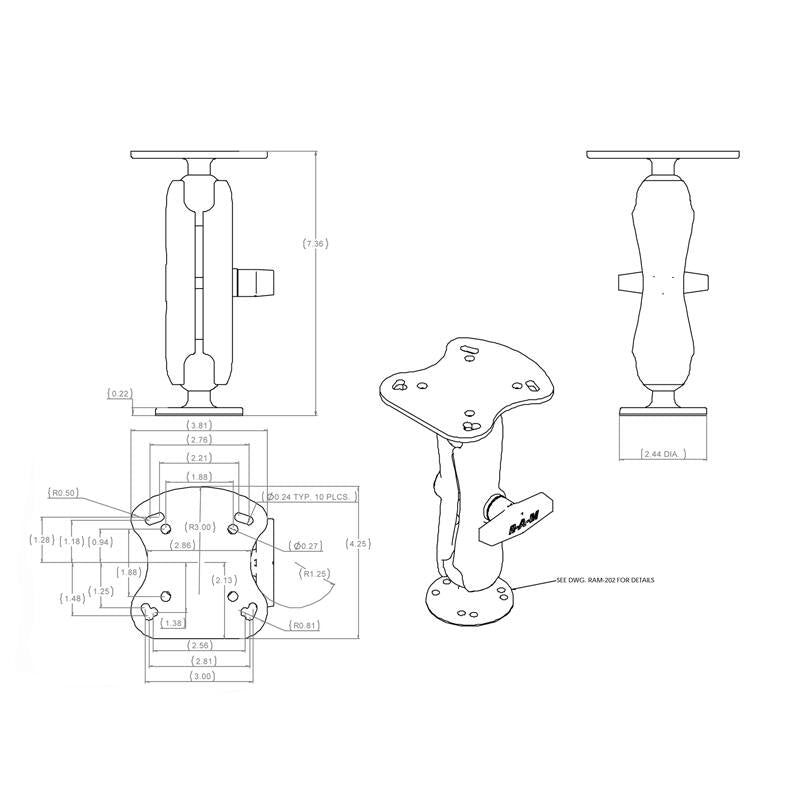

Overall Height
186.7mm (7.35" )
Arm Dimensions:
Overall Length:
143mm (5.625")
Socket-To-Socket Length:
114mm (4.5")

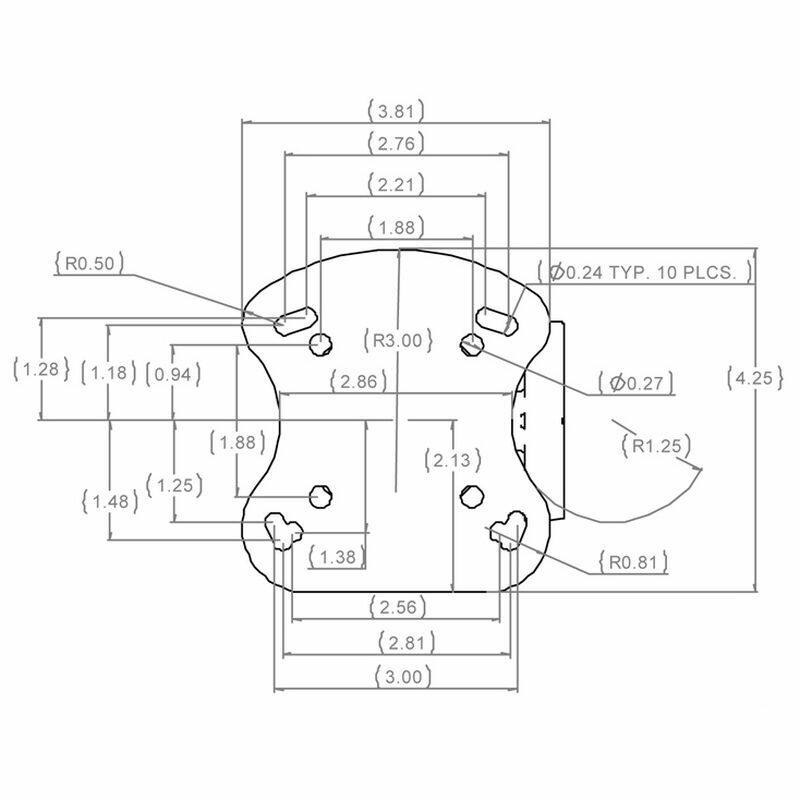

Round Plate Hole Patterns
4-Hole AMPS:
1.181" x 1.496" (30mm x 38mm)
3-Hole AMPS 120- Degree
1.812” (46.0mm)
Ball Size:
1.5" Rubber Ball Size
Material:
Powder Coated Marine Grade Aluminium
Weight:
0.59kg (1.3 lbs.)
Weight Capacity
Standard Use:
1.814kg (4 lbs)
Heavy-Duty Use:
1.36kg (3 lbs)
Components:

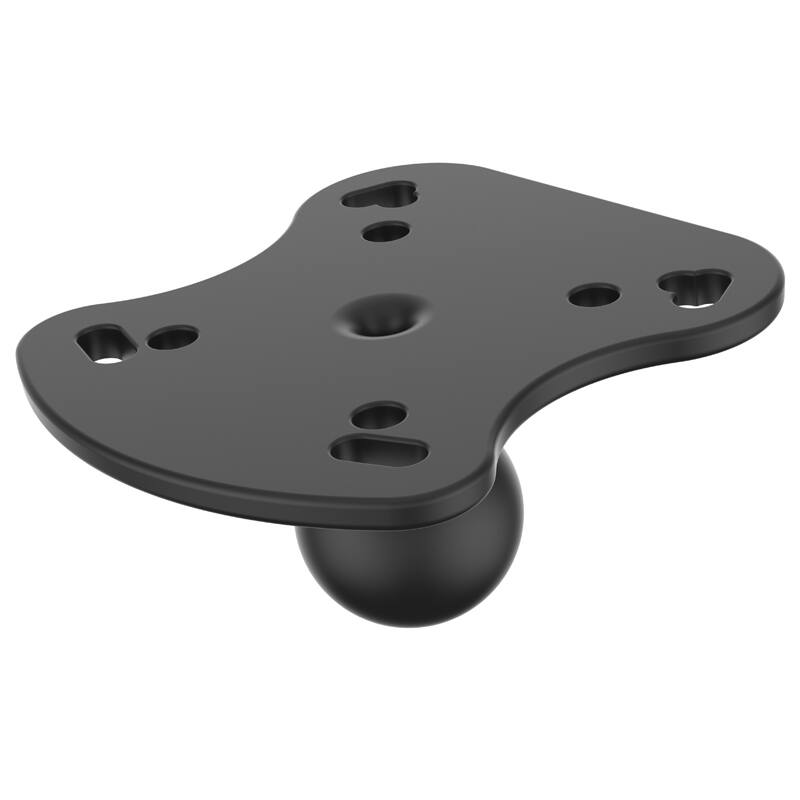

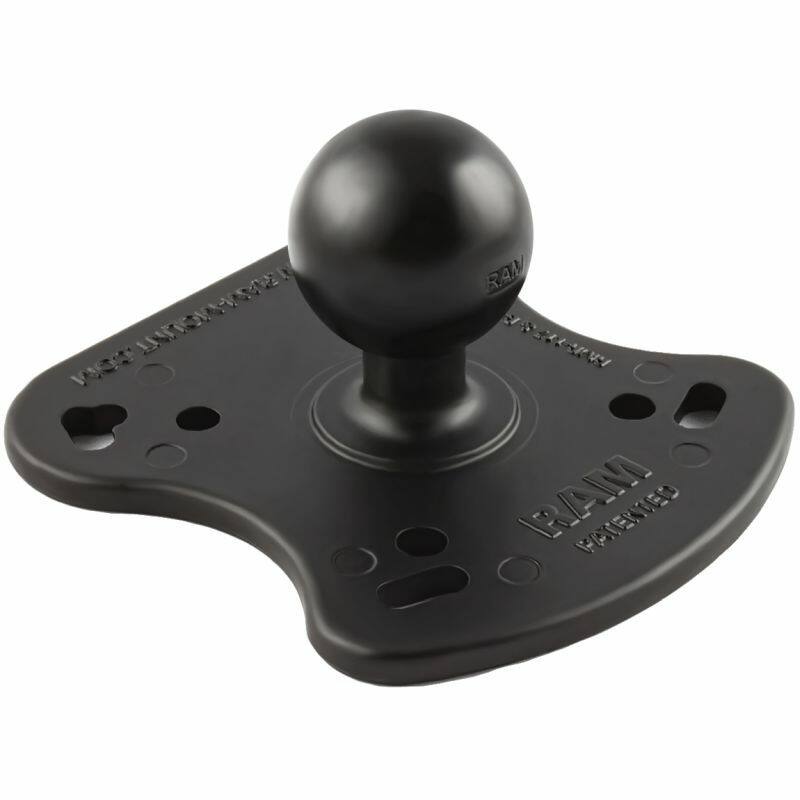

RAM-107BU BASE FOR HUMMINBIRD APELCO 97
RAM-201U Standard Double Socket Arm for 1.5" Balls
RAM-202U 2.5" / 63mm DIA. BASE 1.5" Ball
