RAM Marine Lowrance Electronic Base - Elite & Hook Fishfinder - "RUGGED USE"

RAP-101U-LO11 – RAM® Composite Double Ball Mount for Lowrance Elite, HOOK & MARK

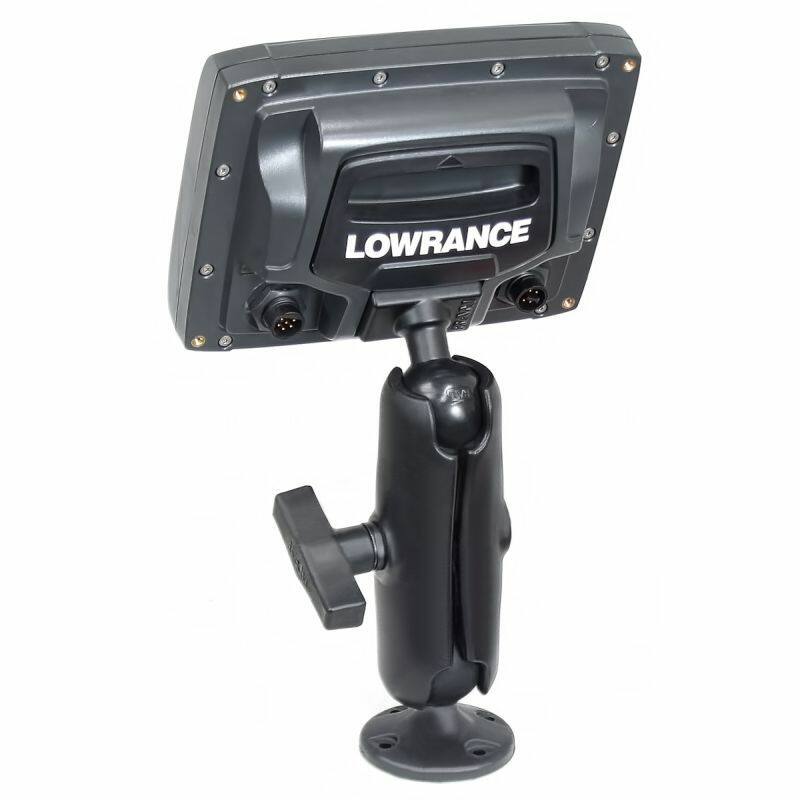

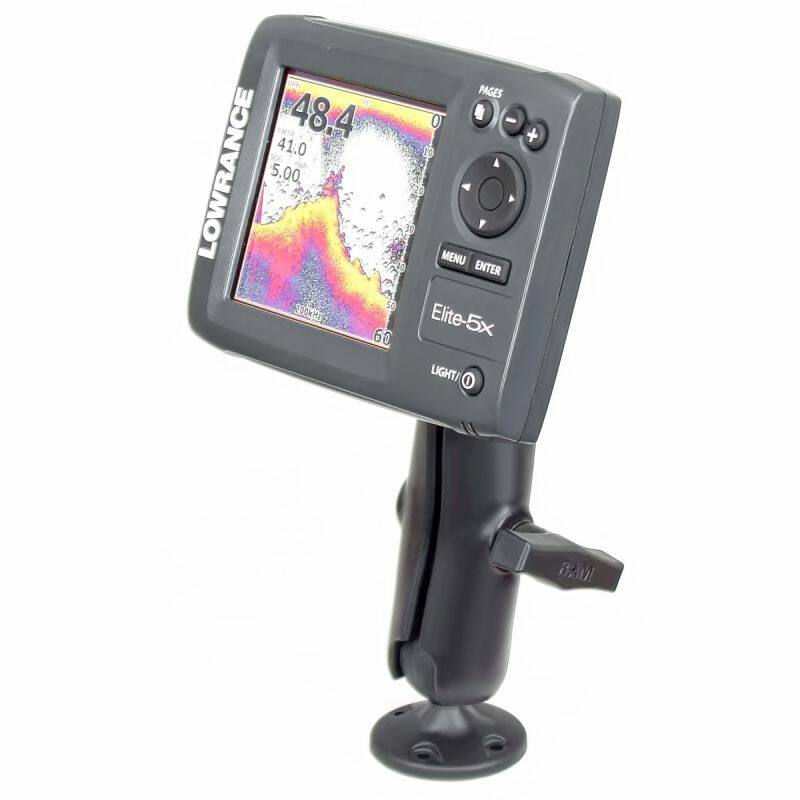

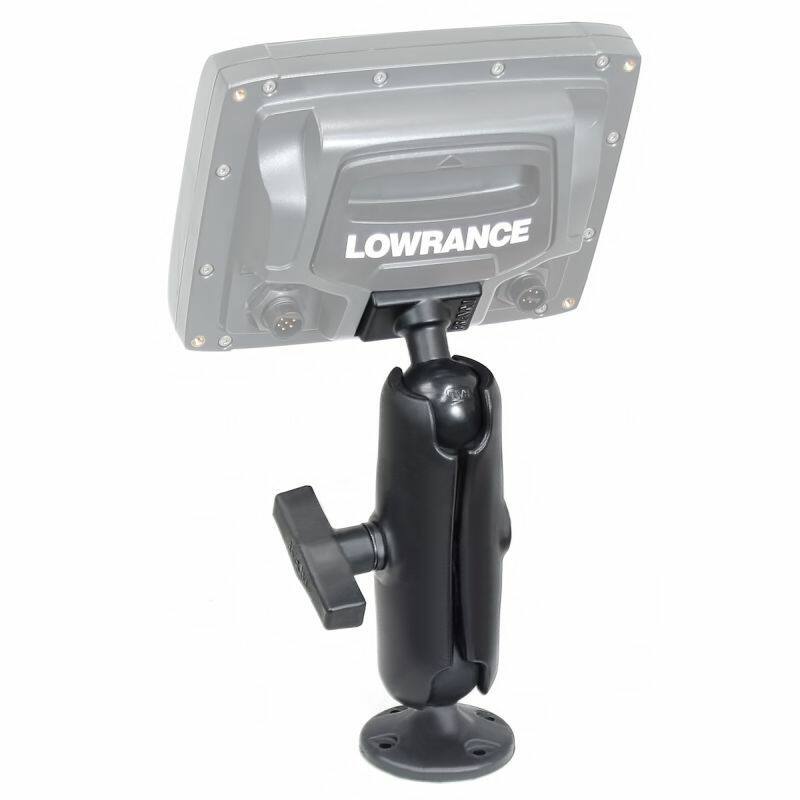

The RAP-101U-LO11 is a complete bolt-down, heavy-duty mount for Lowrance fishfinders. The adaptor inserts directly into the back of Elite, HOOK and MARK units as a quick release, so you can remove or transfer your fishfinder in seconds.

Key Features

• Complete bolt-on heavy-duty mount; quick release adaptor inserts directly into the back of the fishfinder
• 63.5mm (2.5") round base with the universal AMPS pattern for a stable drill-down mount
• C size 1.5" ball and socket system with adjustment at both ends of the arm
• High-strength composite and powder-coated marine-grade aluminium construction

Works With

Lowrance Elite-5, Elite-5 Ti, Elite-7 Ti, Elite-7 Ti², HOOK-3, HOOK-4, HOOK-5 and MARK-5, plus the Simrad GO5 XSE.

Dimensions & Specifications

• Overall height: 187mm (7.35")
• Arm: 143mm (5.625") overall; 114mm (4.5") socket-to-socket
• Hole pattern: 4-hole AMPS, 1.181" x 1.496" (30mm x 38mm)
• Ball size: C (1.5")
• Load capacity: 1.814kg (4 lb) standard use; 1.36kg (3 lb) heavy-duty use

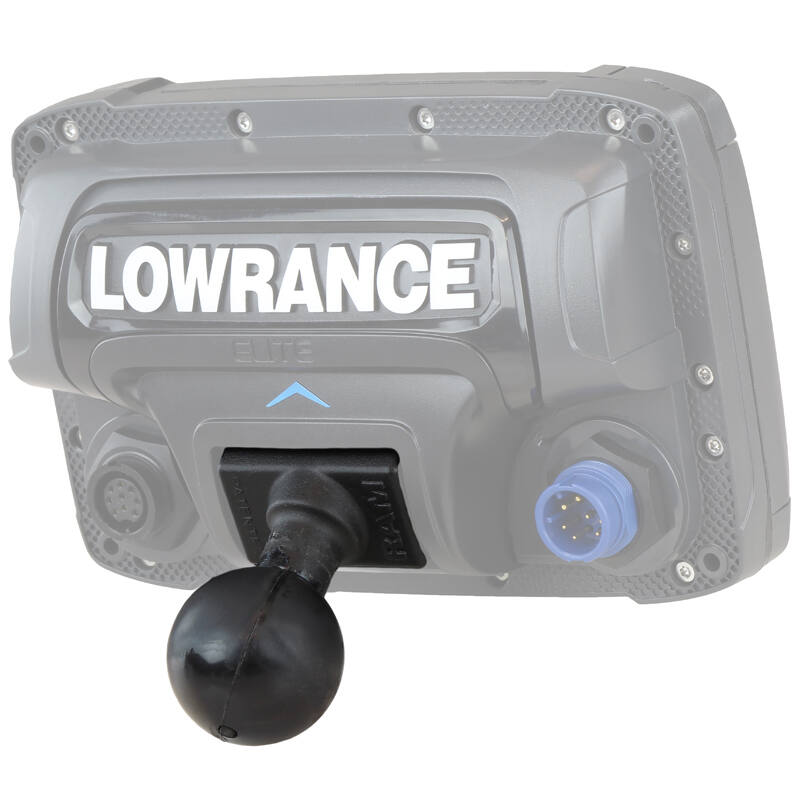

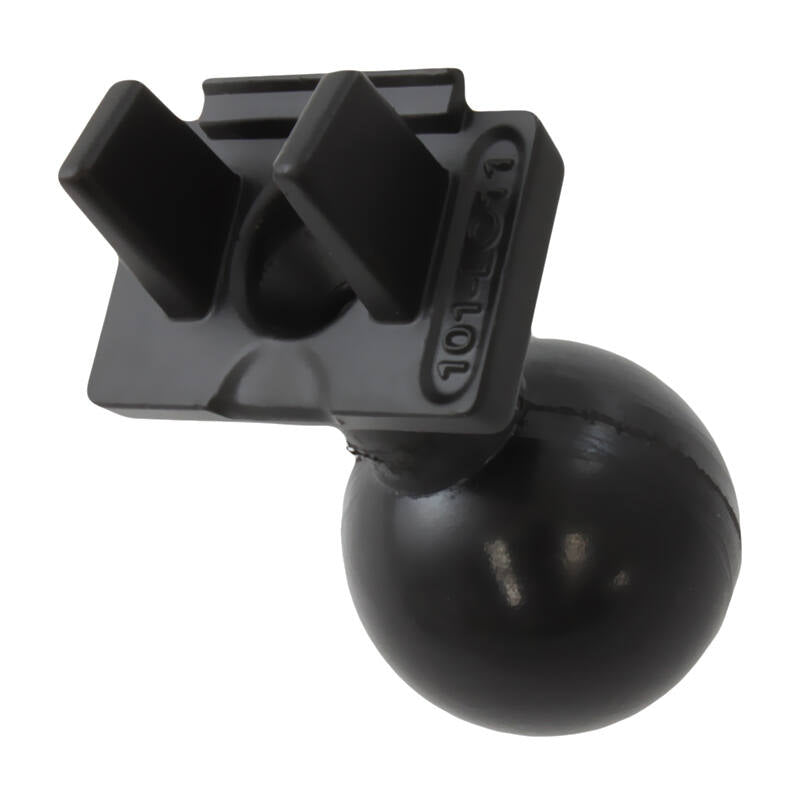

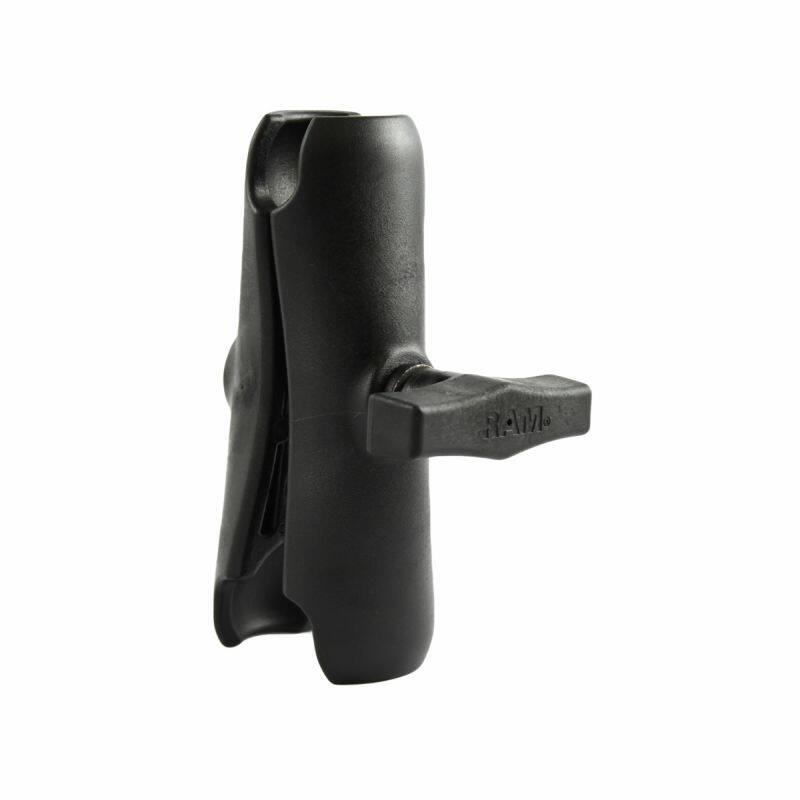

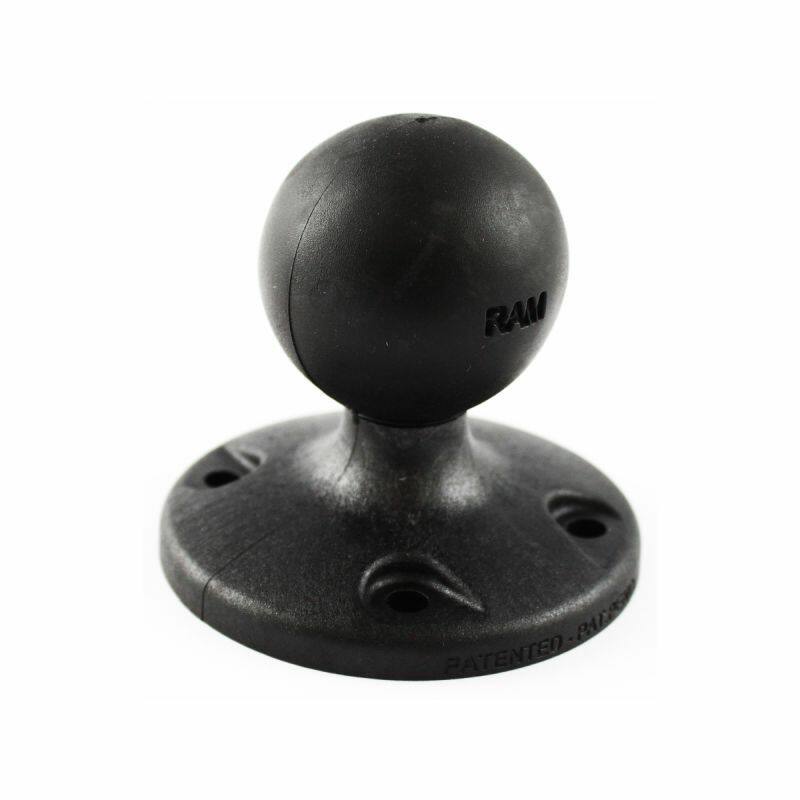

• Components: RAM-202U-LO11 quick release adaptor, RAP-202U round base with 1.5" ball, RAP-201U composite double socket arm
• Materials: powder-coated marine-grade aluminium, high-strength composite

FAQs

Can I take the fishfinder off the boat easily?

Yes; the adaptor is a quick release mechanism, so the unit lifts off in seconds for storage or transfer to another vessel.
