RAP-B-202-LO11-354-TRA1U RAM® Track Ball™ Mount for Lowrance Elite-3, Elite-4 & Mark-4 Series - Composite
Features
* Complete for the Lowrance Elite series with an overall height of 127mm to suit many track systems including RAM Tough-Track™
* Includes quick release B size ball adaptor for Lowrance marine electronics, long length B size double socket arm, and Track-Ball base
* RAM® Mounts ball and socket technology allows for near-infinite adjustability
* Made of High strength composite for durability and reliability in the most demanding environments
* Backed by a lifetime warranty

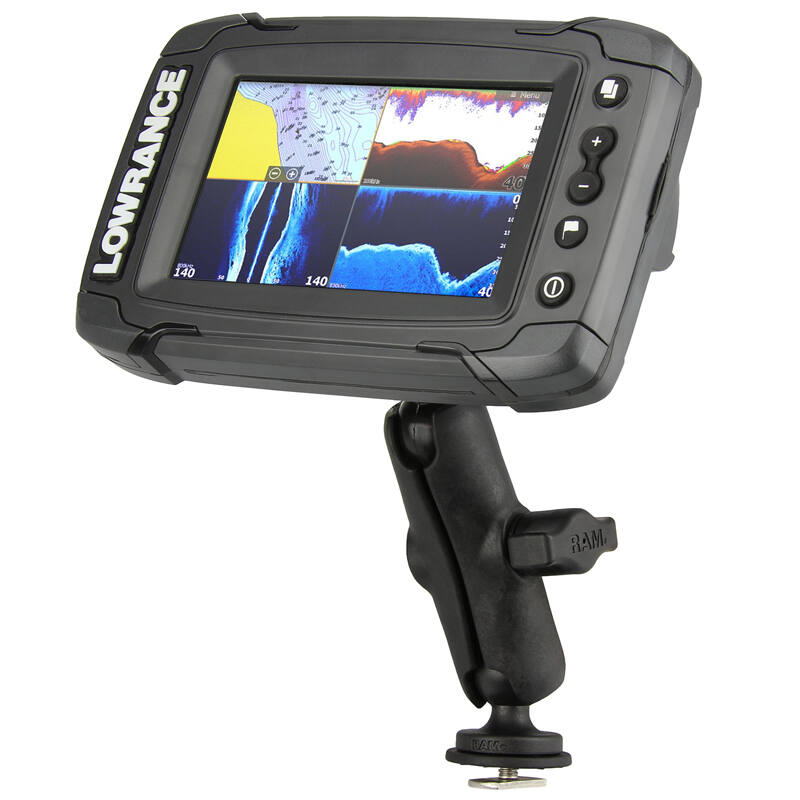

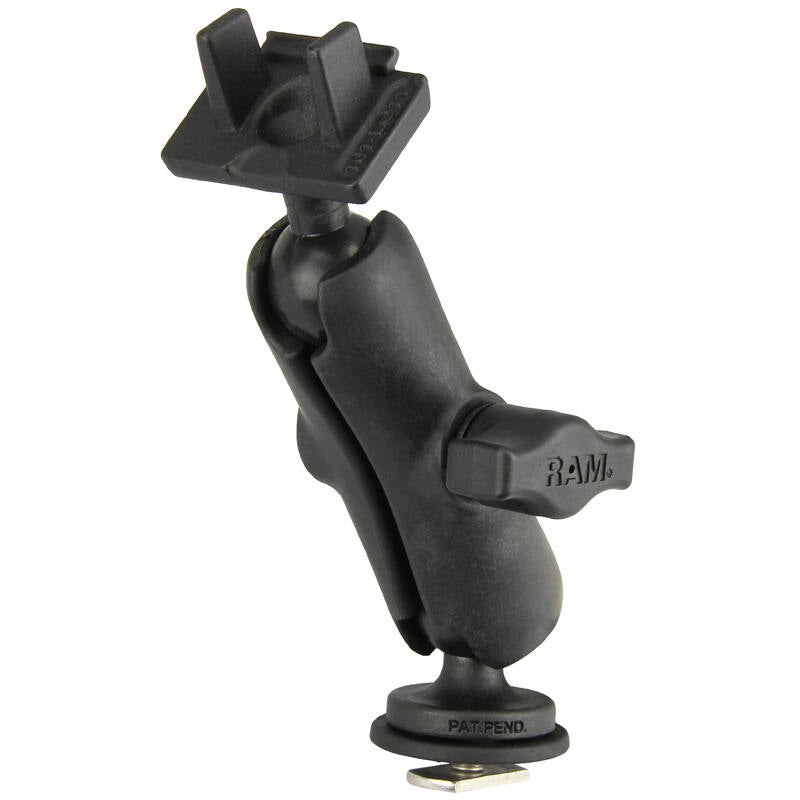

This marine mount consists of a Track Ball™ base, composite double socket arm and adapter base that inserts directly to the back of Lowrance Elite-4 and Mark-4 Fishfinders. The adaptor serves as a quick release mechanism, allowing you to remove or transfer your Fishfinder in seconds. A key feature of the mount is a 1" diameter rubber ball and socket system with adjustment points at both socket ends of the arm.
Combined with RAM's rubber ball and socket technology, this allows for high adjust-ability to achieve perfect viewing angles. Compatible with virtually any track system including the RAM Tough-Track™.
Compatible Devices
Lowrance
Elite 3x
Elite 3x DSI
Elite-4
Elite-4 DSI
Elite-4 Gold
Elite-4x
Elite-4x DSI
Elite-4m
Mark-4
Note:
This product is not compatible with the standard Lowrance Elite-7.
Specs & Features
Overall Height:
127mm (5")
Material:
High strength composite
Ball Size:
1" (B series) Rubber Ball
Hardware Included
(1) Friction Washer
(1) 1/4"-20 x 7/8" T-Bolt
T-Bolt Dimensions
0.48" x 0.95"
Weight Capacity
Standard Use:
907 grams (2 lbs)
Heavy-Duty Use:
454 grams (1 lb)
Components:

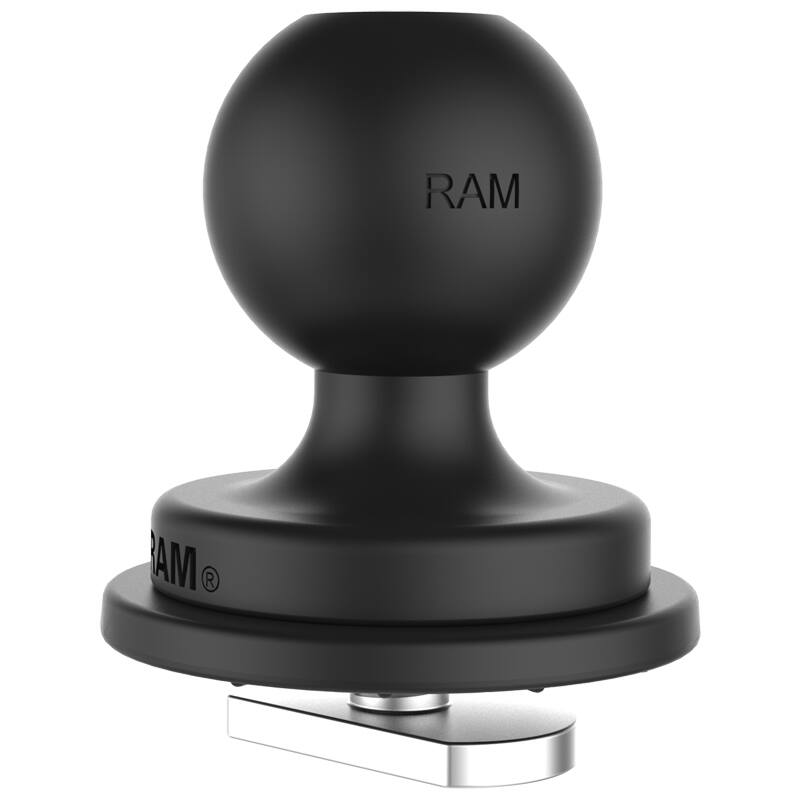

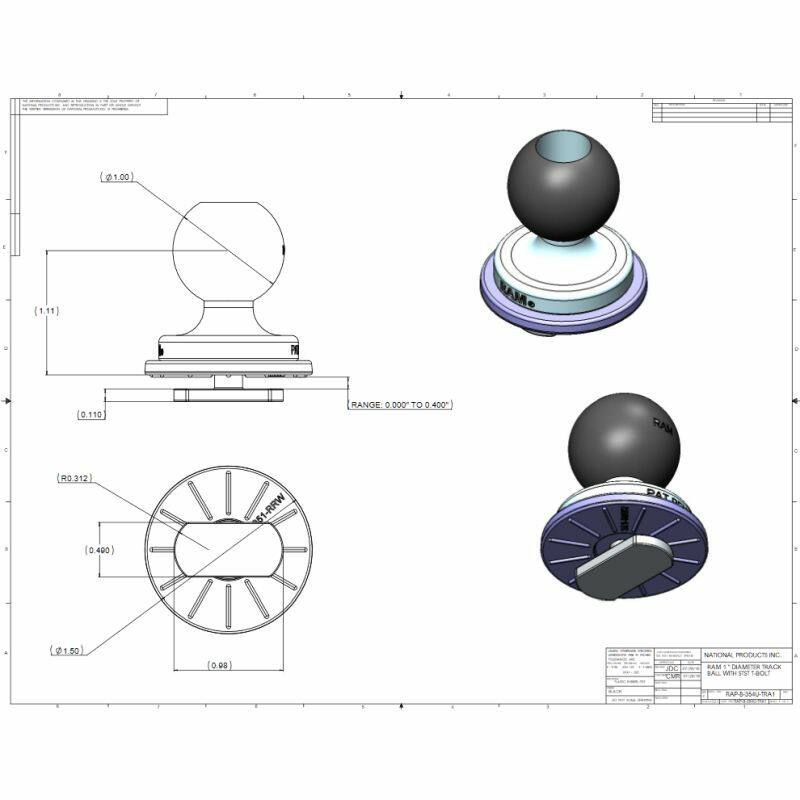

RAP-B-354U-TRA1 1" Track Ball with T-Bolt Attachment

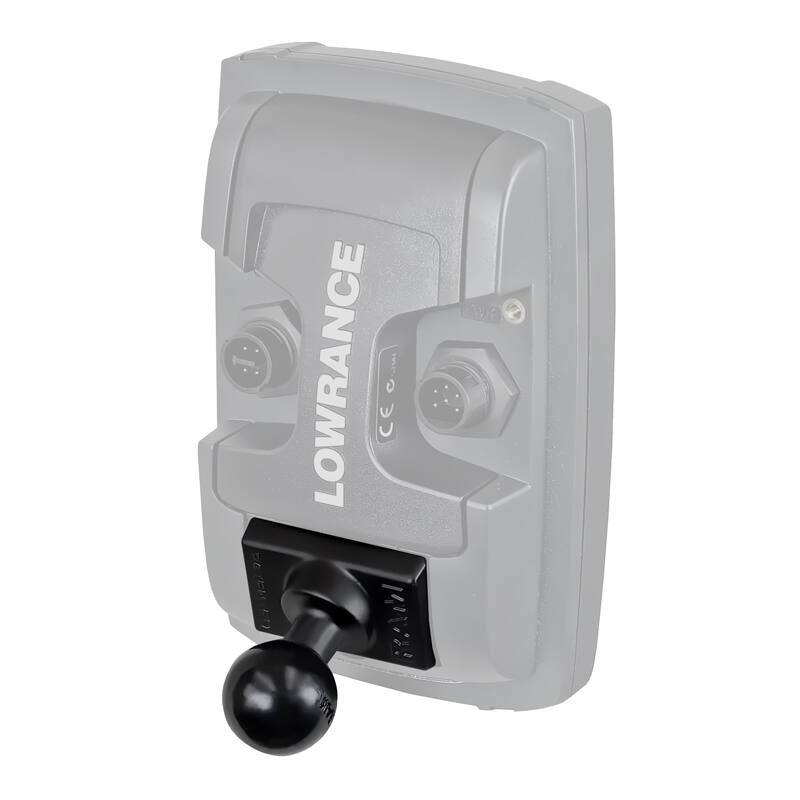

RAM-B-202U-LO11 QUICK RELEASE ELITE.3 / 4
RAP-B-201U RAM DOUBLE SOCKET ARM FOR 1" BALL
