RAM Marine Lowrance Electronics Base - Elite / Mark 4 - "LIGHT USE"

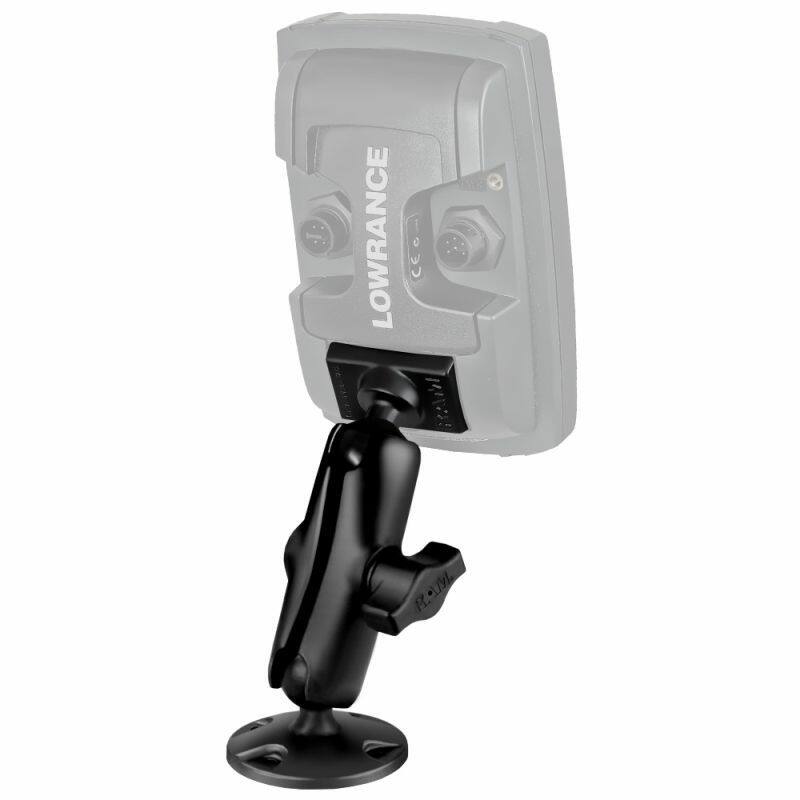

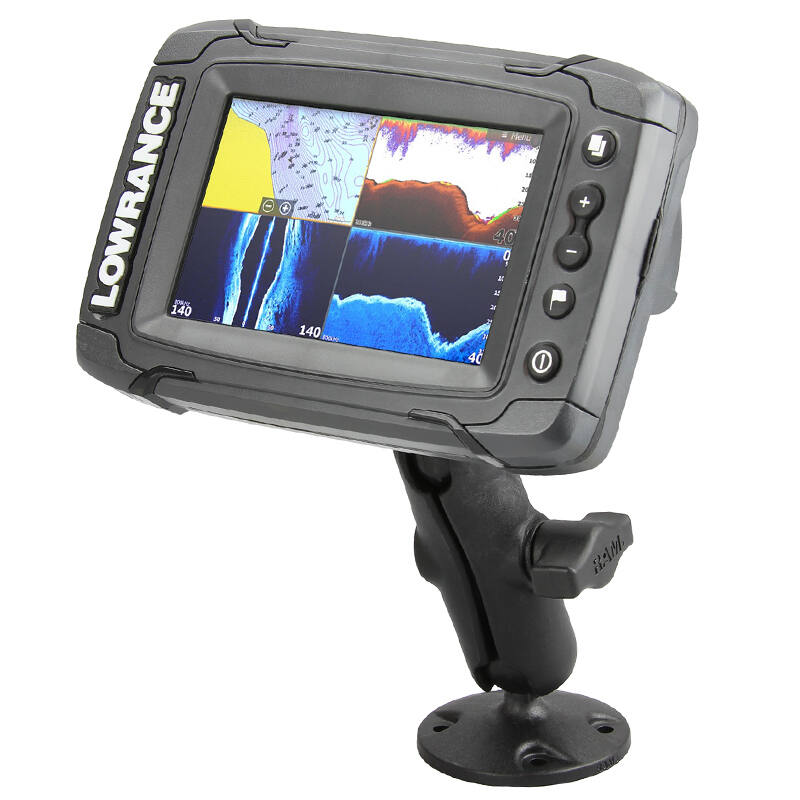

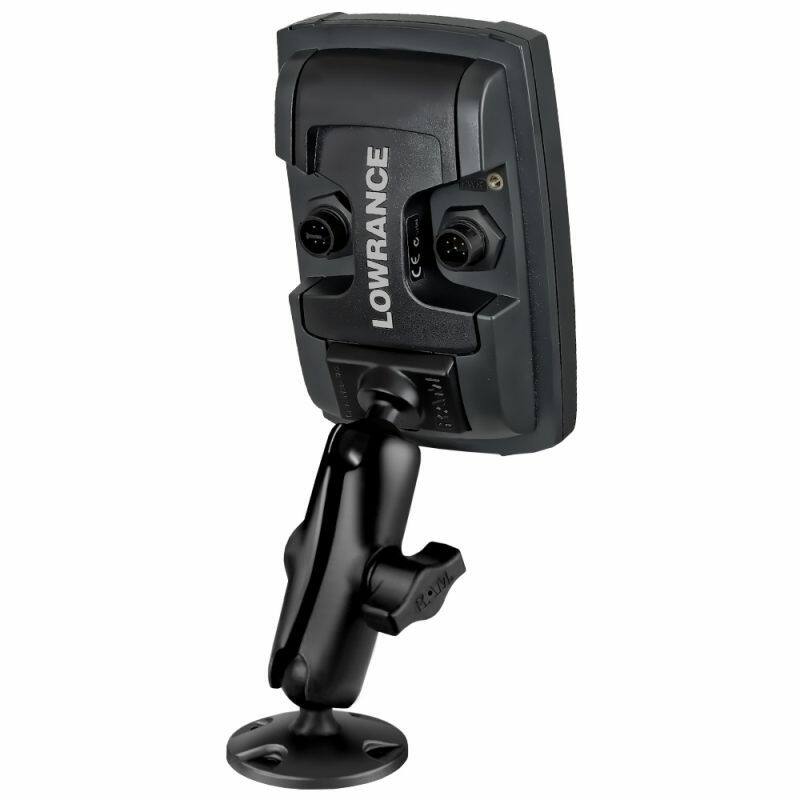

RAP-B-101U-LO11 Composite Double Ball Mount – Lowrance Elite Series & Mark-4

The RAP-B-101U-LO11 is a light-use, drill-down mount for Lowrance Elite series and Mark-4 fishfinders, combining a quick-release adapter, double socket arm, and round AMPS base.

Key Features

• Complete flat-surface, drill-down mounting solution, 127mm (5") overall height
• Quick-release B-Size ball adapter lets you remove or transfer the fishfinder in seconds
• Medium-length B-Size double socket arm gives near-infinite adjustability
• High-strength composite construction
• Lifetime warranty

Compatible Devices

Lowrance

• Elite-3x
• Elite-3x DSI
• Elite-4
• Elite-4 DSI
• Elite-4 Gold
• Elite-4x
• Elite-4x DSI
• Elite-4m
• Mark-4

Dimensions & Specifications

• Overall height: 127mm (5")
• Arm overall length: 94mm (3.69"); socket-to-socket: 76mm (3")
• Material: high-strength composite
• Ball size: 1" rubber ball, B-Size
• Weight: 181g (0.4 lbs)
• Weight capacity — standard use: 907g (2 lbs); heavy-duty use: 454g (1 lb)

Components

• RAP-B-201U composite double socket arm

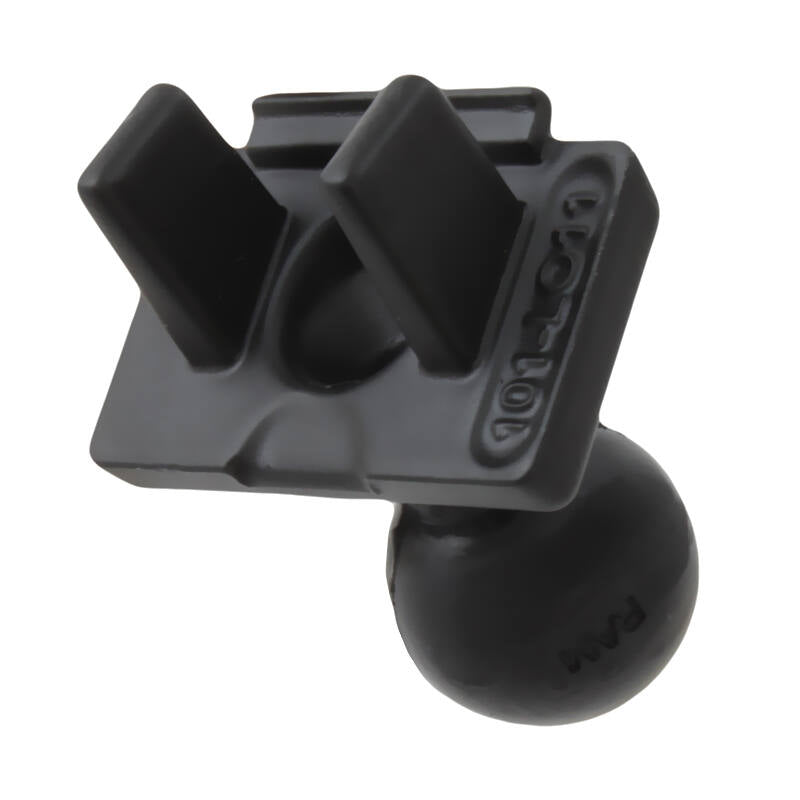

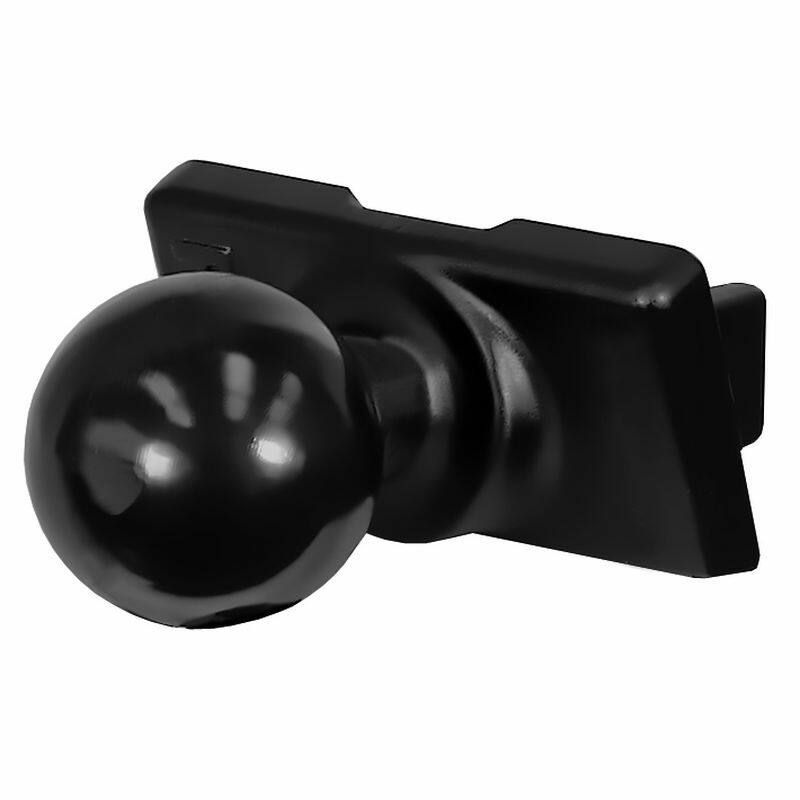

• RAM-B-202U-LO11 quick-release Lowrance adapter

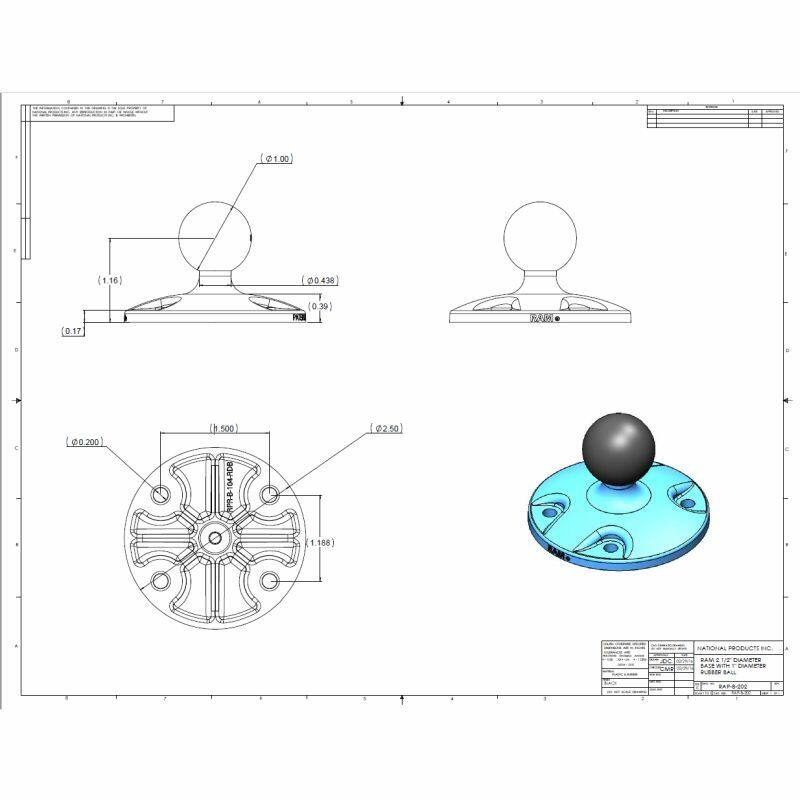

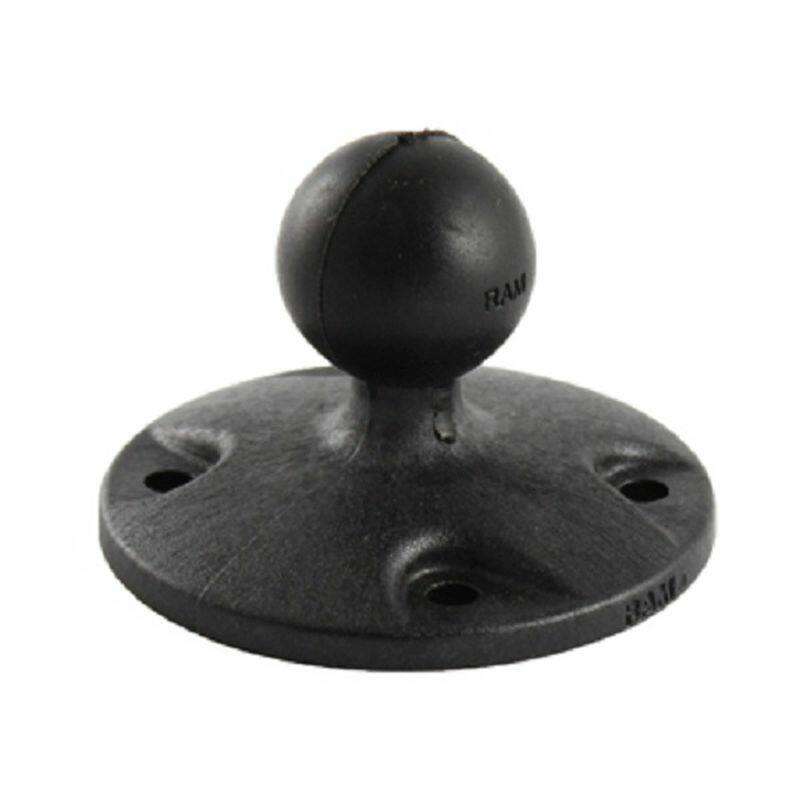

• RAP-B-202U 2.5" composite round base

FAQs

What if I need a heavier-duty version? Look at the RAM-101-LO11 or RAP-101U-LO11, which use a larger 1.5" C-Size ball for rugged use.

How fast does this ship? If this item shows as being in stock then it will usually ship from our Auckland warehouse in 1 business day. If it says to enquire then please get in touch as we may be able to get this back in for you.
