RAM Mounts

RAM Marine Lowrance Electronics Base - Hook / Reveal - "HEAVY DUTY"

RAM Marine Lowrance Electronics Base - Hook / Reveal - "HEAVY DUTY"

SKU:RAM-101-LO12-v

Regular price $144.30 NZD
Regular price Sale price $144.30 NZD
Sale Sold out
Tax included. Shipping calculated at checkout.
View full details

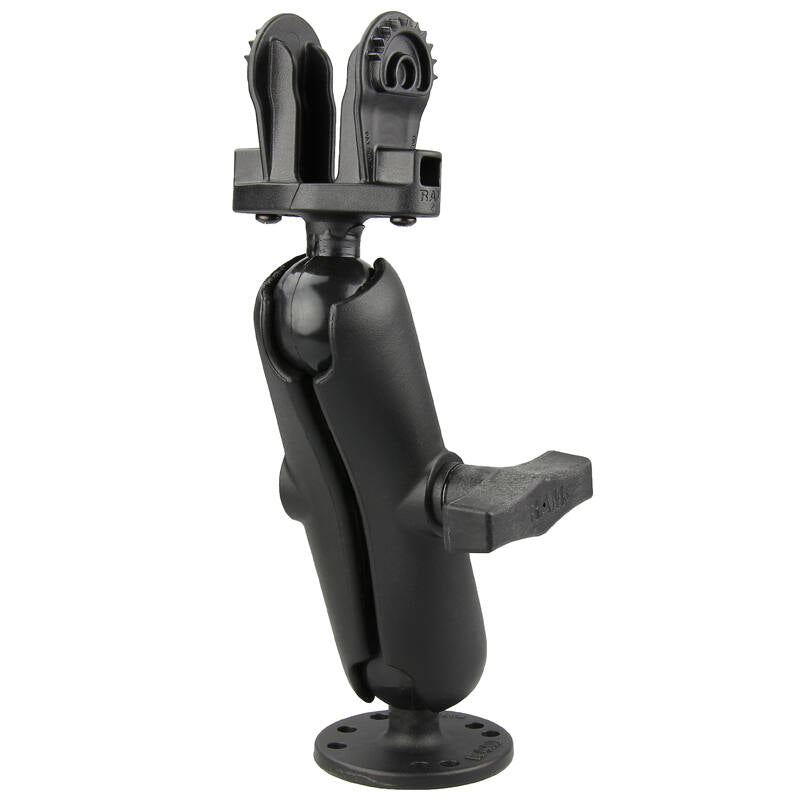

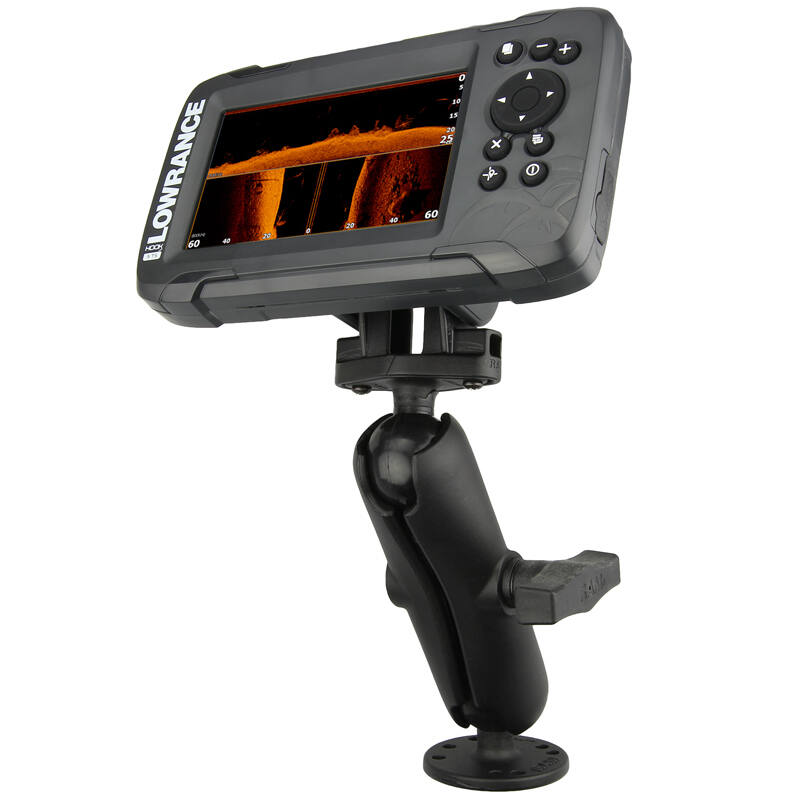

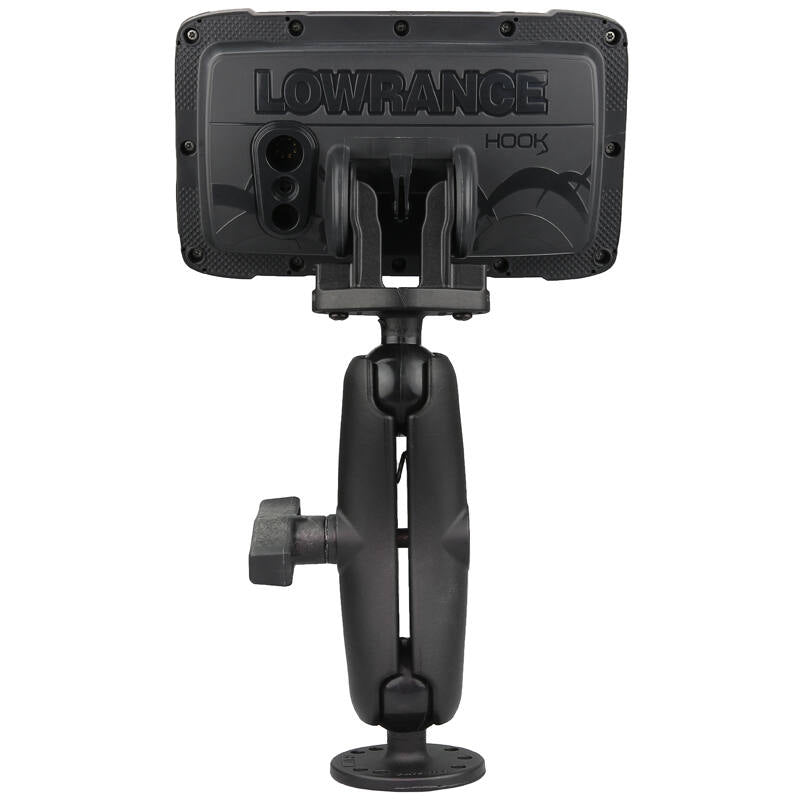

RAM-101-LO12 RAM® Double Ball Mount for Lowrance Hook² & Reveal Series

Features

* A complete bolt-on heavy duty mount for Lowrance fishfinders

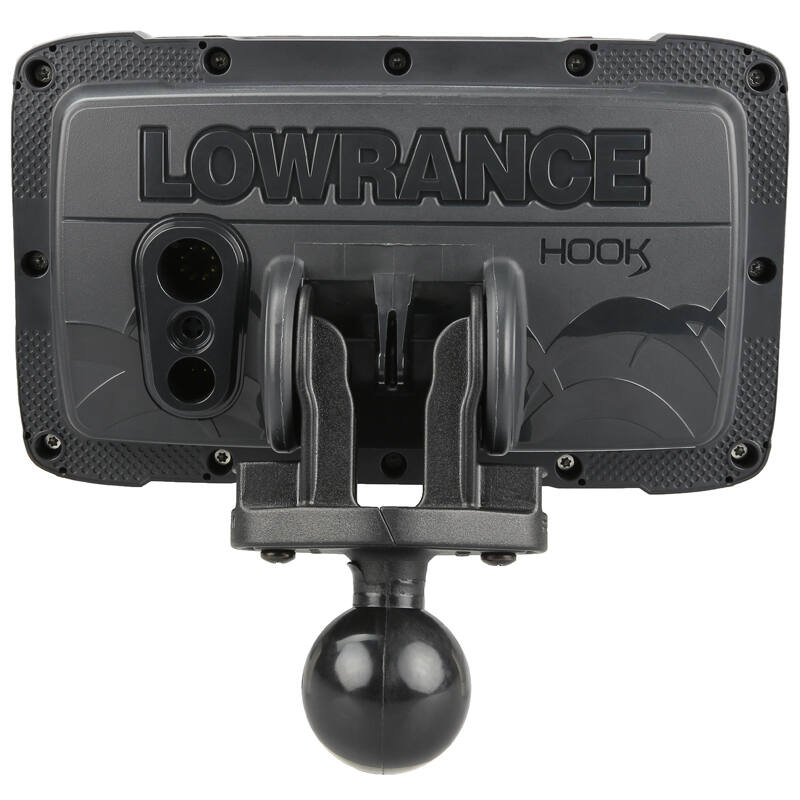

* Adaptor inserts directly to the back of Lowrance Hook² & Reveal Series
* Made from Powder Coated Marine Grade Aluminium for long life in harsh environments
* The 63.5mm round base plate provides a stable drill down mount on any flat surface

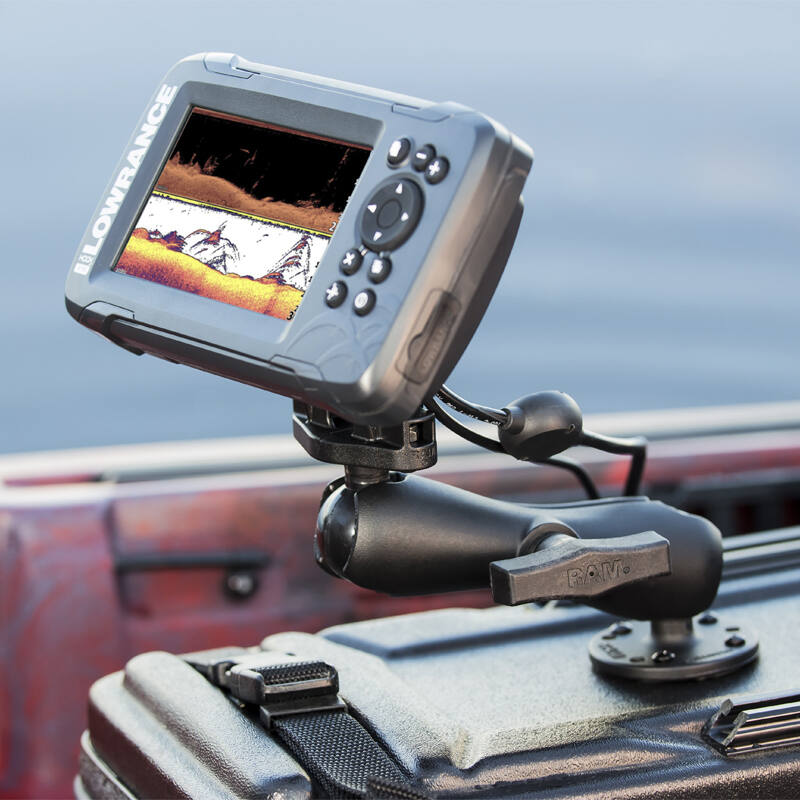

Designed for heavy duty fresh water use, this C size (1.5”) aluminium drill-down kit for the Lowrance Reveal / Hook² allows users to swap out the factory mounting solution with a RAM® Mounts solution. Simply attach the included adapter to the Lowrance Hook² and you’re ready to connect the double socket arm and round base featuring the AMPS hole pattern. Made of high strength composite and powder coated marine grade aluminium, this kit is designed to keep your Hook² secure and stable in rugged environments on your boat, kayak or inflatable.

For a light duty version see the RAM-B-101-LO12

Compatible Devices

Lowrance
Hook Reveal 5 Series
Hook²-4x
Hook²-5


Hardware Included
Assembly Hardware

Product Dimensions

Overall Height:
186.7mm (7.35")

Socket-to-Socket Length:
118.4 (4.66")

Hole Pattern
4-Hole AMPS:
1.181" x 1.496"
3-Hole 120-Degree:
1.812" Diameter

Plate Size
2.5" Diameter

Ball/Socket Size
C Size (1.5")

Weight Capacity
Standard Use:
1.814kg (4 lbs)
Heavy-Duty Use:
1.36kg (3 lbs)


Materials
Marine-grade aluminium
High strength composite

Weight
544 grams (1.2 lbs.)

Components:
RAM-201U Standard Double Socket Arm for 1.5" Balls

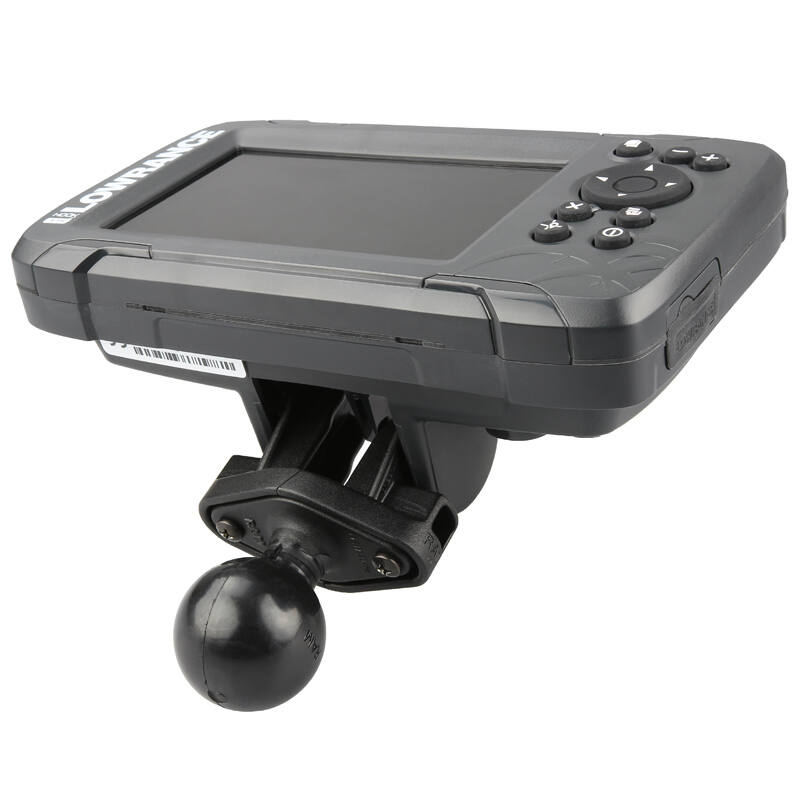

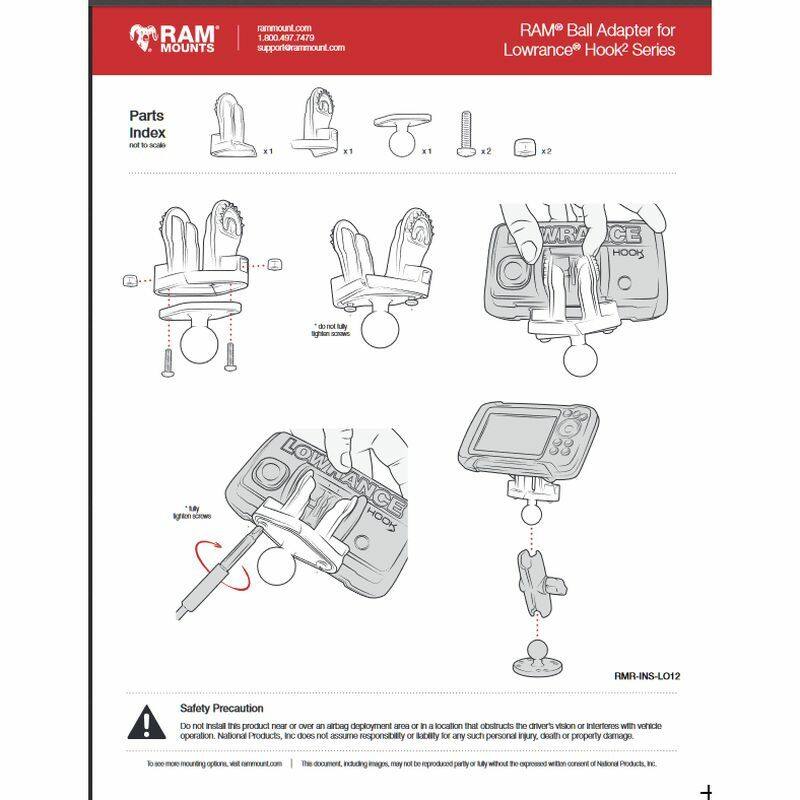

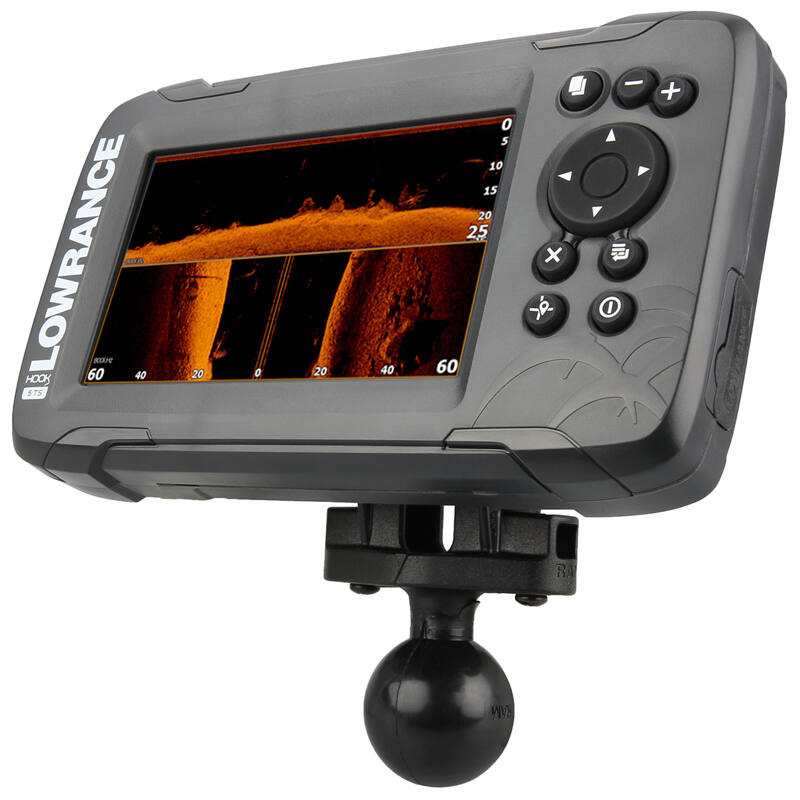

RAM-202-LO12 Ball Adapter for Lowrance Hook and Reveal Series

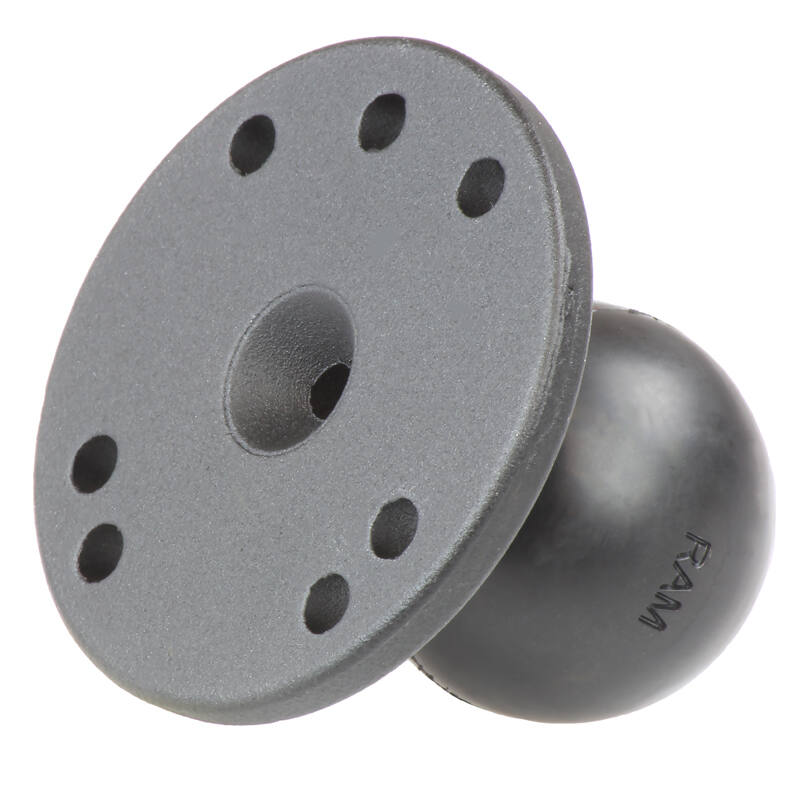

RAM-202U 2.5" / 63mm DIA. BASE 1.5" Ball
