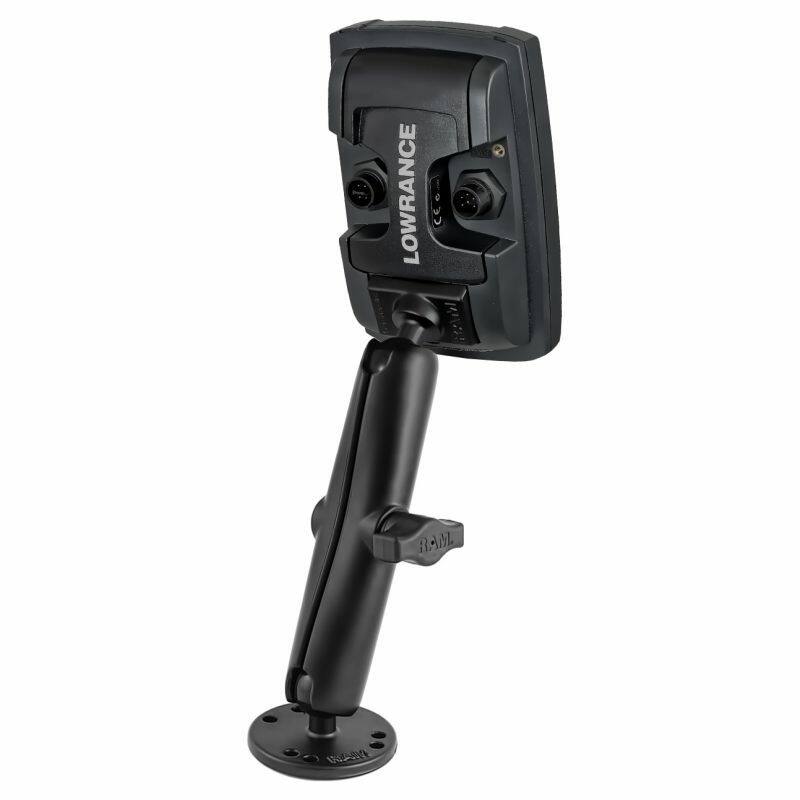

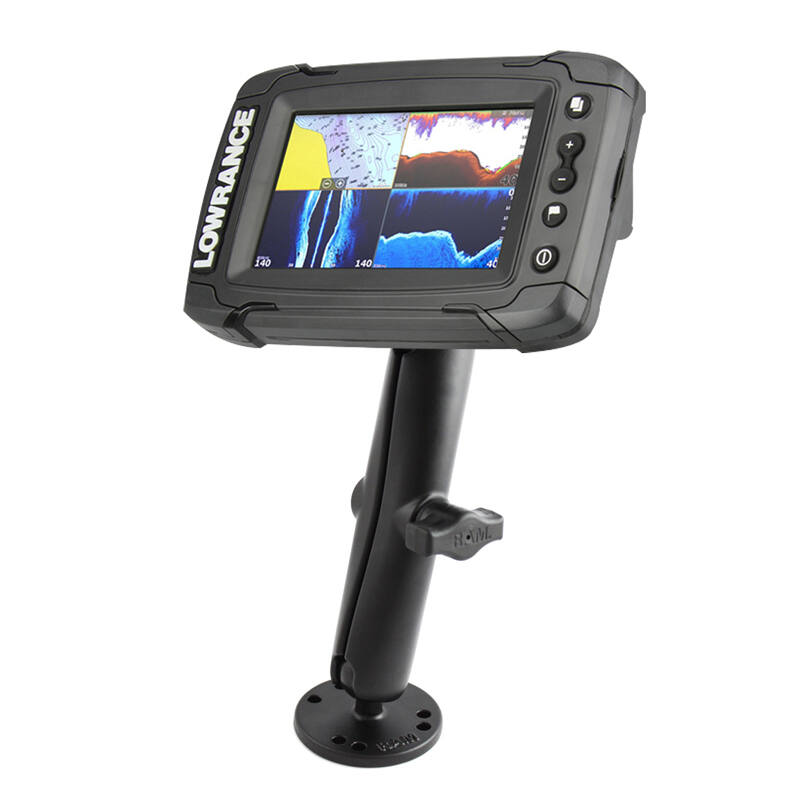

RAM-B-101-C-LO11 RAM® Double Ball Mount for Lowrance Elite-4 & Mark-4
Features
* Complete flat surface, drill-down mounting solution for the Lowrance Elite-4 and Mark-4 series with an overall height of 185mm
* Includes quick release B size ball adapter for Lowrance marine electronics, long length B size double socket arm, and round plate with 1" B size ball
* RAM® Mounts ball and socket technology allows for near-infinite adjustability
* Made of Powder Coated Marine Grade Aluminium for durability and reliability in the most demanding environments
* Backed by a lifetime warranty

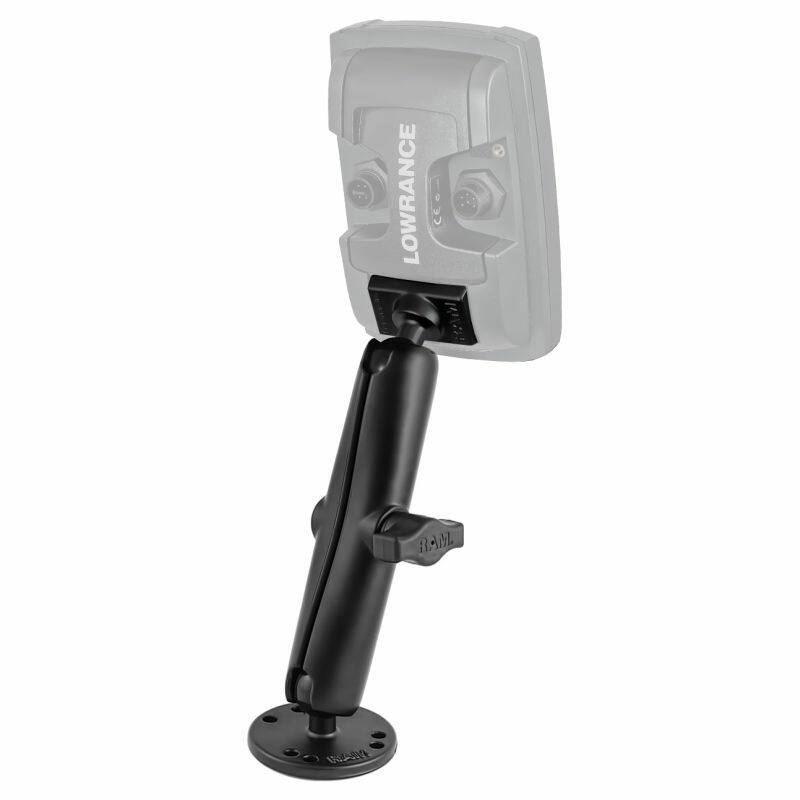

The RAM-B-101-C-LO11 consists of a 62mm diameter round base with the universal AMPS hole pattern, LONG double alloy socket arm and adaptor base that inserts directly to the back of Lowrance Fishfinders.
The adaptor serves as a quick release mechanism, allowing you to remove or transfer your Fishfinder in seconds. Designed into the mount is a 1" diameter patented rubber ball and socket system with adjustment points at both socket ends of the arm; this with RAM's rubber ball and socket technology allows for almost infinite adjustment and perfect viewing angles.
Compatible Devices
Lowrance Elite-4
Lowrance Elite-4 DSI
Lowrance Elite-4 Gold
Lowrance Elite-4x
Lowrance Elite-4x DSI
Lowrance Elite-4m
Lowrance Mark-4
Note:
RAM recommends this mount for "Light Use" mounting applications
Overall Height:
185.7mm (7.3125")
Arm Dimensions:
Overall Length:
152 mm (6”)
Socket-To-Socket Length:
134 mm (5.25”)
Material:
Powder Coated Marine Grade Aluminium
Ball Size:
1" Rubber "B" Ball Size
Round Plate Hole Patterns
4-Hole AMPS:
1.181" x 1.496" (30mm x 38mm)
3-Hole AMPS 120- Degree
1.812” (46.0mm)
Round PLate Dimensions
62mm (2.5")
Weight:
408 grams (0.9 lbs)
WEIGHT CAPACITY
Standard Use:
907 grams (2 lbs)
Heavy-Duty Use:
454 grams (1 lb)
Components:

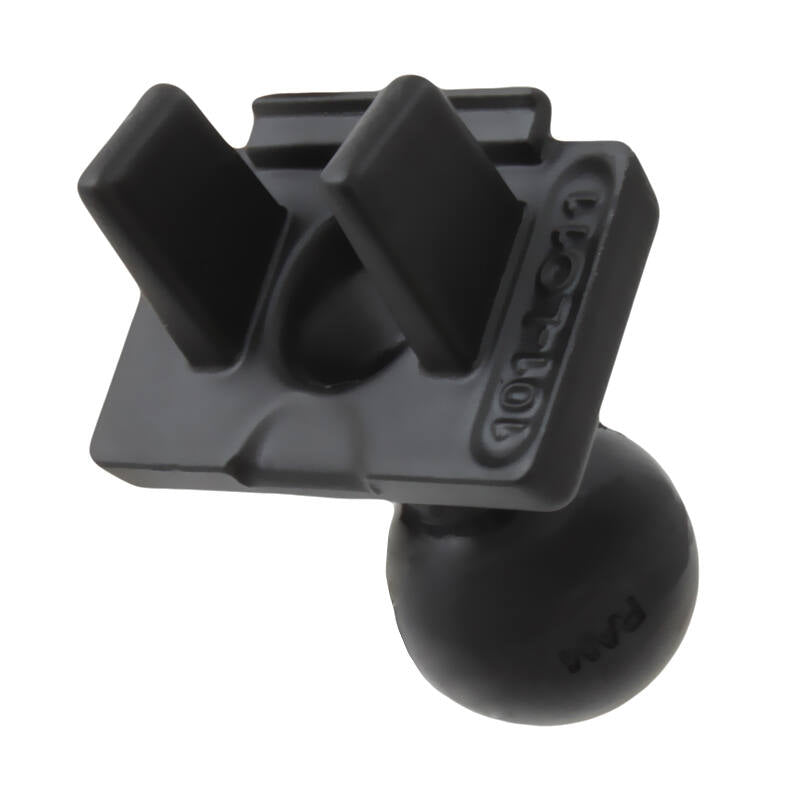

RAM-B-202U-LO11 RAM QUICK RELEASE ELITE.3 / 4
RAM-B-201U-C RAM DBL SOCKET ARM B BALL C LENGTH
RAM-B-202U RAM 62mm DIA.BASE WITH 1" BALL
